Outdoor controller enclosure: heat, glands, fuses and service loops

CHECKPOINT / 01

Treat the complete assembly as the environmental boundary

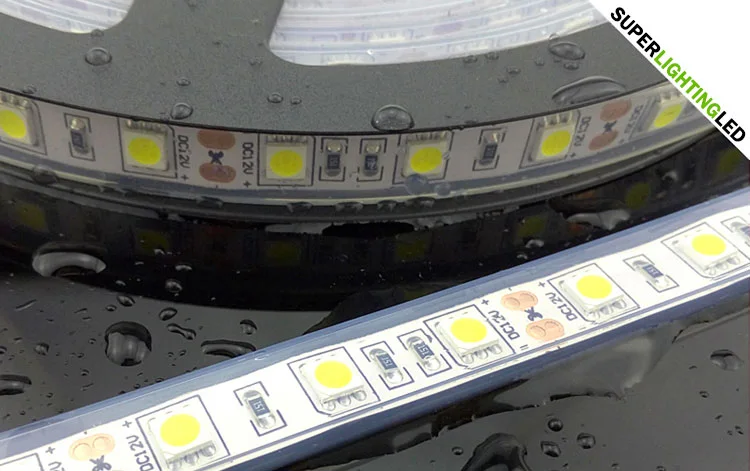

The enclosure, cover, gasket, cable glands, conduit, connectors, end treatments and mounting orientation form one water and dust path. Start with the direction of rain, splash and runoff, then identify every place water can enter, collect or travel along a cable. An enclosure IP marking describes a tested enclosure condition; it does not automatically transfer to an installed cable entry, open connector or complete lighting system.

• Record the exact enclosure, cover and gasket configuration.
• Review cable entries, conduit and connector sealing as part of the same boundary.
• Do not use a box rating as proof of immersion suitability, local code compliance or system certification.

CHECKPOINT / 02

Route cables with a controlled entry and strain path

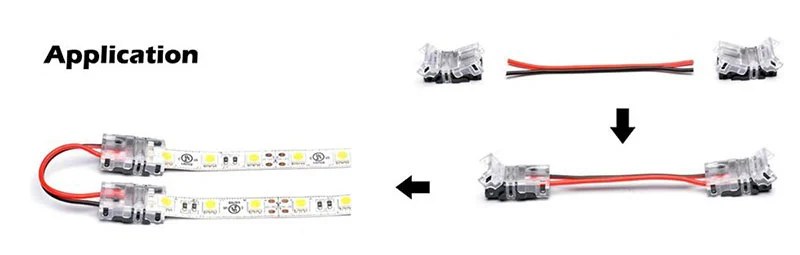

Size each gland or entry component for the actual cable diameter, jacket and bend radius. Provide strain relief so a pulled or vibrating cable does not load the terminal, seal or circuit board. Use a drip loop and orient the entry to shed water where the installation allows it. Keep connectors, fuses and service disconnects reachable without exposing the working parts to avoidable weather during routine maintenance.

• Pull-test each installed cable entry before closing the finish.
• Keep a service loop without forcing a tight bend against the gland.
• Label both ends of every power and data cable before the enclosure is mounted.

CHECKPOINT / 03

Balance heat, condensation and protection

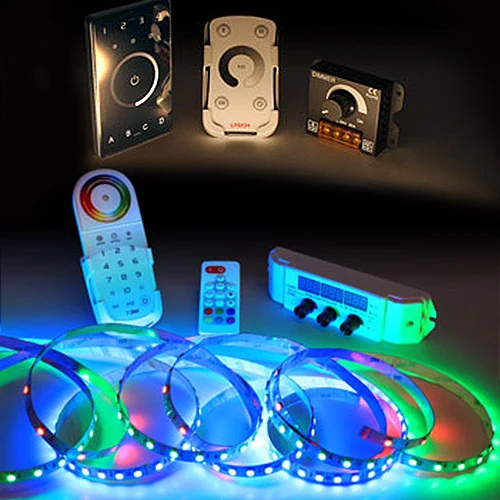

A sealed enclosure can slow water entry while also trapping heat from a driver, controller or fuse. Estimate the real load, ambient range, sun exposure and service temperature, then document the thermal path through the enclosure, mounting plate or approved ventilation component. Temperature cycling can also create condensation; a vent, drain or membrane changes the environmental boundary and must be selected for the exact enclosure and exposure rather than added as an afterthought.

• Measure the controller and driver under the highest planned sustained load.
• Provide shade or a heat path when the enclosure is exposed to direct sun.
• Do not drill an unreviewed vent or drain into a rated enclosure to solve condensation.

CHECKPOINT / 04

Separate mains, low voltage and protected branches

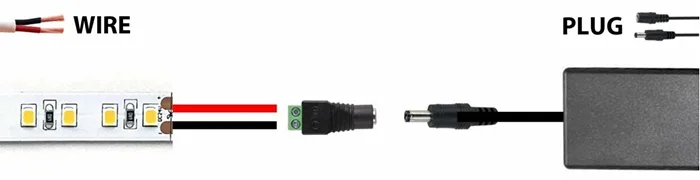

Keep mains conductors, low-voltage output wiring and data wiring physically organized according to the applicable installation rules and the equipment instructions. Place the required isolation and branch protection where the actual fault path is controlled; a large upstream supply does not protect a smaller cable, connector or distribution branch. Use a common low-voltage reference only where the selected data path requires it, and never infer wiring safety from a connector shape or controller label.

• Use a service disconnect and clearly identify the mains boundary.
• Size each fuse and cable for its own branch and fault path.
• Leave enough separation and access for inspection, replacement and safe testing.

CHECKPOINT / 05

Commission the enclosure and leave a replacement path

Before handoff, inspect the seal and entries, verify polarity and continuity, test each branch at the intended load, measure voltage at the farthest light, and record controller and driver temperatures after stabilization. Test restart, loss of data, fuse operation and recovery after power returns. Leave a documented route to replace the controller, fuse, connector or cable without dismantling the whole outdoor finish, and store a photo of the closed installation with labels visible.

• Record load, ambient condition, measured temperature and far-end voltage.
• Keep a local service mode or manual fallback for fault isolation.
• Document the replacement sequence, spare parts and the exact installed configuration.

inspect -> continuity -> polarity -> load_test
measure: far_end_voltage + enclosure_temp + driver_temp
recover: data_loss -> power_cycle -> fuse_branch -> service_handoff

FAILURE MODES

What usually goes wrong

• A cable gland seals the hole but the cable still pulls on a terminal, seal or controller board.
• The enclosure rating is published without checking the installed cable diameter, conduit, connector or mounting orientation.
• Heat and condensation are ignored because the box is described as waterproof.
• Mains, low-voltage power and data are crowded into one space without a documented separation or fault boundary.
• The first test passes, but no one records far-end voltage, stabilized temperature, fuse behavior or a field replacement path.

TECHNICAL BASIS / VERSION

Keep the decision current

This guide is maintained as a versioned technical record. Recheck the current protocol documentation and the exact product revision before using it in a production installation.
