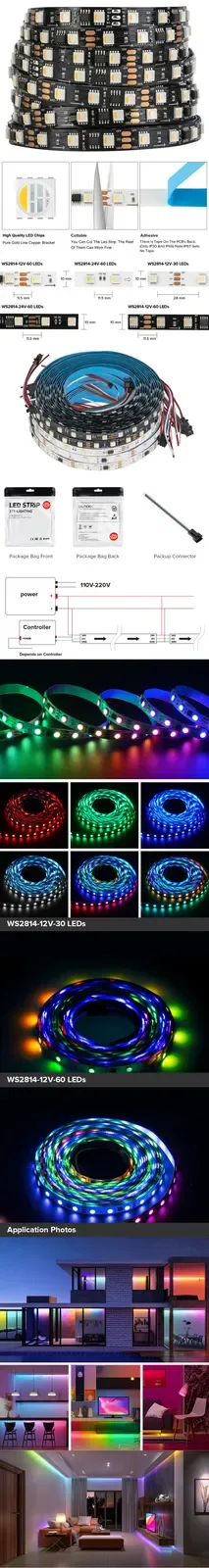

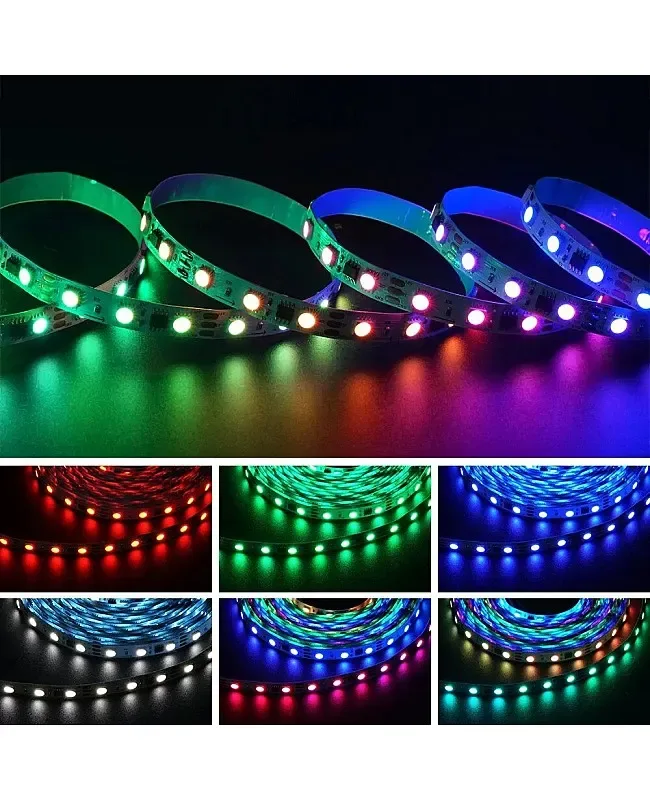

24 V WS2814 RGBW addressable LED strip

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The WS2814 RGBIC LED strips utilize RGBW 5050 SMD LEDs as their light source. The LED includes red, green, blue, and white LED Chips, 30 LEDs or 60 LEDs per meter available. The LEDs are mounted on a dual-layer PCB board, which is available in both white and black colors. The RGBIC LED strips utilize WS2814 smart ICs to control the LEDs, with one IC capable of controlling three LEDs simultaneously, enabling a 256-brightness display and a 24-bit color display. Every 3 LEDs can be cut off.
• Working Voltage: DC12V/DC24V

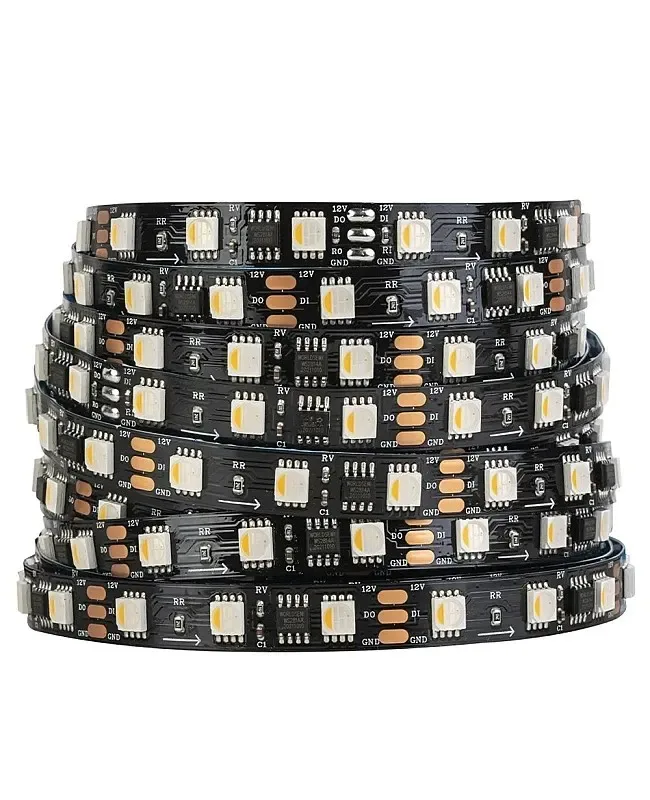

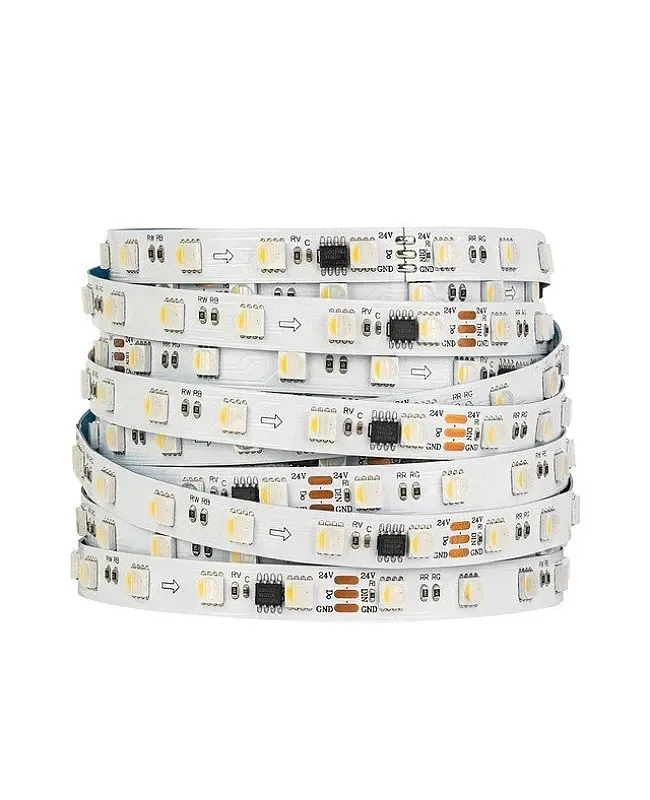

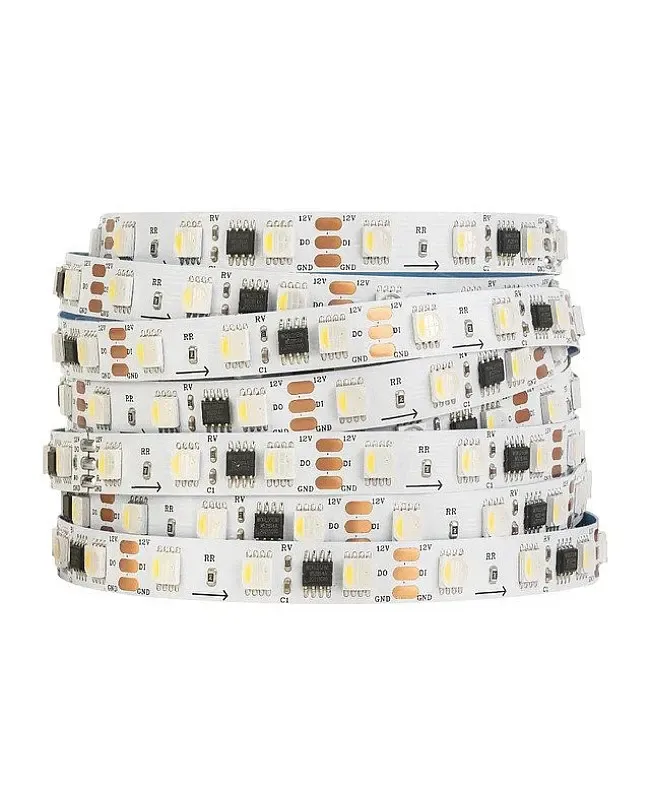

• PCB Board Colors: White, Black
• Length: 5 Meters/Rell(16.4FT)

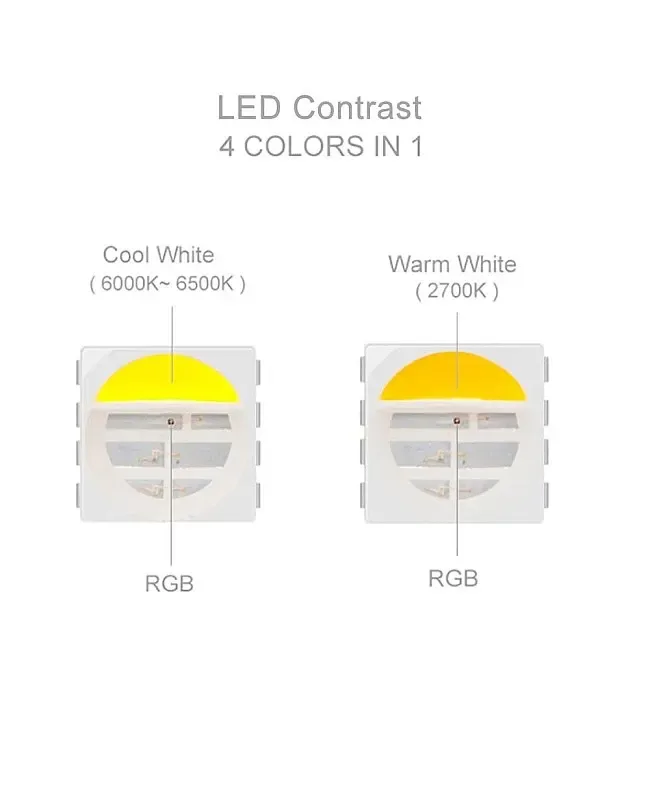

• LED Type: 5050 SMD LEDs(RGB+Warm White(2700K-3000K) RGB+Cool White(6000K-6500K))

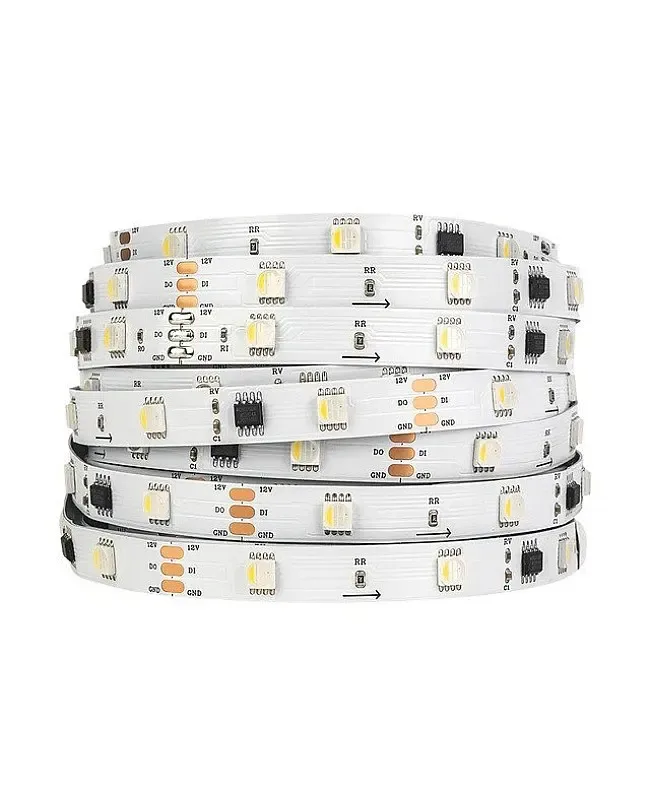

• LED Quantity: 30LEDs/M, 60LEDs/M
• IC Quantity: 10PCS/M(30LEDs/M), 20PCS/M(60LEDs/M)
• Colors: Dreamcolor 24-Bit

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V / 12 V
• Light engine: RGBW
• WLED chip: WS2814
• LumaCircuit model: LC-STR-64UPW5
• Working Voltage: DC12V/DC24V
• PCB Board Colors: White, Black
• Width: 10mm
• Length: 5 Meters/Rell(16.4FT)
• LED Chip: San An
• LED Type: 5050 SMD LEDs(RGB+Warm White(2700K-3000K) RGB+Cool White(6000K-6500K))
• LED Quantity: 30LEDs/M, 60LEDs/M
• Power: 0.4W/LED

Control and installation

Use this product on the WLED ambient route. Match the controller to the listed WS2814 LED type, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The WS2814 RGBIC LED strips utilize RGBW 5050 SMD LEDs as their light source. The LED includes red, green, blue, and white LED Chips, 30 LEDs or 60 LEDs per meter available. The LEDs are mounted on a dual-layer PCB board, which is available in both white and black colors. The RGBIC LED strips utilize WS2814 smart ICs to control the LEDs, with one IC capable of controlling three LEDs simultaneously, enabling a 256-brightness display and a 24-bit color display. Every 3 LEDs can be cut off. There are two white products available, warm white and cool white. The presence of white can make the RGBIC LED Strips more perfect, more energy-efficient, and less heat-consuming. It can work with the Bluetooth Controller, Raspberry Pi 3, UNO and more to produce an RGB rainbow color, pure white light chasing, or pure white static effects. Both ends feature JST-SM connectors, allowing you to continue extending or cutting at either end. Three types of waterproof products are available: IP20 non-waterproof, IP65 coated waterproof, and IP67 silicone tube waterproof. The back of IP20 and IP65 models features double-sided adhesive tape, making it easy to remove the protector paper and stick it in place where you want to install it. IP67 products should use screws and clips to mount for indoor and outdoor applications. The installer can use the WS2814 RGBIC LED Strips to create LED screens and advertising Boards for Hotels, KTVs, Bars, Signs, Christmas displays, Or Weddings, etc.

Specifications

Model

Working Voltage: DC12V/DC24V

PCB Board Colors: White, Black

Width: 10mm

Length: 5 Meters/Rell(16.4FT)

LED Chip: San An

LED Type: 5050 SMD LEDs(RGB+Warm White(2700K-3000K) RGB+Cool White(6000K-6500K))

LED Quantity: 30LEDs/M, 60LEDs/M

IC Type: WS2814

Power: 0.4W/LED

IC Quantity: 10PCS/M(30LEDs/M), 20PCS/M(60LEDs/M)

Colors: Dreamcolor 24-Bit

Grayscale Levels: 256

View Angle: 120°

Waterproof Levels: IP20 Non-Waterproof, IP65 Coated Waterproof, IP67 Silicone Tube Waterproof

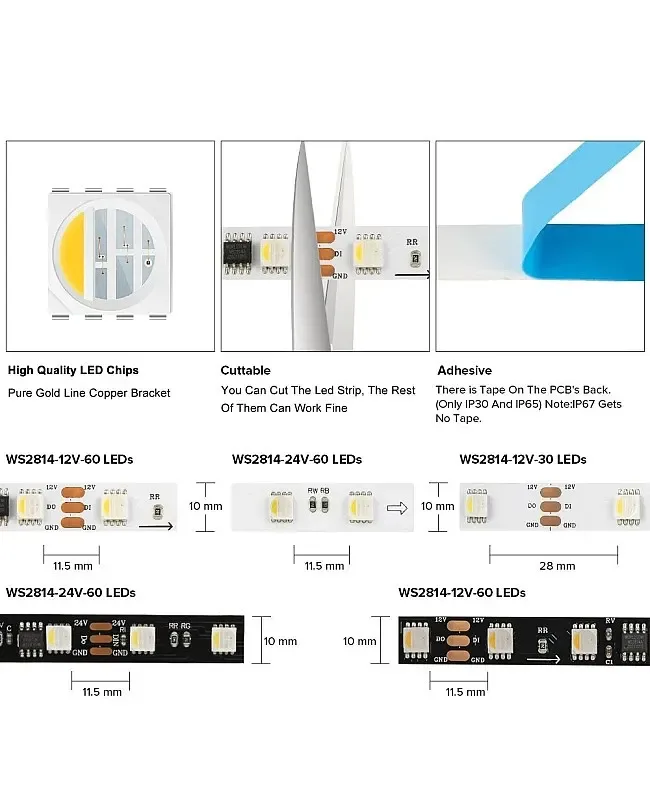

Minimum Cutting Length: Every 3 LEDs

Both Ends With 3-pin JST-SM Connectors

Working Temperature: -20℃-40℃

Includes

1 * WS2814 RGBIC LED Strips(16.4 FT/Reel)
