Product details

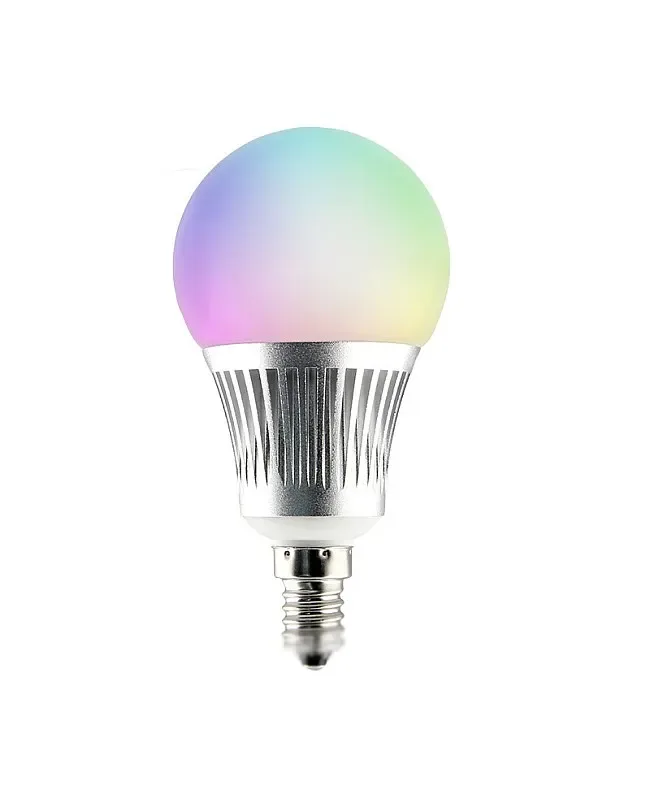

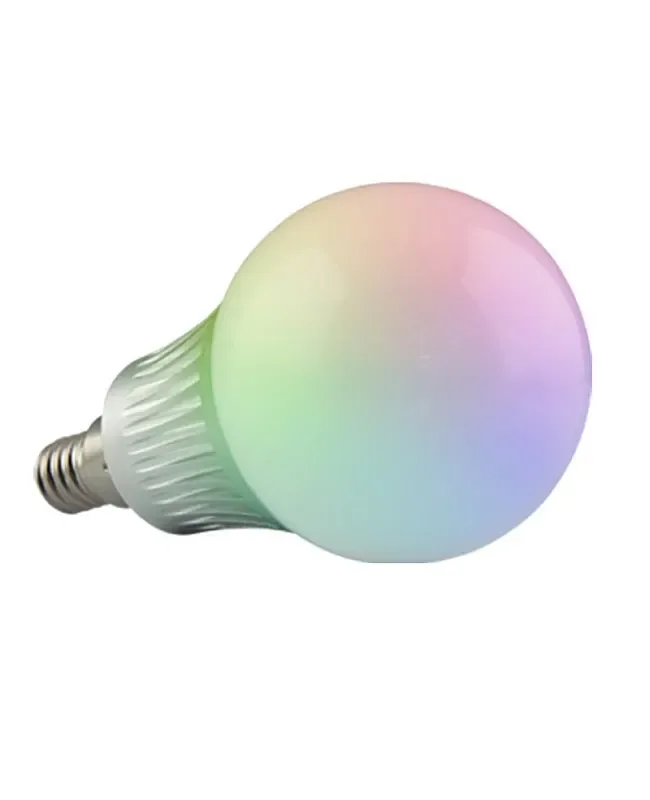

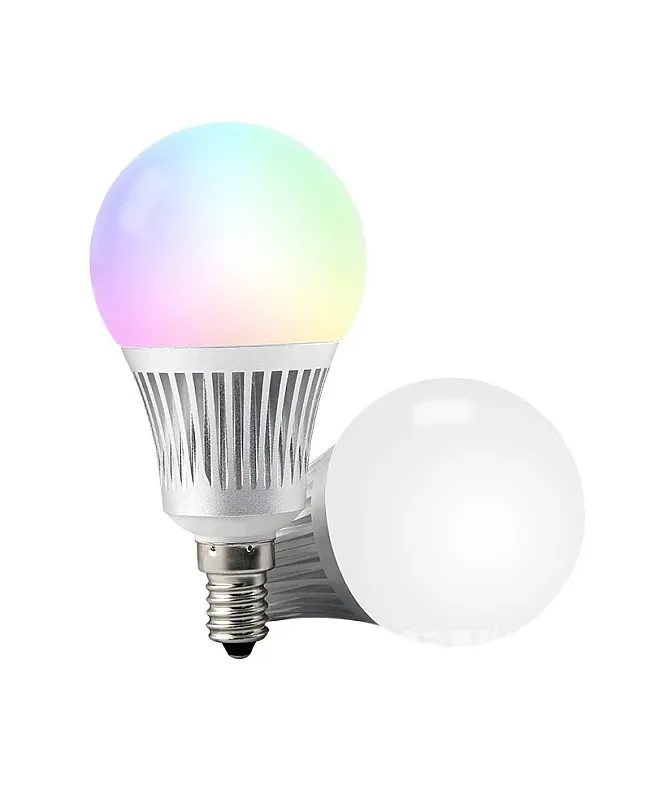

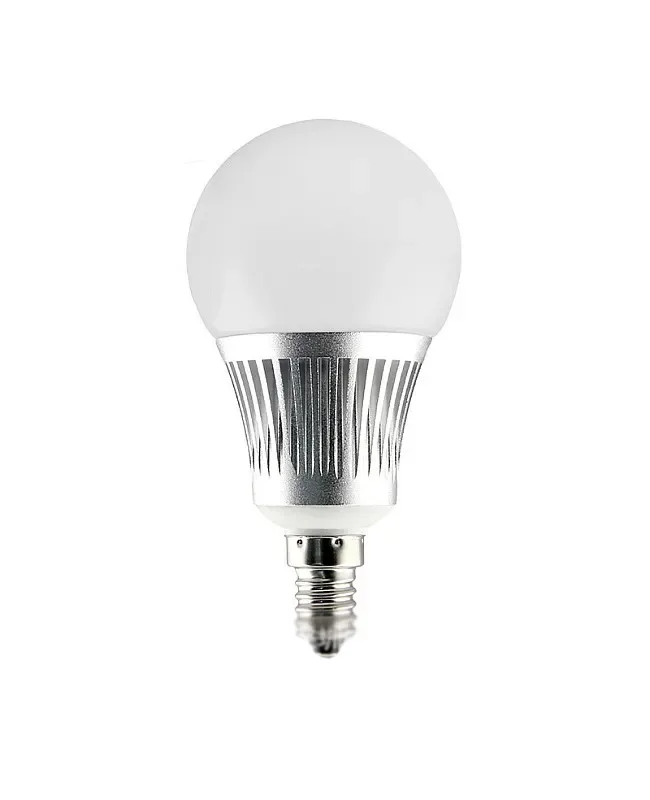

5W RGB CCT Smart Bulb
LumaCircuit offers 5W RGB CCT Smart Bulb as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Working Voltage: -240V, 50/60Hz Colors; RGB, RGB+Tunable White Color Temperature: 2700-6500K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Material: Aluminium + Acrylic
- Working Voltage: -240V, 50/60Hz
- Colors; RGB, RGB+Tunable White
- Color Temperature: 2700-6500K
- Luminous Efficiency: 90LM/W
- 16 Million Colors And Saturation Color
- 4G RF WIFI Remote Controllable T4,
- Color Temperature And Brightness Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- Material: Aluminium + Acrylic
- Size: Φ60*117mm
- Working Voltage: -240V, 50/60Hz
- Power: 5W
- Color Temperature: 2700-6500K
- CRI: >
- Beam Angle: 240°
- Control Distance: ≤30m
- 2.4G RF WIFI Remote Controllable: T4,
- IP Rating: Non-waterproof
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Material: Aluminium + Acrylic
Size: Φ60*117mm
Working Voltage: -240V, 50/60Hz
Power: 5W
Colors; RGB, RGB+Tunable White
Color Temperature: 2700-6500K
Luminous Flux: 450lm
Luminous Efficiency: 90LM/W
CRI: >
Base Type
Beam Angle: 240°
Control Distance: ≤30m
16 Million Colors And Saturation Color
4G RF WIFI Remote Controllable T4,
Color Temperature And Brightness Adjustable
Support Smart Phone APP And Third-Party Voice Control(WL- 2.4G Gateway Needed)
IP Rating: Non-waterproof
Dimmable: YES
Includes
1 * wireless controller Smart Bulb
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
