Product details
5W SMD LED MR16 Bulb
LumaCircuit offers 5W SMD LED MR16 Bulb as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Color available: Warm white(3000K),White(4000K),Cool white(6000K) Material: Die-cast aluminum Input Voltage: AC12V/DC12V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5W SMD LED MR16 bulbs have a patent aluminum shell and lens. It uses 2835 high-brightness SMD LEDs as a light source, working in DC or AC voltage, with better color rendering, low luminous decay, saving more than 80% of energy compared to a fluorescent lamp, no UV, no vibrations, without mercury, infrared light, and carbon dioxide output. They can be used in homes, hotels, showrooms, stores, schools, offices, supermarkets, and cabinets.
- Color available: Warm white(3000K),White(4000K),Cool white(6000K)
- Material: Die-cast aluminum
- Input Voltage: AC12V/DC12V

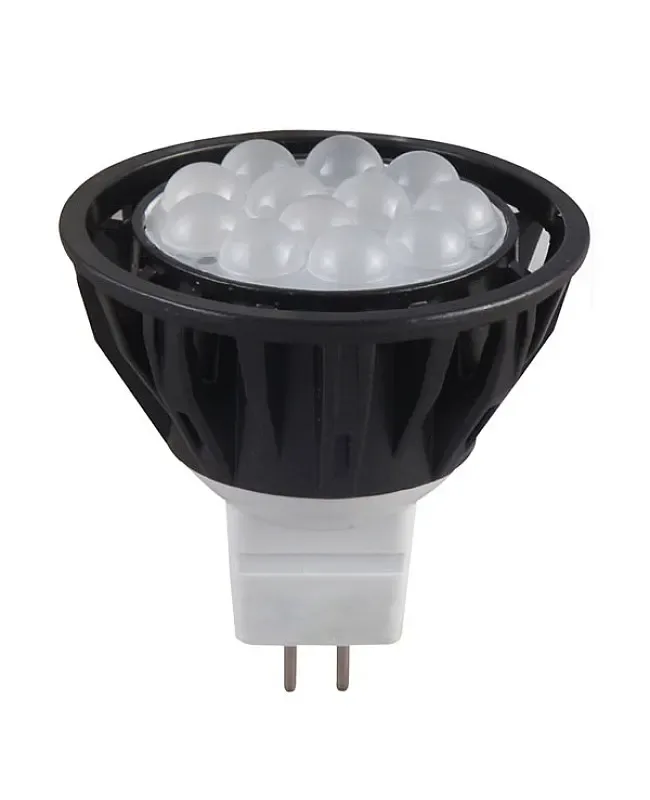

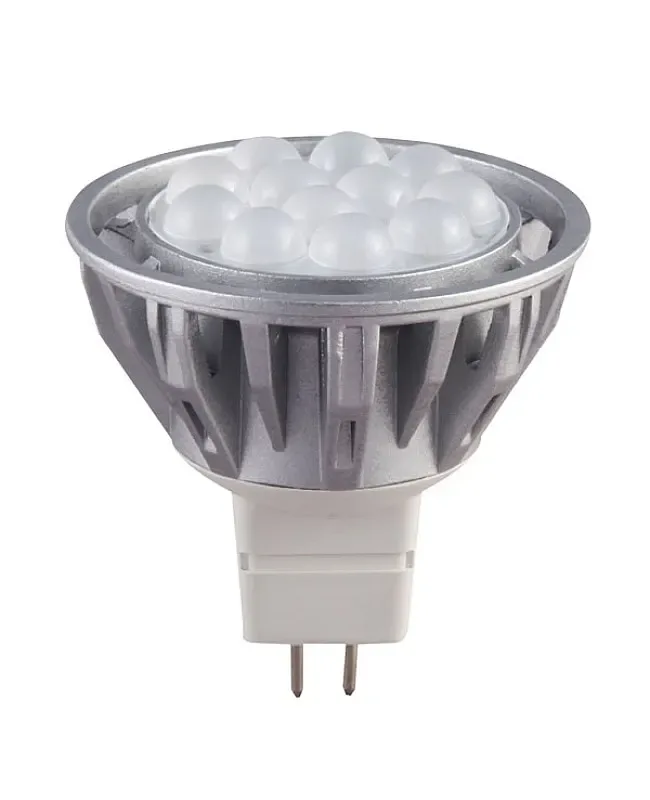

- Color of Shell: Silver, Black
- A production-ready bulb family with a replaceable Zigbee control path.
- The configured light engine is CCT.
- The recorded electrical input is 12 V.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-BLB-0X3CMF
- Color available: Warm white(3000K),White(4000K),Cool white(6000K)
- LED: 2835 SMD LED
- LED Quantity: 2

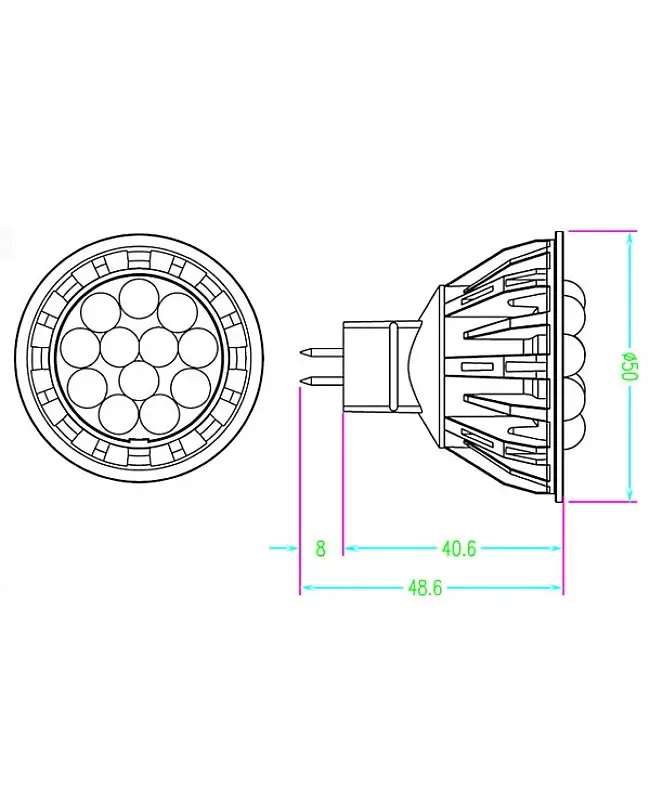

- Size: 50(D)*52mm(H)
- Material: Die-cast aluminum
- Input Voltage: AC12V/DC12V
- Input Power: 5W
- Power Factor: 1
- Lumens: 380-400LM
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 5W SMD LED MR16 bulbs have a patent aluminum shell and lens. It uses 2835 high-brightness SMD LEDs as a light source, working in DC or AC voltage, with better color rendering, low luminous decay, saving more than 80% of energy compared to a fluorescent lamp, no UV, no vibrations, without mercury, infrared light, and carbon dioxide output. They can be used in homes, hotels, showrooms, stores, schools, offices, supermarkets, and cabinets.
Specifications
Manufacturer
Color available: Warm white(3000K),White(4000K),Cool white(6000K)
LED: 2835 SMD LED
LED Quantity: 2
Size: 50(D)*52mm(H)
Material: Die-cast aluminum
Input Voltage: AC12V/DC12V
Dimmable: NO
Input Power: 5W
Operating Current
Power Factor: 1
Angle: 50°
Lumens: 380-400LM
Base: MR16
Lens: YES
Color of Shell: Silver, Black
1 * LED MR16 bulb
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
