MR2 Mini 2 In 1 144W Low Voltage Dimmer
LumaCircuit offers MR2 Mini 2 In 1 144W Low Voltage Dimmer as a configurable bulb for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 78.4*22.3*11mm(L*W*H) 2 In 1 Design For Single-Color And Dual White LED Lights Brightness, Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

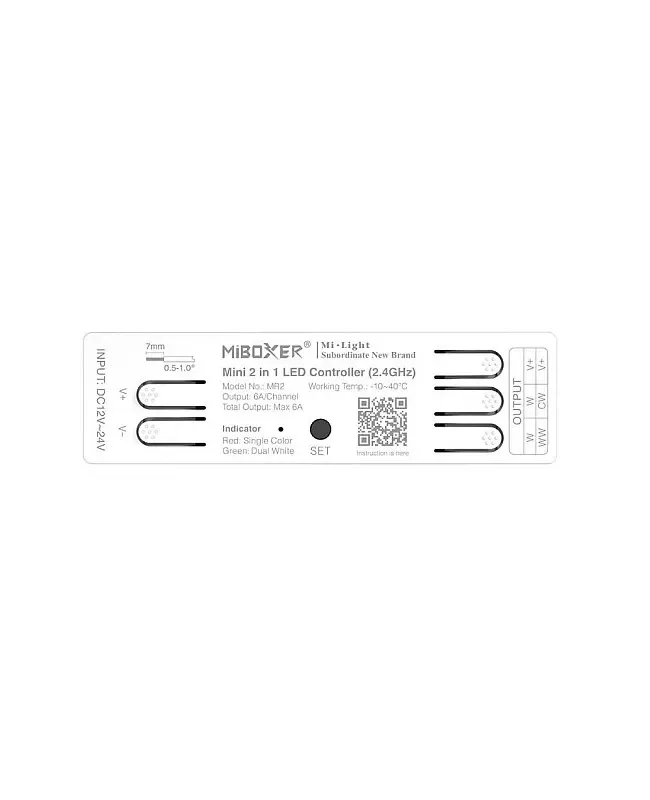

- The wireless controller MR2 low-voltage dimmer features a 2-in-1 design compatible with both single-color and dual-white LED lights. There is a physical button on the controller that the installer can press to switch the output mode; the indicator light will change color to indicate the selected output mode. Its mini-size and compact structure allow it to be placed in a small or tight location for indoor projects.

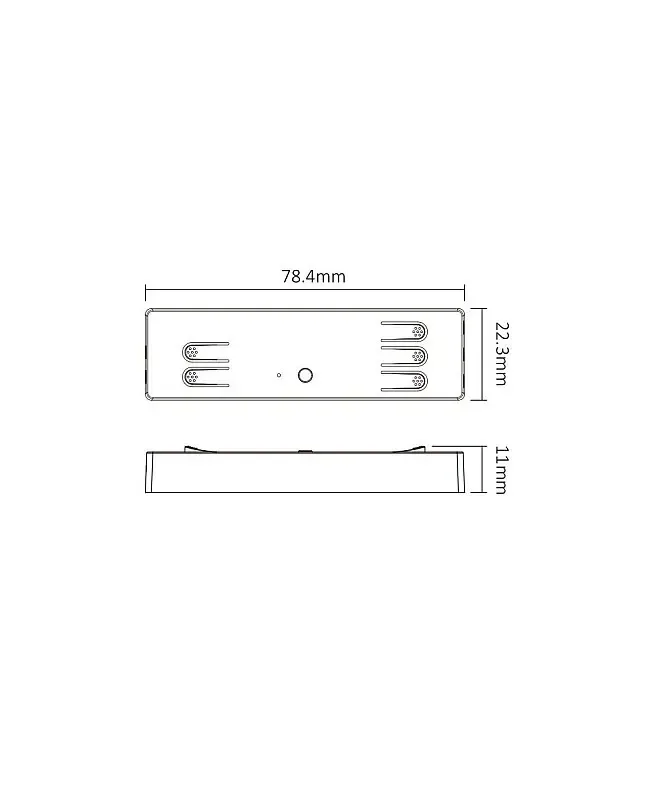

- Size: 78.4*22.3*11mm(L*W*H)
- 2 In 1 Design For Single-Color And Dual White LED Lights
- Brightness, Color Temperature Adjustable
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
- Output Type: Constant Voltage Control Signal: 2. RF
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- LumaCircuit model: LC-BLB-B9E3MX
- Size: 78.4*22.3*11mm(L*W*H)
- Input Voltage: -24V
- Output Current: Max 6A
- Output Power: 144W
- Output Type: Constant Voltage Control Signal: 2. RF
- Control Distance: ≤30M
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- Dimensions found: 78.4x22.3x11mm / 11mm / 30M
- Model: MR2
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

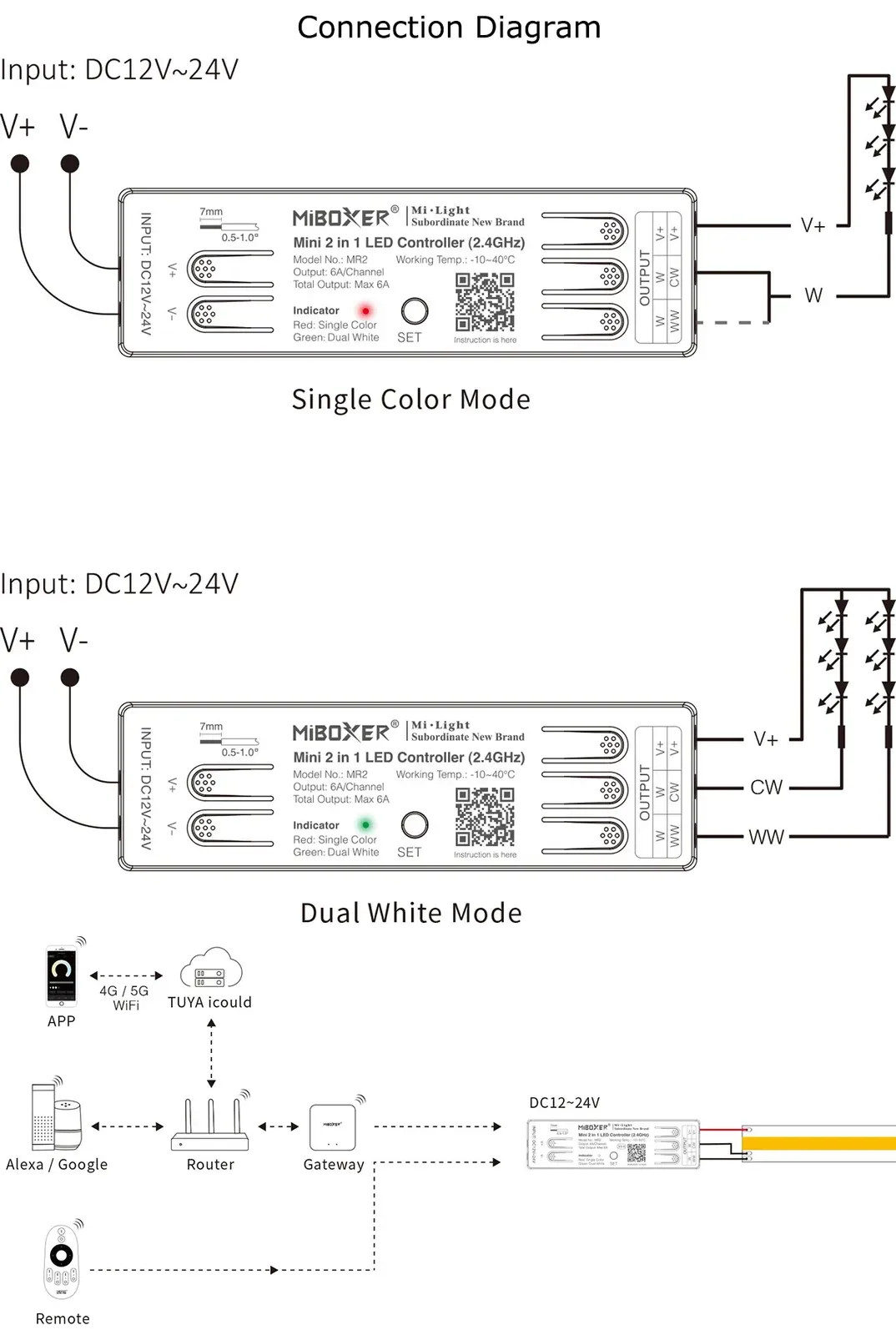

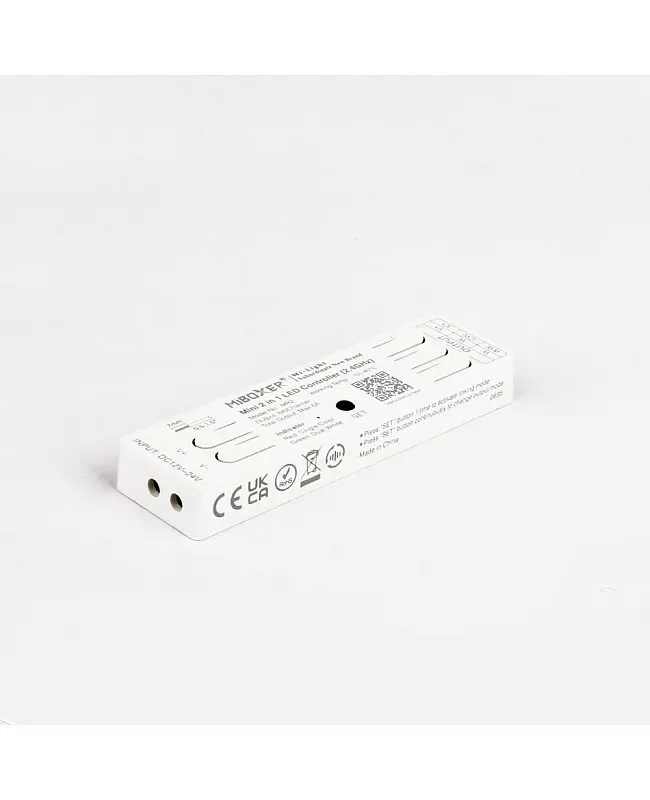

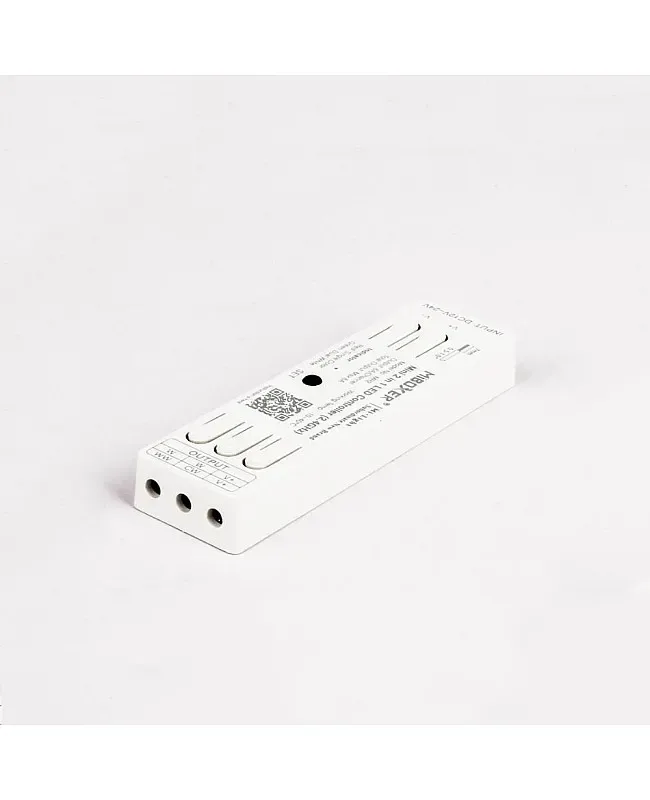

The wireless controller MR2 low-voltage dimmer features a 2-in-1 design compatible with both single-color and dual-white LED lights. There is a physical button on the controller that the installer can press to switch the output mode; the indicator light will change color to indicate the selected output mode. Its mini-size and compact structure allow it to be placed in a small or tight location for indoor projects. It utilizes 2.4G wireless transmission and remote control technology, featuring fast transmission, a stable signal, and anti-interference capabilities. A 2.4G remote control allows for adjusting brightness and color temperature for various scenes. 4096 levels of smooth dimming are available, with a minimum brightness of 0.1%. After pairing with a 2.4G gateway, it can be controlled by smartphone apps or third-party voice commands. The 12V low-voltage light dimmer forwards the remote control signal to another controller within 30 meters, making the remote control distance virtually limitless, and all controllers will work in sync.
Specifications
Type: Mini LED Dimmer
Model: MR2
Size: 78.4*22.3*11mm(L*W*H)
Input Voltage: -24V
Output Current: Max 6A
Output Power: 144W
2 In 1 Design For Single-Color And Dual White LED Lights
Brightness, Color Temperature Adjustable
Dimming Grayscale: 4096 Levels
Mini Brightness: 0.1%
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Output Type: Constant Voltage Control Signal: 2. RF
Control Distance: ≤30M
Support " Tuya Smart" APP Control (2.4G Gateway Needed)
Support Third-party Voice Control: Amazon Alexa, Google Assistant, Yandex Alice, etc (2.4G Gateway Needed)
Auto-forwarding(Remote Only)
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
MR2 Mini 12-24V Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
