Product details

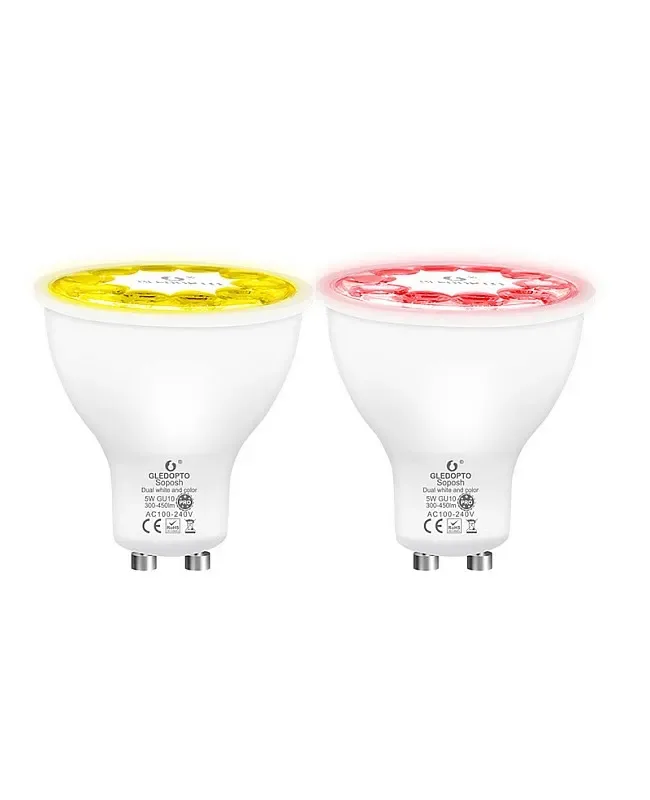

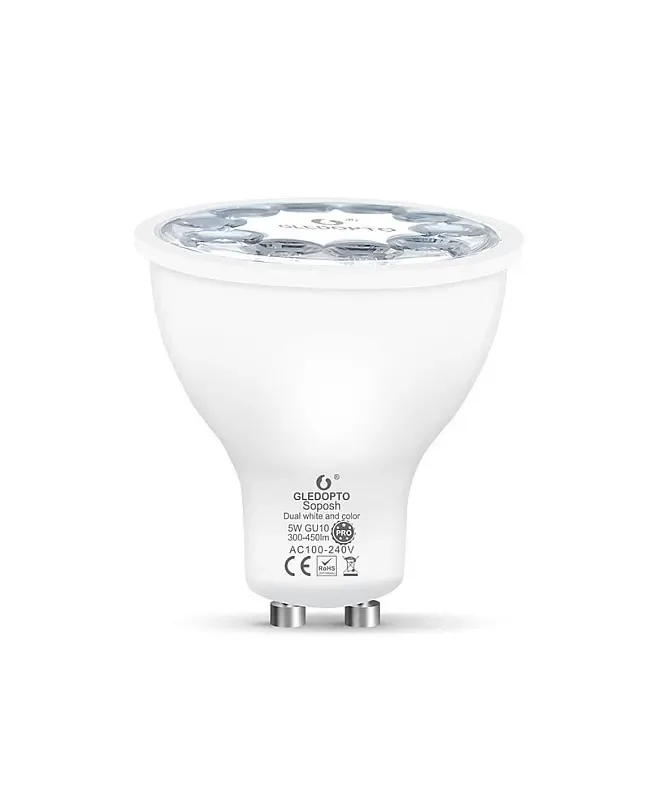

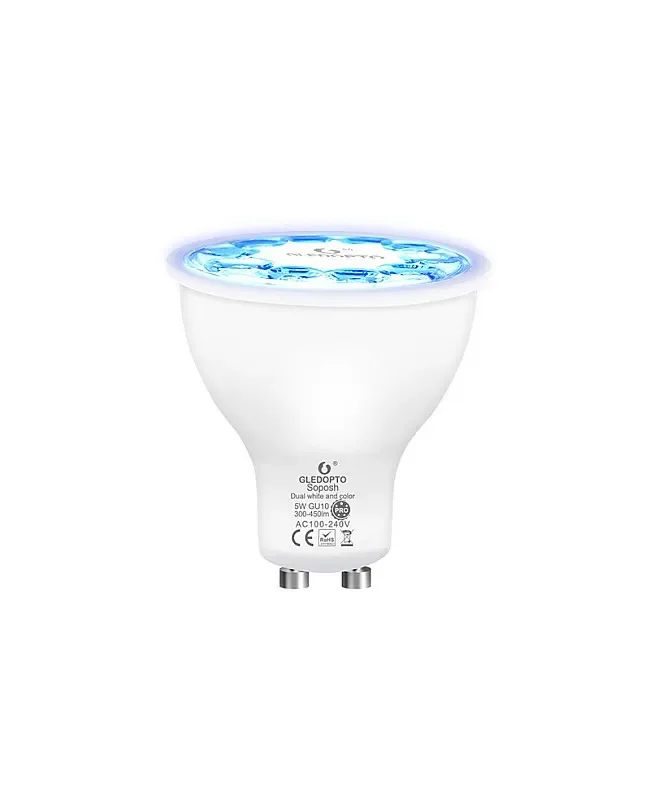

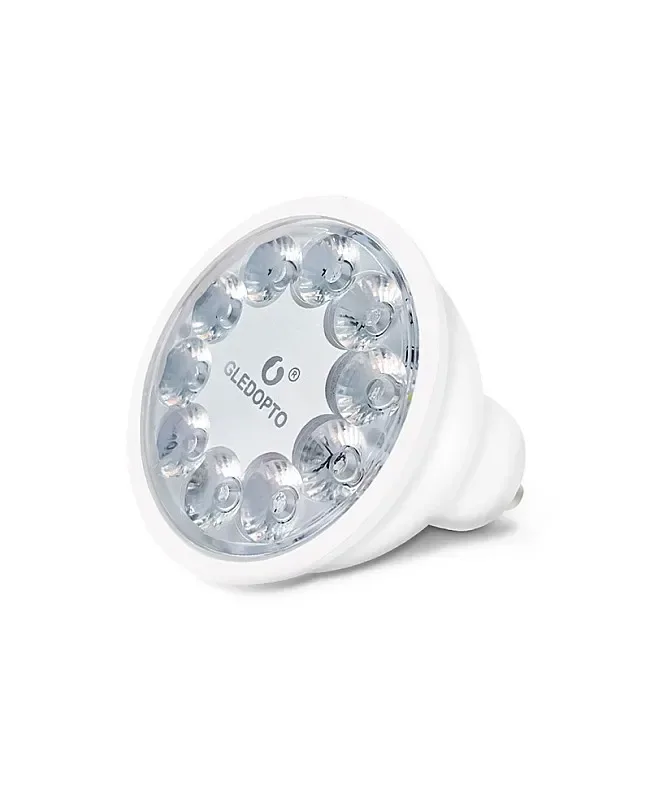

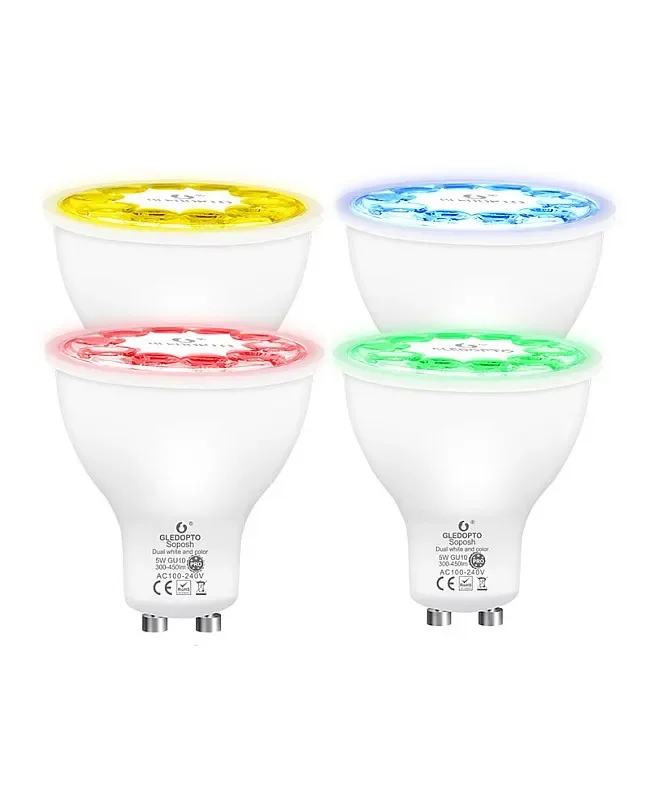

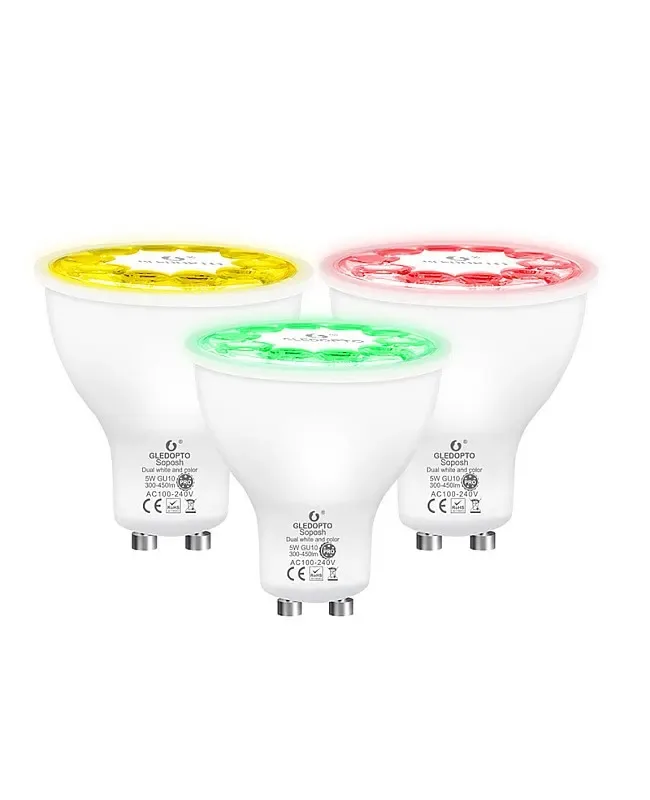

5W GU10 RGB CCT Zigbee Pro Lamp
LumaCircuit offers 5W GU10 RGB CCT Zigbee Pro Lamp as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Aluminum + Plastic + PMMA Luminous Flux: 300-450LM Color Temp Adjustable: 2200-6500K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5W GU10 RGBCCT Zigbee pro lamps are compatible with Zigbee gateways and can be controlled by a smartphone APP and voice commands. The GU10 lamp can also be controlled by a 2.4 GHz RF remote without Zigbee hubs to set the static color, adjust the color temperature, and brightness. There are 16 million colors available, the color temperature can be adjusted from 2200K to 6500K, and brightness can be adjusted from 1% to 100% for various scenes.
- Material: Aluminum + Plastic + PMMA
- Luminous Flux: 300-450LM
- Color Temp Adjustable: 2200-6500K
- Brightness Adjustable From 1% To 100%
- Compatible With Zigbee Gateways
- Works With Amazon Echo Plus
- Applications: Restrooms, Bedrooms, Living Rooms, Kitchens, etc
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: CCT
- LumaCircuit model: LC-BLB-EJ5SGF
- Material: Aluminum + Plastic + PMMA
- Color: White
- Size: 58*49.5mm(H*Φ)
- Lamp Base: GU10
- Input Voltage: -240V
- Power: 5W
- Color Temp Adjustable: 2200-6500K
- Beam Angle: 30°
- CRI: >80
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 5W GU10 RGBCCT Zigbee pro lamps are compatible with Zigbee gateways and can be controlled by a smartphone APP and voice commands. The GU10 lamp can also be controlled by a 2.4 GHz RF remote without Zigbee hubs to set the static color, adjust the color temperature, and brightness. There are 16 million colors available, the color temperature can be adjusted from 2200K to 6500K, and brightness can be adjusted from 1% to 100% for various scenes. The GU10 lights are made of aluminum and plastic material, with an aluminum housing for better heat dissipation, a surface with a high-grade PMMA lens, a transmittance of up to 93%, a light distribution that is more uniform, no dark spots, and effectively reducing the adverse glare damage to the eyes. The smartphone app with a group control function, the installer can use this function to control all lights at the same time. The RGB CCT lamps with mesh function will transmit signals between lights and form a network, effectively extending the control distance.
Specifications
Model
Material: Aluminum + Plastic + PMMA
Color: White
Size: 58*49.5mm(H*Φ)
Lamp Base: GU10
Input Voltage: -240V
Power: 5W
Luminous Flux: 300-450LM
16 Million Colors Available
Color Temp Adjustable: 2200-6500K
Brightness Adjustable From 1% To 100%
Beam Angle: 30°
Compatible With Zigbee Gateways
4G RF Remote Control
Voice Control
Smartphone APP Control
Works With Amazon Echo Plus
Group Control
IP Rating: IP20
Working Temp: -20℃-60℃
Applications: Restrooms, Bedrooms, Living Rooms, Kitchens, etc
Includes
1 * 5W RGB CCT Lamp
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
