Product details
4W RGBWW GU10 Zigbee Light Bulb
LumaCircuit offers 4W RGBWW GU10 Zigbee Light Bulb as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller 4W GU10 RGBWW Zigbee Light Bulb User Manual Working Voltage: -240V, 50/60Hz Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

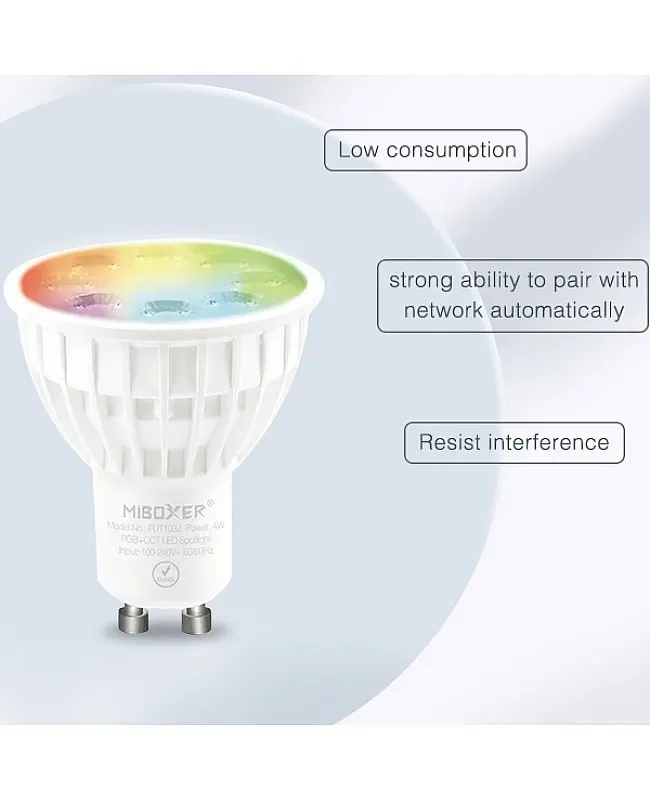

- The wireless controller RGBWW Zigbee light bulb with GU10 base, the Lamp body is made of flame-retardant material for long-term heat resistance, the GU10 lamp's cover uses imported PC transparent to light, and the light transmittance is over 90%. The adopts Zigbee 3.0 wireless transmitting technology for low consumption, a strong ability to pair with the network automatically, and resistance to interference.
- wireless controller 4W GU10 RGBWW Zigbee Light Bulb User Manual
- Working Voltage: -240V, 50/60Hz
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 80LM/W
- 16 Million Colors And Saturation Adjustable
- Color Temperature And Brightness Adjustable
- Compatible With 2.4G Remote Controls T3, T4,
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- Working Voltage: -240V, 50/60Hz
- Size: 50*57mm(D*H)
- Base Type: GU10
- Power: 4W
- Color: RGB+CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 25°
- Compatible With 2.4G Remote Controls: T3, T4,,
- Communication Protocol: Zigbee 3.0 + 2.4G
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RGBWW Zigbee light bulb with GU10 base, the Lamp body is made of flame-retardant material for long-term heat resistance, the GU10 lamp's cover uses imported PC transparent to light, and the light transmittance is over 90%. The adopts Zigbee 3.0 wireless transmitting technology for low consumption, a strong ability to pair with the network automatically, and resistance to interference. After adding the Zigbee gateway, the mobile app app can control the GU10 spot lamp and third-party voice commands. The installer can set the static color and adjust the saturation, brightness, and color temperature to meet various scenes. It can enter Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Echo, Echo Studio, and Echo Show standard Zigbee gateways. The small remote control lights with music rhythm function will automatically change color along with the music. The installer can use the remote control or mobile APP to group control the GU10 bulbs, and all Bulbs will work in synchronization.
Quick Links
wireless controller 4W GU10 RGBWW Zigbee Light Bulb User Manual
Specifications
Working Voltage: -240V, 50/60Hz

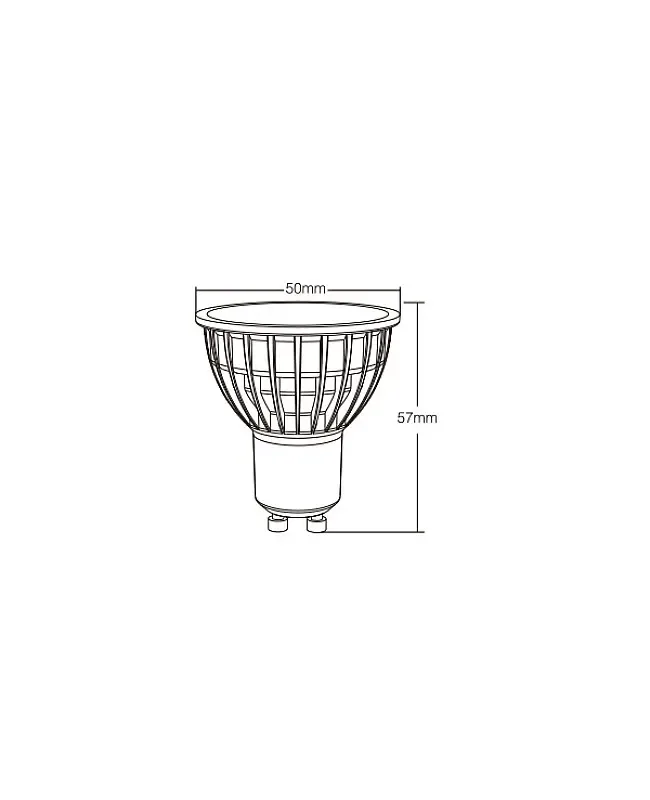

Size: 50*57mm(D*H)
Base Type: GU10
Power: 4W
Color: RGB+CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 320lm
Luminous Efficiency: 80LM/W
CRI: >
PF: >0.55
Beam Angle: 25°
16 Million Colors And Saturation Adjustable
Color Temperature And Brightness Adjustable
Compatible With 2.4G Remote Controls T3, T4,
mobile app APP Control(Zigbee 3.0 Gateway Needed)
Support Third-Party Voice Control(Zigbee 3.0 Gateway Needed)
Music Rhythm Function(Zigbee 3.0 Gateway Needed)
Communication Protocol: Zigbee 3.0 + 2.4G
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: Zigbee: <50M(Open Area); 2.4G RF: ≤30M
Group Control
4G Network Controllable
IP Rating: IP20 Non-Waterproof
Working Temperature: -10℃-+40℃
Includes
1 * Zigbee 3.0 RGBWW Light Bulb
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
