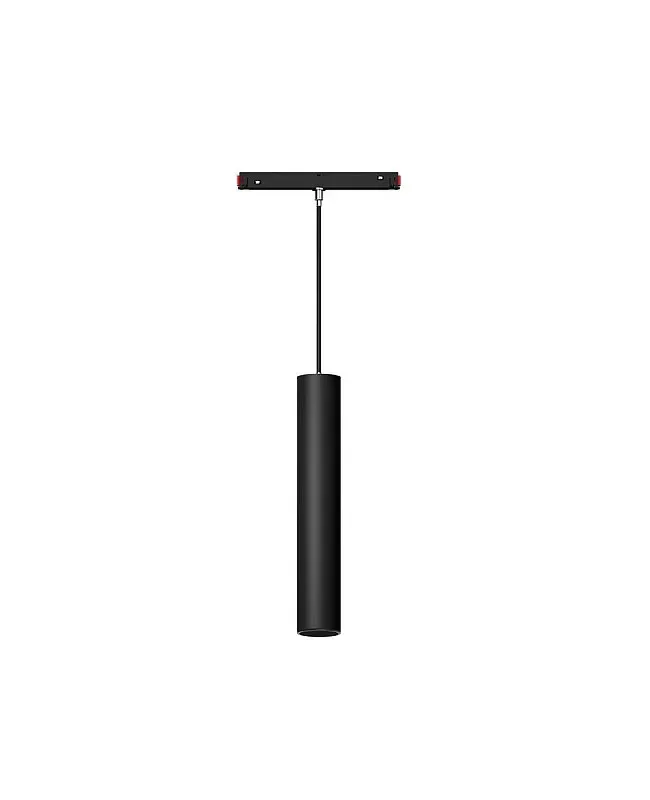

ZR 9W Zigbee Magnetic Rail Pendant Lamp
LumaCircuit offers ZR 9W Zigbee Magnetic Rail Pendant Lamp as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: 9W RGB+CCT Pendant Light Model: (Zigbee 3.0 + 2.4G) / RF(2.4G) RGB And Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

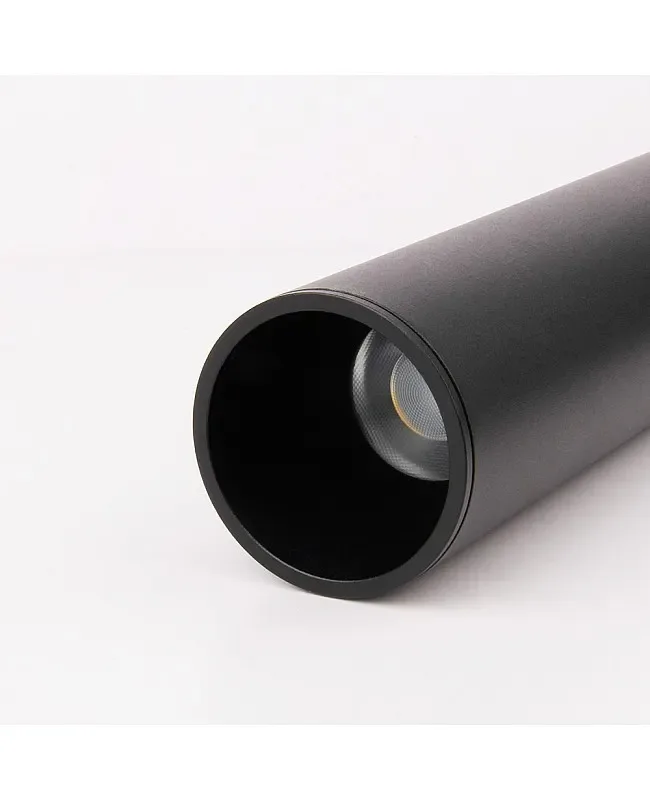

- The wireless controller is a 9W Zigbee magnetic rail pendant lamp featuring Zigbee connectivity, allowing for seamless integration and control within smart home systems. It is intended to be versatile and can be used in various settings, offering flexibility with a magnetic rail system. One piece of high CRI COB LED chip is used as the light source, featuring a 24° narrow beam angle for deep anti-glare and optimal central lighting performance for task lighting.
- Type: 9W RGB+CCT Pendant Light
- Model: (Zigbee 3.0 + 2.4G) / RF(2.4G)
- RGB And Color Temperature Adjustable
- Color Temperature Adjustable: 2700-6500K
- Luminous Efficiency: 45LM/W
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-BLB-T8U836
- Size: 300m(H)*50mm(Φ)
- Cable Length: 650mm
- Input Voltage: DC48V
- Power: 9W
- CRI: >
- Color Temperature Adjustable: 2700-6500K
- Beam Angle: 24°
- Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu, voice assistant
- Control Distance: Zigbee: ≤50M(Open Area) / 2.4G: ≤30M(Open Area)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller is a 9W Zigbee magnetic rail pendant lamp featuring Zigbee connectivity, allowing for seamless integration and control within smart home systems. It is intended to be versatile and can be used in various settings, offering flexibility with a magnetic rail system. One piece of high CRI COB LED chip is used as the light source, featuring a 24° narrow beam angle for deep anti-glare and optimal central lighting performance for task lighting. They adopt Zigbee 3.0 and 2.4 GHz wireless transmission technology, featuring low power consumption, easy network setup, and optimal signal performance with minimal interference. The installer can use 2.4G remote controls to set the colors, adjust the color temperature from 2700K to 6500K, and adjust the brightness and saturation for various scenes. The magnetic rail pendant light will transmit a signal from the remote to other same-model light fixtures within a 30-meter range, and all of them will operate in synchronization. After pairing with a Zigbee 3.0 gateway, the installer can control the Zigbee Pendant Lamp with the Tuya Smart APP and third-party voice commands.
Specifications
Type: 9W RGB+CCT Pendant Light
Model: (Zigbee 3.0 + 2.4G) / RF(2.4G)

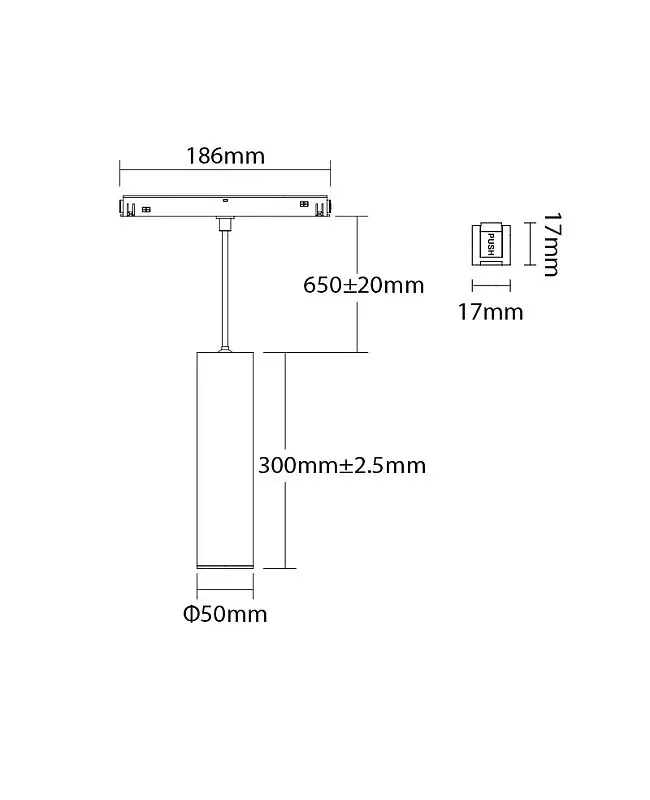

Size: 300m(H)*50mm(Φ)
Cable Length: 650mm
Input Voltage: DC48V
Power: 9W
CRI: >
RGB And Color Temperature Adjustable
Color Temperature Adjustable: 2700-6500K
Luminous Flux: 400LM
Luminous Efficiency: 45LM/W
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic

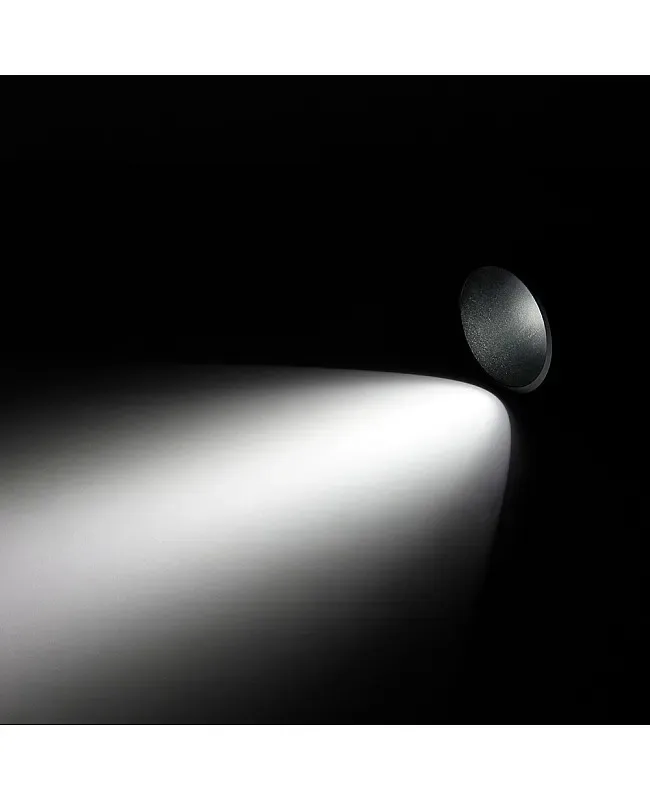

Beam Angle: 24°
RF: Zigbee 3.0 + 2.4G RF

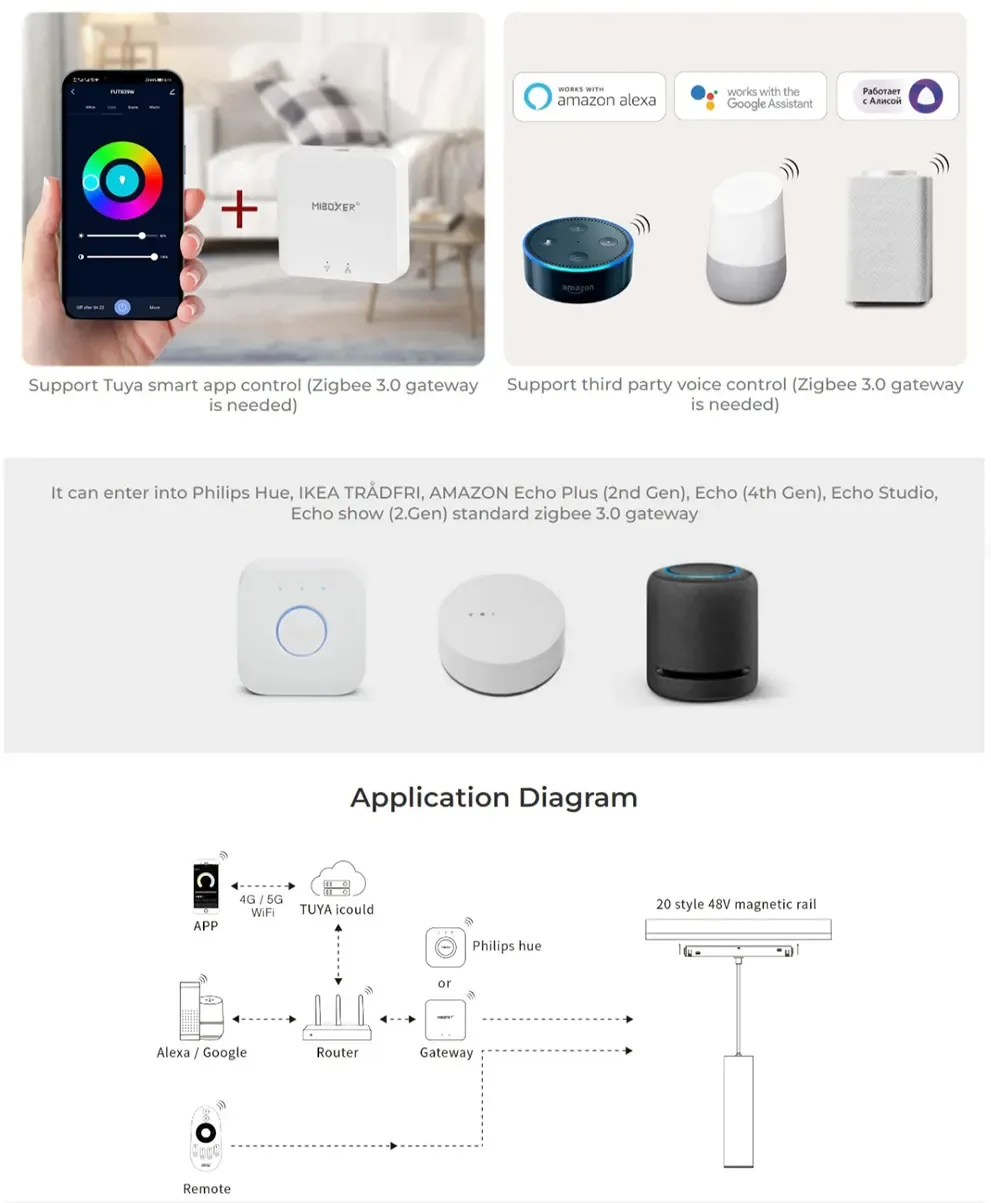

Support Tuya Smart APP Control(Zigbee 3.0 Gateway Needed)
Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu, voice assistant
Control Distance: Zigbee: ≤50M(Open Area) / 2.4G: ≤30M(Open Area)
Compatible With 20 Style Magnetic Rails
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃

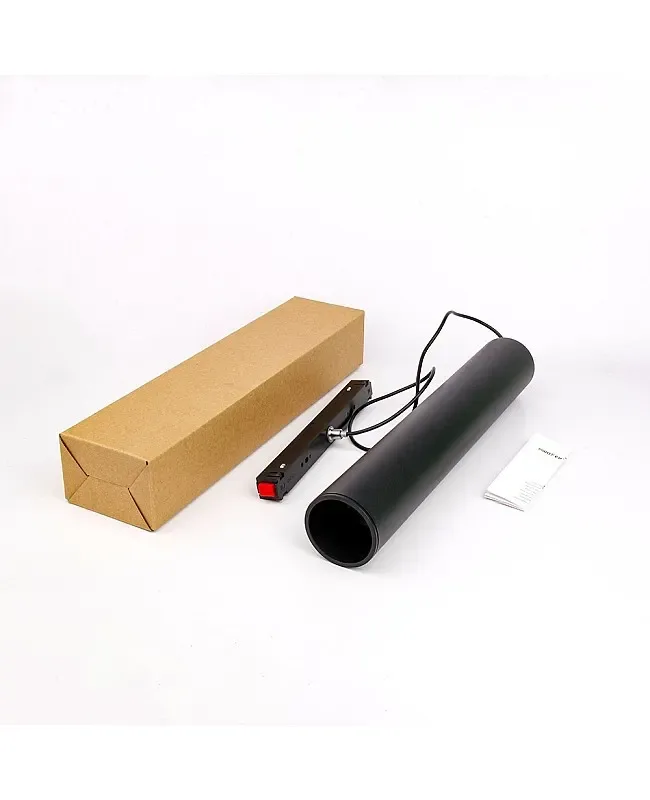

Includes
1 * 9W RGB+CCT Pendant Lamp
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
