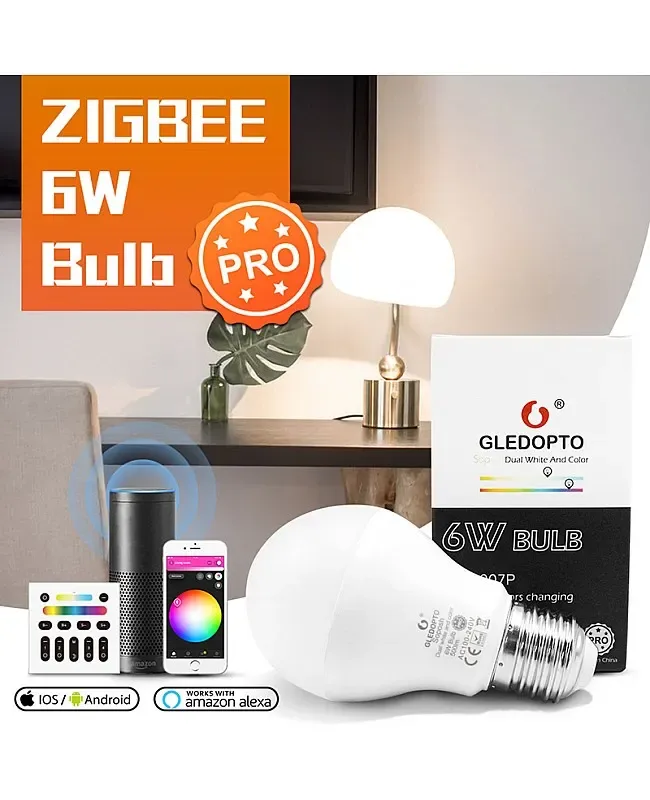

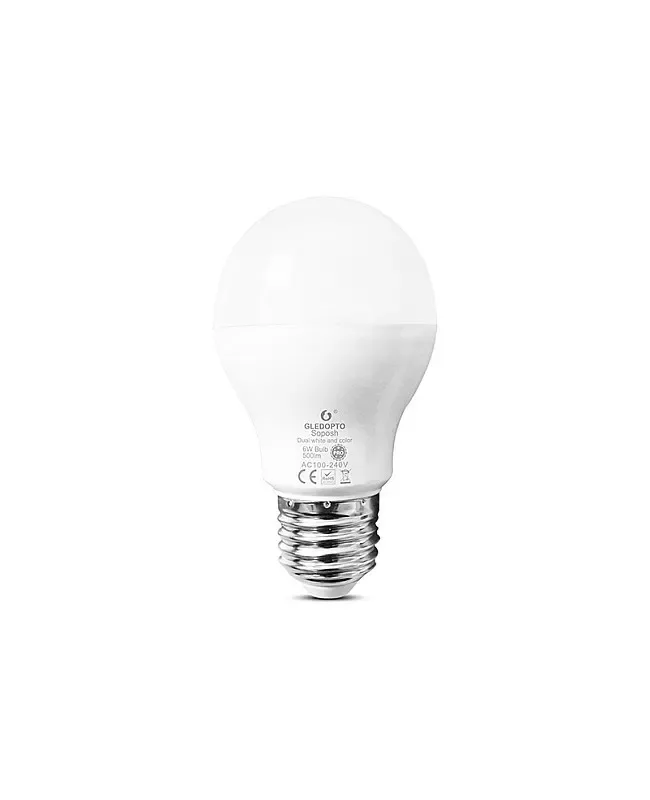

Zigbee 6W RGB CCT LED Bulb Pro
LumaCircuit offers Zigbee 6W RGB CCT LED Bulb Pro as a configurable bulb for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Luminous Flux: 500-550LM Brightness Adjustable From 1% to 100% Works With Amazon Echo Plus The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Material: Aluminum + PC Cover
- Luminous Flux: 500-550LM
- Brightness Adjustable From 1% to 100%
- Works With Amazon Echo Plus
- 4G RF Remote Control(Without Zigbee Hub)
- Compatible With Zigbee Gateways
- Working Temperature: -20℃-60℃
- The 6W RGB CCT LED Bulb Pro is compatible with Zigbee 3.0 Hubs, can be controlled by smartphone APP to set the color, adjust color temp and brightness smartly.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-BLB-A2N5N1
- Material: Aluminum + PC Cover
- Size: 102*57mm(H*Φ)
- Input Voltage: -240V
- Power: 6W
- Color: RGB+CCT
- Color Temp: 2200-6500K
- CRI: >80
- Working Temperature: -20℃-60℃
- Dimensions found: 102x57mm / 57mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Material: Aluminum + PC Cover
Size: 102*57mm(H*Φ)
Input Voltage: -240V
Power: 6W
Color: RGB+CCT
Luminous Flux: 500-550LM
16 Million Colors Available
Color Temp: 2200-6500K
Brightness Adjustable From 1% to 100%
Lamp Base
Smartphone APP Control
Works With Amazon Echo Plus
4G RF Remote Control(Without Zigbee Hub)
Compatible With Zigbee Gateways
Working Temperature: -20℃-60℃
Includes
1 * 6W RGB+CCT LED Bulb
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
