Product details

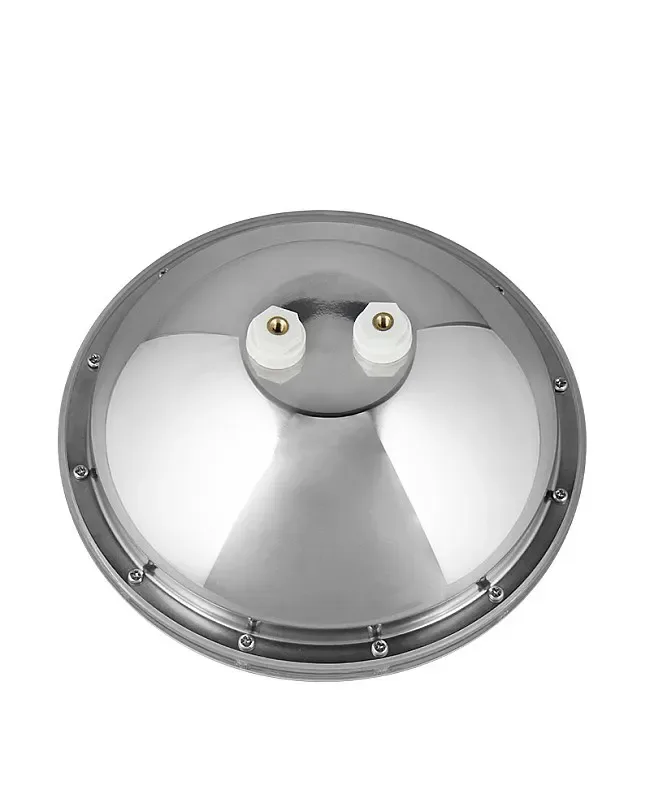

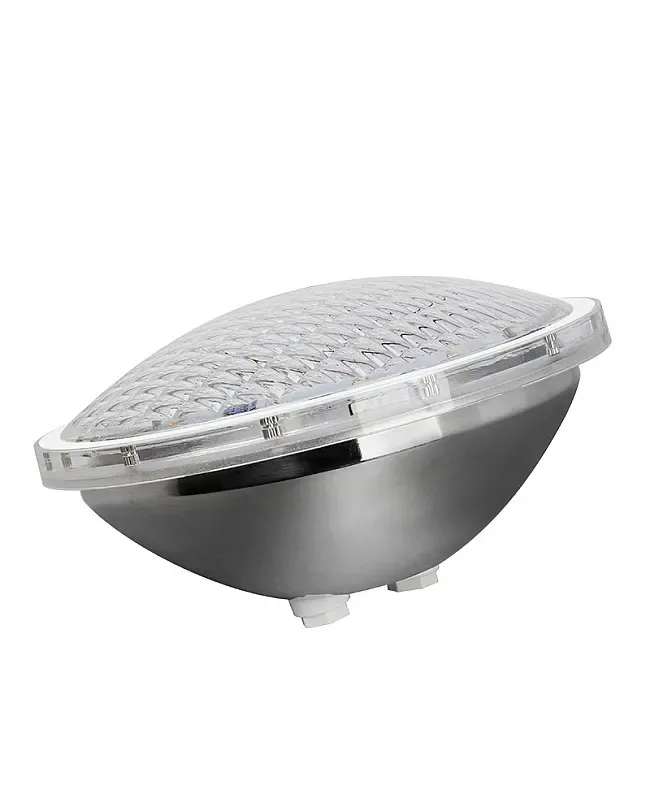

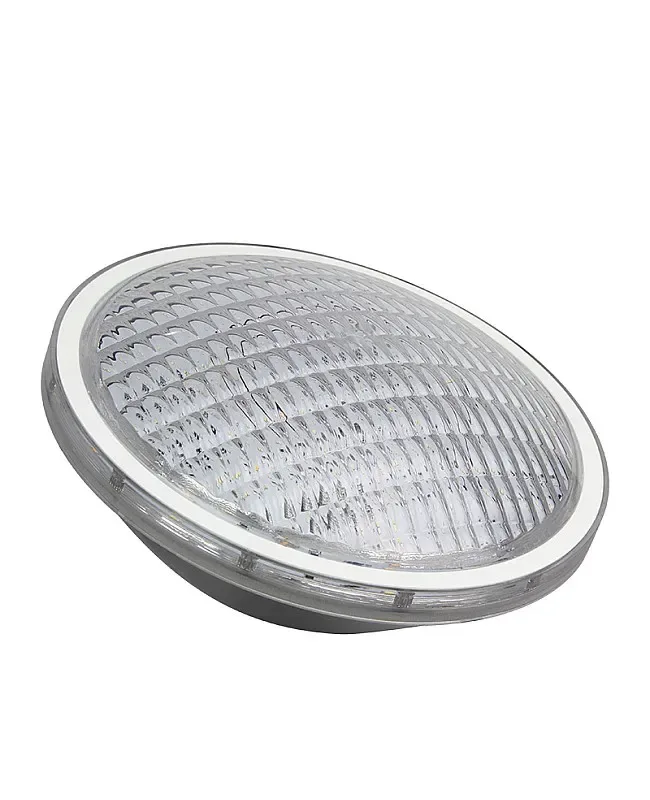

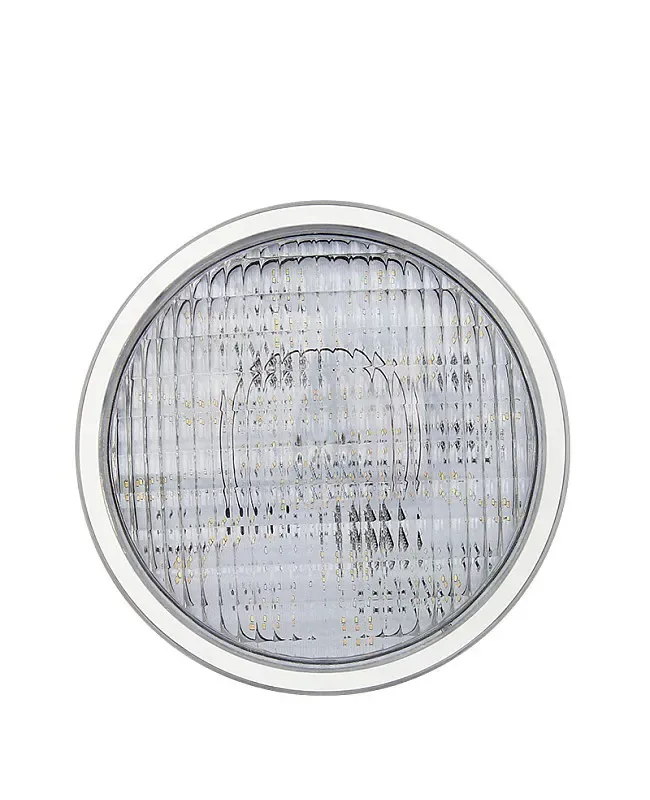

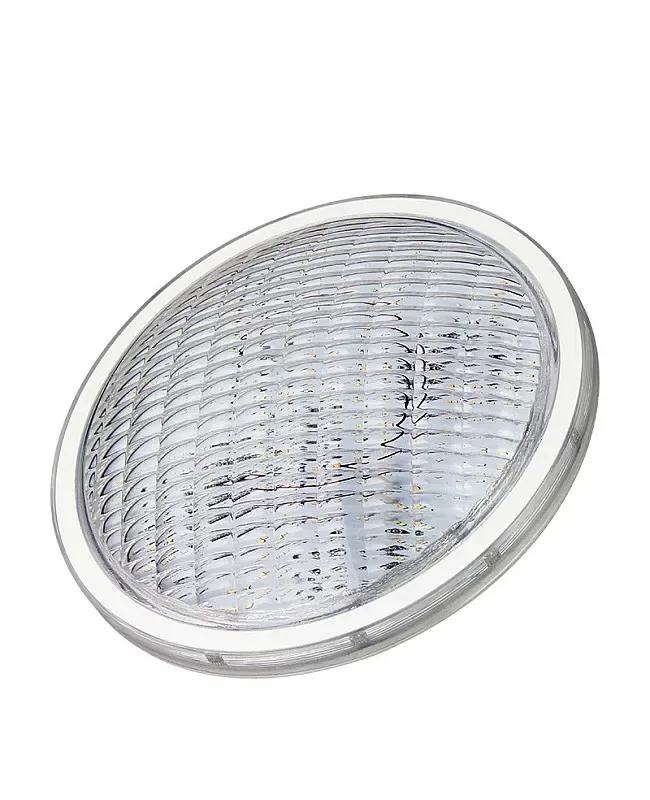

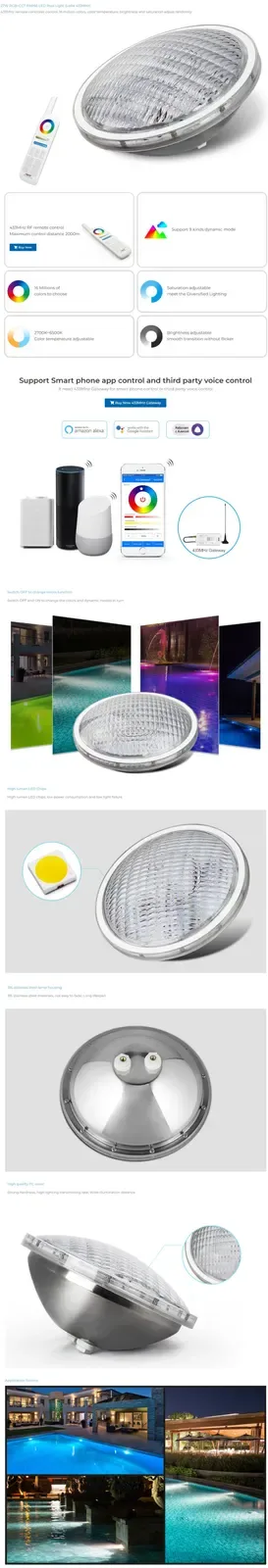

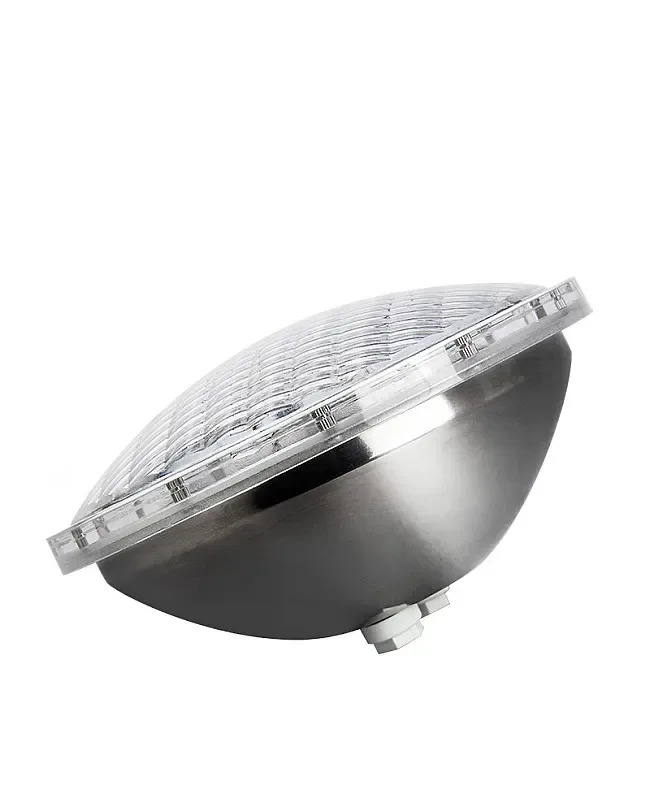

27W RGBWW PAR56 Swimming Pool Lights
LumaCircuit offers 27W RGBWW PAR56 Swimming Pool Lights as a configurable bulb for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Voltage: AC12V/-24V Color Temperature: 2700 K- 6500 K Light Efficiency: 95LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Material: 316 Stainless Steel + PC
- Working Voltage: AC12V/-24V
- Color Temperature: 2700 K- 6500 K
- Light Efficiency: 95LM/W
- 16 Million Colors Available, Saturation, CCT, And Brightness Adjustable
- 9 Dynamic Modes Available And Speed Adjustable
- Remote Controller Control
- Smartphone APP And Third-Party Voice Control( Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-24 V
- Light engine: RGBW
- LumaCircuit model: LC-BLB-K6M3HJ
- Material: 316 Stainless Steel + PC
- Size: Φ177*102mm
- Working Voltage: AC12V/-24V
- Power: 27W
- Emitting Colors: RGBWW
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 160°
- IP Rate: IP68
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Model
Material: 316 Stainless Steel + PC
Size: Φ177*102mm
Working Voltage: AC12V/-24V
Power: 27W
Emitting Colors: RGBWW
Color Temperature: 2700 K- 6500 K
Luminous Flux: 2600LM
Light Efficiency: 95LM/W
16 Million Colors Available, Saturation, CCT, And Brightness Adjustable
9 Dynamic Modes Available And Speed Adjustable
CRI: >
Beam Angle: 160°
IP Rate: IP68
Remote Controller Control
Smartphone APP And Third-Party Voice Control( Gateway Needed)
Switch-OFF To Change Color Instruction
Control Distance: 50m(Lamps Into 5m Water)
Working Temperature: -20℃-+45℃
Includes
1 * wireless controller PAR56 swimming pool lamp
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
