Product details

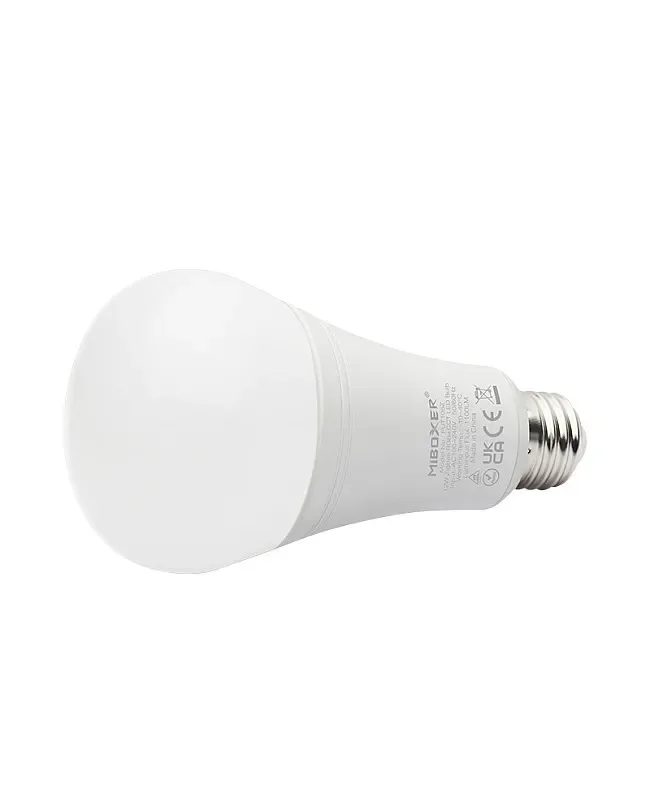

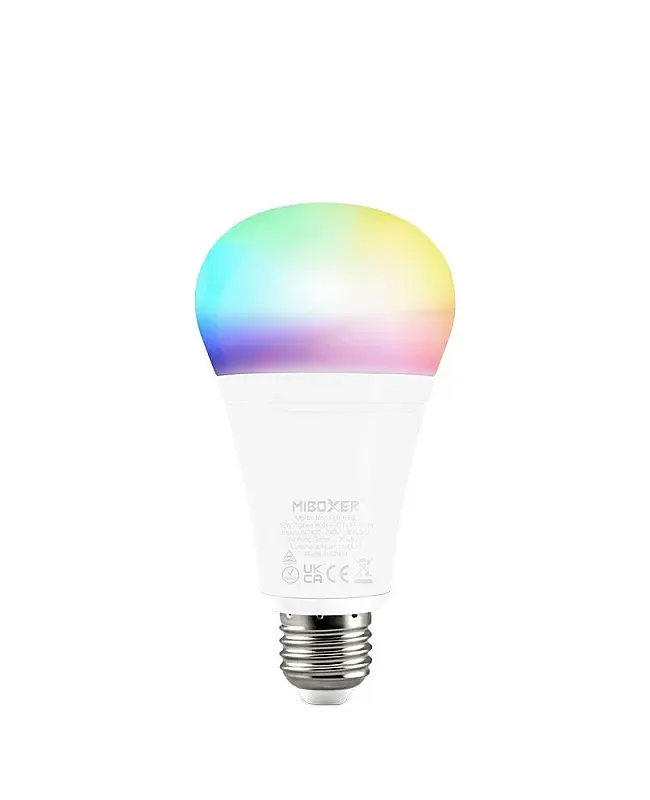

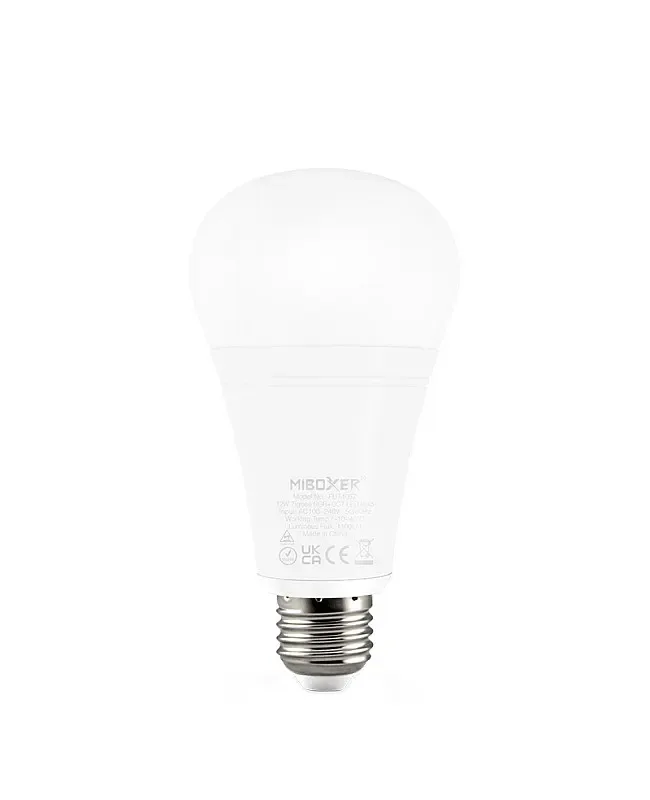

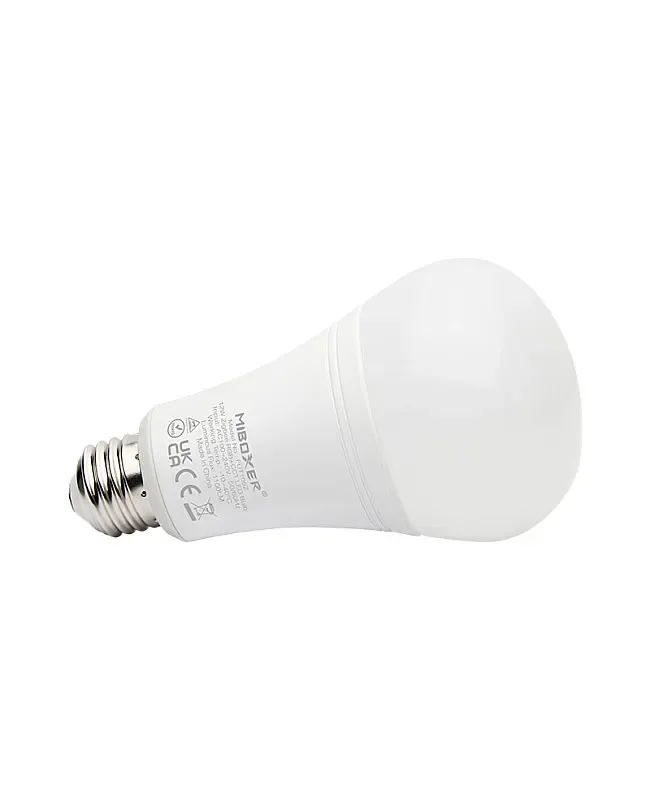

RGBWW Smart Light Zigbee Bulbs
LumaCircuit offers RGBWW Smart Light Zigbee Bulbs as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. wireless controller Zigbee 3.0 Smart Light Bulbs User Manual Working Voltage: -240V, 50/60Hz Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RGBWW smart light Zigbee 3.0 bulbs with base have aluminum housing for fast heat dissipation and a PC cover for high light transmittance. Built-in Zigbee 3.0 and 2.4 GHz wireless transmitting technology, low power consumption, strong ability to pair with the network automatically, and resistance to interference.
- wireless controller Zigbee 3.0 Smart Light Bulbs User Manual
- Working Voltage: -240V, 50/60Hz
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 90LM/W
- Wireless Technology: Zigbee 802.15.4 + 2.4G
- Zigbee Wireless Frequency: 2.400- 2.
- Compatible With wireless controller Remote Controls, B, B, B, B, B, T3, B, T4, B, W, G,
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- Material: Aluminum + PC
- Size: 140*74mm(H*Φ）
- Working Voltage: -240V, 50/60Hz
- Power: 12W
- Color: RGB+CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 220°
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: Zigbee≤100m(Open Area); 2.4G≤30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RGBWW smart light Zigbee 3.0 bulbs with base have aluminum housing for fast heat dissipation and a PC cover for high light transmittance. Built-in Zigbee 3.0 and 2.4 GHz wireless transmitting technology, low power consumption, strong ability to pair with the network automatically, and resistance to interference. After adding the Zigbee 3.0 gateway, the RGBWW bulbs can be controlled by a Smartphone APP and third-party voice control to control ON/OFF, and adjust the brightness, color temperature, and color saturation. There are 16 million colors available, and color temperature can be adjusted from 2700K to 6500K to meet various scenes. Supports Amazon Alexa and Google Assistant. Can enter into Philips Hue, IKEA TRADFRI, Amazon Echo Plus( Gen), Echo( Gen), Echo Studio, Echo Show( Gen) standard Zigbee 3.0 gateway. The installer can group the lamps with a smartphone; each zone is controlled independently. The installer can also use your phone's 4G network to control the lights from any place. The Zigbee 3.0 bulbs are non-waterproof and recommended for indoor applications only. The installer can use them in a bedroom, restaurant, living room, office, etc.
Quick Links
wireless controller Zigbee 3.0 Smart Light Bulbs User Manual
Specifications
Material: Aluminum + PC
Size: 140*74mm(H*Φ）
Base
Working Voltage: -240V, 50/60Hz
Power: 12W
Color: RGB+CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 1100lm
Luminous Efficiency: 90LM/W
CRI: >
Beam Angle: 220°
Wireless Technology: Zigbee 802.15.4 + 2.4G
Zigbee Wireless Frequency: 2.400- 2.
Compatible With wireless controller Remote Controls, B, B, B, B, B, T3, B, T4, B, W, G,
Control Distance: Zigbee≤100m(Open Area); 2.4G≤30m
Zigbee 3.0 Wireless Transmitting
16 Million Colors Available
Saturation, Brightness, And Color Temperature Adjustable
APP Name: mobile app(Need Zigbee 3.0 Gateway)
Support Third-Party Voice Control
Music Rhythm Function
Group Control
4G Network Controlling From Any Place And Any Time
IP Rating: Non-Waterproof
Zigbee 3.0 Gateway Not Included
Working Temperature: -10℃-+40℃
Includes
1 * wireless controller Zigbee 3.0 Bulb
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
