Product details
7W COB MR16 Light Bulbs
LumaCircuit offers 7W COB MR16 Light Bulbs as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Color available: Warm white(3000K),White(4000K),Cool white(6000K) Material: Die-cast aluminum A production-ready bulb family with a replaceable Zigbee control path. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 7W COB MR16 light bulbs work on DC12V or AC12V. They use a one-piece high-brightness 7W COB LED as a light source, and can select warm white, white, and cool white colors. New MR16 LED lamps have a patent die-cast aluminum shell, better for heat dissipation, no UV, no vibrations, and good for the eyes. The new MR16 COB lamp has high energy efficiency with a low-power consumption driver, saving more than 80% of energy compared to incandescent bulbs.
- Color available: Warm white(3000K),White(4000K),Cool white(6000K)
- Material: Die-cast aluminum
- A production-ready bulb family with a replaceable Zigbee control path.
- The configured light engine is CCT.
- The recorded electrical input is 12 V.
- Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs.
- Input: 12 V.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: CCT
- LumaCircuit model: LC-BLB-KGJFC6
- Color available: Warm white(3000K),White(4000K),Cool white(6000K)
- LED: 7W COB
- LED Quantity: 1PC

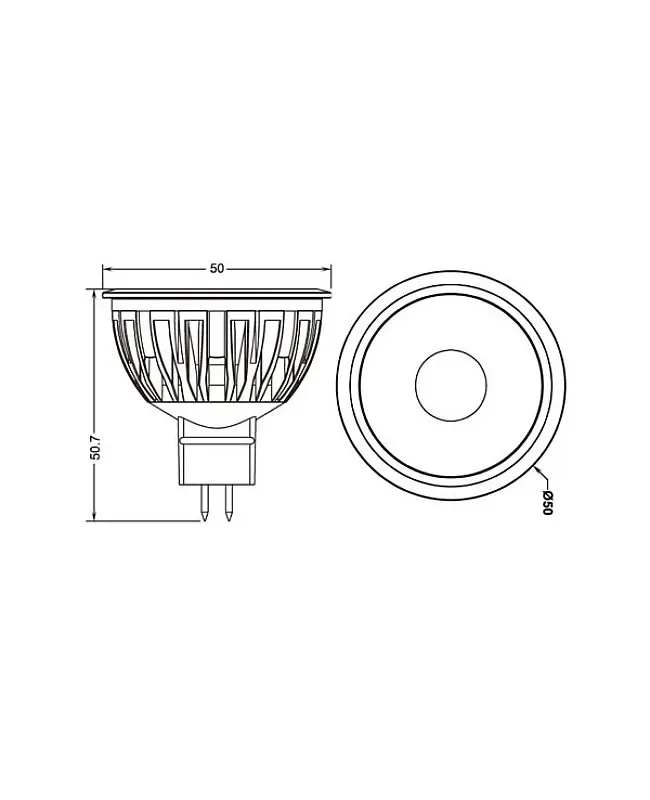

- Size: 50*50.7mm
- Material: Die-cast aluminum
- Input Voltage: AC/DC12V
- Input Power: 7W
- Power Factor: 1
- Lumens: 650LM
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

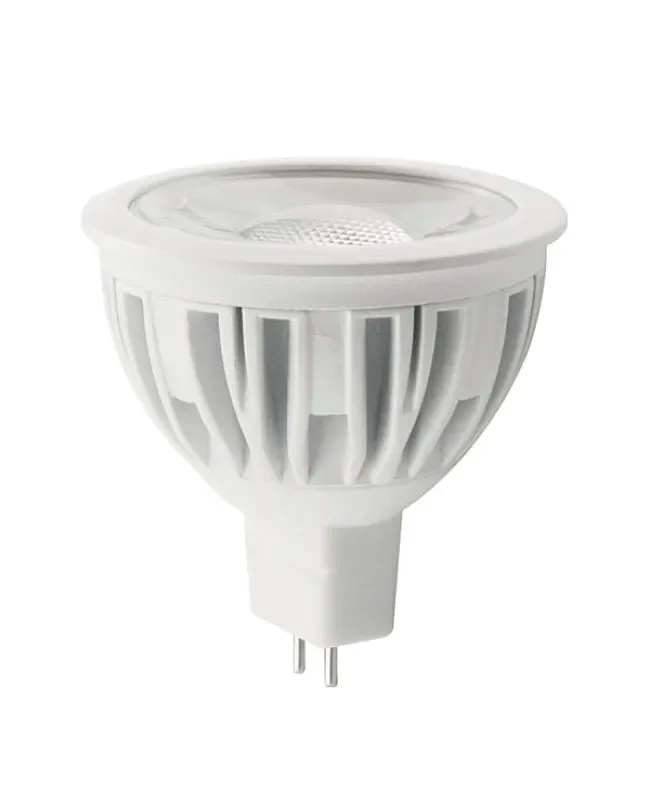

The 7W COB MR16 light bulbs work on DC12V or AC12V. They use a one-piece high-brightness 7W COB LED as a light source, and can select warm white, white, and cool white colors. New MR16 LED lamps have a patent die-cast aluminum shell, better for heat dissipation, no UV, no vibrations, and good for the eyes. The new MR16 COB lamp has high energy efficiency with a low-power consumption driver, saving more than 80% of energy compared to incandescent bulbs. The MR16 COB LED lamp can be used to replace incandescent, halogen, and fluorescent energy-saving lamps.
Specifications
Manufacturer
Color available: Warm white(3000K),White(4000K),Cool white(6000K)
LED: 7W COB
LED Quantity: 1PC
Size: 50*50.7mm
Material: Die-cast aluminum
Input Voltage: AC/DC12V
Dimmable: NO
Input Power: 7W
Operating Current
Power Factor: 1
Angle: 40°
Lumens: 650LM
Base: MR16
Lens: YES
Color of Shell: Silver
1 * 7W MR16 Light Bulb
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
