12W/24W 2.4G RF Magnetic LED Track Lamp
LumaCircuit offers 12W/24W 2.4G RF Magnetic LED Track Lamp as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. RGB+CCT Series: (12W) / -24A-RF(24W) Tunable White Series: -12A-RF(12W) / -24A-RF(24W) Size(L*W*H): 303*42.5*22mm(12W) / 603*42.5*22mm(24W) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller magnetic LED track lamps are a great lighting solution for indoor applications. This lamp is suited to accents, tasks, and general lighting. A rail system powers it and adopts the 2.4G communication modules. RGB+CCT series and tunable white series are available, which 2.4G RF remote controls can control to adjust the colors or dynamic modes, color temperature, brightness, and saturation for various scenes.
- RGB+CCT Series: (12W) / -24A-RF(24W)
- Tunable White Series: -12A-RF(12W) / -24A-RF(24W)
- Size(L*W*H): 303*42.5*22mm(12W) / 603*42.5*22mm(24W)
- Luminous Flux: 700LM(12W RGB+CCT) / 1350LM(24W RGB+CCT) / 735LM(12W CCT) / 1380LM(24W CCT)
- Luminous Efficiency: 63LM/W(12W RGB+CCT) / 60LM/W(24W RGB+CCT) / 66LM/W(12W CCT) / 63LM/W(24W CCT)
- Color Temp Range: 2700K Warm White- 6500 K Cool White
- Brightness And Saturation are Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: RGB+CCT
- RGB+CCT Series: (12W) / -24A-RF(24W)
- Size(L*W*H): 303*42.5*22mm(12W) / 603*42.5*22mm(24W)
- Input Voltage: DC48V
- Power: 12W / 24W
- Color Temp Range: 2700K Warm White- 6500 K Cool White
- CRI: >
- Beam Angle: 120°
- Control Distance: ≤25m
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

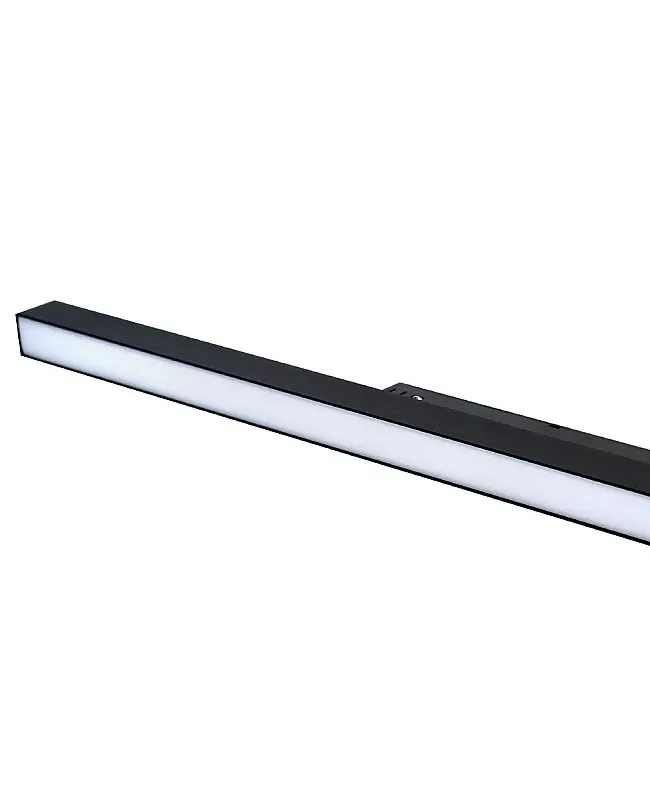

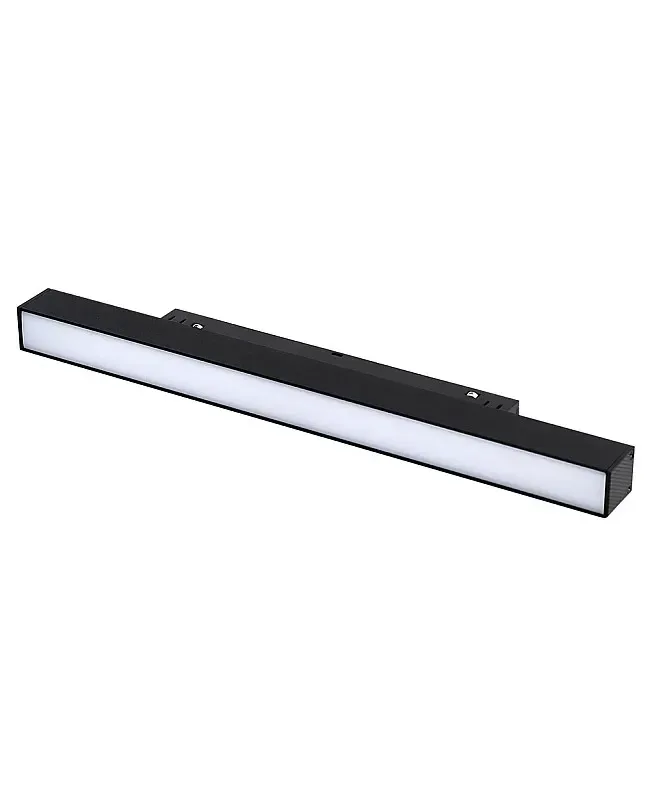

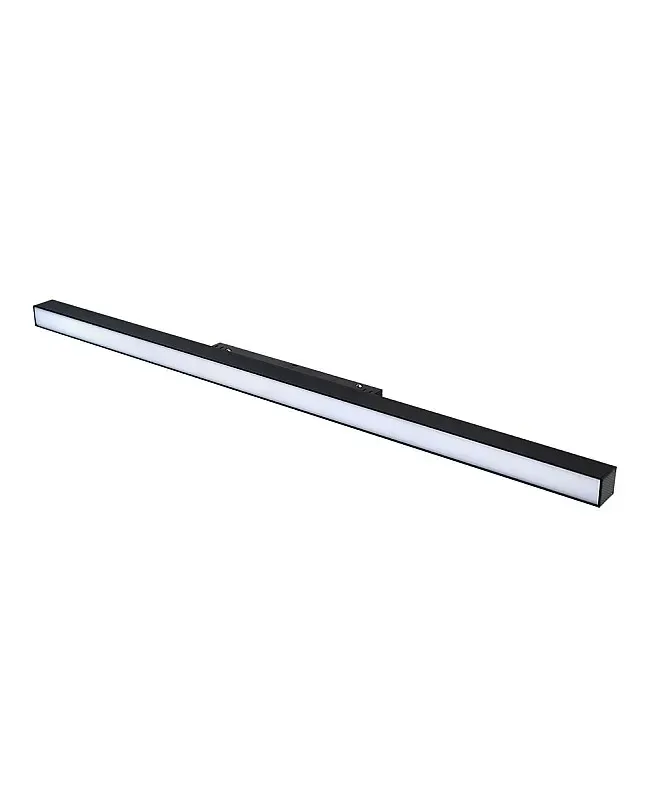

The wireless controller magnetic LED track lamps are a great lighting solution for indoor applications. This lamp is suited to accents, tasks, and general lighting. A rail system powers it and adopts the 2.4G communication modules. RGB+CCT series and tunable white series are available, which 2.4G RF remote controls can control to adjust the colors or dynamic modes, color temperature, brightness, and saturation for various scenes. The Track Lights with magnetic base, easy to be inserted into the rail and powered by rail, can move randomly on the rail for accent lighting or task lighting in homes, offices, galleries, museums, restaurants, etc., after matching to a 2.4G gateway, the magnetic track lamps can be controlled by smartphone APP and third-party voice commands, the installer can down the APP to your phone and achieve more functions like group control, timing, scene customization, device sharing, etc. The installer can use voice commands to turn ON/OFF, adjust the color, color temp and brightness, can work with Amazon Alexa and Google Assistant. The wireless controller track lights will transmit signals from the remote control to another track lamp up to 30 meters away. All of them can work synchronously when they are started at different times.
Specifications
RGB+CCT Series: (12W) / -24A-RF(24W)
Tunable White Series: -12A-RF(12W) / -24A-RF(24W)
Size(L*W*H): 303*42.5*22mm(12W) / 603*42.5*22mm(24W)
Input Voltage: DC48V
Power: 12W / 24W
Luminous Flux: 700LM(12W RGB+CCT) / 1350LM(24W RGB+CCT) / 735LM(12W CCT) / 1380LM(24W CCT)
Luminous Efficiency: 63LM/W(12W RGB+CCT) / 60LM/W(24W RGB+CCT) / 66LM/W(12W CCT) / 63LM/W(24W CCT)
16 Million Colors Available
Color Temp Range: 2700K Warm White- 6500 K Cool White
Brightness And Saturation are Adjustable
CRI: >
Beam Angle: 120°
RF: 2.

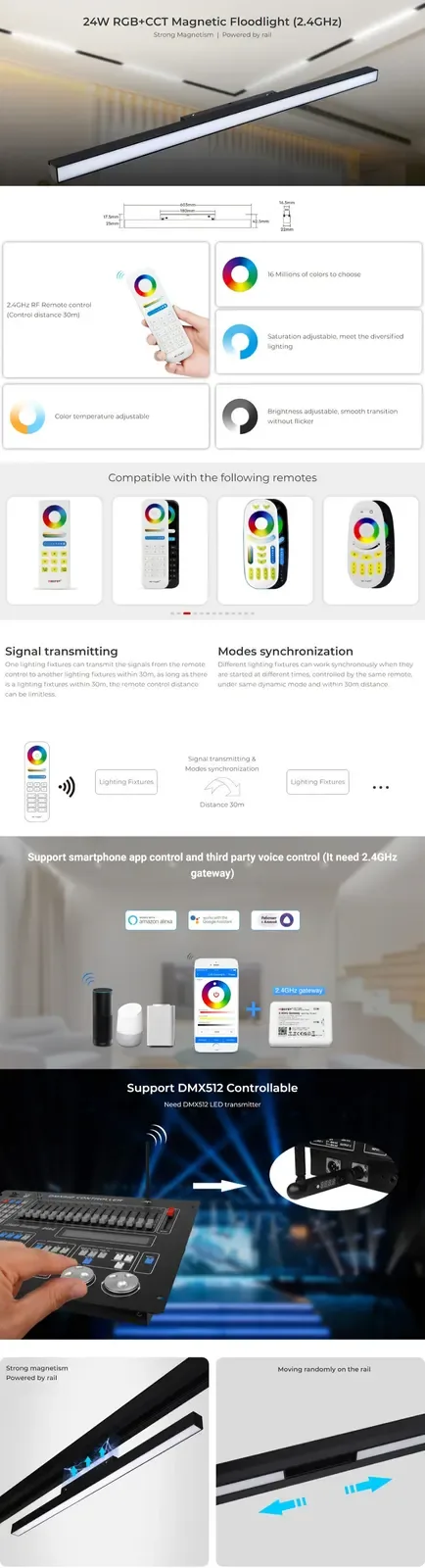

Compatible With 2.4 GHz wireless And wireless controller 2.4G Remote Controls
Auto Signal Transmitting And Modes Synchronization
Support Smartphone APP And Third-Party Voice Control(2.4G Gateway Needed)
Can Work With Amazon Alexa And Google Assistant
Control Distance: ≤25m
IP Rate: IP20 Non-waterproof

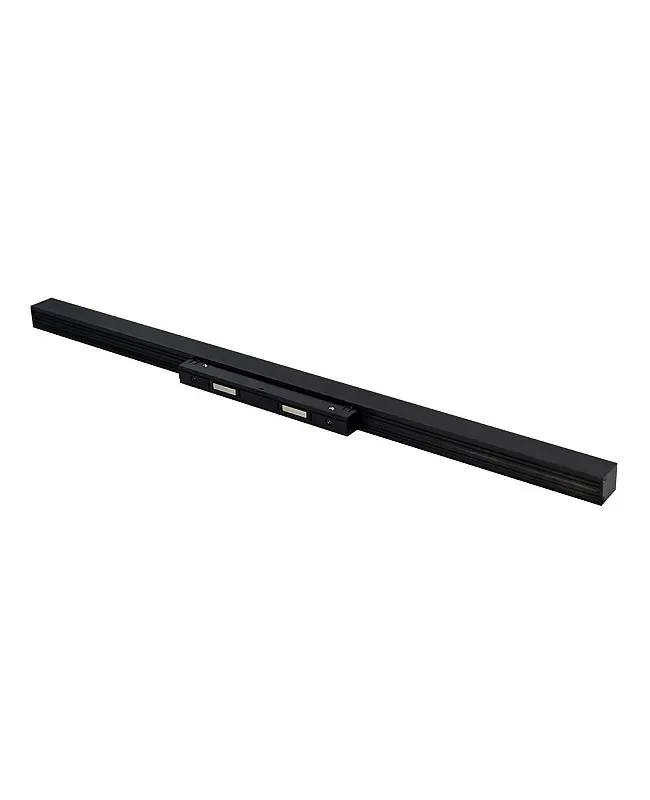

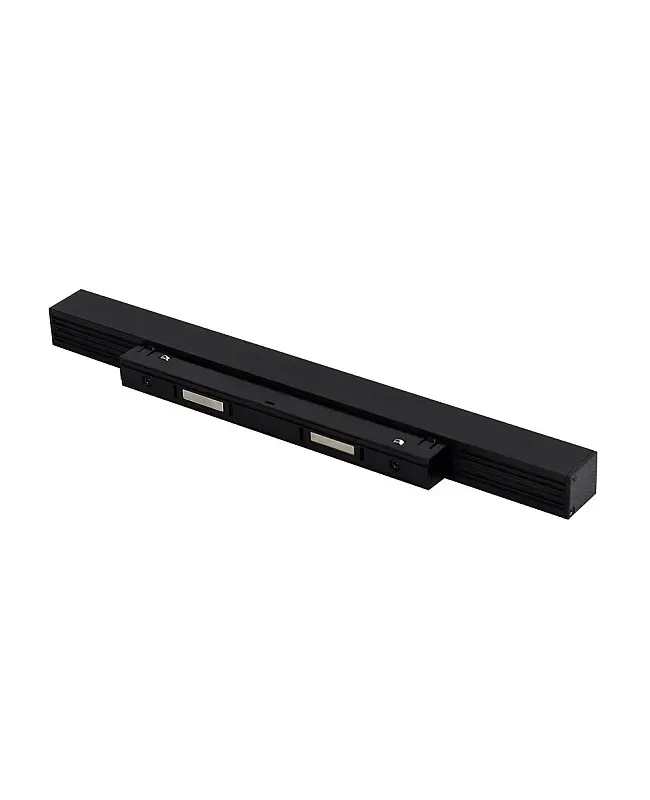

Strong Magnetism Base And Powered By Rail
Moving Randomly On The Rail
Working Temperature: -10-40℃
Includes
1 * wireless controller Magnetic LED Track Lamp
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
