Product details

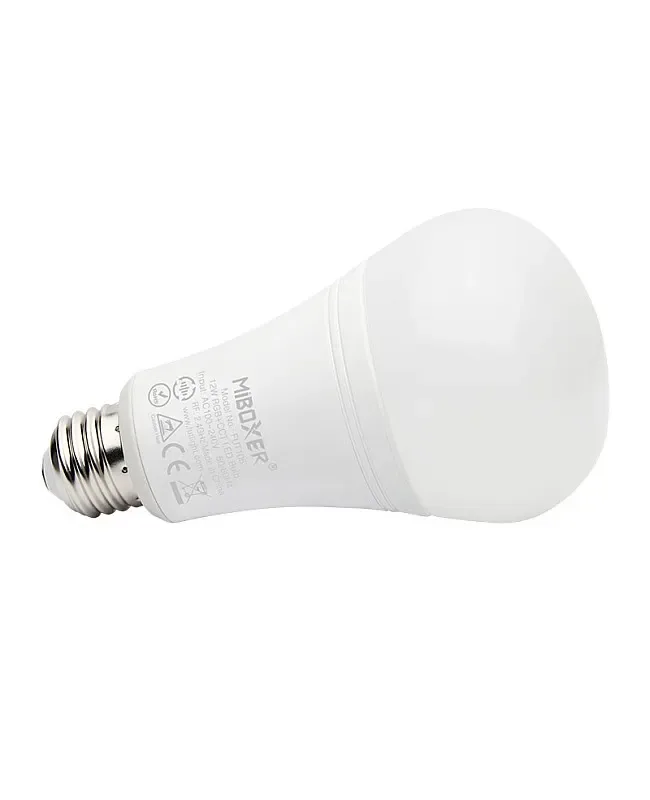

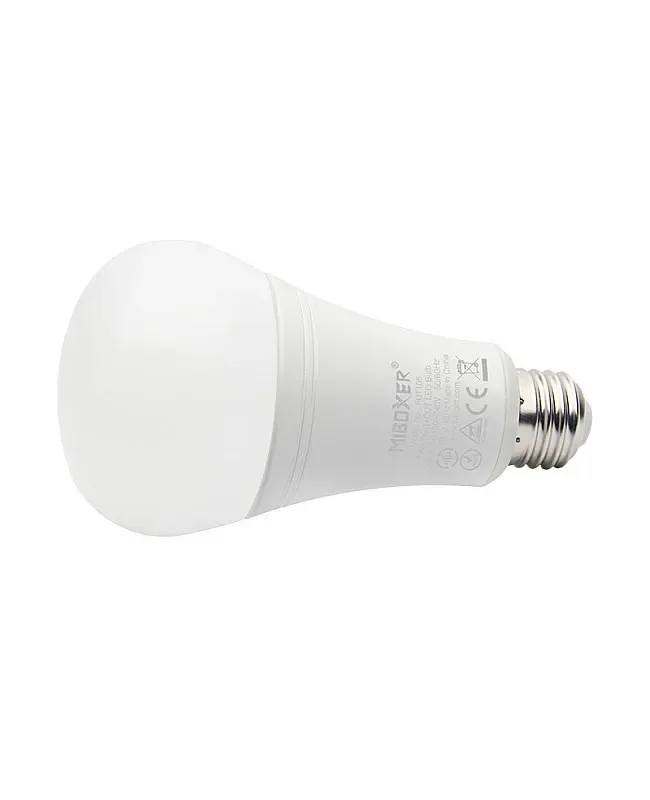

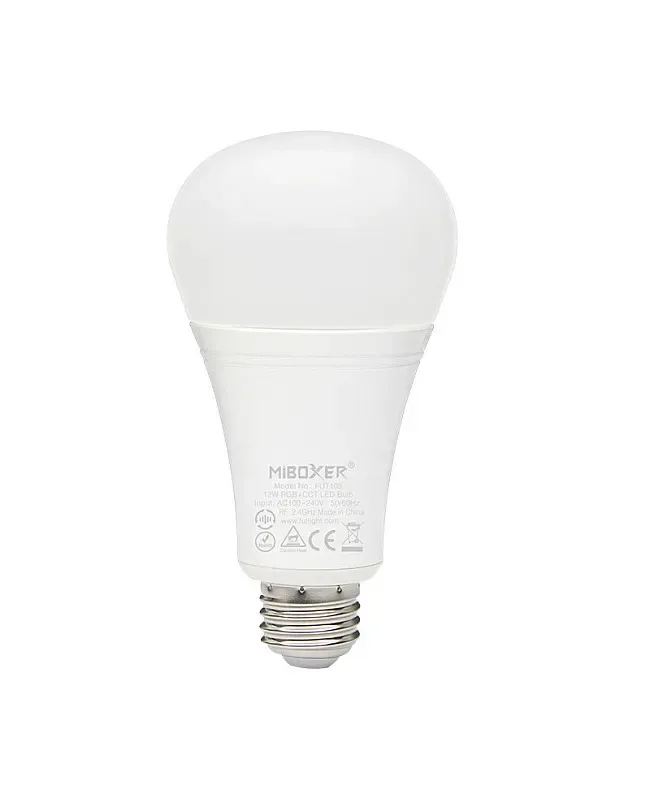

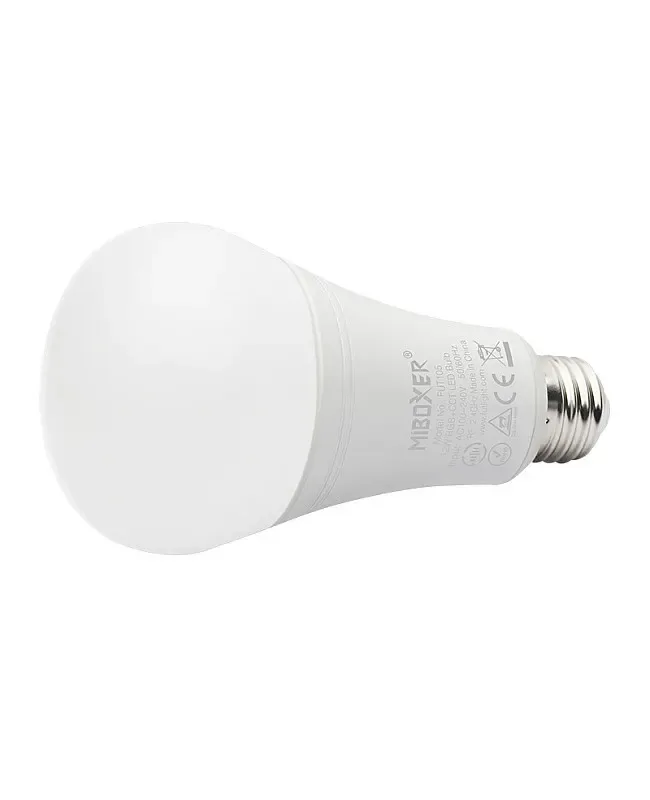

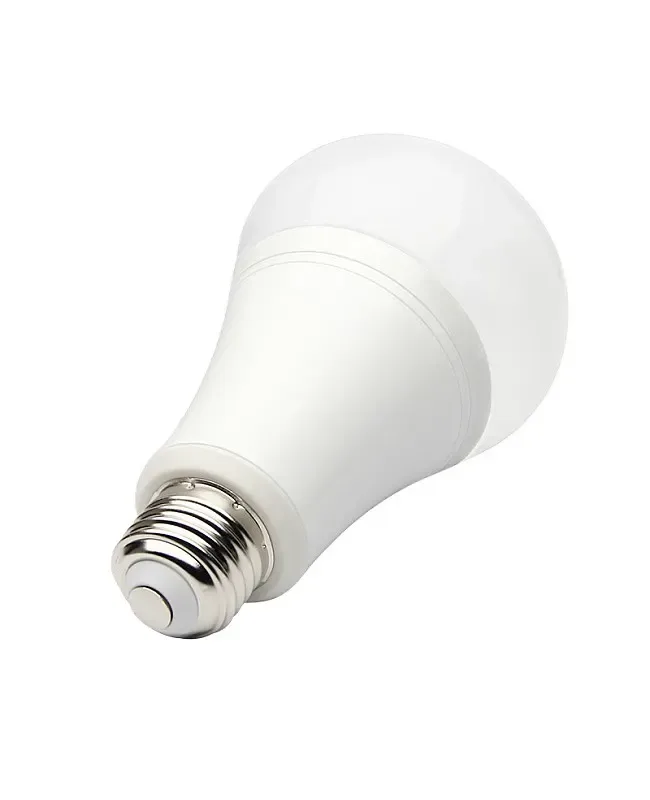

4G 12W RGBWW Colored Light Bulbs
LumaCircuit offers 4G 12W RGBWW Colored Light Bulbs as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Aluminum + Plastic Working Voltage: -240V, 50/60Hz Color Temperature: 2700 K- 6500 K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- wireless controller RGBWW Colored Bulbs Manual
- Material: Aluminum + Plastic
- Working Voltage: -240V, 50/60Hz
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 90LM/W
- 16 Million Colors And Saturation Adjustable
- Color Temperature Adjustable From 2700K To 6500K
- Transmitting Power: 6 dBm
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- Material: Aluminum + Plastic
- Size: 140*74mm(H*W)
- Working Voltage: -240V, 50/60Hz
- Power: 12W
- Colors: RGB+CCT
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 120°
- Transmitting Power: 6 dBm
- Control Distance: ≤30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
Quick Links
wireless controller RGBWW Colored Bulbs Manual
Specifications
Material: Aluminum + Plastic
Size: 140*74mm(H*W)
Base
Working Voltage: -240V, 50/60Hz
Power: 12W
Colors: RGB+CCT
Color Temperature: 2700 K- 6500 K
Luminous Flux: 1100LM
Luminous Efficiency: 90LM/W
CRI: >
Beam Angle: 120°
RF: 2.
16 Million Colors And Saturation Adjustable
Color Temperature Adjustable From 2700K To 6500K
Dimmable: YES
Transmitting Power: 6 dBm
Control Distance: ≤30m
IP Rating: Non-waterproof
Remote Control & APP Control
Supports Third-Party Voice Control(Amazon Alexa And Google Assistant)
Remote Control Sold Separately wireless controller T4, WL- 2.4G Gateway
Signal Transmitting And Modes Synchronization
Includes
1 * wireless controller RGBWW Colored Light Bulbs
Product resources
Technical documents
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
