Product details
6W GU10 RGB+CCT Zigbee 3.0 Ceiling Spotlights
LumaCircuit offers 6W GU10 RGB+CCT Zigbee 3.0 Ceiling Spotlights as a configurable bulb for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Input Voltage: -240V, 50/60Hz Luminous Efficiency: 90LM/W Color Temperature Adjustable: 2700K-6500K The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 6W Zigbee ceiling spotlights feature a unique RGB+CCT design, providing users with color and brightness options and the ability to change the color temperature from warm to cool. The GU10 spotlights follow Zigbee 3.0 standard protocol and 2.4 GHz wireless communication technology. They can be controlled by 2.4G RF, Zigbee 3.0 remote controls, and a smartphone app after adding the Zigbee gateway; the control distance is up to 100m in an open area.
- Input Voltage: -240V, 50/60Hz
- Luminous Efficiency: 90LM/W
- Color Temperature Adjustable: 2700K-6500K
- Brightness Adjustable From 1% To 100%
- Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-BLB-EXIG8F
- Base: GU10
- Size: 72mm* Φ 50mm
- Input Voltage: -240V, 50/60Hz
- Power: 6W
- Color Temperature Adjustable: 2700K-6500K
- CRI: >
- Zigbee Wireless Frequency: 2.400- 2.
- Control Distance: Zigbee≤100m(Open Area); 2.4G≤30m
- Beam Angle: 30°
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

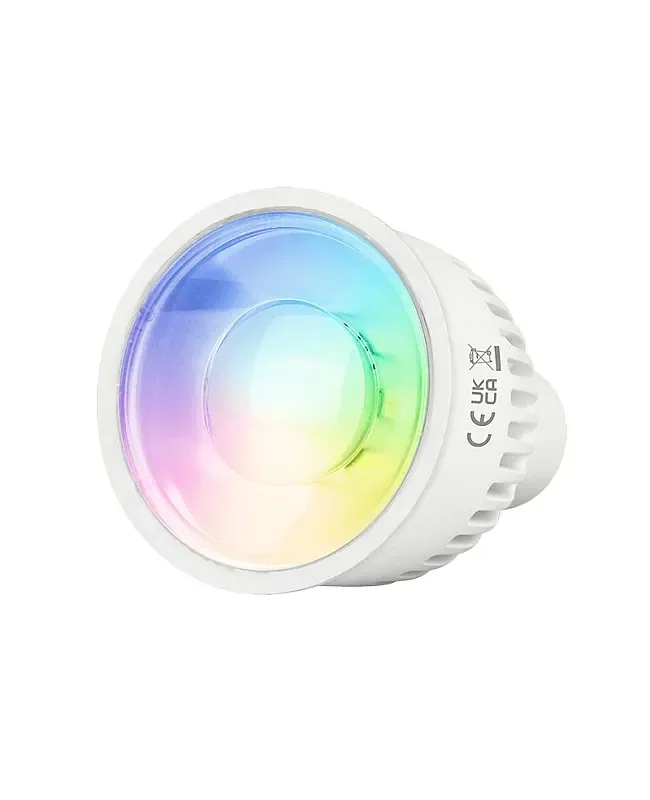

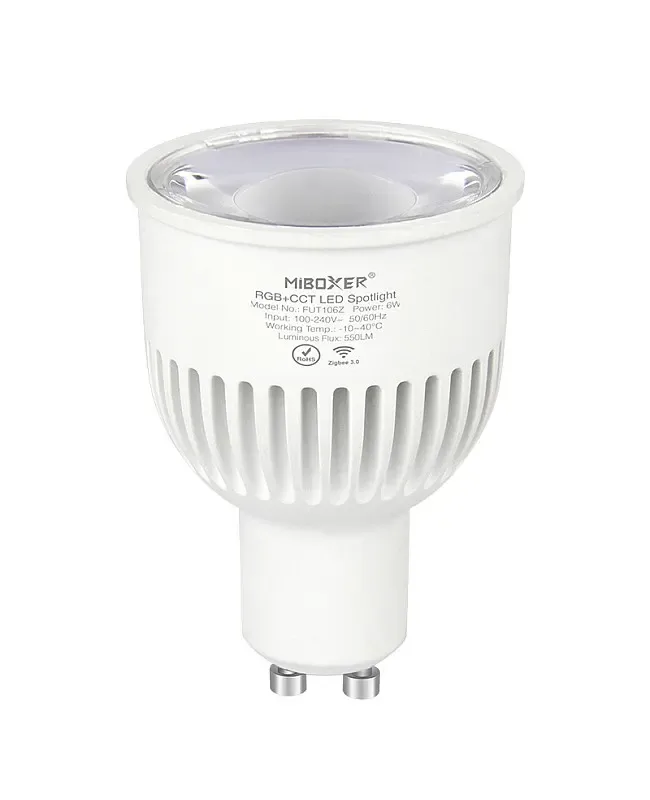

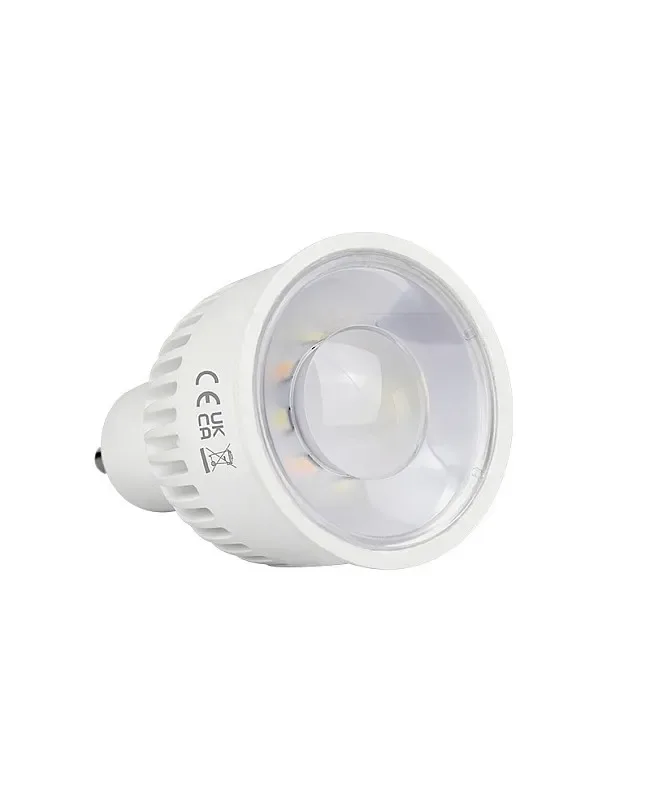

The wireless controller 6W Zigbee ceiling spotlights feature a unique RGB+CCT design, providing users with color and brightness options and the ability to change the color temperature from warm to cool. The GU10 spotlights follow Zigbee 3.0 standard protocol and 2.4 GHz wireless communication technology. They can be controlled by 2.4G RF, Zigbee 3.0 remote controls, and a smartphone app after adding the Zigbee gateway; the control distance is up to 100m in an open area. The installer can use the remote to set the colors and adjust the brightness, color temperature, and saturation. There are 16 million colors available, brightness adjustable from 1% to 100%, and color temp from 2700K to 6500K for various scenes. With a wide input voltage design, the Zigbee 3.0 remote control spot lights with GU10 lamp base can directly replace traditional bulbs. The 6W spot bulbs use high-lumen LED chips as the light source, with low power consumption and luminance decrease, bright color, and high brightness. With an aluminum lamp body for better heat dissipation, the surface with an anti-dazzling optical lens diverges light scientifically, symmetrical, and bright light rays.
Specifications
Model
Base: GU10

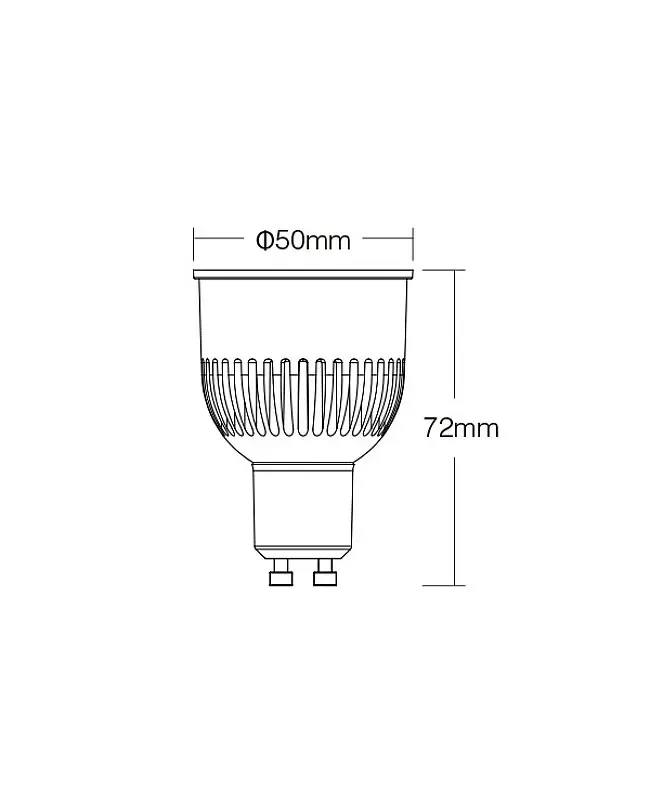

Size: 72mm* Φ 50mm
Input Voltage: -240V, 50/60Hz
Power: 6W
Luminous Flux: 550LM
Luminous Efficiency: 90LM/W
16 Million Colors Available
Color Temperature Adjustable: 2700K-6500K
Brightness Adjustable From 1% To 100%
Saturation Adjustable
Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
CRI: >
PF: >0.55
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Control Distance: Zigbee≤100m(Open Area); 2.4G≤30m
Beam Angle: 30°
Support DMX512 Controllable(Need DMX512 LED Transmitter)
Working Temperature: -10℃-40℃
Includes
1 * 6W Zigbee Ceiling Spotlight
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
