Product details
LED Under Cabinet Lighting
LumaCircuit offers LED Under Cabinet Lighting as a configurable cabinet light for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Material: Die-Casting AL+Spray Oil Color Available: Cool White(6000K-6500K), Warm White（2700-3200K), Neutral White(4000-4500K) LED: 0.5W Epistar SMD LEDs The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LED Under Cabinet Lighting, with a patent-design aluminum shell, features better heat dissipation. The Under Cabinet Lighting with base uses 10PCS 0.5W Epistar LEDs as the light source; the installer can choose the warm white, neutral white, or cool white emitting colors. The input voltage range is from AC100V to AC240V, and it can replace traditional energy-saving lamps.
- Material: Die-Casting AL+Spray Oil
- Color Available: Cool White(6000K-6500K), Warm White（2700-3200K), Neutral White(4000-4500K)
- LED: 0.5W Epistar SMD LEDs
- Input Voltage: AC100V-AC240V
- Operating Voltage: DC15V-DC18V
- 1 * LED Cabinet LED Lamp
- A production-ready cabinet family with a replaceable Zigbee control path.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V / 5 V
- Light engine: CCT
- Material: Die-Casting AL+Spray Oil
- Color Of Shell: Silver
- Color Available: Cool White(6000K-6500K), Warm White（2700-3200K), Neutral White(4000-4500K)
- LED: 0.5W Epistar SMD LEDs
- LED Quantity: 10PCS
- Size: Ф 74x37 mm
- Input Voltage: AC100V-AC240V
- Operating Voltage: DC15V-DC18V
- Input Power: 6W
- Power Factor: ≥0.53
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

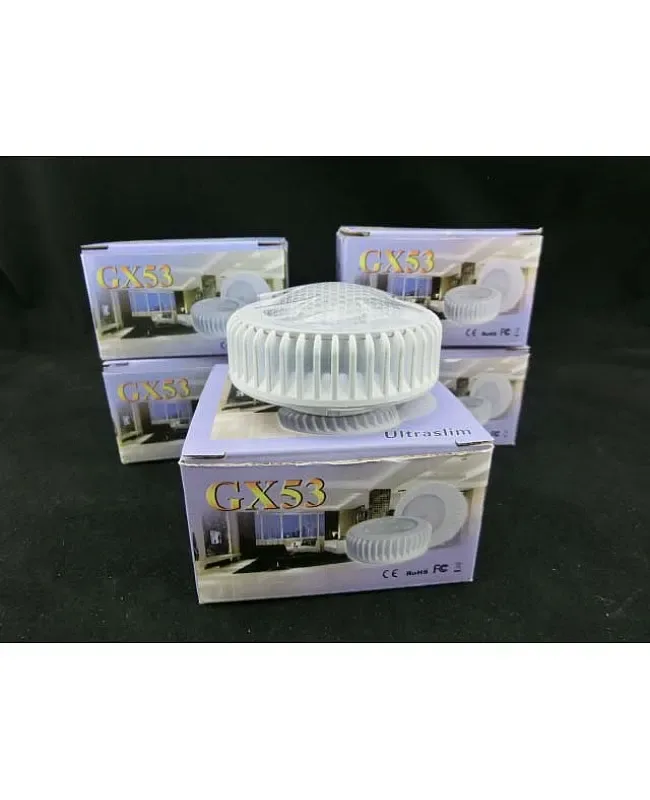

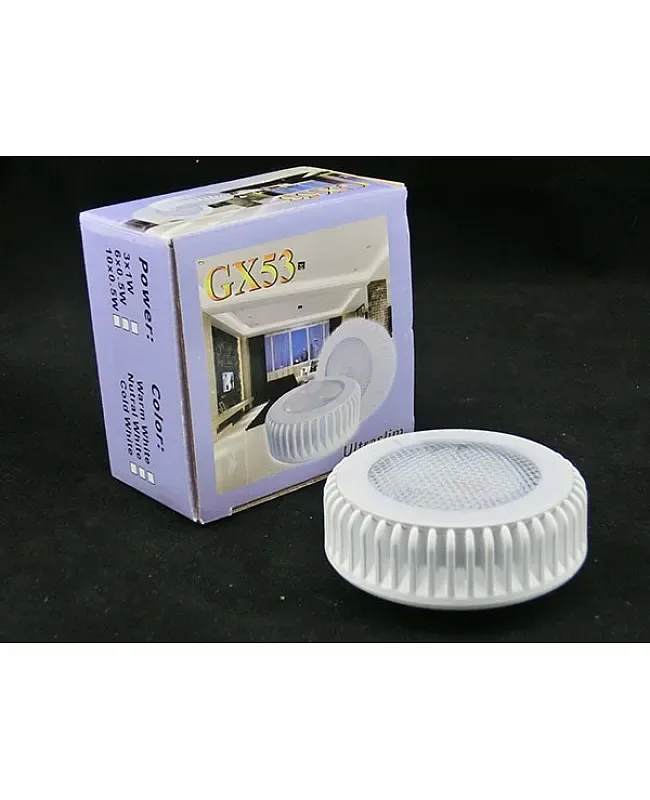

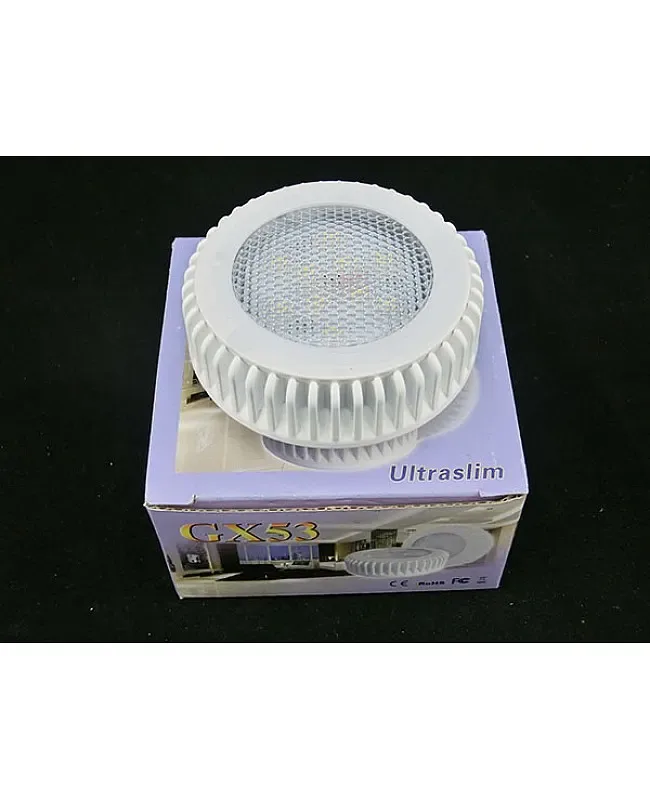

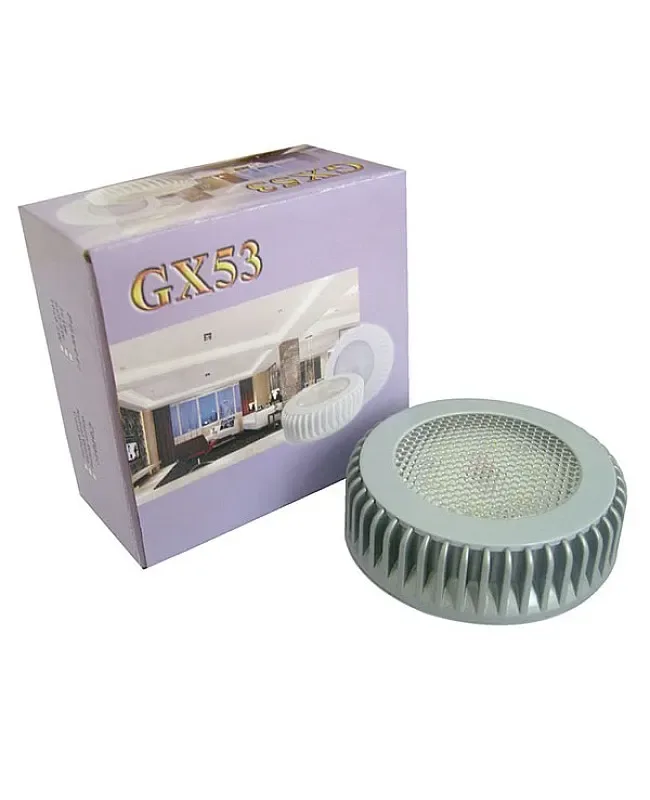

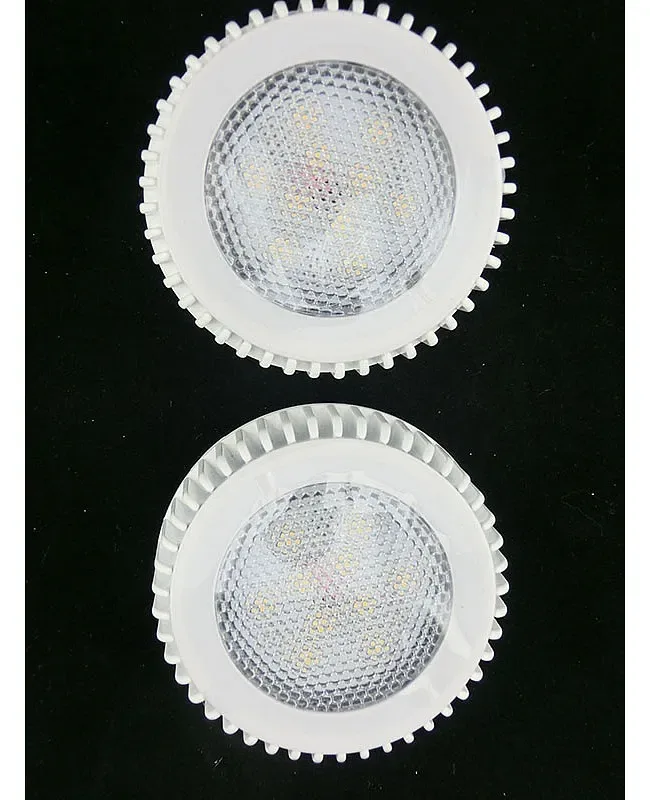

The LED Under Cabinet Lighting, with a patent-design aluminum shell, features better heat dissipation. The Under Cabinet Lighting with base uses 10PCS 0.5W Epistar LEDs as the light source; the installer can choose the warm white, neutral white, or cool white emitting colors. The input voltage range is from AC100V to AC240V, and it can replace traditional energy-saving lamps. It has no flicker or glare, comes with a concave lens for a large beam angle, and LED under-cabinet lighting can replace halide lamps, sodium lamps, mercury lamps, fluorescent lamps, and energy-saving lamps. Can be used in indoor lighting, shop display cabinets, hotels, restaurants, wine cabinets, kitchens, exhibition cabinets, etc.
Specifications
Material: Die-Casting AL+Spray Oil
Color Of Shell: Silver
Color Available: Cool White(6000K-6500K), Warm White（2700-3200K), Neutral White(4000-4500K)
LED: 0.5W Epistar SMD LEDs
LED Quantity: 10PCS
Size: Ф 74x37 mm
Input Voltage: AC100V-AC240V
Operating Voltage: DC15V-DC18V
Input Power: 6W
Operating Current
Power Factor: ≥0.53
Angle: 120°
Lumens: 400LM
Base
Lens: Concave lens
Weight: 200g
1 * LED Cabinet LED Lamp
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
