Product details
15W Zigbee 3.0 24V RGB+CCT LED Yard Lights
LumaCircuit offers 15W Zigbee 3.0 24V RGB+CCT LED Yard Lights as a configurable LED strip connector and wiring accessory for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Colors: 16 Million Colors Color Temperature: 2700 K- 6500 K Luminous Efficiency: 110LM/W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

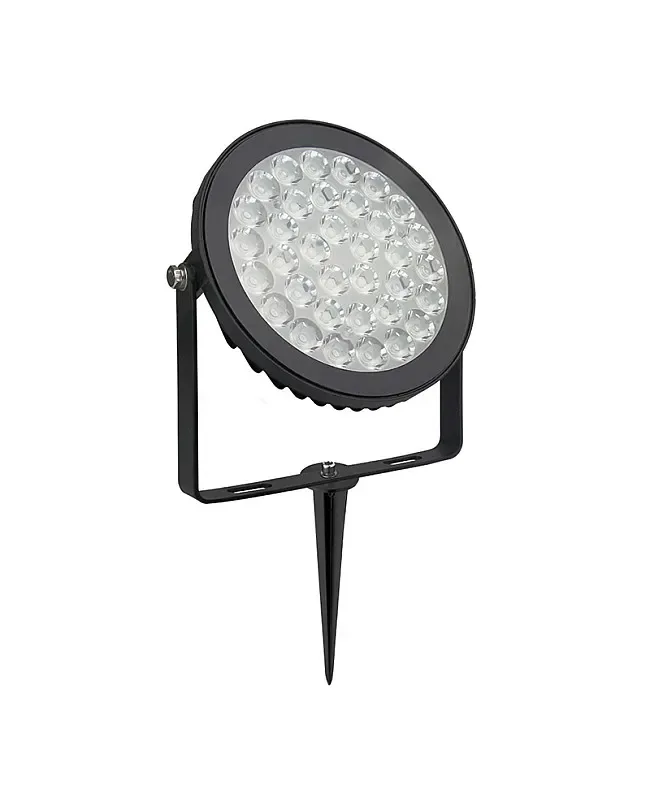

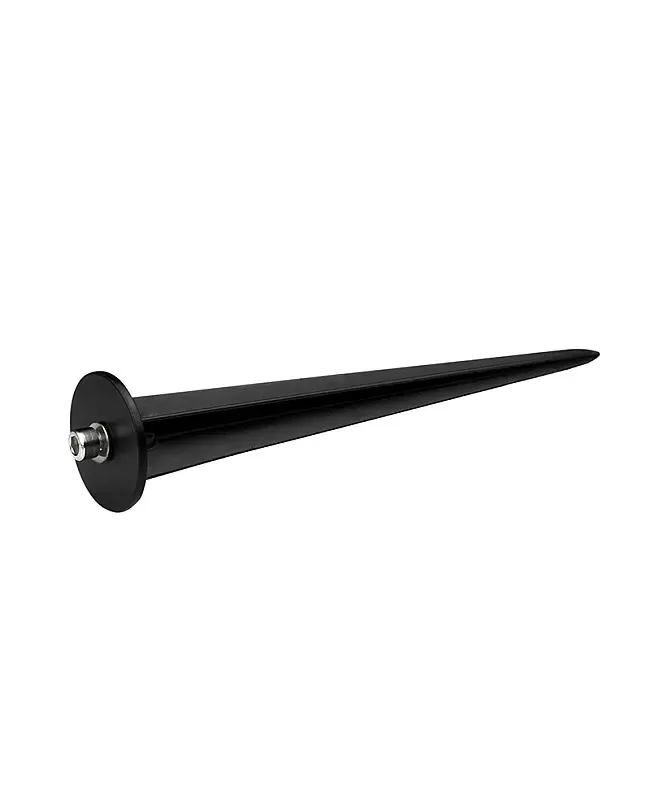

- The wireless controller LED yard lights are an energy-efficient and cost-effective way to illuminate outdoor spaces, offering a wide range of colors and brightness levels to create vibrant lighting for your yards, gardens, paths, lawns, and more. It's designed to be durable, long-lasting, and low-maintenance. The color-changing Yard Lamps operate on DC 24V low voltage, and an inserting pole is included for easy installation.
- Colors: 16 Million Colors
- Color Temperature: 2700 K- 6500 K
- Luminous Efficiency: 110LM/W
- Illumination Distance: >10m
- Communication Protocol: Zigbee 3.0
- Control Distance: Zigbee: ≤100m(Open Area); 2.4G:≤30m
- Wireless Technology: Zigbee 3.0 (802.15.4)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CON-W4AZRG
- Size: 170*112.5mm(W*H)
- Input Voltage: DC24V
- Power: 15W
- Colors: 16 Million Colors
- Color Temperature: 2700 K- 6500 K
- CRI: >
- Beam Angle: 15°
- Communication Protocol: Zigbee 3.0
- Control Distance: Zigbee: ≤100m(Open Area); 2.4G:≤30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller LED yard lights are an energy-efficient and cost-effective way to illuminate outdoor spaces, offering a wide range of colors and brightness levels to create vibrant lighting for your yards, gardens, paths, lawns, and more. It's designed to be durable, long-lasting, and low-maintenance. The color-changing Yard Lamps operate on DC 24V low voltage, and an inserting pole is included for easy installation. They are constructed from die-cast aluminum, which is resistant to corrosion and weathering. IP66-rated for dust and water resistance. The integrates the Zigbee 3.0 standard protocol and can be controlled by a Zigbee remote control, a smartphone app, and third-party voice commands. There are 16 million colors available, the color temperature is adjustable from 2700K to 6500K, and the brightness is adjusted from 1% to 100% for various scenes. After matching a Zigbee 3.0 Gateway, the installer can download and use the Tuya Smart APP to control the RGB+CCT LED garden lights and achieve more functions like scene customization, music rhythm, timing, biorhythm, device sharing, etc., supports third-party voice control, can work with Amazon Alexa and Google Assitant, the installer can use voice commands to turn ON/OFF, control brightness, colors, etc the wireless controller Yard Lights can enter into Philips Hue, IKEA TRADFRI, Amazon ECHO Plus( Gen), ECHO( Gen), ECHO Studio, ECHO Show(2. Gen) standard Zigbee 3.0 Gateways.
Specifications
Model
Size: 170*112.5mm(W*H)
Input Voltage: DC24V
Power: 15W
Colors: 16 Million Colors
Color Temperature: 2700 K- 6500 K
Luminous Flux: 1650LM
Luminous Efficiency: 110LM/W
Dimmable: YES
CRI: >
Beam Angle: 15°
Illumination Distance: >10m
Communication Protocol: Zigbee 3.0
Control Distance: Zigbee: ≤100m(Open Area); 2.4G:≤30m
Wireless Technology: Zigbee 3.0 (802.15.4)
Zigbee Wireless Frequency: 2.400- 2.
IP Rate: IP66 Waterproof
APP Name: Tuya Smart(Zigbee 3.0 Gateway Needed)
Support Third-Party Voice Control
Can Work With Amazon Alexa And Google Assistant
Music Rhythm Function
Group Control
Working Temperature: -20℃-+45℃
Includes
1 * LED Yard Light
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
