12V Digital Individually Addressable Cuttable RGB LED Sheets
LumaCircuit offers 12V Digital Individually Addressable Cuttable RGB LED Sheets as a configurable LED strip connector and wiring accessory for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. The flat LED paper sheets can be easily cut along the cutting lines to fit specific project requirements. The flexible feature allows them to be bent into shapes or conform to curved or irregular surfaces. They have 6 connectors (one input, one output, and four power connectors) to support synchronization of multiple light sheets for medium- or large-scale lighting projects. Link: Individually Addressable Sheet Panel Data Sheet Type: Addressable cuttable light sheets The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The individual addressable light sheets are the improved solution for flexible, creative backlighting that requires precise pixel-level control. It can be easily installed or connected as backlighting for marble countertops, display boxes, signs, and DIY projects. Each LED on the sheet is individually addressable, compatible with digital or WLED LED controllers for dynamic color changes, animations, and custom lighting effects across complex shapes and surfaces.
- The flat LED paper sheets can be easily cut along the cutting lines to fit specific project requirements. The flexible feature allows them to be bent into shapes or conform to curved or irregular surfaces. They have 6 connectors (one input, one output, and four power connectors) to support synchronization of multiple light sheets for medium- or large-scale lighting projects.
- Link: Individually Addressable Sheet Panel Data Sheet
- Type: Addressable cuttable light sheets
- Size( L x W ): 250 mm x 250 mm ( 0.98" x 0.98" )
- LEDs: 100 pieces 5050 SMDs
- IC type: Built-in WS2815
- Wavelength: 620 - 625 nm ( red ), 520 - 525 nm ( Green ), 465 - 470 nm ( Blue )
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: Addressable
- LumaCircuit model: LC-CON-5L7ZBZ
- Size( L x W ): 250 mm x 250 mm ( 0.98" x 0.98" )
- LEDs: 100 pieces 5050 SMDs
- Color: RGBIC
- Working voltage: DC 12V
- Current: 1.08A
- Power: 13W
- Wavelength: 620 - 625 nm ( red ), 520 - 525 nm ( Green ), 465 - 470 nm ( Blue )
- Beam angle: 120°
- Working Temperature: -20 ℃ + 45 ℃ ( -4 °F - 149 °F )
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

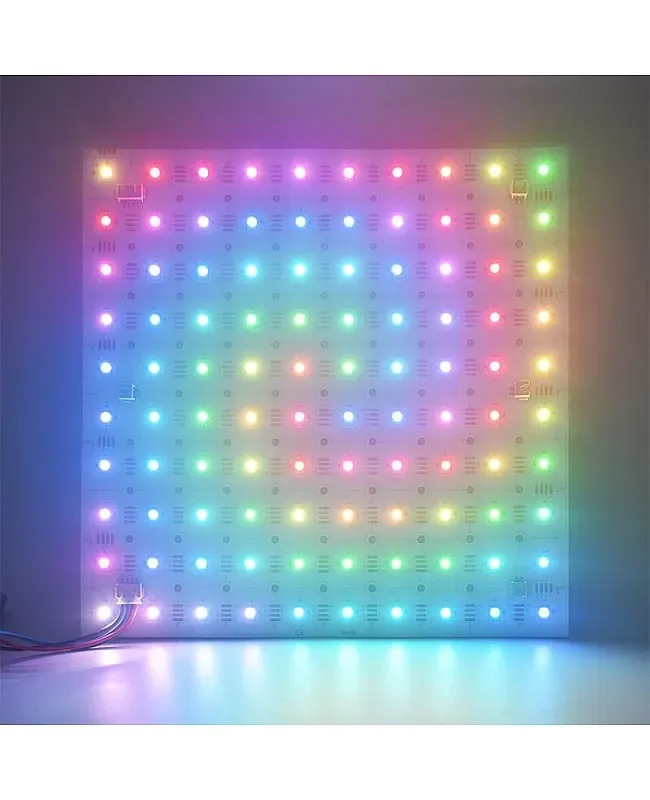

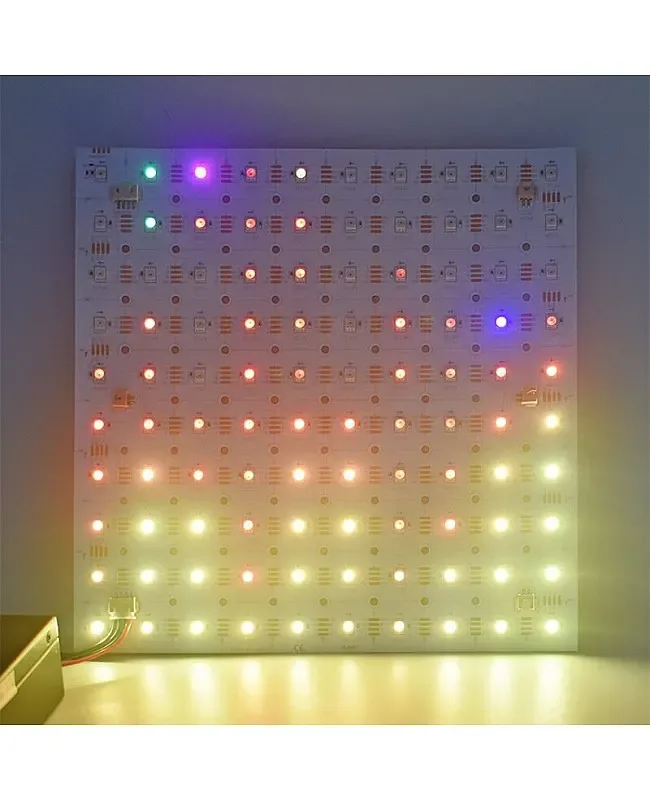

The individual addressable light sheets are the improved solution for flexible, creative backlighting that requires precise pixel-level control. It can be easily installed or connected as backlighting for marble countertops, display boxes, signs, and DIY projects. Each LED on the sheet is individually addressable, compatible with digital or WLED LED controllers for dynamic color changes, animations, and custom lighting effects across complex shapes and surfaces.

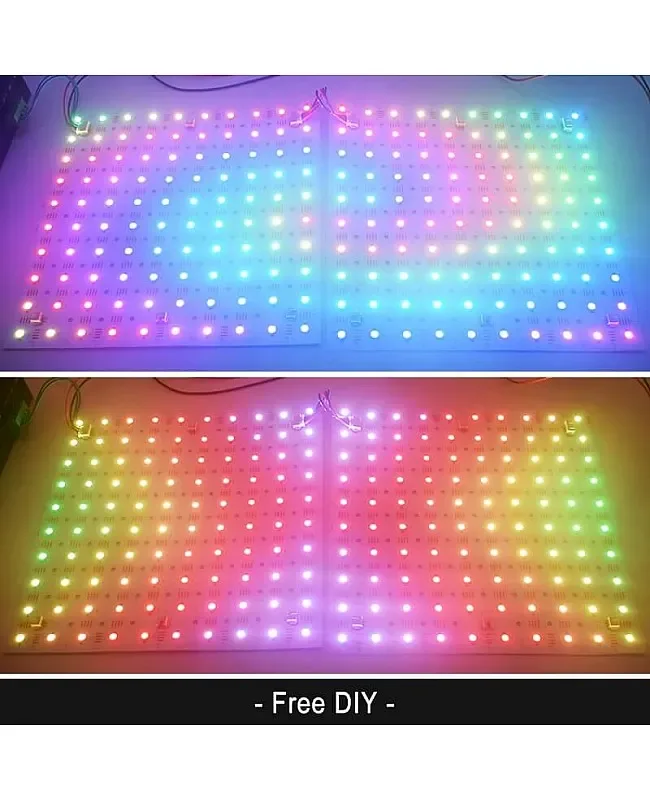

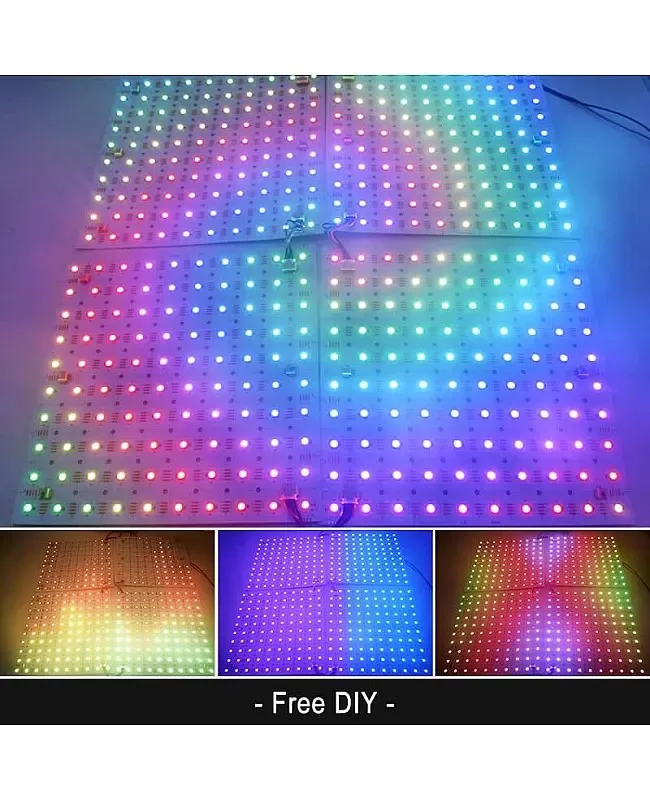

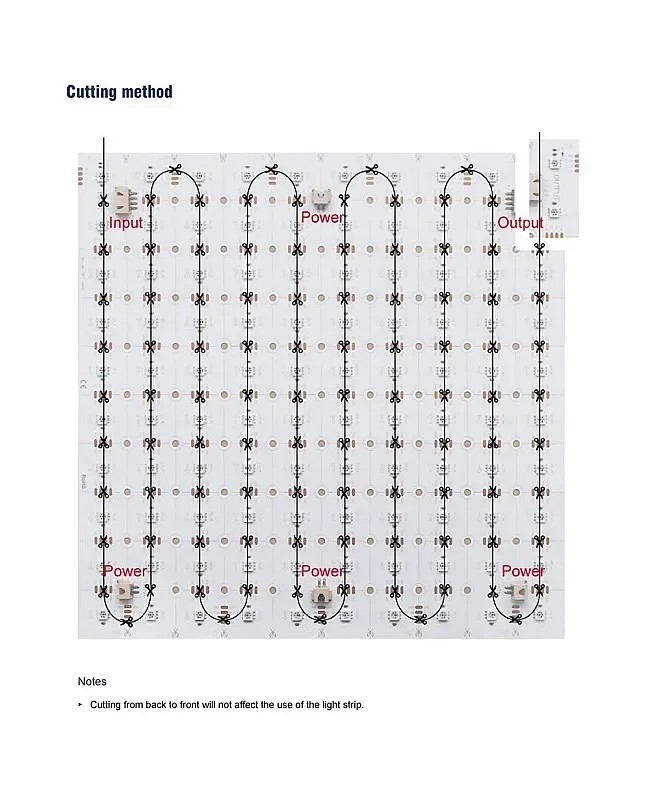

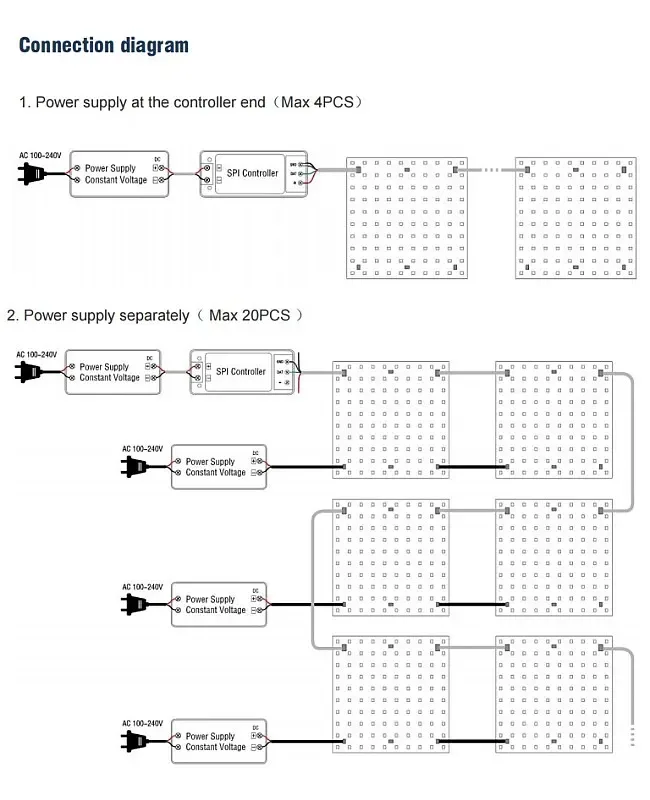

The flat LED paper sheets can be easily cut along the cutting lines to fit specific project requirements. The flexible feature allows them to be bent into shapes or conform to curved or irregular surfaces. They have 6 connectors (one input, one output, and four power connectors) to support synchronization of multiple light sheets for medium- or large-scale lighting projects.
The surface has screw holes, and the back has double-sided adhesive for easy installation in various applications. IP20 non-waterproof and IP54 waterproof products are available.
Link: Individually Addressable Sheet Panel Data Sheet
Specifications
Type: Addressable cuttable light sheets
Model
Size( L x W ): 250 mm x 250 mm ( 0.98" x 0.98" )
LEDs: 100 pieces 5050 SMDs
IC type: Built-in WS2815
IC quantity: 100 pieces
Color: RGBIC
Working voltage: DC 12V
Current: 1.08A
Power: 13W
Luminous flux: 20lm/LED
Wavelength: 620 - 625 nm ( red ), 520 - 525 nm ( Green ), 465 - 470 nm ( Blue )
Beam angle: 120°

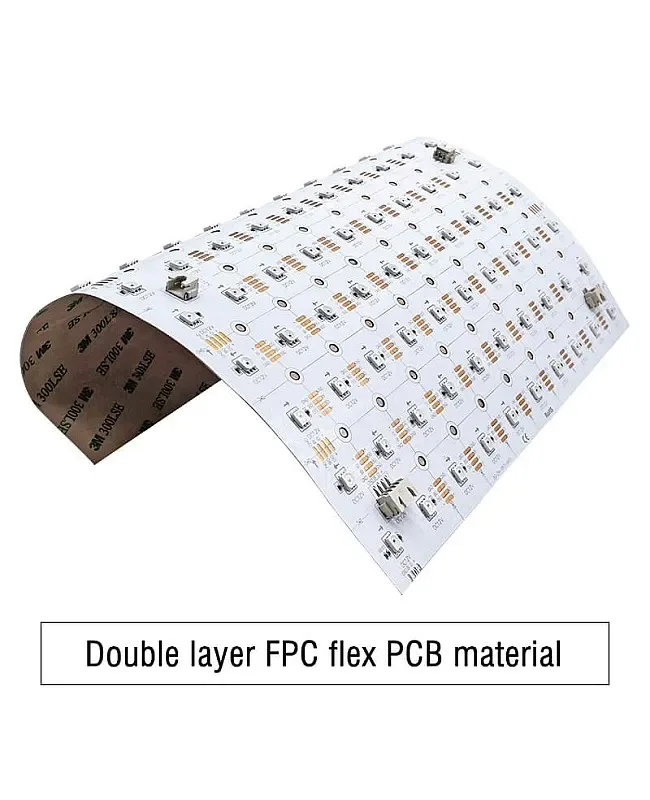

Flexible, bendable, and cuttable
The back has double-sided adhesive tape

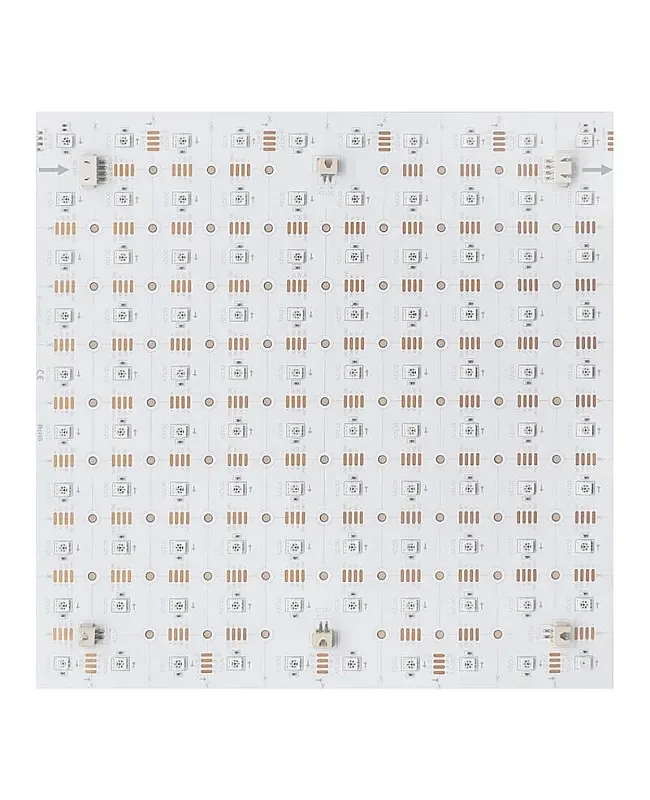

Surface has screw holes and multiple connectors
Waterproof Level: IP20 non-waterproof, IP54 waterproof
Storage Temperature; -20 ℃ + 65 ℃ ( -4 °F - 113 °F )
Working Temperature: -20 ℃ + 45 ℃ ( -4 °F - 149 °F )

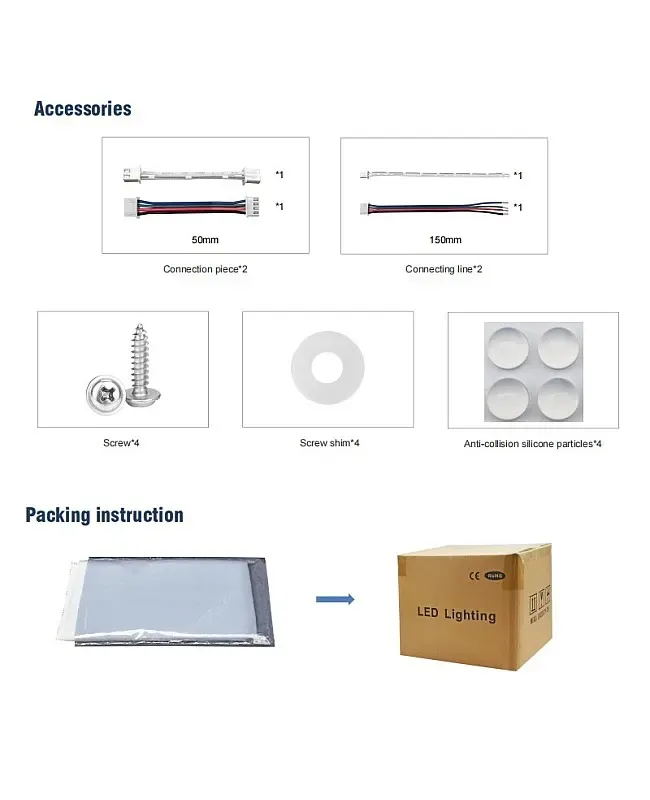

Includes
1 x Programmable lighting sheet
2 x connection cables
2 x Signal input cables
1 x Power cable
1 X Power connection cable
Product resources
Technical documents
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
