Cuttable RGB+CCT Backlighting LED Sheets

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The cuttable LED sheets are a versatile and innovative lighting option for backlighting in countertops, display boxes, signs, and DIY projects. The RGBWW LED sheets use 2835 or 5050 SMD LEDs as the light source. The LEDs are evenly spaced on the dual-layer PCB, making the board flexible and bendable. It's easy to connect to an LED light controller, which allows you to choose from millions of static colors, adjust the color temperature from warm white to cool white, and control brightness for various scenes.
• The back has double-sided adhesive tape, and the surface has screw holes for easy installation. The backlighting sheets feature a cuttable design, allowing you to create a specific size to fit a unique space or intricate lighting patterns, as needed. The RGB+CCT LED sheets are connectable for large lighting projects; the installer can connect multiple pieces for applications such as retail displays, architectural lighting, and other home projects.
• Link: RGB+CCT Backlighting LED Sheet Data Sheet
• Type: RGB+CCT flexible backlighting LED sheets
• Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.65" ) / 500 mm x 245 mm ( 19.69" x 9.65" )( LB-297-5050-360 )
• LED type: 2835 SMD LEDs / 5050 SMD LEDs ( LB-297-5050-360 )

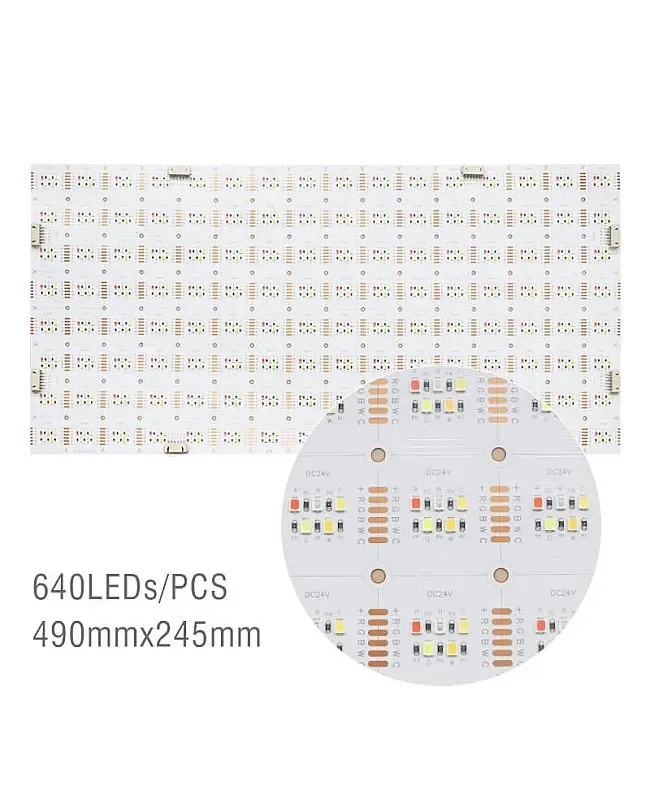

• LED quantity: 640PCS / 360PCS ( LB-297-5050-360 )
• Power: 50W/piece / 60W/piece ( LB-297-5050-360 )

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 24 V
• Light engine: RGB+CCT
• Models: LB-297-5050-360
• Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.65" ) / 500 mm x 245 mm ( 19.69" x 9.65" )( LB-297-5050-360 )
• LED type: 2835 SMD LEDs / 5050 SMD LEDs ( LB-297-5050-360 )
• LED quantity: 640PCS / 360PCS ( LB-297-5050-360 )
• Working voltage: DC 24V
• Power: 50W/piece / 60W/piece ( LB-297-5050-360 )
• Colors: RGB+tunable white
• Color temperature adjustable: Yes
• CRI: >
• Beam angle: 120°

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The cuttable LED sheets are a versatile and innovative lighting option for backlighting in countertops, display boxes, signs, and DIY projects. The RGBWW LED sheets use 2835 or 5050 SMD LEDs as the light source. The LEDs are evenly spaced on the dual-layer PCB, making the board flexible and bendable. It's easy to connect to an LED light controller, which allows you to choose from millions of static colors, adjust the color temperature from warm white to cool white, and control brightness for various scenes.

The back has double-sided adhesive tape, and the surface has screw holes for easy installation. The backlighting sheets feature a cuttable design, allowing you to create a specific size to fit a unique space or intricate lighting patterns, as needed. The RGB+CCT LED sheets are connectable for large lighting projects; the installer can connect multiple pieces for applications such as retail displays, architectural lighting, and other home projects.

Link: RGB+CCT Backlighting LED Sheet Data Sheet

Specifications

Type: RGB+CCT flexible backlighting LED sheets

Models: LB-297-5050-360

Size( L x W ): 490 mm x 245 mm ( 19.29" x 9.65" ) / 500 mm x 245 mm ( 19.69" x 9.65" )( LB-297-5050-360 )

LED type: 2835 SMD LEDs / 5050 SMD LEDs ( LB-297-5050-360 )

LED quantity: 640PCS / 360PCS ( LB-297-5050-360 )

Working voltage: DC 24V

Power: 50W/piece / 60W/piece ( LB-297-5050-360 )

Colors: RGB+tunable white

Luminous flux: 1800 lm/m / 2160lm/m ( LB-297-5050-360 )

Dimmable: Yes

Color temperature adjustable: Yes

CRI: >

Beam angle: 120°

PCB material: Double-layer FPC

Cut length: 30.6 mm x 30.6 mm / 125 mm ( LB-297-5050-360 )

Has multiple power connectors for easy connection

The back has double-sided adhesive tape

The surface has screw holes for easy mounting

Waterproof Level: IP20 non-waterproof, IP54 waterproof

Storage temperature: -20 ℃ + 65 ℃ ( -4 °F - 113 °F )

Working temperature: -20 ℃ + 45 ℃ ( -4 °F - 149 °F )

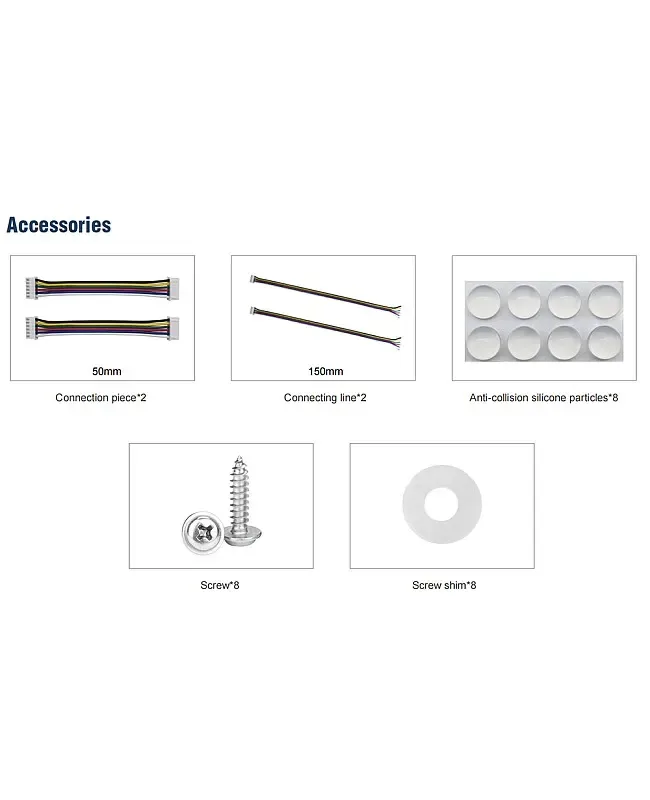

Includes

1 x RGBWW cuttable LED sheet

2 x connection cables

2 x Input Cables

8 x Anti-collision silicone particles
