5/2.1mm Male Female DC Plug LED Connectors
LumaCircuit offers 5/2.1mm Male Female DC Plug LED Connectors as a configurable LED strip connector and wiring accessory for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Working Voltage: DC1V-DC24V Material: Environmental PVC Internal Diameter Of The Plug: 2.1mm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5.5/2.1mm male and female DC plug LED connectors, with double-layer injection molding production, provide the best polarity connection and insulation. The DC electrical connector connects the wire lead end to a 1/5.5mm port. It has a tight screw-on terminal installation and is easy to install and use. It can work between 1V and 24V and has a max loading current up to 5A the installer can use it for power supplies, LEDs, CCTV cameras, audio and video, etc.
- Working Voltage: DC1V-DC24V
- Material: Environmental PVC
- Internal Diameter Of The Plug: 2.1mm

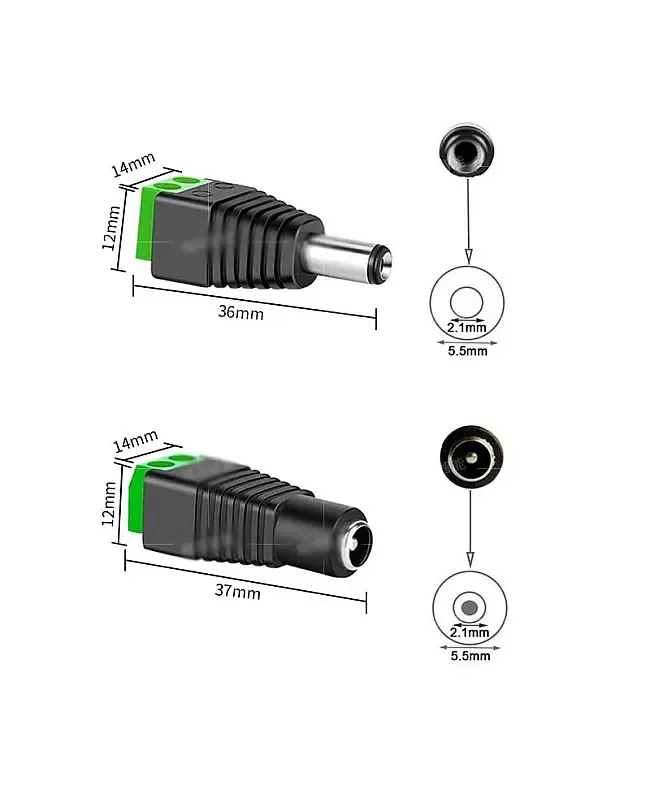

- External Diameter Of The Plug: 5.5mm
- 1 * Solderless Male DC Connector
- 1 * Female DC LED Connector
- solderless male DC connector, suit for connect LED strips with LED power supply.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Working Voltage: DC1V-DC24V
- Max Working Current: 5A
- Material: Environmental PVC
- Internal Diameter Of The Plug: 2.1mm
- External Diameter Of The Plug: 5.5mm
- LumaCircuit model: LC-CON-6HXYQO
- Dimensions found: 2.1mm / 5.5mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 5.5/2.1mm male and female DC plug LED connectors, with double-layer injection molding production, provide the best polarity connection and insulation. The DC electrical connector connects the wire lead end to a 1/5.5mm port. It has a tight screw-on terminal installation and is easy to install and use. It can work between 1V and 24V and has a max loading current up to 5A the installer can use it for power supplies, LEDs, CCTV cameras, audio and video, etc.
Specifications
Working Voltage: DC1V-DC24V
Max Working Current: 5A
Material: Environmental PVC
Internal Diameter Of The Plug: 2.1mm
External Diameter Of The Plug: 5.5mm
Weight: 6g/PC
1 * Solderless Male DC Connector
1 * Female DC LED Connector
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
