Product details

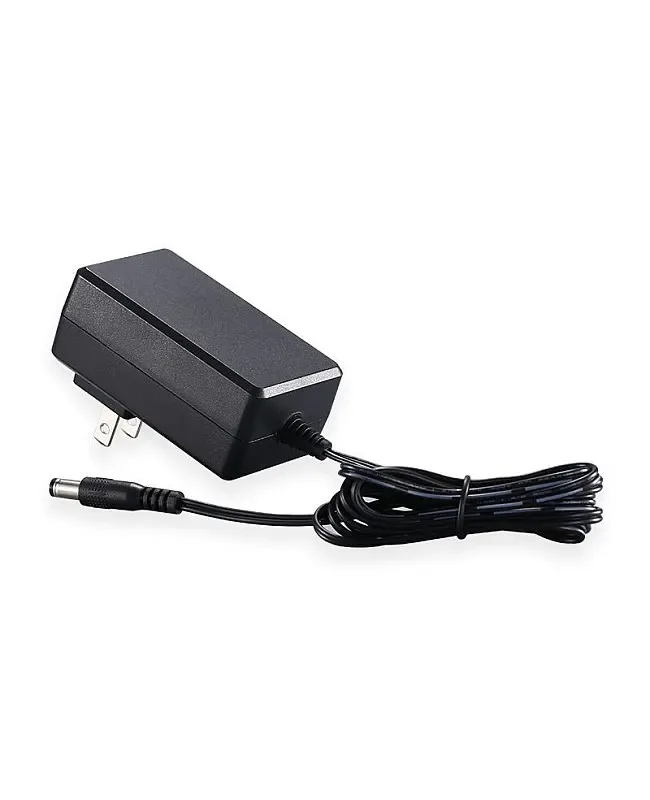

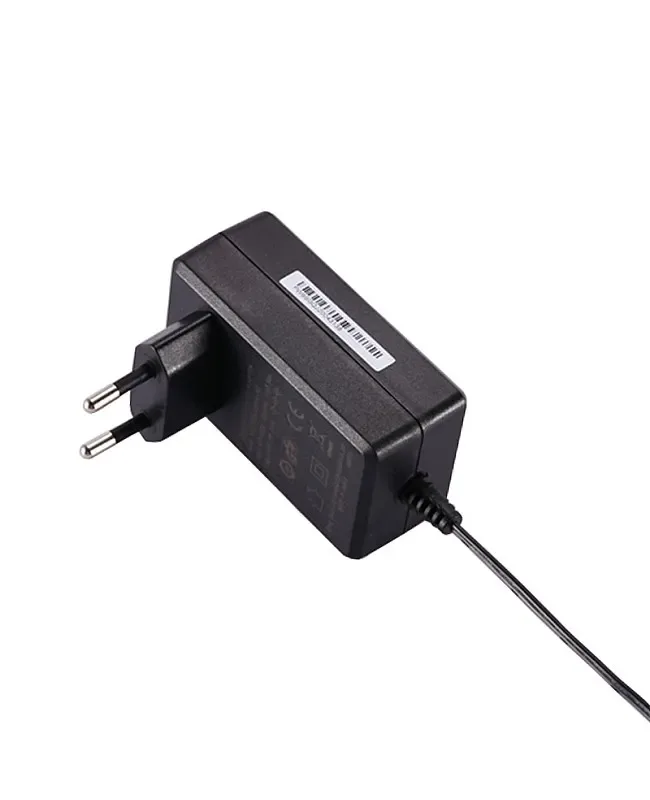

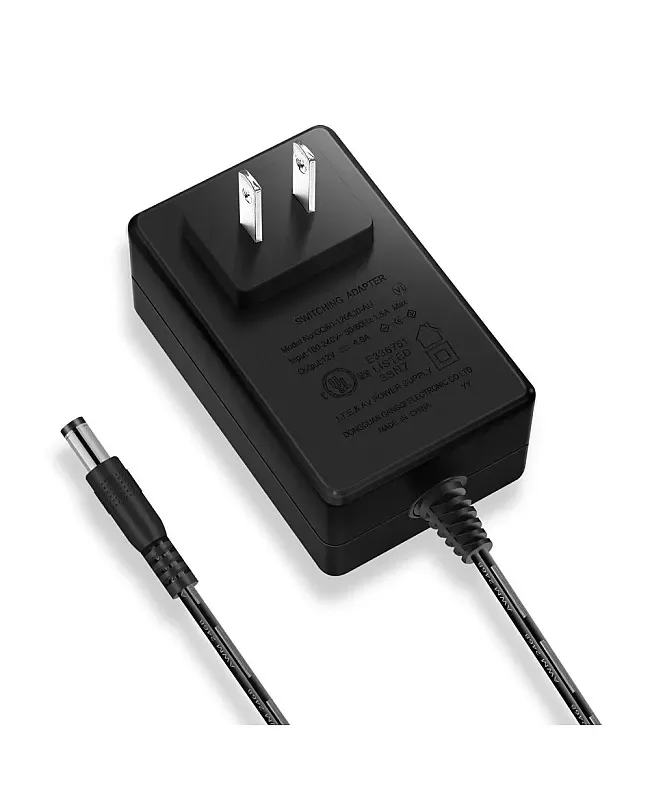

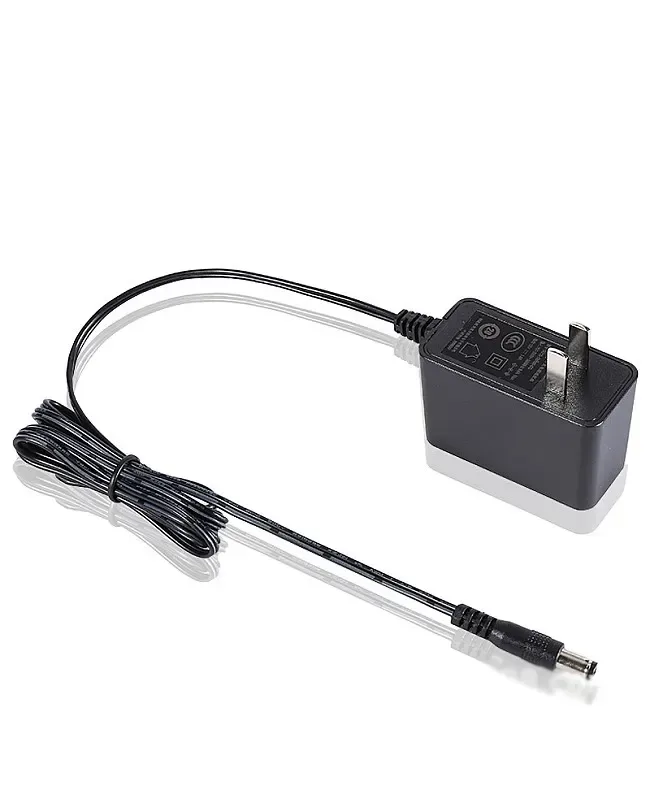

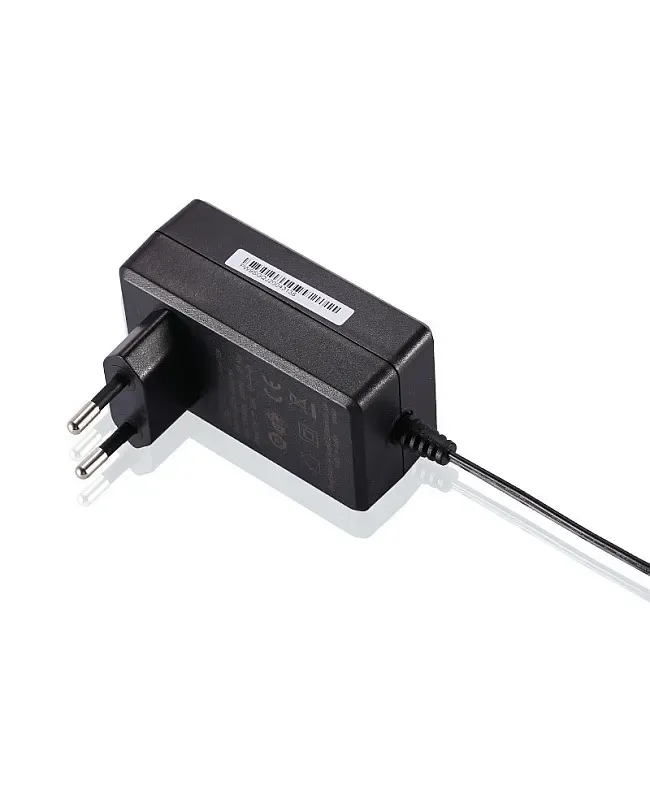

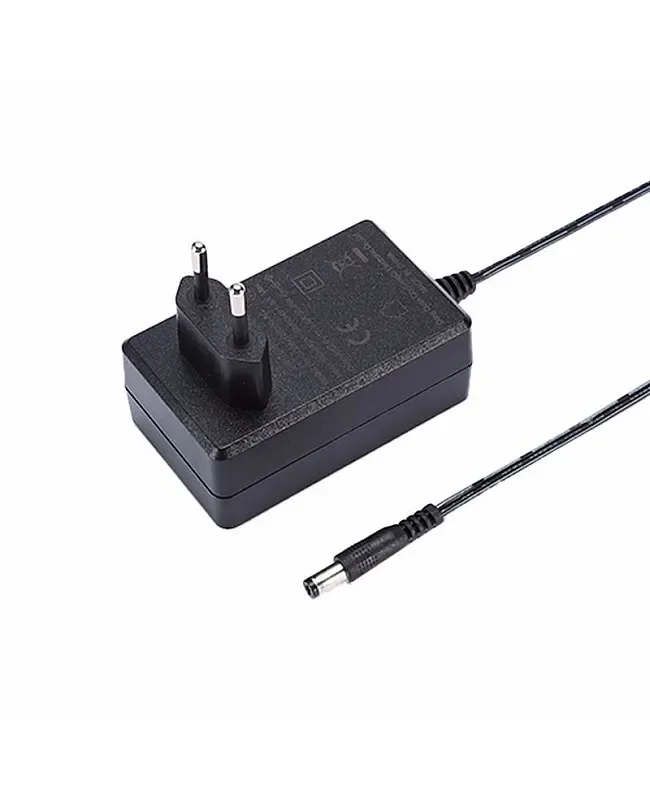

12V 48W Wall mounted LED Light Adapters
LumaCircuit offers 12V 48W Wall mounted LED Light Adapters as a configurable LED strip connector and wiring accessory for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Output Voltage: DC12V/4A Power Plug: US, EU, UK, AU DC Cable Length: 1.5 meters The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Input Voltage: -240V, 50/60Hz
- Output Voltage: DC12V/4A
- Power Plug: US, EU, UK, AU
- DC Cable Length: 1.5 meters

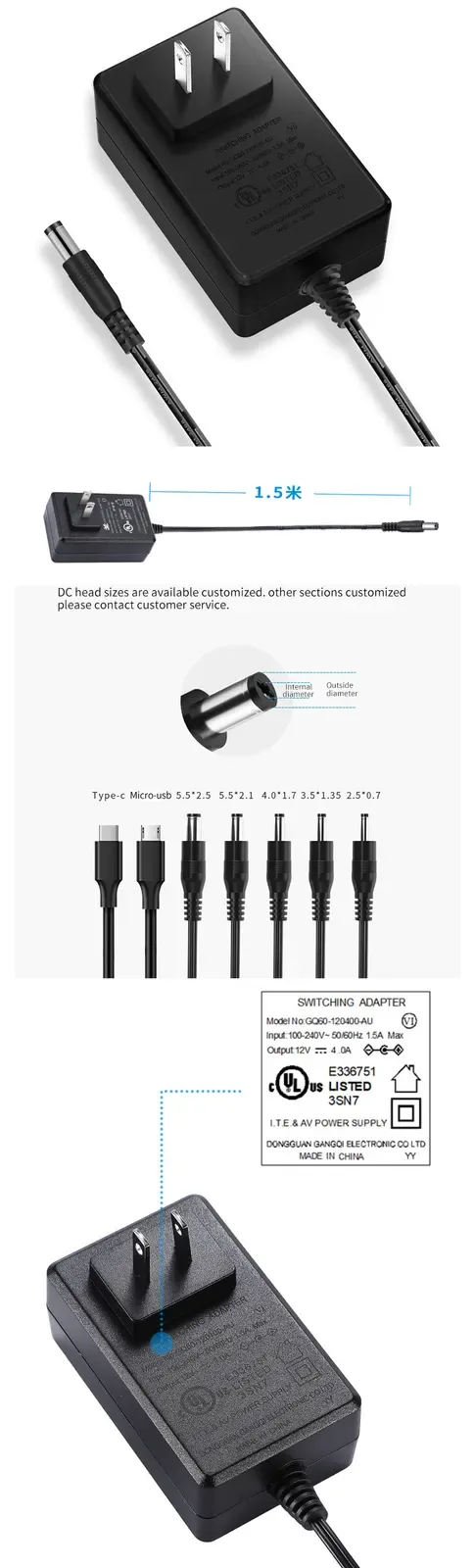

- DC Connector Standard: 5.5*2.1mm
- IP Rating: IP20 Non-Waterproof
- Short Circuit Protection
- Over Temperature Protection
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 240 V
- Material: ABS+PC
- Size: 80*50*38mm(L*W*H)
- Colors: Black
- Input Voltage: -240V, 50/60Hz
- Input Current: 1.5A Max
- Output Voltage: DC12V/4A
- Power: 48W
- Power Plug: US, EU, UK, AU
- DC Cable Length: 1.5 meters
- DC Connector Standard: 5.5*2.1mm
- IP Rating: IP20 Non-Waterproof
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Material: ABS+PC
Size: 80*50*38mm(L*W*H)
Colors: Black
Input Voltage: -240V, 50/60Hz
Input Current: 1.5A Max
Output Voltage: DC12V/4A
Power: 48W
Power Plug: US, EU, UK, AU
DC Cable Length: 1.5 meters
DC Connector Standard: 5.5*2.1mm
IP Rating: IP20 Non-Waterproof
Short Circuit Protection
Overload Protection
Over-Voltage Protection
Overcurrent Protection
Over Temperature Protection
Overcharge Protection
Includes
1 * LED Light Adapter
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
