Product details
12W Outdoor Wall Lamp RGB+CCT Zigbee 3.0+2.4G Control
LumaCircuit offers 12W Outdoor Wall Lamp RGB+CCT Zigbee 3.0+2.4G Control as a configurable LED strip connector and wiring accessory for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Type: 12W Outdoor RGB+CCT Square Wall Lamp Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White) Brightness And Saturation Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12W outdoor wall lamps integrate Zigbee 3.0 and 2 communication protocols, utilizing RGB and CCT LEDs as the light source. These are easy to control, providing a warm, inviting ambiance or a vibrant, colorful atmosphere on your walls. The zigbee wall lights feature a unique square shape and an IP rating of up to IP66, allowing them to be connected to a 100- 240V AC power system and easily mounted on the wall for outdoor decoration. The RGB+CCT wall lights follow Zigbee 3.0 and 2 communication protocols.
- Type: 12W Outdoor RGB+CCT Square Wall Lamp
- Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White)
- Brightness And Saturation Adjustable
- Luminous Efficiency: 85LM/W
- Illumination Distance: >8m
- Communication Protocol: Zigbee 3.0 + 2.
- 4G Remote Control T4, T3,
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CON-QFNYE9
- Input Voltage: -240V
- Power: 12W
- CRI: >
- Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White)
- Communication Protocol: Zigbee 3.0 + 2.
- 2.4G Remote Control: T4, T3,
- Control Distance: Zigbee: ≤50m(Open Area); 2.4G RF Remote: ≤30m
- Zigbee Wireless Frequency: 2.400- 2.
- IP Rate: IP66 Waterproof
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 12W outdoor wall lamps integrate Zigbee 3.0 and 2 communication protocols, utilizing RGB and CCT LEDs as the light source. These are easy to control, providing a warm, inviting ambiance or a vibrant, colorful atmosphere on your walls. The zigbee wall lights feature a unique square shape and an IP rating of up to IP66, allowing them to be connected to a 100- 240V AC power system and easily mounted on the wall for outdoor decoration. The RGB+CCT wall lights follow Zigbee 3.0 and 2 communication protocols. They can work with wireless controller RF Remote Controls. The installer can choose the color and remotely adjust the brightness, color temperature, and saturation for various scenes. There are 16 million colors available, and the color temperature is adjustable, ranging from 2700K warm white to 6500K cool white. After connecting to a Zigbee 3.0 gateway, the installer can control the Zigbee wall lights using the Tuya Smart APP on your smartphone or third-party voice commands. The installer can achieve more functions on your phone, such as scene customization, music rhythm, timing, and device sharing, among others. They can work with Amazon Alexa and Google Assistant. They can also connect to other standard Zigbee 3.0 gateways, such as Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Echo, Echo Studio, and Echo Show.
Specifications

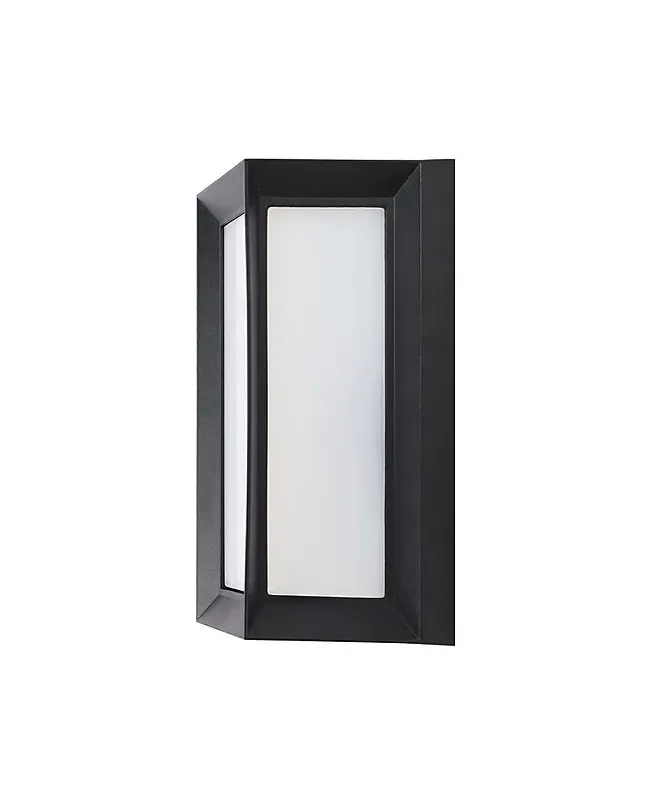

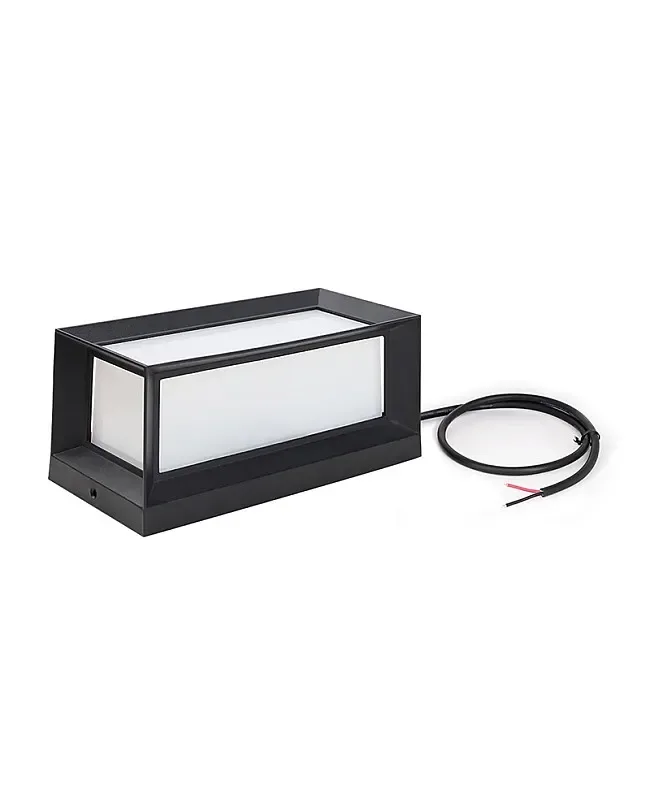

Type: 12W Outdoor RGB+CCT Square Wall Lamp
Model
Input Voltage: -240V
Power: 12W
CRI: >
16M Colors To Choose
Color Temperature Adjustable Range: 2700K(Warm White)-6500K(Cool White)
Brightness And Saturation Adjustable
Luminous Flux: 1000LM
Luminous Efficiency: 85LM/W
Illumination Distance: >8m
Communication Protocol: Zigbee 3.0 + 2.
4G Remote Control T4, T3,
Tuya Smart Smartphone APP Control(Zigbee 3.0 Gateway Needed)
Support Third-Party Voice Control: Amazon Alexa And Google Assistant(Zigbee 3.0 Gateway Needed)
Compatible With Common Zigbee 3.0 Hubs
Control Distance: Zigbee: ≤50m(Open Area); 2.4G RF Remote: ≤30m
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Support DMX512 Controllable( Needed)
IP Rate: IP66 Waterproof
Working Temperature: -20-45℃
Includes
1 * Zigbee outdoor wall sconces
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
