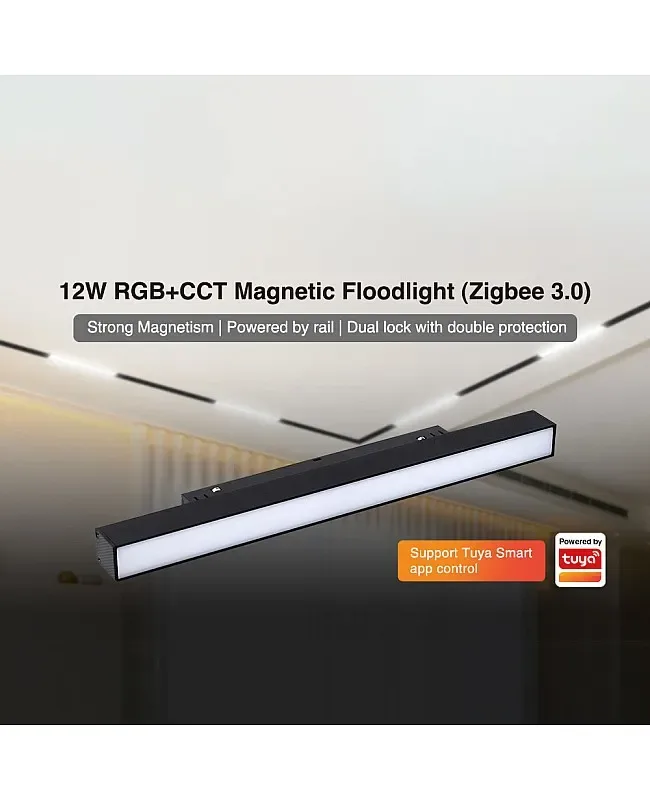

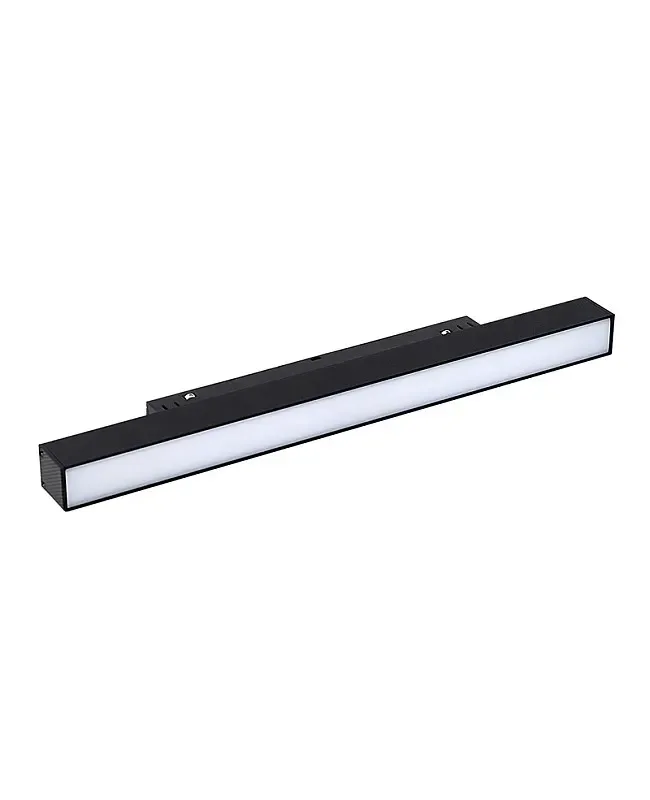

48V 12W Zigbee 3.0 RGB CCT Magnetic Floodlight

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The 12W Zigbee 3.0 wireless controller magnetic floodlight is a Zigbee 3.0-compatible device that enables you to control the brightness and color of your indoor lighting using remote controls or apps. This device features a magnetic mounting system, making installation easy on magnetic rails. Its Zigbee 3.0 compatibility ensures a reliable connection, allowing you to control your lighting from anywhere in the world.
• RGB+CCT series: ( 12W )/ -24A-ZL ( 24W )
• Tunable white series: -12A-ZL ( 12W ) / -24A-ZL ( 24W )
• Size ( L x W x H): 303mm x 22 mm x 42.5 mm ( 12W ) / 603 mm x 22 mm x 42.5 mm ( 24W )
• Luminous flux: 700 LM ( 12W RGB+CCT ) / 1350 LM ( 24W RGB+CCT ) / 735 LM ( 12W CCT ) / 1380 LM ( 24W CCT )
• Luminous efficiency: 63 LM/W ( 12W RGB+CCT ) / 60 LM/W ( 24W RGB+CCT ) / 66 LM/W ( 12W CCT ) / 63 LM/W( 24W CCT )
• Color temperature adjustable: 2700 K- 6500 K
• Brightness and saturation are adjustable

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 48 V
• Light engine: RGB+CCT
• RGB+CCT series: ( 12W )/ -24A-ZL ( 24W )
• Size ( L x W x H): 303mm x 22 mm x 42.5 mm ( 12W ) / 603 mm x 22 mm x 42.5 mm ( 24W )
• Working voltage: DC48V
• Power: 12 W / 24 W
• Color temperature adjustable: 2700 K- 6500 K
• Communication protocol: Zigbee 3.0 + 2.4 GHz
• Zigbee wireless frequency: 2.400-2.
• Control distance: ≤50 m ( Open Area )( Zigbee ) / ≤25 m( 2.4G RF remote )
• CRI: >
• Beam angle: 120°

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator.

Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

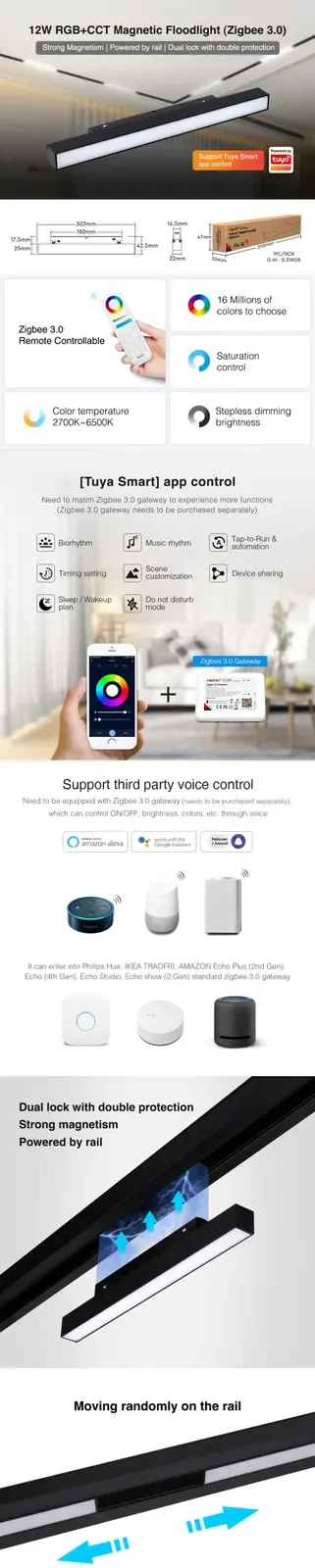

The 12W Zigbee 3.0 wireless controller magnetic floodlight is a Zigbee 3.0-compatible device that enables you to control the brightness and color of your indoor lighting using remote controls or apps. This device features a magnetic mounting system, making installation easy on magnetic rails. Its Zigbee 3.0 compatibility ensures a reliable connection, allowing you to control your lighting from anywhere in the world. The wireless controller RGB+CCT magnetic LED lights utilize high-quality SMD LEDs as their light source, and the shell is crafted from high-quality aluminum material for enhanced heat dissipation. The surface has a PC diffuser for smooth light output. A remote control and a smartphone APP can control the Zigbee magnetic lights after connecting to the Zigbee gateway. The installer can set the color and adjust the color temp, brightness, and saturation for various scenes remotely. It supports third-party voice control, which allows you to control ON/OFF, brightness, colors, and more through voice commands. The installer can download the apps "Tuya Smart " or "mobile app " to access additional functions, such as biorhythm, music rhythm, timing function, sleep/wake plan, and scene customization. The wireless controller Zigbee floodlight is compatible with Philips Hue, IKEA TRADFRI, Amazon Echo Plus, Echo, Echo Studio, and Echo Show, as well as standard Zigbee 3.0 gateways.

Specifications

RGB+CCT series: ( 12W )/ -24A-ZL ( 24W )

Tunable white series: -12A-ZL ( 12W ) / -24A-ZL ( 24W )

Size ( L x W x H): 303mm x 22 mm x 42.5 mm ( 12W ) / 603 mm x 22 mm x 42.5 mm ( 24W )

Working voltage: DC48V

Power: 12 W / 24 W

Luminous flux: 700 LM ( 12W RGB+CCT ) / 1350 LM ( 24W RGB+CCT ) / 735 LM ( 12W CCT ) / 1380 LM ( 24W CCT )

Luminous efficiency: 63 LM/W ( 12W RGB+CCT ) / 60 LM/W ( 24W RGB+CCT ) / 66 LM/W ( 12W CCT ) / 63 LM/W( 24W CCT )

16 million colors available

Color temperature adjustable: 2700 K- 6500 K

Brightness and saturation are adjustable

Communication protocol: Zigbee 3.0 + 2.4 GHz

Wireless technology: Zigbee 802.15.4

Zigbee wireless frequency: 2.400-2.

Control distance: ≤50 m ( Open Area )( Zigbee ) / ≤25 m( 2.4G RF remote )

Zigbee 3.0 remote controllable ( Zigbee gateway needed)

mobile app app controllable( Zigbee gateway needed)

APP name: mobile app Tuya Smart

Support third-party voice control (Zigbee gateway needed)

Can work with Amazon Alexa and Google Assistant

CRI: >

Beam angle: 120°

IP Rate: IP20 non-waterproof

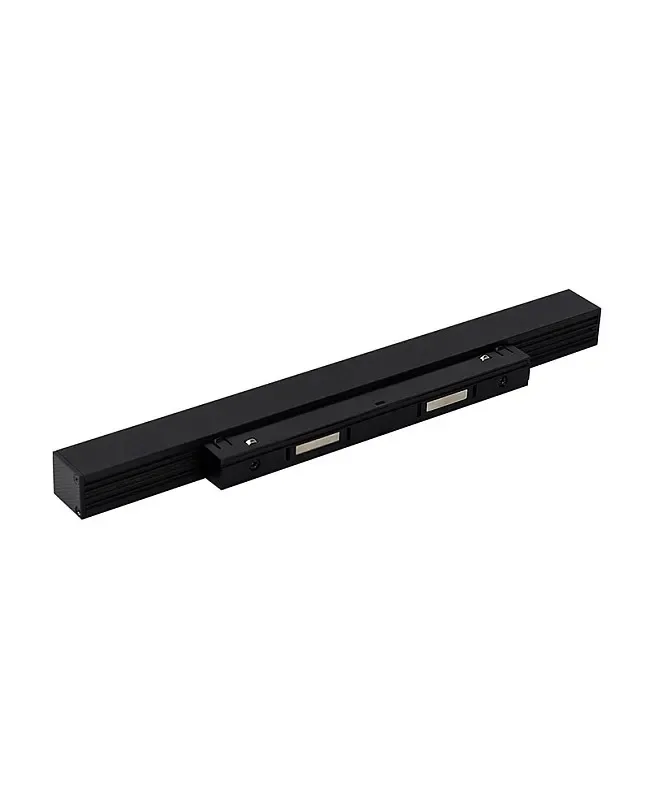

Powered by magnetic rails

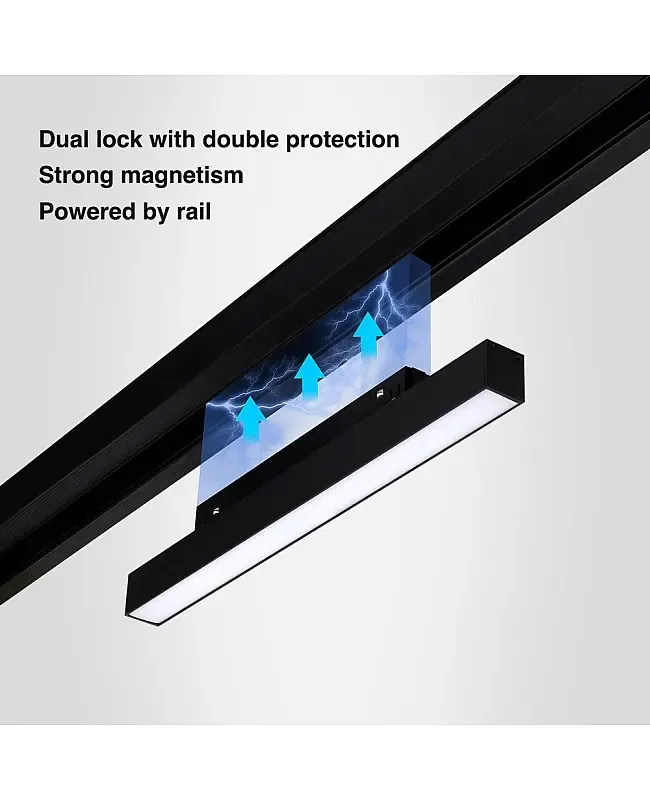

Dual lock with double protection

Strong magnetism

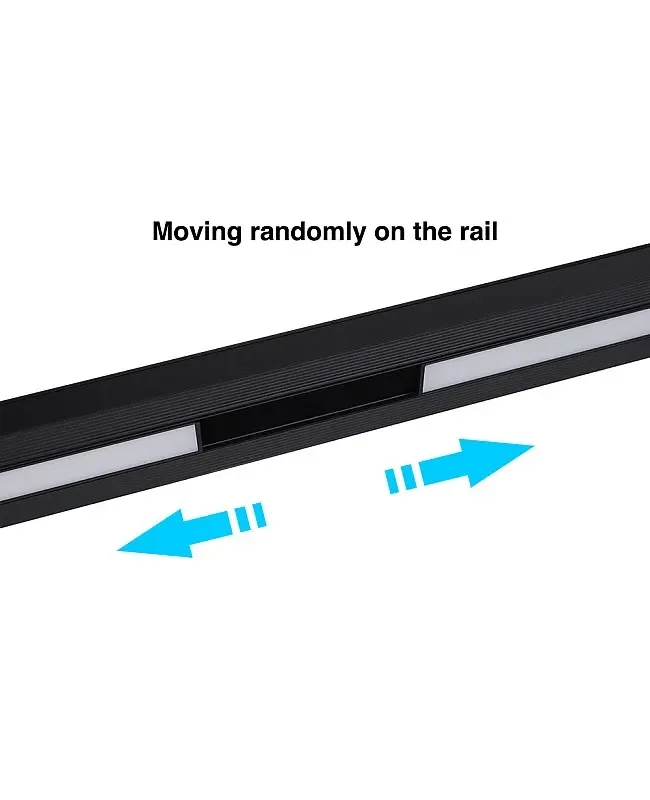

Moving randomly on the rails

Working temperature: -10-40℃

Includes

1 * RGB+CCT magnetic flood light
