6W/12W RGB+CCT Zigbee 3.0 Magnetic Grille Light
LumaCircuit offers 6W/12W RGB+CCT Zigbee 3.0 Magnetic Grille Light as a configurable LED strip connector and wiring accessory for project builds. Typical applications include Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. CCT Series: ZL(10W)/--ZL(20W) Size: 221*42.5*22mm(6W)/436*42.5*22mm(12W) Power: RGB+CCT: 6W/12W CCT: 10W/20W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- RGB+CCT Series: (6W)/--ZL(12W)
- CCT Series: ZL(10W)/--ZL(20W)
- Size: 221*42.5*22mm(6W)/436*42.5*22mm(12W)
- Power: RGB+CCT: 6W/12W CCT: 10W/20W
- Luminous Flux: 440LM(6W RGB+CCT)/900LM(12W RGB+CCT) / 800LM(10W CCT) / 1530LM(20W CCT)
- Luminous Efficiency: 65LM/W(6W RGB+CCT)/75LM(12W RGB+CCT) / 80LM/W(10W CCT) / 75LM/W(20W CCT)
- Color Temperature: 2700 K- 6500 K
- Communication Protocol: Zigbee 3.0 +2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 48 V
- Light engine: RGB+CCT
- RGB+CCT Series: (6W)/--ZL(12W)
- CCT Series: ZL(10W)/--ZL(20W)
- Size: 221*42.5*22mm(6W)/436*42.5*22mm(12W)
- Working Voltage: DC48V
- Power: RGB+CCT: 6W/12W CCT: 10W/20W
- Color Temperature: 2700 K- 6500 K
- Communication Protocol: Zigbee 3.0 +2.
- Zigbee Wireless Frequency: 2.400-2.
- Control Distance: Zigbee: ≤50m(Open Area) / 2.4G: ≤25M
- CRI: >
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Zigbee 3.0 driver/controller -> gateway or coordinator.
Plan the installation around Everyday room lighting, Kitchen and cabinet task light, Retail and commercial fit-outs. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
RGB+CCT Series: (6W)/--ZL(12W)
CCT Series: ZL(10W)/--ZL(20W)
Size: 221*42.5*22mm(6W)/436*42.5*22mm(12W)
Working Voltage: DC48V
Power: RGB+CCT: 6W/12W CCT: 10W/20W
Luminous Flux: 440LM(6W RGB+CCT)/900LM(12W RGB+CCT) / 800LM(10W CCT) / 1530LM(20W CCT)
Luminous Efficiency: 65LM/W(6W RGB+CCT)/75LM(12W RGB+CCT) / 80LM/W(10W CCT) / 75LM/W(20W CCT)
Color Temperature: 2700 K- 6500 K
Communication Protocol: Zigbee 3.0 +2.
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.
Control Distance: Zigbee: ≤50m(Open Area) / 2.4G: ≤25M
Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
Smart Phone APP Controllable(Zigbee 3.0 Gateway Needed)
Third-party Voice Controllable(Zigbee 3.0 Gateway Needed)
Can Work With Amazon Alexa/Google Assistant
CRI: >
Beam Angle: 24°

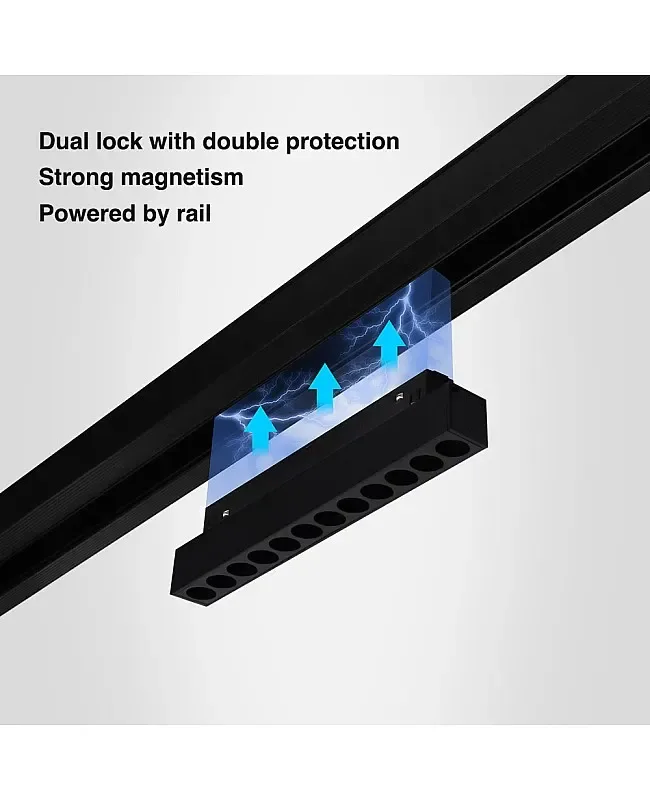

Dual Lock With Double Protection
Strong Magnetism
Powered By Rail

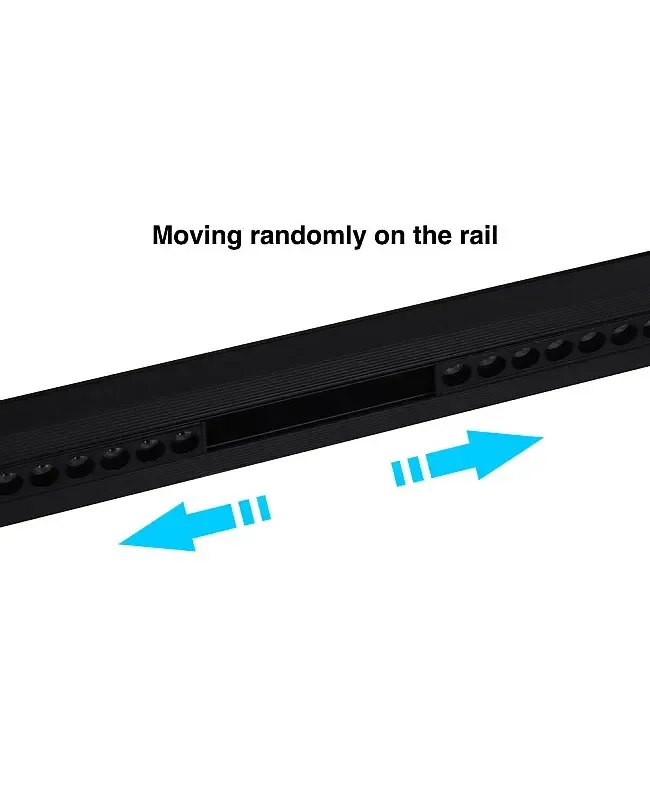

Moving Randomly On The Rail
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes
1 * Zigbee Magnetic Grille Lighting
Typical applications
- Everyday room lighting
- Kitchen and cabinet task light
- Retail and commercial fit-outs
