12 V RGB/RGBW controller with touch RF remote
LumaCircuit offers RGB/RGBW 2 In 1 LED Controller 12V With Touch RF Remote Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20℃-60℃ Working Voltage: DC5V-DC24V Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RF wireless RGB RGBW 2 IN 1 LED controller 12V comes with a wireless LED touch remote control. The LED controller is designed for the constant voltage LED lights, with 2 1 functions for RGB or RGBW LED lights. The working voltage between DC5V and DC24V can work with LED strips, point source light, and wall washer lamp. With 3 or 4 output channels for RGB or RGBW LED lights, the max output current is 5A in RGB mode or 4A in RGBW mode. The memory function will store the power-off setting automatically.
- Working Temperature: -20℃-60℃
- Working Voltage: DC5V-DC24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Grayscale: 1024 Levels(RGB Each)
- Output Current: *5A(RGB)/*4A(RGBW)
- Max Output Current: 5A(RGB)/4A(RGBW)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 5 V / 24 V
- Light engine: RGBW
- Working Temperature: -20℃-60℃
- Size: * * mm
- Working Voltage: DC5V-DC24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Output Current: *5A(RGB)/*4A(RGBW)
- Max Output Current: 5A(RGB)/4A(RGBW)
- Max Output Power: RGB----75W(5V),180W(12V),360W(24V); RGBW----80W(5V),192W(12V), 384W(24V)
- PWM Frequency: 1.95 KHz
- RF Frequency: 433.
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

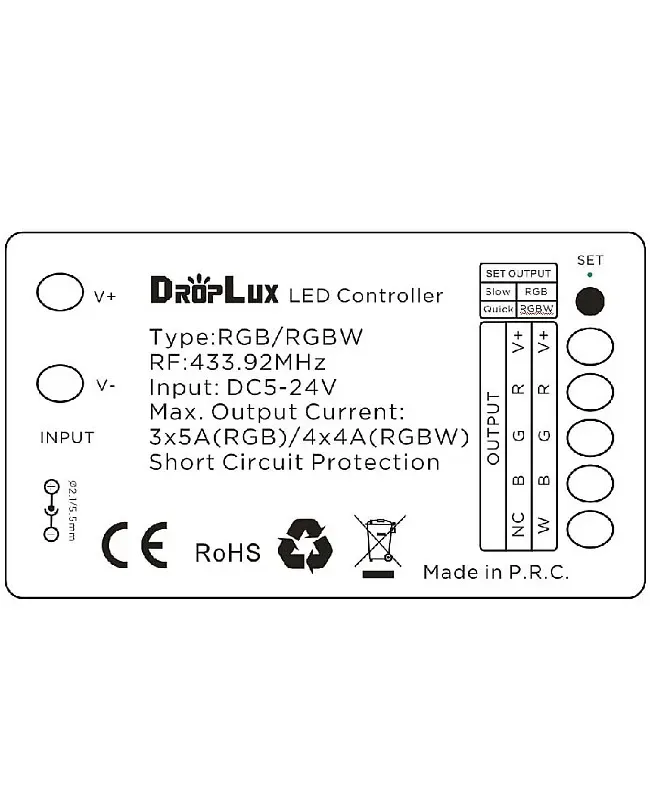

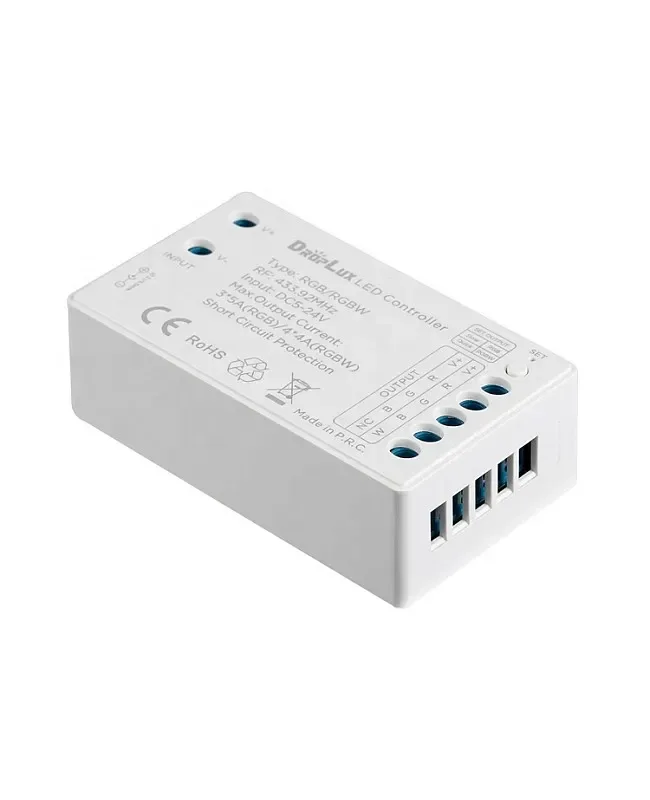

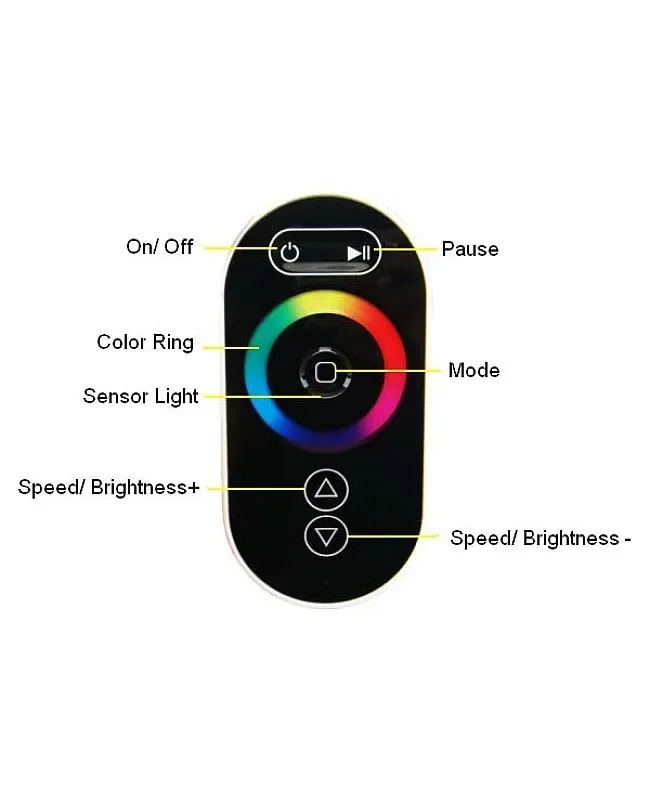

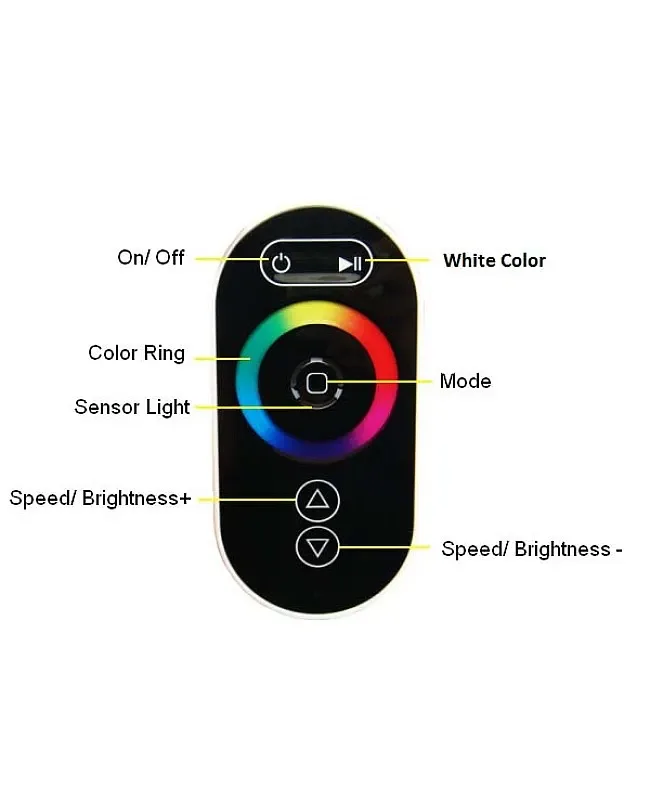

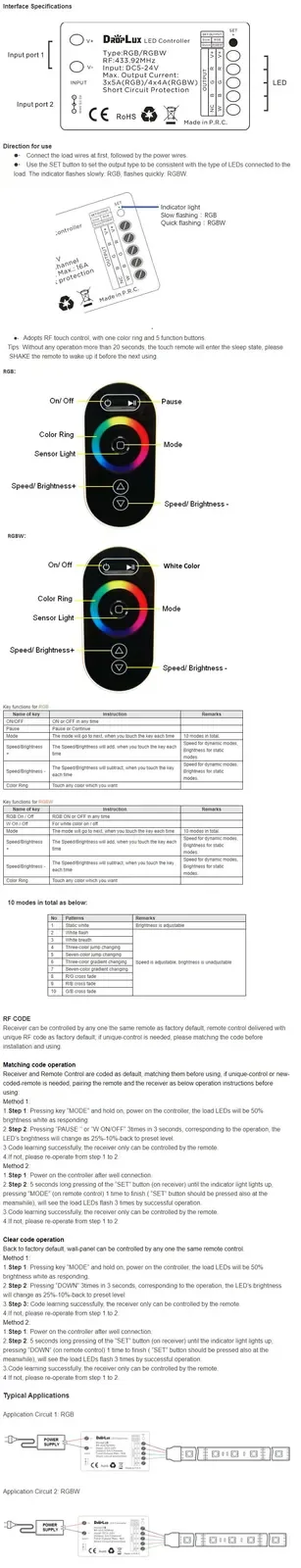

The RF wireless RGB RGBW 2 IN 1 LED controller 12V comes with a wireless LED touch remote control. The LED controller is designed for the constant voltage LED lights, with 2 1 functions for RGB or RGBW LED lights. The working voltage between DC5V and DC24V can work with LED strips, point source light, and wall washer lamp. With 3 or 4 output channels for RGB or RGBW LED lights, the max output current is 5A in RGB mode or 4A in RGBW mode. The memory function will store the power-off setting automatically. It comes with the wireless RF touch remote control, with a maximum control distance of up to 20 meters. The installer can use the Set button on the receiver to set the output type. The indicator flashes slowly, which means for RGB output; if it flashes quickly, it means RGBW. The RF touch control with one color ring and 5 function buttons, without any operation for more than 20 seconds, the touch remote will enter sleep mode. The installer can shake the remote to wake it up. The installer can use the RF remote control to adjust the brightness of static colors or the speed of dynamic modes. There are 10 modes in total.
LED Controller 12V Specifications
Working Temperature: -20℃-60℃
Size: * * mm
Working Voltage: DC5V-DC24V
Static Power Consumption: <1W
Connecting Mode: Common Anode
Grayscale: 1024 Levels(RGB Each)
Speed Stage: 100 Grade
Output Current: *5A(RGB)/*4A(RGBW)
Max Output Current: 5A(RGB)/4A(RGBW)
Max Output Power: RGB----75W(5V),180W(12V),360W(24V); RGBW----80W(5V),192W(12V), 384W(24V)
PWM Frequency: 1.95 KHz
RF Frequency: 433.
Remote Control Distance: <20M
Memory Function: YES
Short Circuit Protection: YES
Weight: 70g
Touch Remote Control Specifications
Size: * * mm
Working Voltage: DC 4.5V
Powered By 3PCS AAA Batteries
Standby Current
Working Current
Standby Power
Working Power
RF Distance: <20m
RF Frequency: 433.
Includes

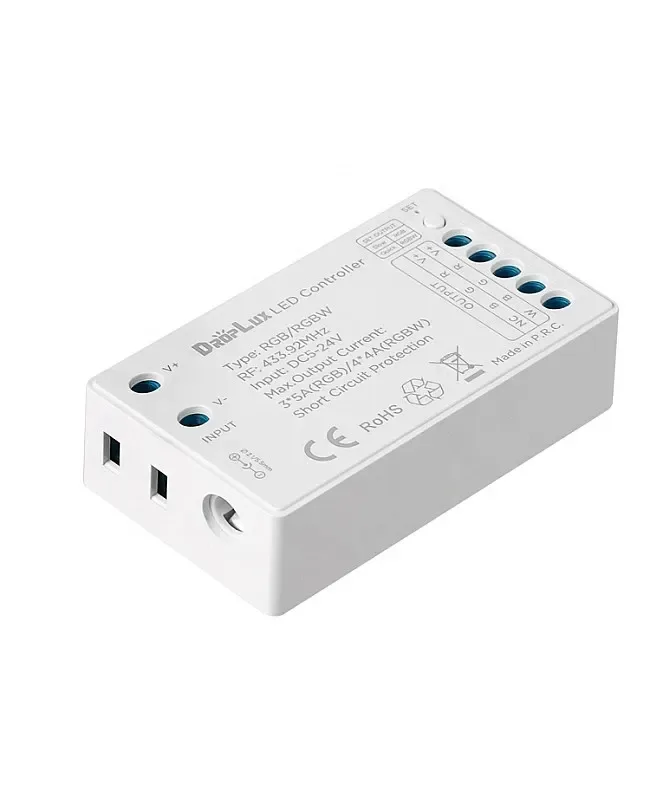

1 * LED Controller 12V

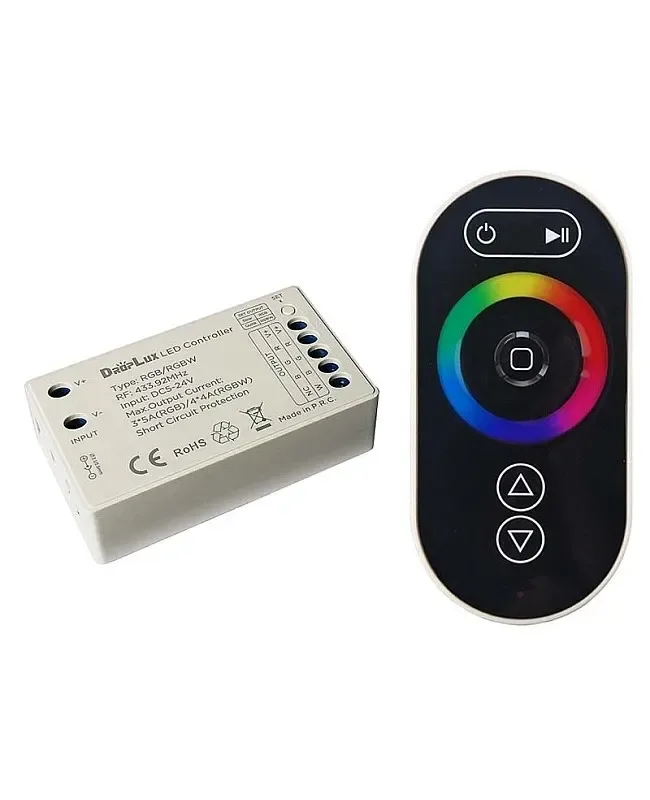

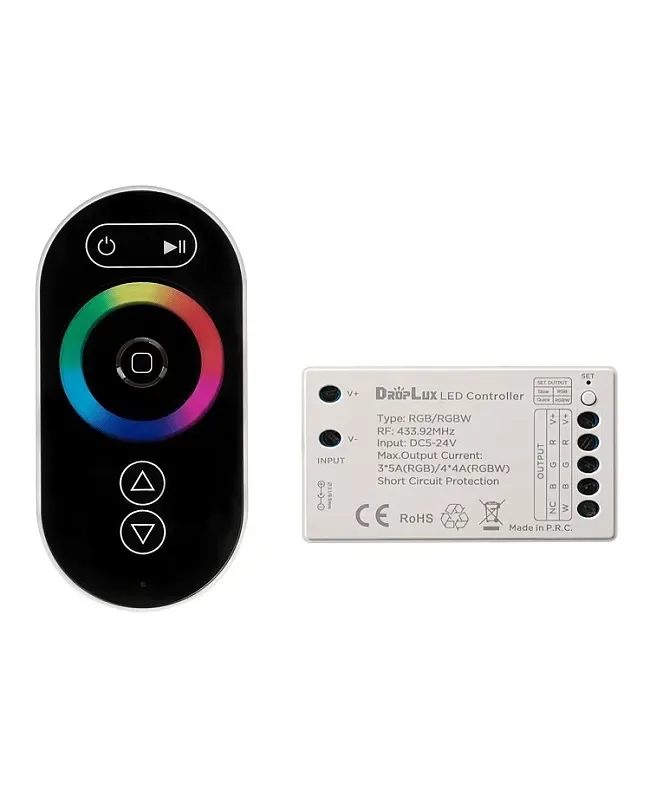

1 * Wireless LED Touch Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
