X4 RGBW DMX LED Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller X4 RGBW DMX LED controller has a sensitive touch panel design. The indicator light will flash when touching the buttons and make different sounds. The DMX512 LED controller complies with standard DMX protocols like DMX512, DMX512-1990, DMX512-A, RDM, etc. With DMX512 signal output and 2.4G wireless signal to control the DMX512 LED lights and RGBW LED strips. The installer can touch the sliders to set the static color or dynamic mode and adjust the brightness and saturation.
• Working Voltage: -240V, 50/60Hz
• Output: DMX512 + 2.4G Wireless
• Comply With DMX512, DMX512(1990), DMX512-A, RDM.0 Standard Protocol
• 4 Zones Individually Controlled
• RGBW Color Change And Brightness Adjustable
• Support 2.4G Remote Control
• wireless controller X4 User Manual

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 240 V
• Light engine: RGBW
• LumaCircuit model: LC-CTL-D979GM
• Size: 86*86*26mm(L*W*H)
• Working Voltage: -240V, 50/60Hz
• Output: DMX512 + 2.4G Wireless
• RF Transmitting Power: 6 dBm
• RF Control Distance: ≤30m
• Working Temperature: -20-45℃
• Dimensions found: 86x86x26mm / 26mm / 30m
• Model: X4

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

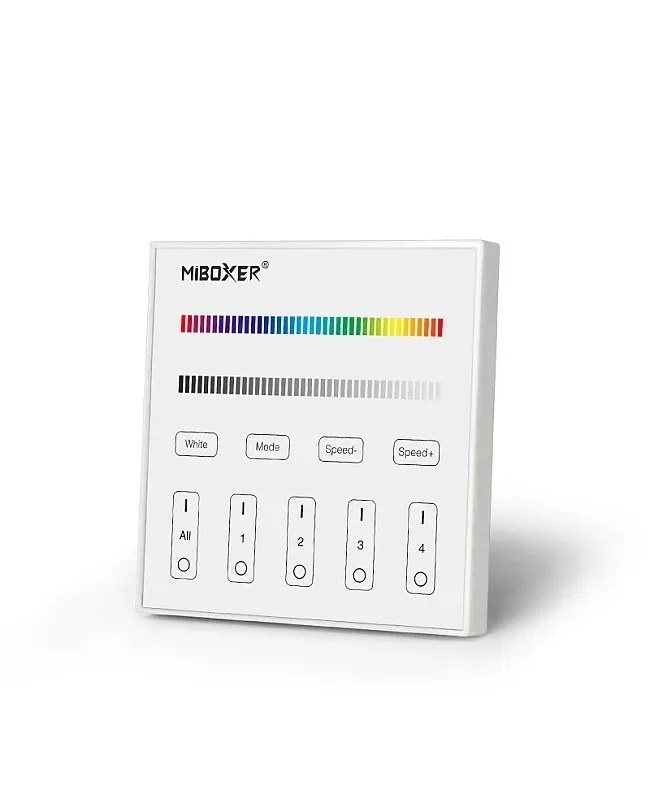

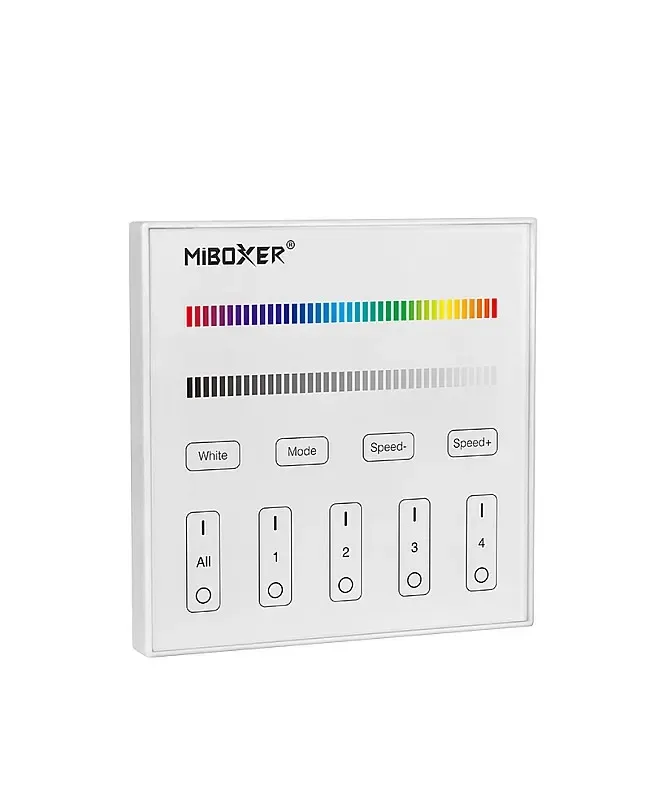

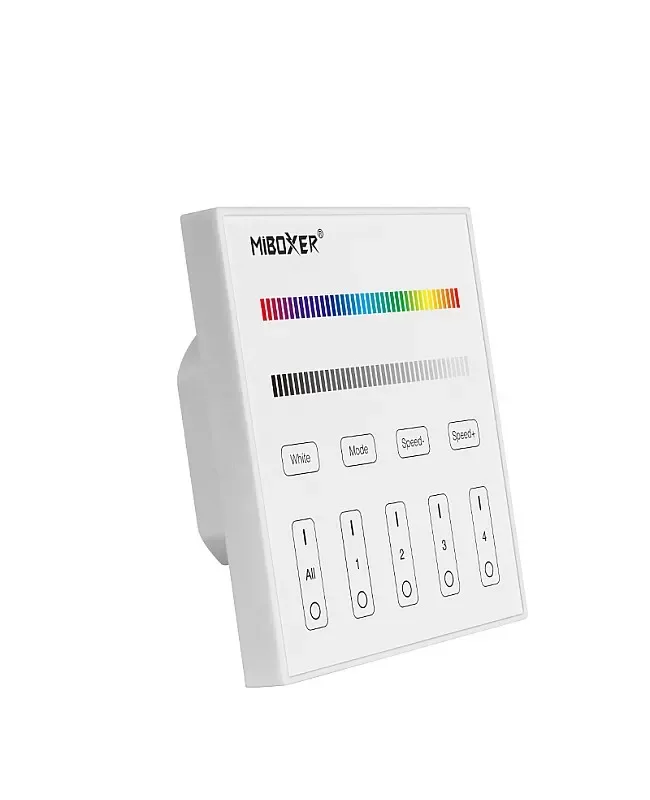

The wireless controller X4 RGBW DMX LED controller has a sensitive touch panel design. The indicator light will flash when touching the buttons and make different sounds. The DMX512 LED controller complies with standard DMX protocols like DMX512, DMX512-1990, DMX512-A, RDM, etc. With DMX512 signal output and 2.4G wireless signal to control the DMX512 LED lights and RGBW LED strips. The installer can touch the sliders to set the static color or dynamic mode and adjust the brightness and saturation. There are 4 zones individually controlled design, and the installer can control the zones separately or all at once. The DMX512 controller with standard European 86-type structure is easy to install and use. There are 16 million colors and 9 dynamic modes available for different scenes.

Quick Links

wireless controller X4 User Manual

Specifications

Model: X4

Size: 86*86*26mm(L*W*H)

Working Voltage: -240V, 50/60Hz

Output: DMX512 + 2.4G Wireless

Comply With DMX512, DMX512(1990), DMX512-A, RDM.0 Standard Protocol

4 Zones Individually Controlled

RGBW Color Change And Brightness Adjustable

9 Dynamic Modes Available

Support 2.4G Remote Control

Support Smartphone APP Control(WL-Box 1 2.4G Gateway Needed)

Sensitive Touching Panel Design

RF Transmitting Power: 6 dBm

RF Control Distance: ≤30m

Standard European 86-Type Structure

Working Temperature: -20-45℃

Includes

1 * RGBW DMX 512 LED Controller
