Product details
+ 3 In 1 2.4G 2.4 GHz wireless controllers For RGB RGBW RGB+CCT
LumaCircuit offers + 3 In 1 2.4G 2.4 GHz wireless controllers For RGB RGBW RGB+CCT as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 74.5*36*17mm(L*W*H) 3 In 1 Function Design For RGB/RGBW/RGB+CCT 16 Million Of Colors To Choose The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The + 2.4 GHz wireless controllers has 3 in 1 function design for RGB, RGBW, and RGB+CCT LED strips. It integrates 2.4G communication technology and is compatible with 2.4 GHz wireless and wireless controller 2.4G series remote control. The installer can use the remotes to set the color and adjust the color temperature and brightness for various scenes. There are 16M colors to choose from, and the color temperature can be adjusted from 2700K to 6500K, with stepless dimming brightness from 1% to 100%.
- Size: 74.5*36*17mm(L*W*H)
- 3 In 1 Function Design For RGB/RGBW/RGB+CCT
- 16 Million Of Colors To Choose
- Color Temperature Adjustable From 2700K To 6500K
- Sepless Dimming Brightness From 1% To 100%

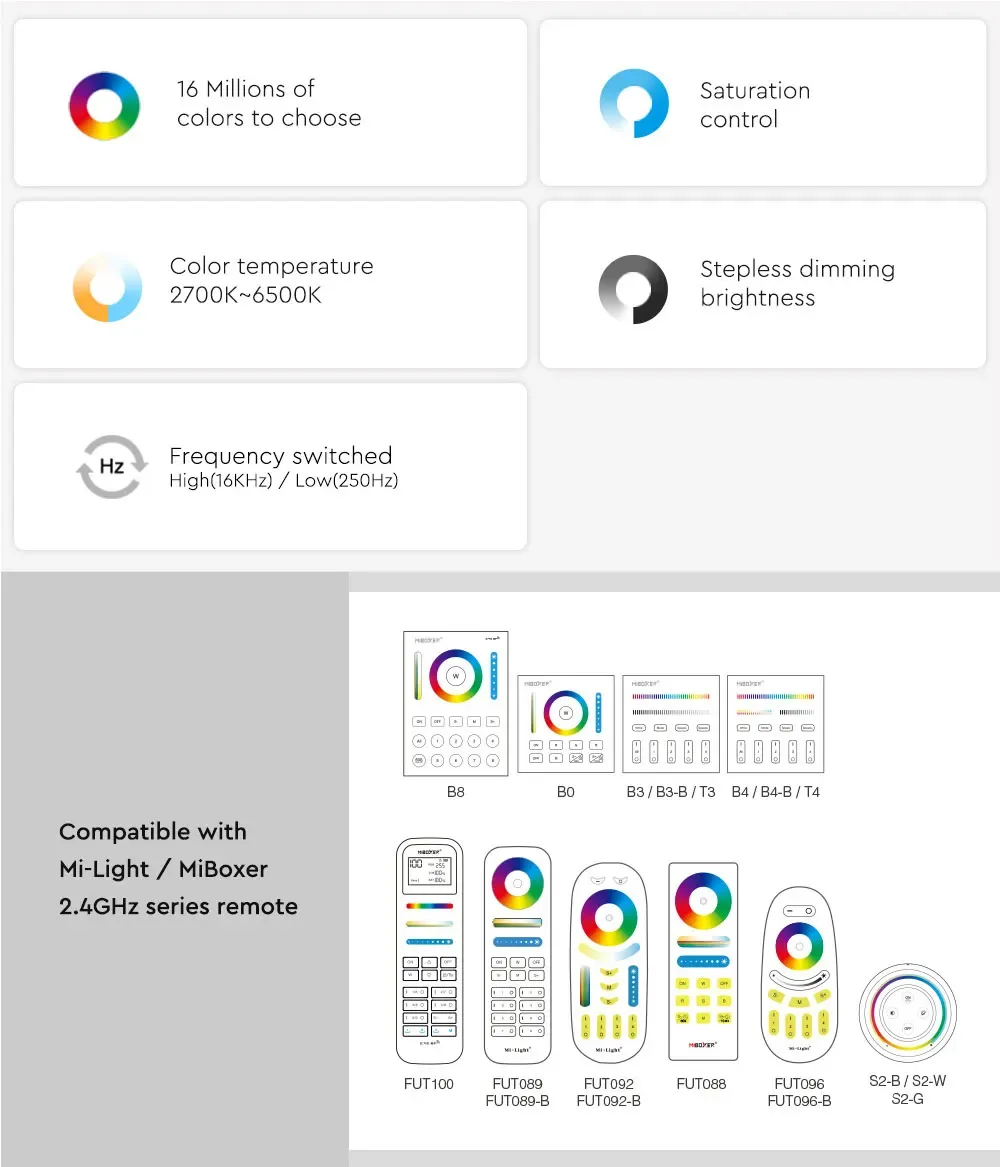

- Compatible With 2.4 GHz wireless/wireless controller 2.4G Series Remote Controls B, T3, B, T4, B, B, B, B, W, G
- Working Frequency Switched From High To Low 250Hz
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-QWQ6BK
- Material: PC

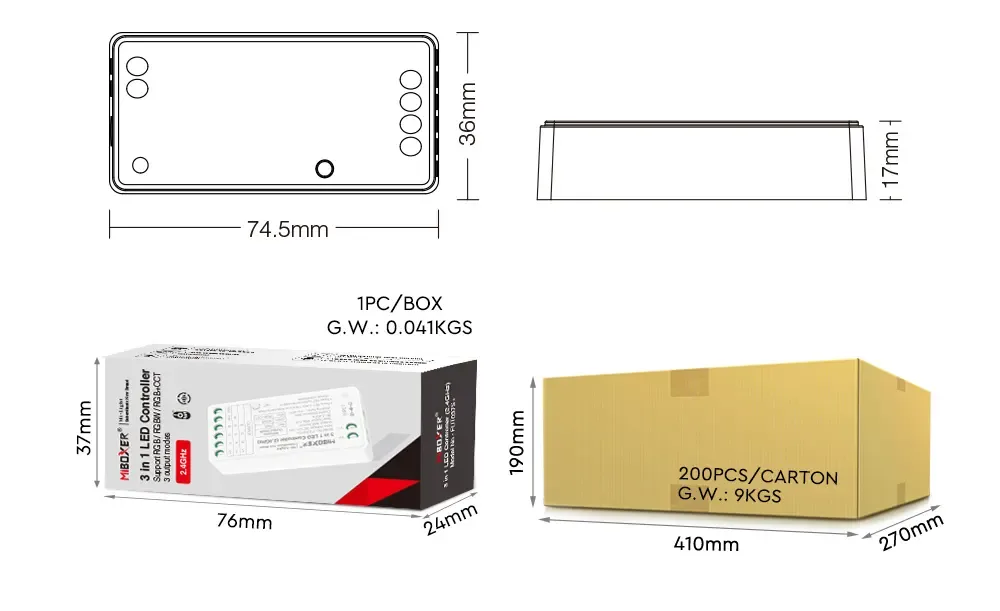

- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 6A/Channel
- Total Output: Max 12A
- Compatible With 2.4 GHz wireless/wireless controller 2.4G Series Remote Controls: B, T3, B, T4, B, B, B, B, W, G
- Control Distance: ≤30M
- Working Temperature: -10-40℃
- Dimensions found: 74.5x36x17mm / 17mm / 30M / 5x2
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

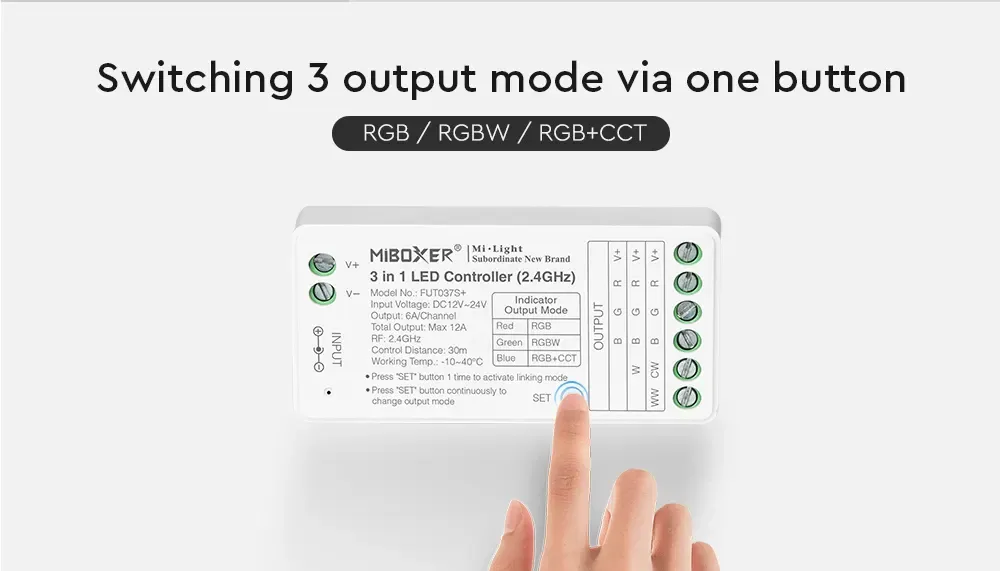

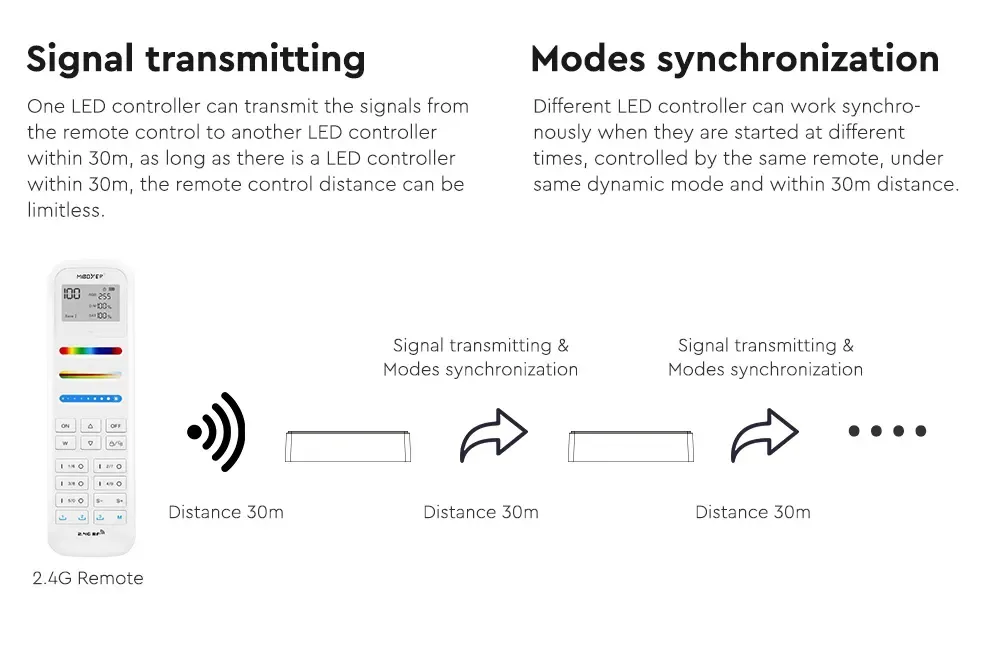

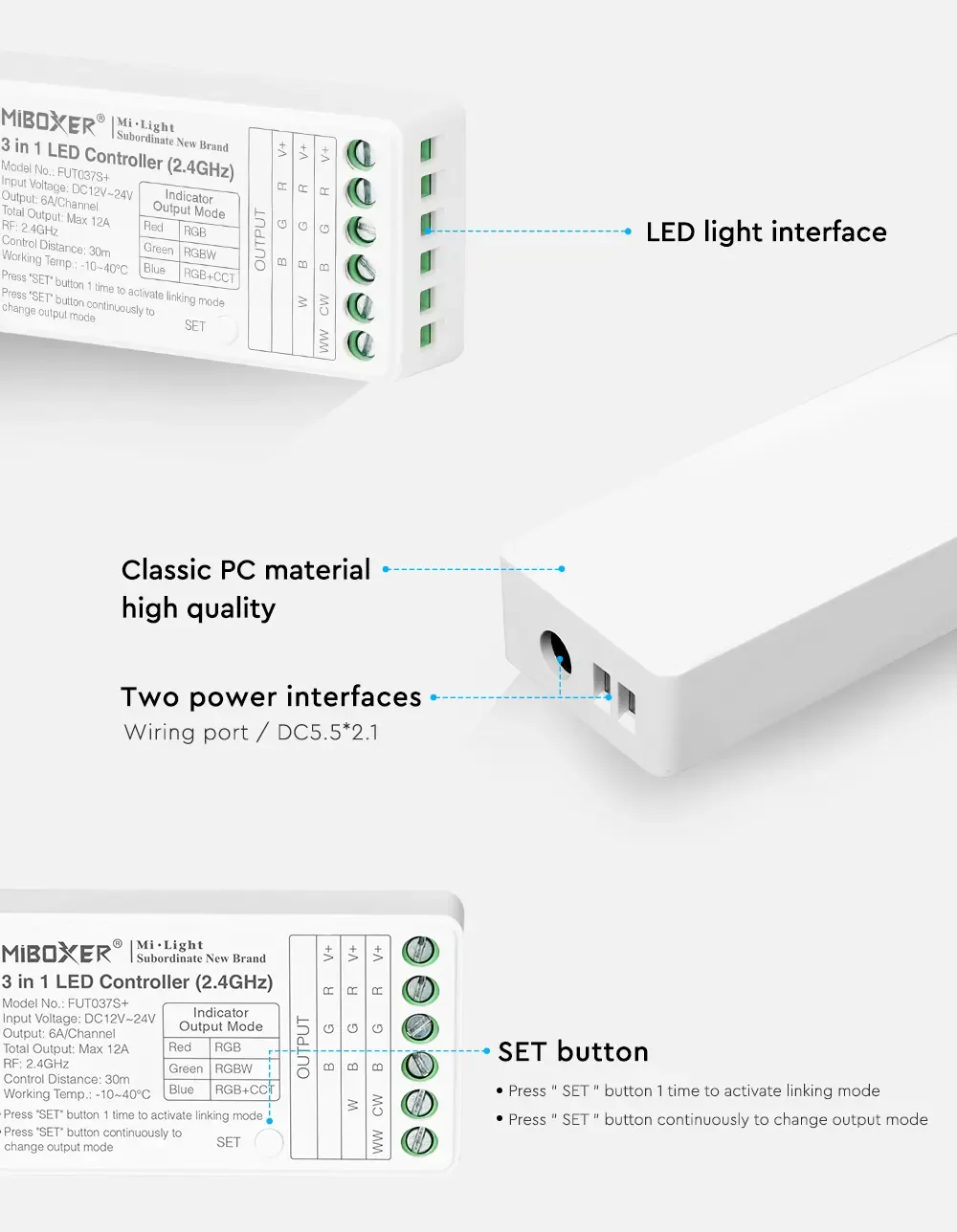

The + 2.4 GHz wireless controllers has 3 in 1 function design for RGB, RGBW, and RGB+CCT LED strips. It integrates 2.4G communication technology and is compatible with 2.4 GHz wireless and wireless controller 2.4G series remote control. The installer can use the remotes to set the color and adjust the color temperature and brightness for various scenes. There are 16M colors to choose from, and the color temperature can be adjusted from 2700K to 6500K, with stepless dimming brightness from 1% to 100%. One button, " SET," is on the controller; the installer can press it continuously to change the output mode from RGB, RGBW, or RGB+CCT. The 2.4 GHz wireless controllers supports smartphone apps and third-party voice control after being connected to the 2.4 GHz gateways. The installer can use the APP or voice commands to control the LED lights ON/OFF, set the color, and adjust color temperature and brightness. One + controller will transmit the signals from the remote control to another controller within 30 meters, and different controllers can work synchronously. The light controller has two power interfaces, wiring ports and a 5*2.1 port, and it is easy to connect to a power supply.
Specifications
Model: +
Material: PC
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 6A/Channel
Total Output: Max 12A
3 In 1 Function Design For RGB/RGBW/RGB+CCT
16 Million Of Colors To Choose
Color Temperature Adjustable From 2700K To 6500K
Sepless Dimming Brightness From 1% To 100%
RF: 2.
Compatible With 2.4 GHz wireless/wireless controller 2.4G Series Remote Controls B, T3, B, T4, B, B, B, B, W, G
Control Distance: ≤30M
Working Frequency Switched From High To Low 250Hz
Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
APP Name: mobile app
Can Work With Amazon Alexa/Google Home Assistant
Auto Signal Transmitting And Modes Synchronization

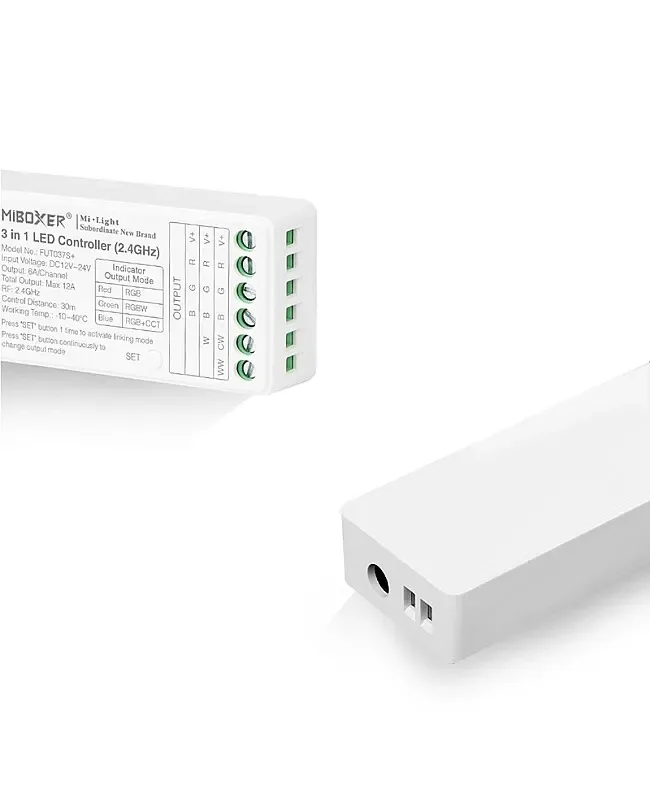

Two Port Interface: Wiring Port.5*2.
Working Temperature: -10-40℃
Includes
1 * + 2.4G Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
