DC5V 24V 384W LED Music Controller For RGB/RGBW
LumaCircuit offers DC5V 24V 384W LED Music Controller For RGB/RGBW as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size ( L x W x H): 72 x 42 x 20mm Working voltage: DC5V-DC24V Static power consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB/RGBW 2 IN 1 LED music controller offers three music control modes: Sound Control I (fast track), Sound Control II (My Track), and Sound Control III (My Track). On the side of the LED music controller with the voice sensitivity adjustable dial, the installer can rotate it to adjust the sensitivity. The LED music controller is designed for constant-voltage RGB and RGBW LED lights. Press the one-set button to switch the output type from RGB to RGBW.
- Size ( L x W x H): 72 x 42 x 20mm
- Working voltage: DC5V-DC24V
- Static power consumption: <1W
- Connecting mode: Common anode
- Grayscale: 1024 levels ( RGB each )
- Output channels: 3 channels (RGB) / 4 channels (RGBW)
- Max output current: 5A each channel (RGB) / 4A each channel (RGBW)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 24 V / 12 V
- Light engine: RGBW
- Size ( L x W x H): 72 x 42 x 20mm
- Working voltage: DC5V-DC24V
- Static power consumption: <1W
- Connecting mode: Common anode
- Output channels: 3 channels (RGB) / 4 channels (RGBW)
- Max output current: 5A each channel (RGB) / 4A each channel (RGBW)
- Max output power: RGB: 75W(DC5V), 180W(DC12V), 360W(DC24V) RGBW: 80W(DC5V), 192W(DC12V), 384W(DC24V)
- RF frequency: 433.
- PWM frequency: 1.95 KHz
- Short circuit protection: YES
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

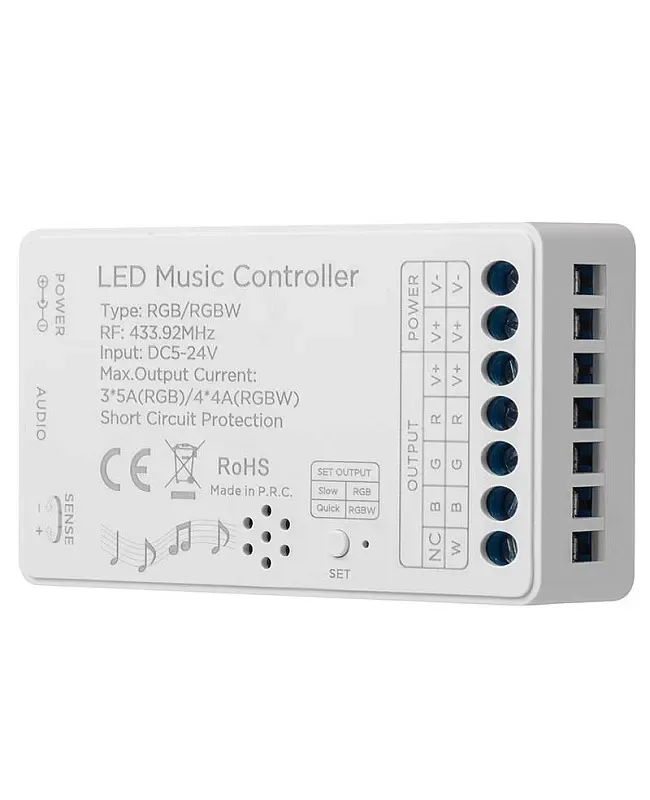

Product overview

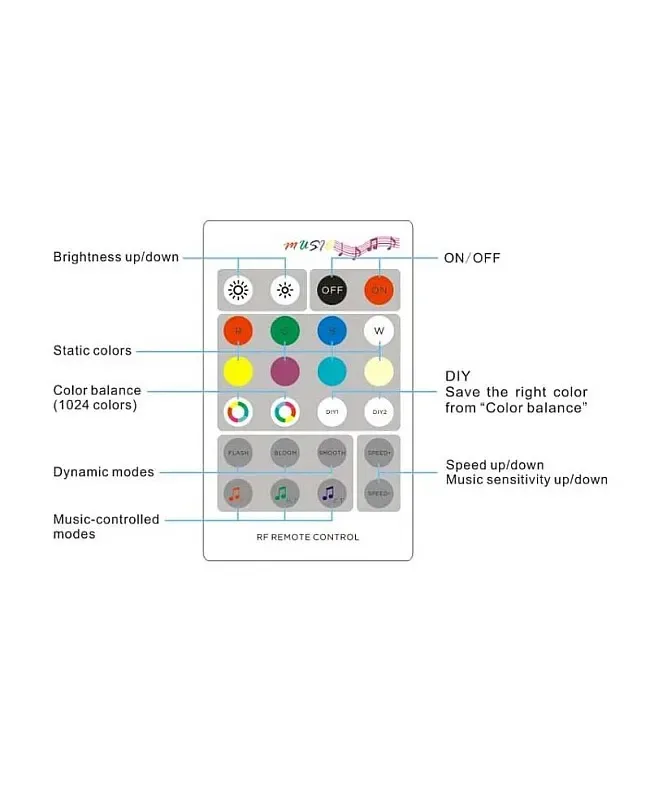

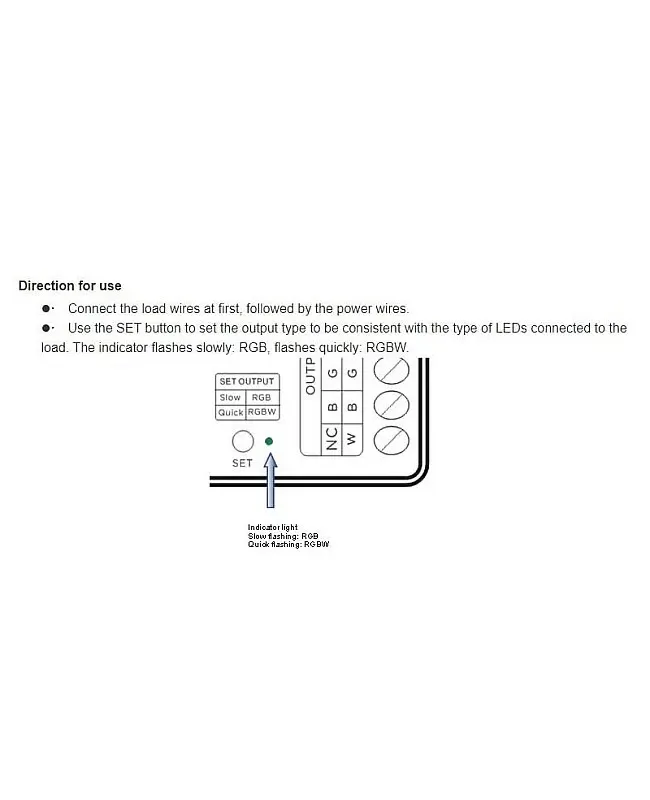

The RGB/RGBW 2 IN 1 LED music controller offers three music control modes: Sound Control I (fast track), Sound Control II (My Track), and Sound Control III (My Track). On the side of the LED music controller with the voice sensitivity adjustable dial, the installer can rotate it to adjust the sensitivity. The LED music controller is designed for constant-voltage RGB and RGBW LED lights. Press the one-set button to switch the output type from RGB to RGBW. The LED indicator flashes slowly, indicating it works in RGB mode; otherwise, it works in RGBW mode. The output is 3 or 4 channels for RGB or RGBW, and the maximum output current is 5A or 4A. The 24 Keys RF remote has a maximum control distance of 20 meters, and the installer can use it to control the light ON or OFF and adjust the brightness of static colors and the speed of dynamic modes. There are three buttons for music-controlled modes. After pressing the buttons, the music will activate the RGB or RGB LED lights, and the color-changing style will change in time with the music.

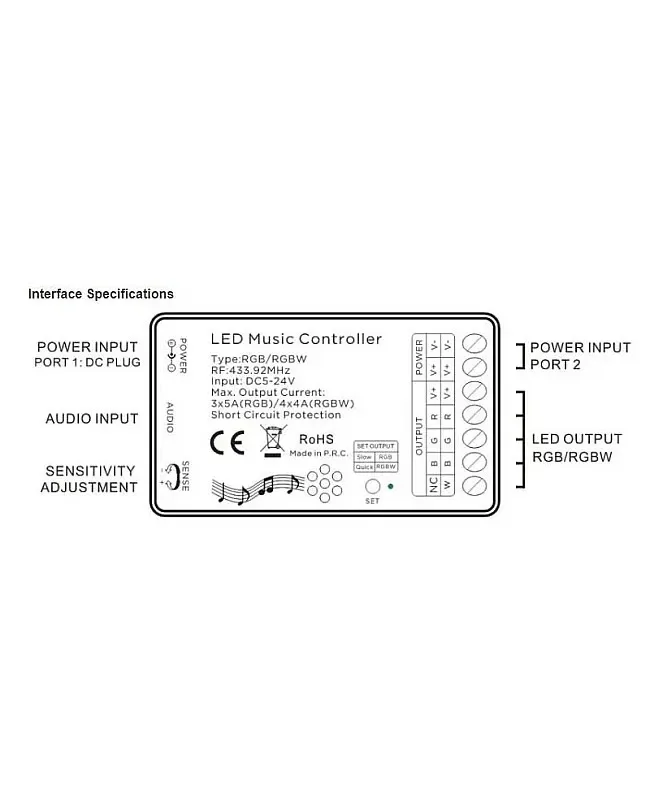

RGB/RGBW LED Music Controller Specifications
Size ( L x W x H): 72 x 42 x 20mm
Working voltage: DC5V-DC24V
Static power consumption: <1W
Connecting mode: Common anode
Grayscale: 1024 levels ( RGB each )
Speed stage: 100 grade
Output channels: 3 channels (RGB) / 4 channels (RGBW)
Max output current: 5A each channel (RGB) / 4A each channel (RGBW)
Max output power: RGB: 75W(DC5V), 180W(DC12V), 360W(DC24V) RGBW: 80W(DC5V), 192W(DC12V), 384W(DC24V)

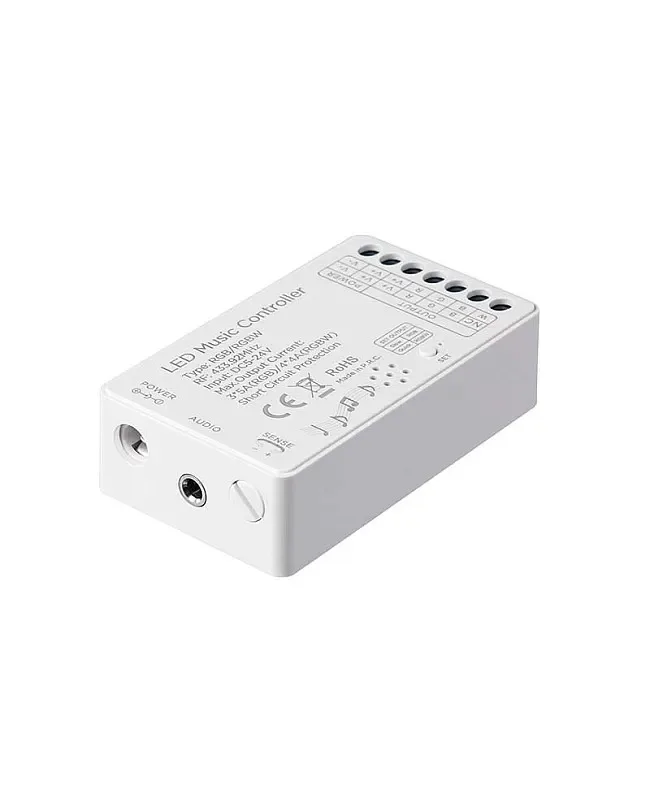

Voice sensitivity dial and audio input port included
RF frequency: 433.
PWM frequency: 1.95 KHz
Memory function: YES
Short circuit protection: YES
Weight: 80g

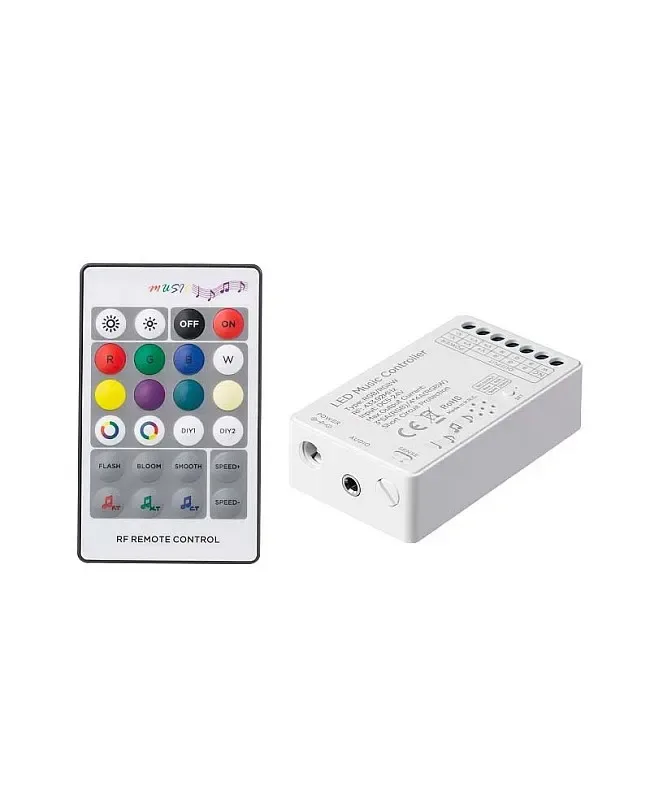

RF Remote Specifications
Size ( L x W x H ): 85 x 51 x 6mm
Working voltage: DC3V
Standby current: 3.
Working current
Standby power: 9.
Working power
3 types of music working modes available: Sound control I, Sound control II, Sound control III
RF frequency: 433.
RF distance: 20 meters
Weight: 25g

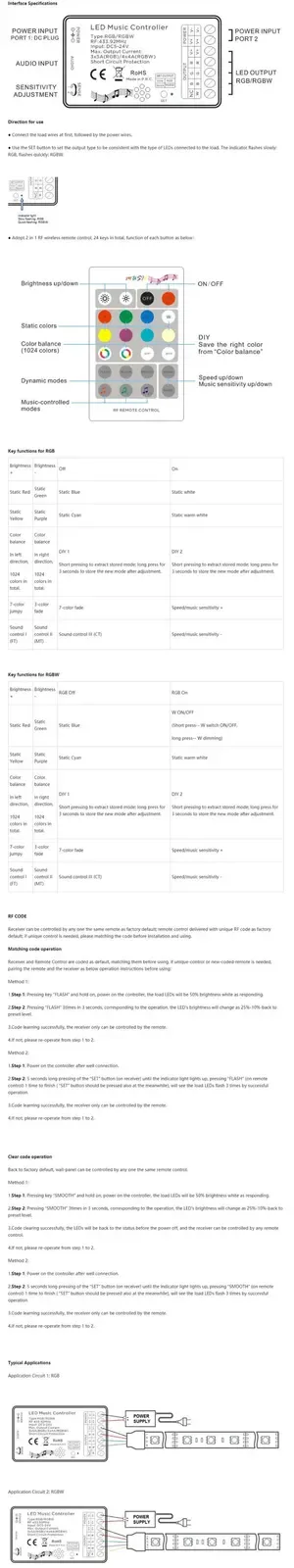

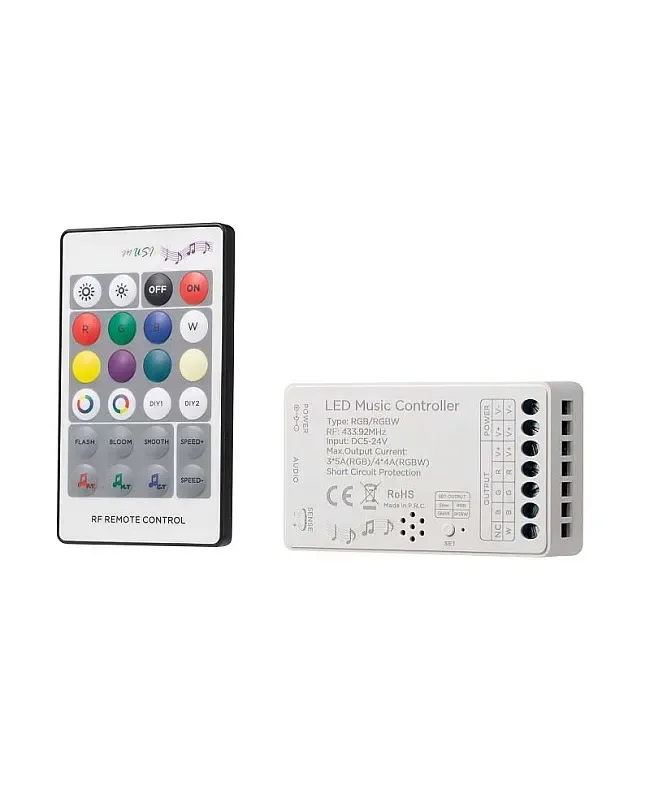

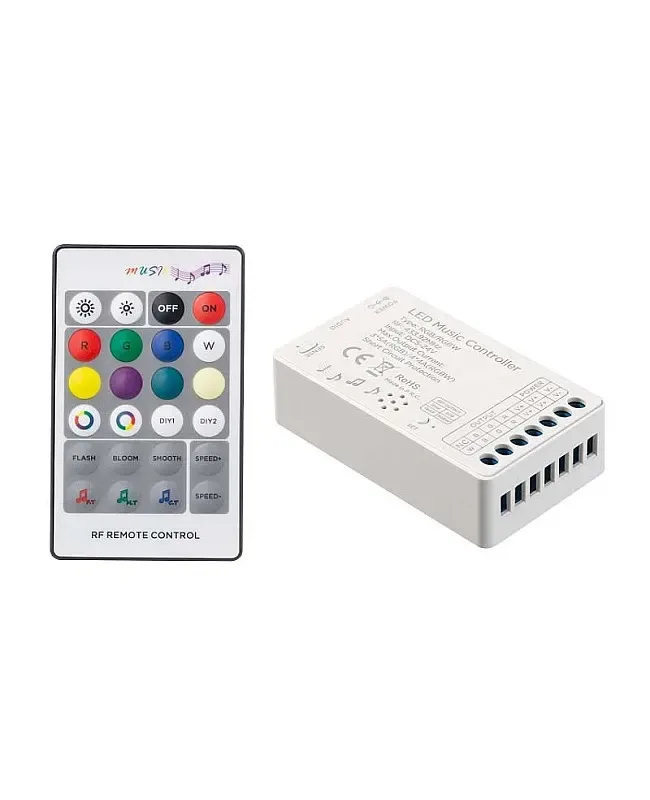

Includes
1 x LED music controller
1 x RF remote control
1 x Audio connector
