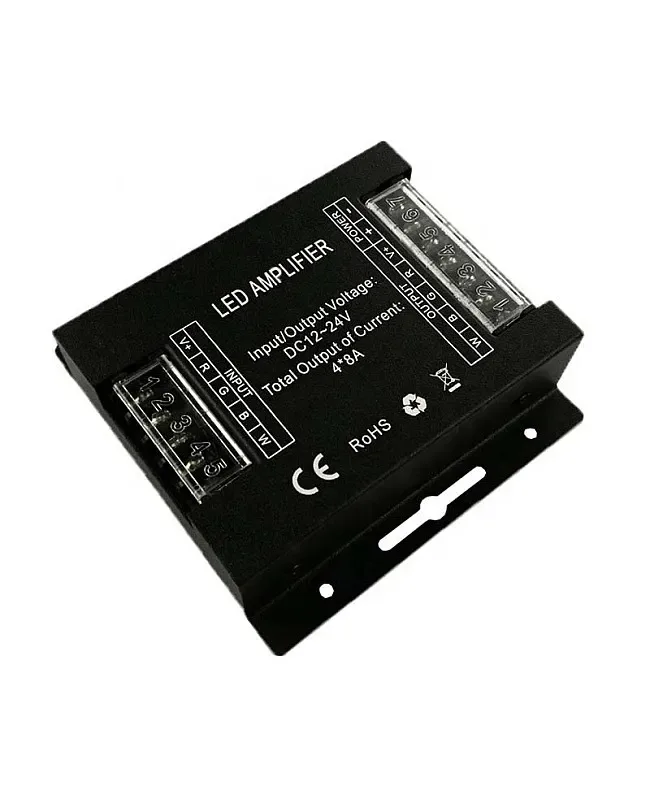

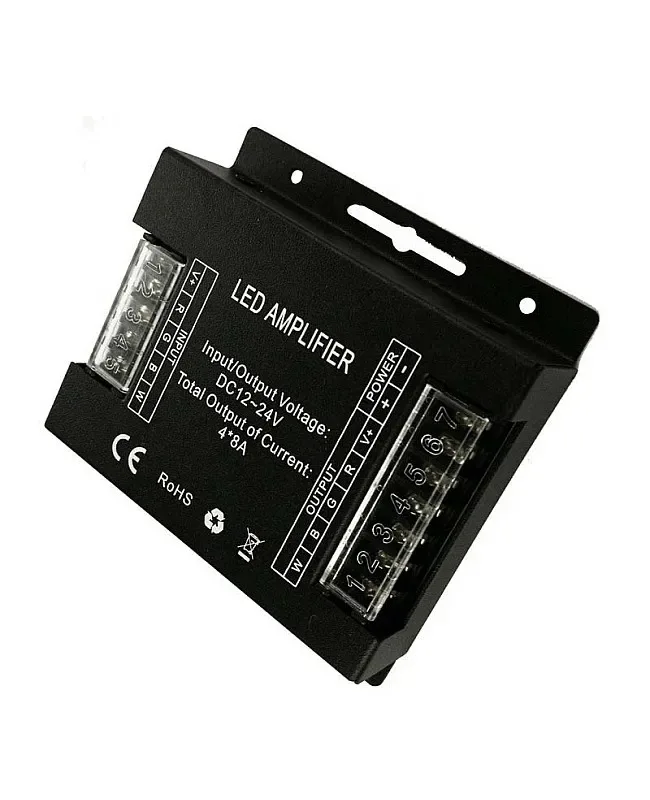

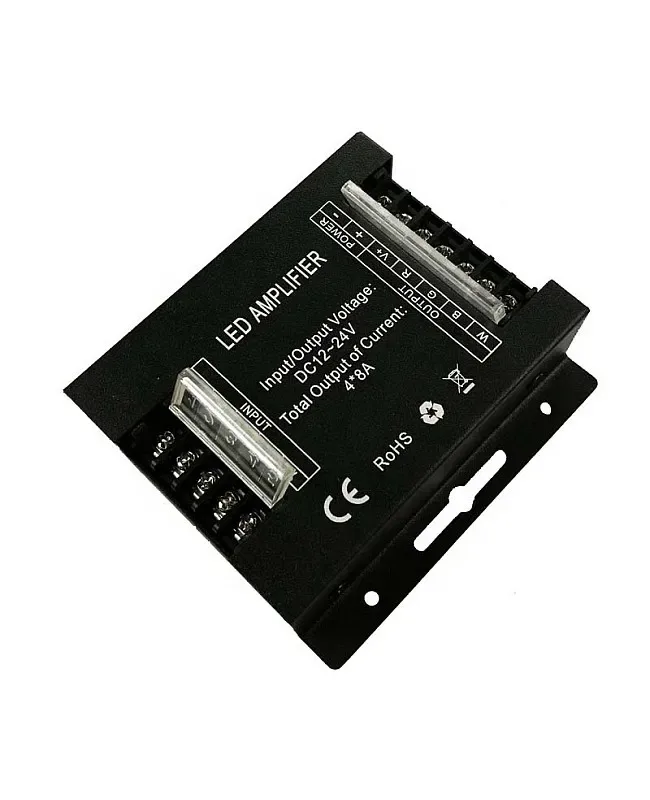

RGBW LED Repeater 12V 384W
LumaCircuit offers RGBW LED Repeater 12V 384W as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Working Voltage: DC12V-DC24V Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

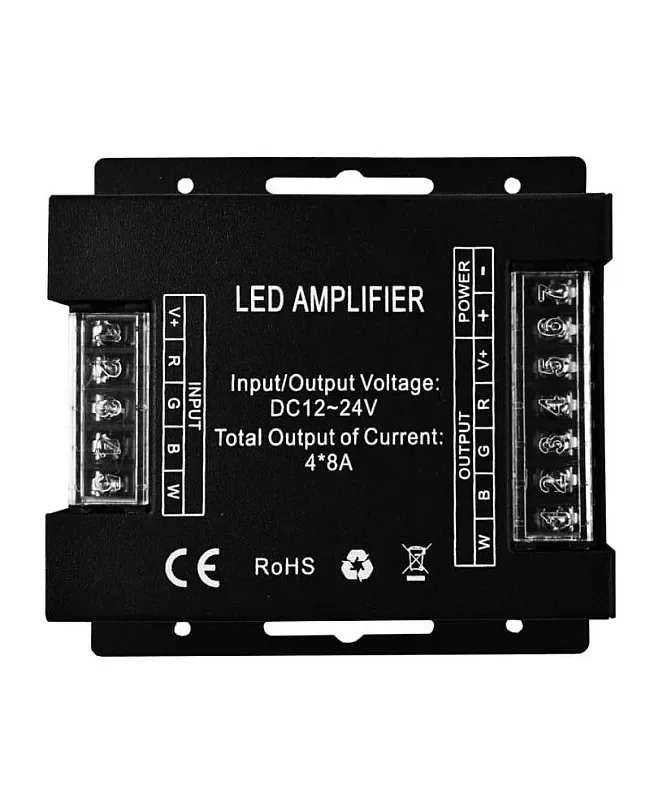

- The RGBW LED repeater is a constant working voltage product in DC12V or DC24V and can work with all kinds of constant voltage 4-channel output LED controllers. The RGBW repeater with 4 channels output, the max output current of each channel can reach 8A. When working in DC12V, the max output wattage can reach 384W; if working in DC24V, the max output wattage can reach 768W. The installer can use one RGBW LED controller as the signal source and connect many LED Boosters in parallel.
- Working Temperature: -20-60℃
- Working Voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- Max Output Current: 8A Each Channel
- Output Power: <384W(DC12V) / <768W( DC24V )
- Compatible With All Hoion RGBW LED Controllers

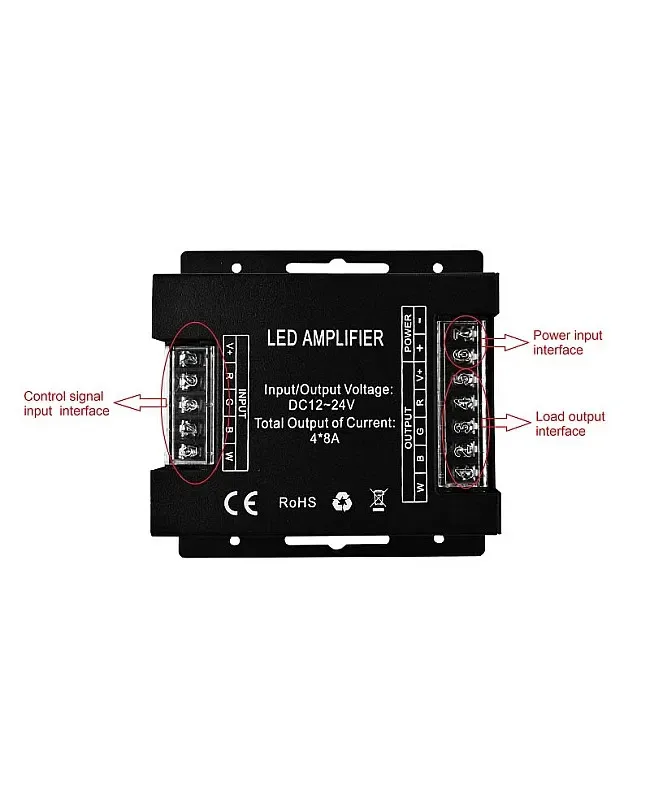

- The RGBW LED Repeater with 4 channels output design, each channel max output current can reach 8A, can use one RGBW LED Controller as the signal source and connect many LED Booster in parallel.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGBW
- LumaCircuit model: LC-CTL-RYCB0J
- Material: Metal
- Working Temperature: -20-60℃
- Size: 91*88*24mm
- Color: Black
- Working Voltage: DC12V-DC24V
- Output Channels: 4
- Connecting Mode: Common Anode
- Max Output Current: 8A Each Channel
- Output Power: <384W(DC12V) / <768W( DC24V )
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

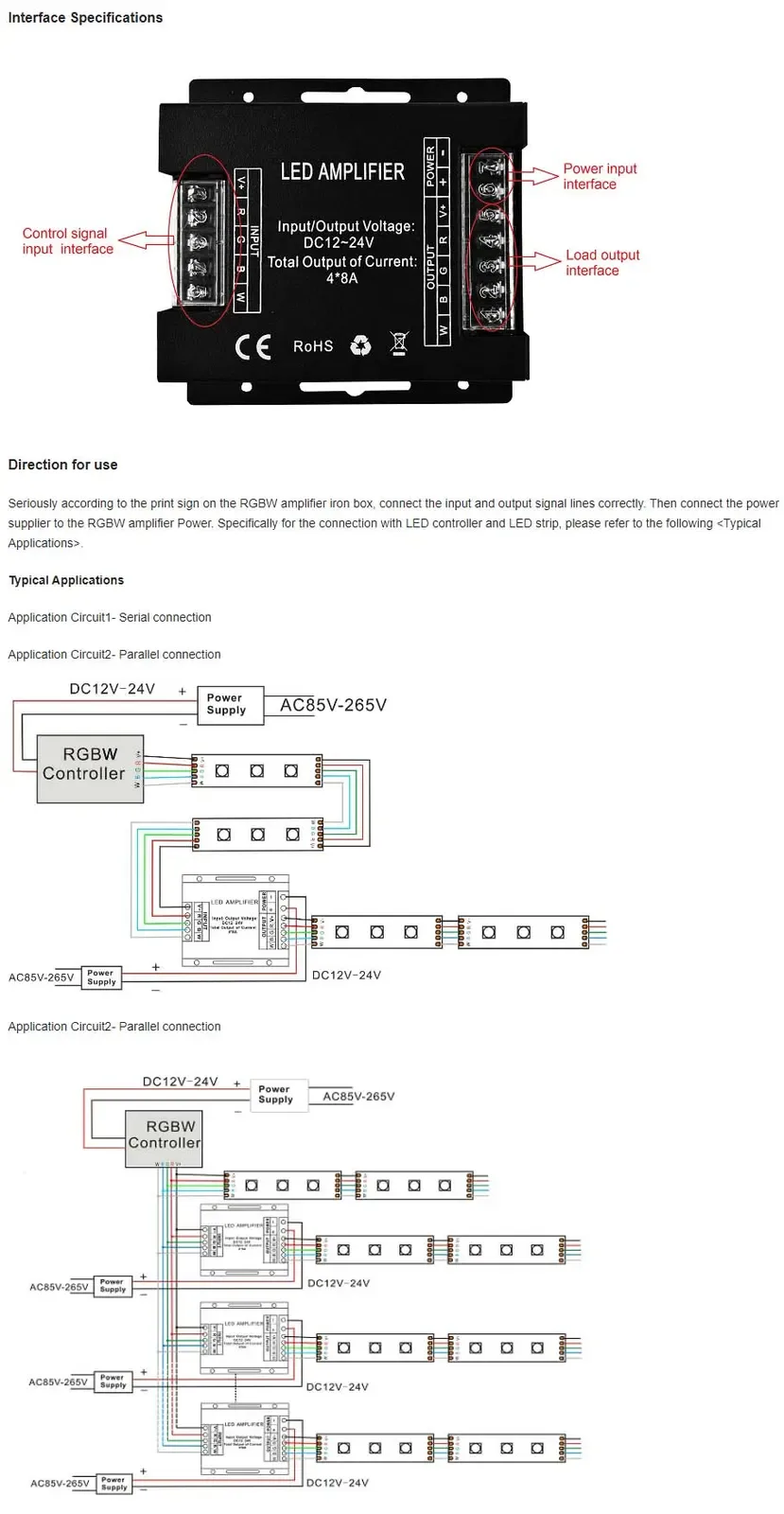

The RGBW LED repeater is a constant working voltage product in DC12V or DC24V and can work with all kinds of constant voltage 4-channel output LED controllers. The RGBW repeater with 4 channels output, the max output current of each channel can reach 8A. When working in DC12V, the max output wattage can reach 384W; if working in DC24V, the max output wattage can reach 768W. The installer can use one RGBW LED controller as the signal source and connect many LED Boosters in parallel. Can connect numerous in theory, all of the RGBW LED strips will change the color or dynamic style simultaneously.
Specifications
Model: HX-AMP-03
Material: Metal
Working Temperature: -20-60℃
Size: 91*88*24mm
Color: Black
Working Voltage: DC12V-DC24V
Output Channels: 4
Connecting Mode: Common Anode
Max Output Current: 8A Each Channel
Output Power: <384W(DC12V) / <768W( DC24V )
Compatible With All Hoion RGBW LED Controllers
Weight: 250g
Includes
1 * RGBW LED Repeater
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
