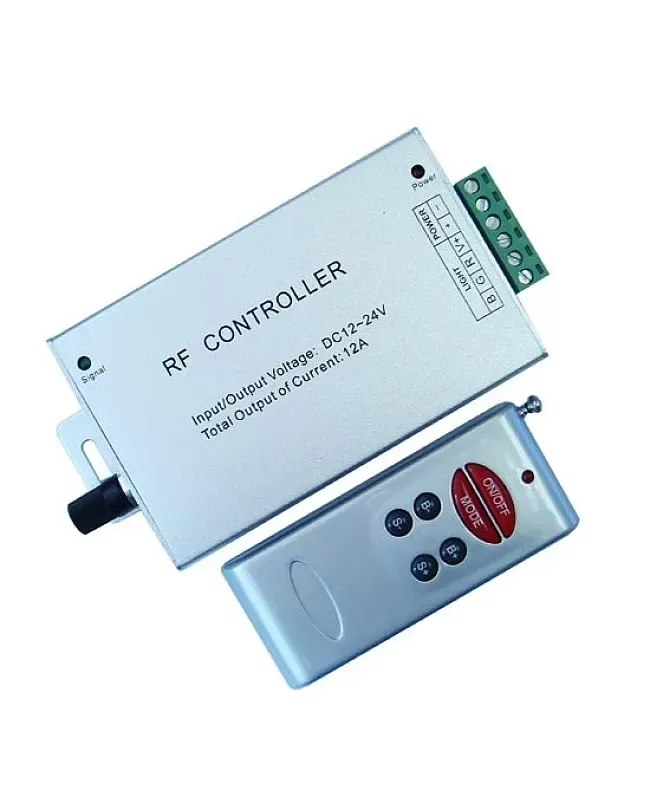

DC12V RF RGB LED Controller
LumaCircuit offers DC12V RF RGB LED Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Size: 128*64*25mm(L*W*H) Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The DC12V RF RGB LED controller with 6-key remote control, which adopts the advanced micro control unit, allows you to control various LED lights like the point source lights, flexible LED strips, wall washer lights, curtain lights, etc. The input voltage is DC12V or DC24V, has a 3-output channels design, the max output current of each channel is 4A, and the max loading power is up to 288W when working in DC24V.
- Working Temperature: -20-60℃
- Size: 128*64*25mm(L*W*H)
- Connecting Mode: Common Anode
- Working Voltage: DC12V-DC24V
- Max Output Current: 4A Each Channel
- Power: DC12V: ≤144W; 24V: ≤288W
- Static Power Consumption: <1W
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- LumaCircuit model: LC-CTL-3F3CQ0
- Working Temperature: -20-60℃
- Size: 128*64*25mm(L*W*H)
- Connecting Mode: Common Anode
- Working Voltage: DC12V-DC24V
- Output Channels: 3
- Max Output Current: 4A Each Channel
- Power: DC12V: ≤144W; 24V: ≤288W
- Static Power Consumption: <1W
- Dimensions found: 128x64x25mm / 25mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The DC12V RF RGB LED controller with 6-key remote control, which adopts the advanced micro control unit, allows you to control various LED lights like the point source lights, flexible LED strips, wall washer lights, curtain lights, etc. The input voltage is DC12V or DC24V, has a 3-output channels design, the max output current of each channel is 4A, and the max loading power is up to 288W when working in DC24V. The sound LED controller has a microphone signal input port and an audio signal input port; the color and brightness of the LED light will change automatically, following the music. The 6-key RF remote control includes seven static colors, 4 dynamic modes, and 6 sound working modes. Can work with color-changing LED strips.
Specifications
TY-L-C-010
Working Temperature: -20-60℃
Size: 128*64*25mm(L*W*H)
Connecting Mode: Common Anode
Working Voltage: DC12V-DC24V
Output Channels: 3
Max Output Current: 4A Each Channel
Power: DC12V: ≤144W; 24V: ≤288W
Static Power Consumption: <1W
6 Keys RF Remote Control Included
7 Static Colors, 4 Dynamic Modes, And 4 Sound Control Modes

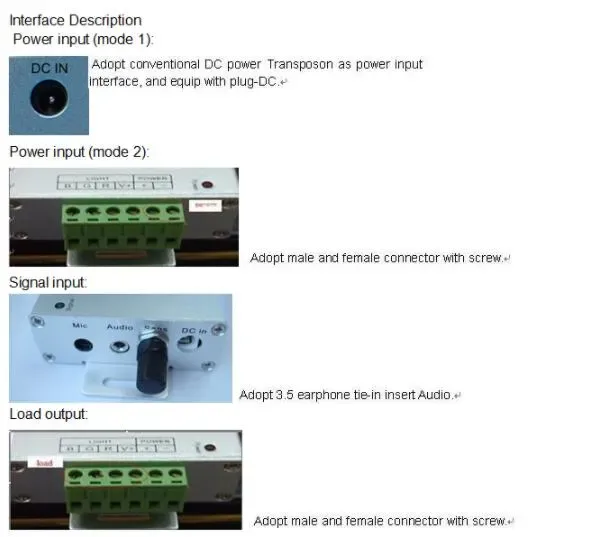

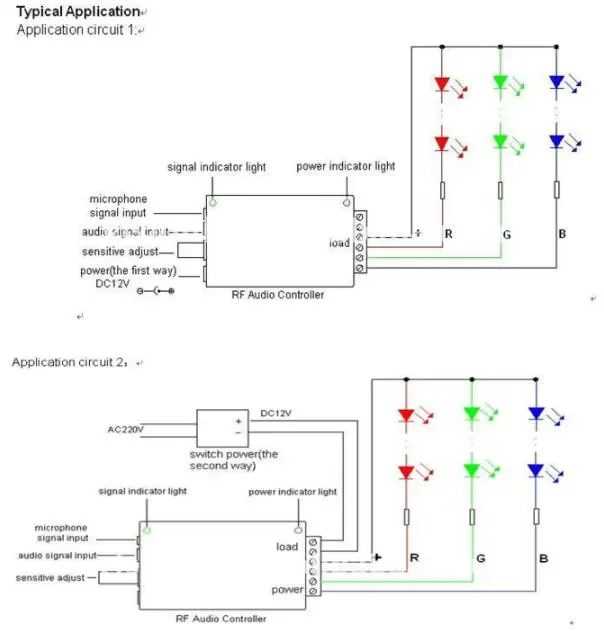

Adopts Conventional DC Power Input Port, Male And Female Connectors With Screws
Adopts 3.5mm Earphone Tie-In Insert Audio Signal Input Port
Weight: 200g
1 * RGB LED Controller
1 * RF LED Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
