400W Hoion T5 BLE Bluetooth Dual White CCT PWM Light Dimmer
LumaCircuit offers 400W Hoion T5 BLE Bluetooth Dual White CCT PWM Light Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size (L x W x H): 103 mm x 40 mm x 24 mm ( 4.06" x 1.57" x 0.94" ) Max output current: PWM≤: 17A; PWM=4/7.: 13A; PWM=15.: 10A Max output power: PWM≤: 200W(12V), 400W(24V); PWM=4/7.: 150W(12V), 300W(24V); PWM=15.: 120W(12V), 240W(24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Hoion high-power Bluetooth dual white light dimmers are designed for precise brightness and color temperature adjustment of tunable white lighting systems. They feature advanced Bluetooth wireless technology, enabling the adjustment of brightness and color temperature for various scenes via the Tuya app, remote control, and the knob button on the controller. The brightness range can be adjusted from 1% to 100% flicker-free, and the color temperature can be set from 100% warm white to 100% cool white.
- Size (L x W x H): 103 mm x 40 mm x 24 mm ( 4.06" x 1.57" x 0.94" )
- Max output current: PWM≤: 17A; PWM=4/7.: 13A; PWM=15.: 10A
- Max output power: PWM≤: 200W(12V), 400W(24V); PWM=4/7.: 150W(12V), 300W(24V); PWM=15.: 120W(12V), 240W(24V)
- Static power consumption: <1W
- Brightness range: 1-100%
- Color temperature range: 100% warm white ---100% cool white

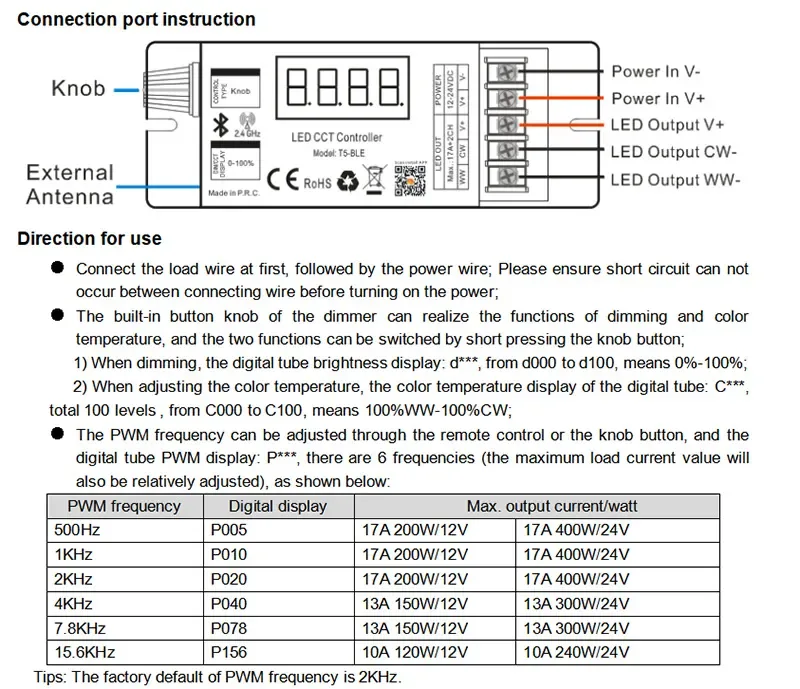

- PWM frequency: ( factory default ), 500Hz, 7., 15.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

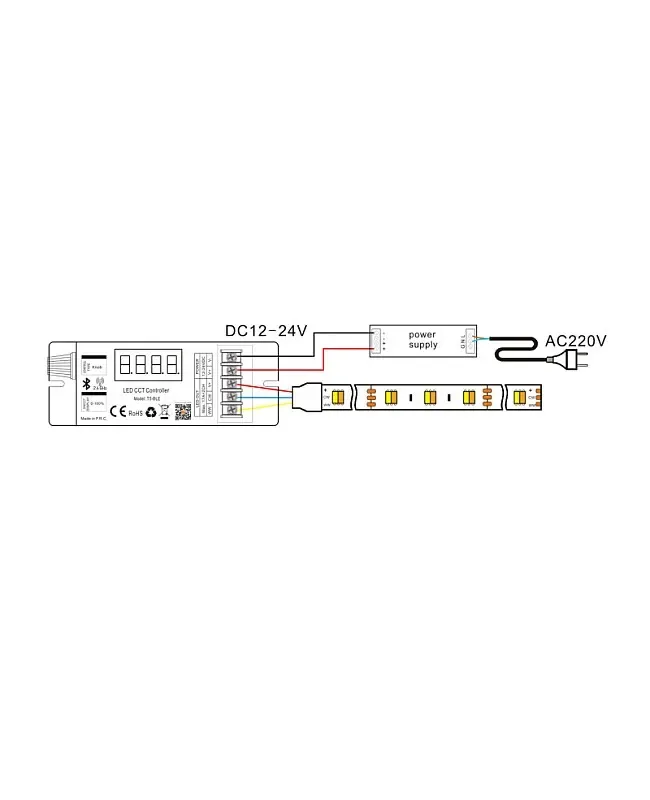

- Input: 12-24 V / 12 V / 24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-BXDHNL
- Size (L x W x H): 103 mm x 40 mm x 24 mm ( 4.06" x 1.57" x 0.94" )
- Working voltage: -24V

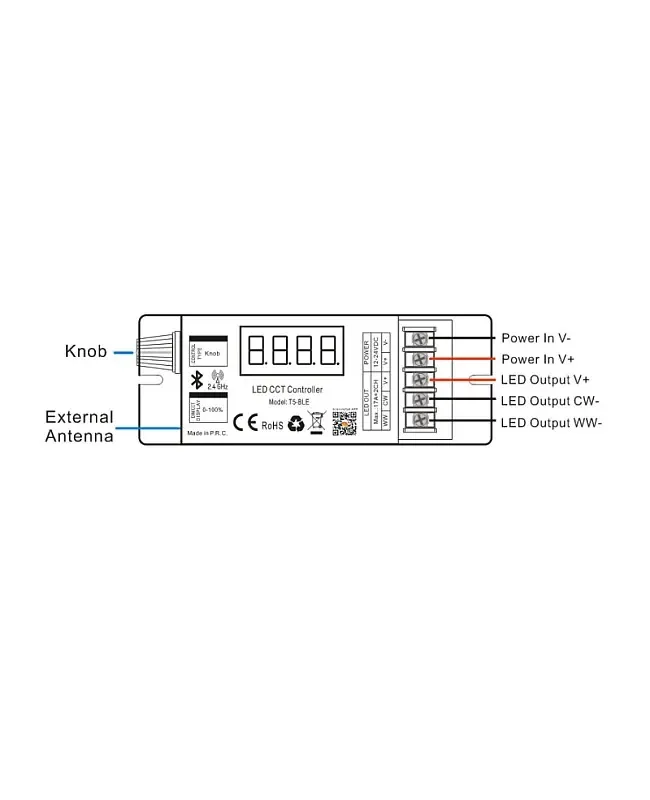

- Output: 2 channels
- Max output current: PWM≤: 17A; PWM=4/7.: 13A; PWM=15.: 10A
- Max output power: PWM≤: 200W(12V), 400W(24V); PWM=4/7.: 150W(12V), 300W(24V); PWM=15.: 120W(12V), 240W(24V)
- Static power consumption: <1W
- Color temperature range: 100% warm white ---100% cool white
- PWM frequency: ( factory default ), 500Hz, 7., 15.
- RF frequency: 2.4G
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The Hoion high-power Bluetooth dual white light dimmers are designed for precise brightness and color temperature adjustment of tunable white lighting systems. They feature advanced Bluetooth wireless technology, enabling the adjustment of brightness and color temperature for various scenes via the Tuya app, remote control, and the knob button on the controller. The brightness range can be adjusted from 1% to 100% flicker-free, and the color temperature can be set from 100% warm white to 100% cool white. The dimmer has a digital tube showing the brightness level or color temperature. The LEDs can be dimmed or toned to suit the application's needs, creating a more harmonious environment. The PWM frequency is adjustable from 500Hz to 15 through the remote control or the knob button, and this button can also be used to adjust the brightness and color temperature. With Bluetooth MESH APP control, the Hoion CCT dimmer can be managed via the Tuya APP for intelligent control, including group control, scene customization, timer scheduling, and more, making it a versatile solution for innovative lighting applications suited to modern smart homes, offices, retail stores, and architectural lighting projects.
Specifications
Model
Size (L x W x H): 103 mm x 40 mm x 24 mm ( 4.06" x 1.57" x 0.94" )
Working voltage: -24V
Output: 2 channels
Max output current: PWM≤: 17A; PWM=4/7.: 13A; PWM=15.: 10A
Max output power: PWM≤: 200W(12V), 400W(24V); PWM=4/7.: 150W(12V), 300W(24V); PWM=15.: 120W(12V), 240W(24V)
Static power consumption: <1W
Brightness range: 1-100%
Color temperature range: 100% warm white ---100% cool white
PWM frequency: ( factory default ), 500Hz, 7., 15.
RF frequency: 2.4G

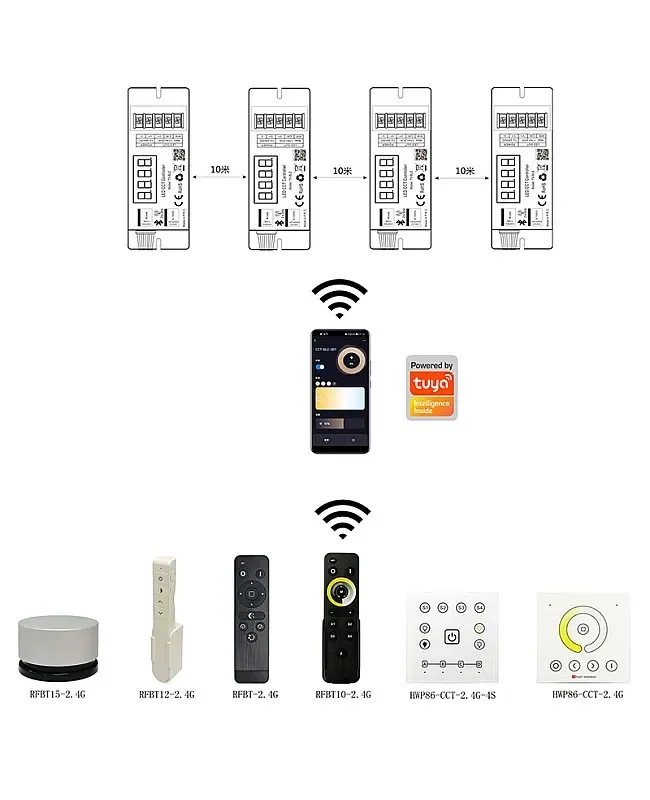

Control methods: Knob, remote controls, Tuya APP
Memory function: YES
Short circuit protection: YES
Working temperature: -20-60℃
Includes

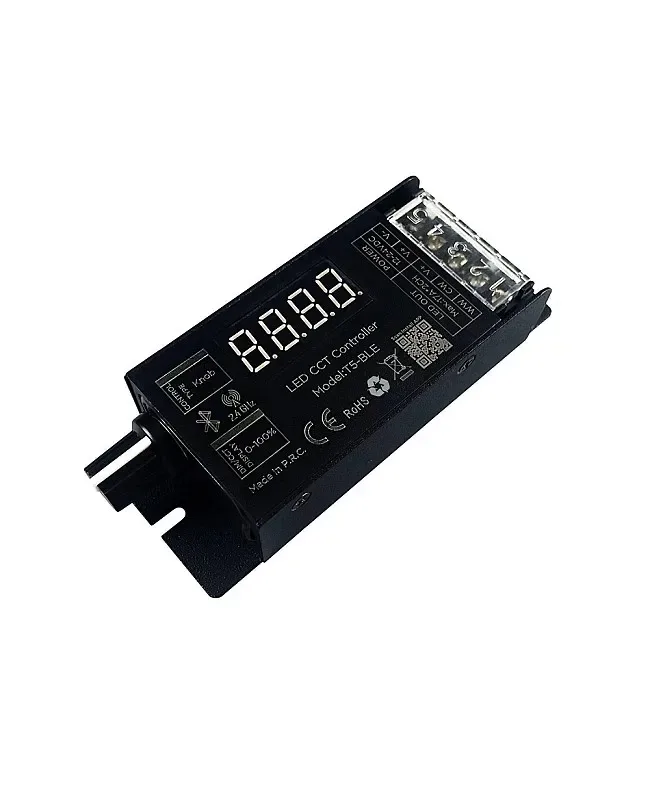

1 * Hoion BLE Bluetooth dual white light dimmer

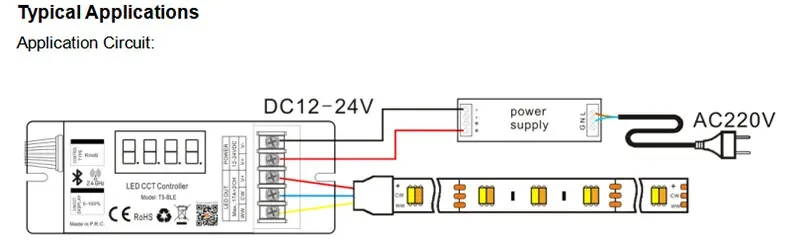

Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
