T 300K Full Color Online LED Pixel Controller
LumaCircuit offers T 300K Full Color Online LED Pixel Controller as a configurable LED controller for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Type: Dreamcolor Digital Pixel LED Controller Size: 165*80*30mm(L*W*H) Control Software: lighting editor The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The full color online LED pixel controller is intended to be compatible with most smart ICs and compatible with single and double line IC control. When connected with a single line IC, there is no need to connect the CLK clock line. There are two controlling methods: connecting to a computer for online control or using an SD card for online control.
- Type: Dreamcolor Digital Pixel LED Controller
- Size: 165*80*30mm(L*W*H)
- Control Software: lighting editor
- SD Card Type: High-Speed SD Card
- SD Card Capacity: 128 MB- 16 GB
- SD Card File Format: * led
- Signal Port: 8PCS 3Pin Connector Port
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 5-24 V
- Light engine: Addressable
- Size: 165*80*30mm(L*W*H)
- Color: Silver
- Input Voltage: -265V
- Output Voltage: -24V
- Power: 10W
- Control Software: lighting editor
- SD Card Capacity: 128 MB- 16 GB
- Max Loading Pixels: 8*512-1024PCS, Max 8192PCS
- LumaCircuit model: LC-CTL-RVX814
- Dimensions found: 165x80x30mm / 30mm / 8x512
Control and installation
Use this product on the WLED ambient route. Match the controller to the exact LED IC and channel order, voltage, data direction and total load; long runs also need a fuse and power-injection plan. WLED, Home Assistant and any show-control bridge remain separate validation points.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

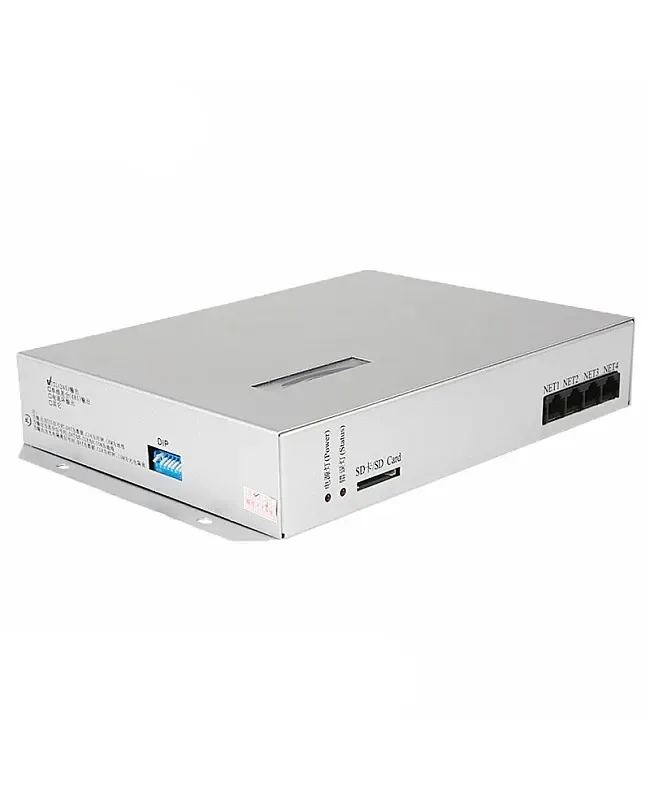

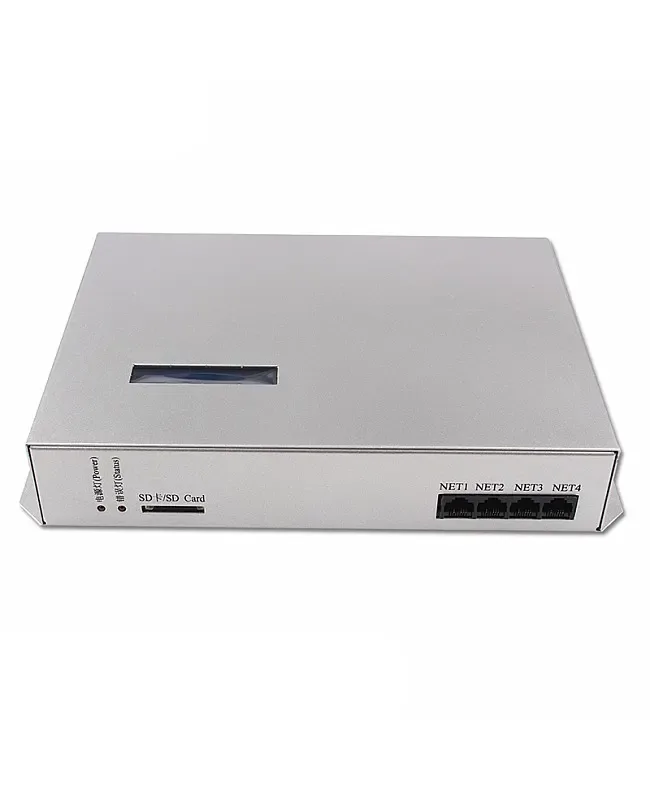

The full color online LED pixel controller is intended to be compatible with most smart ICs and compatible with single and double line IC control. When connected with a single line IC, there is no need to connect the CLK clock line. There are two controlling methods: connecting to a computer for online control or using an SD card for online control. The installer can use the software lighting editor to design or edit the animation and output to the LED controllers, which can control various point, line, and surface light sources, such as rules and special shapes. The computer is online and can support the control of 300,000 Pixels. The T300K with 8 output ports, each port supporting 1024 Pixels, 32 gray levels, and 256 gray levels, can carry 512 lights. The SD card included, the installer can store the lighting effect file on it and play it in the LED controller. The supports playing 16 lighting effects stored on the SD card. If the controller and LED lights are not in the same location, the installer can choose photoelectric isolated transmission, and as far as up to 200-300 meters.
Specifications
Type: Dreamcolor Digital Pixel LED Controller
Size: 165*80*30mm(L*W*H)
Color: Silver
Input Voltage: -265V
Output Voltage: -24V
Power: 10W
Control Software: lighting editor
SD Card Type: High-Speed SD Card
SD Card Capacity: 128 MB- 16 GB
SD Card Format: FAT
SD Card File Format: * led

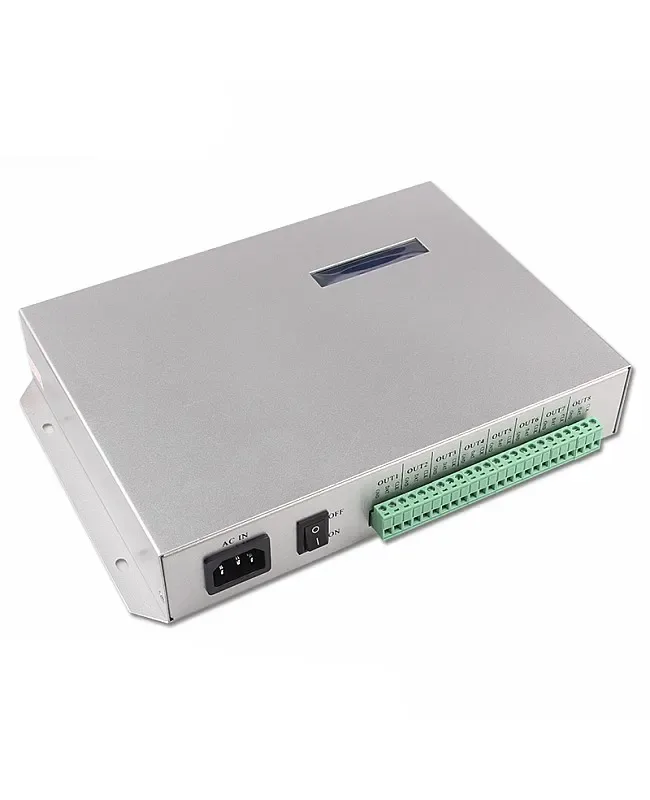

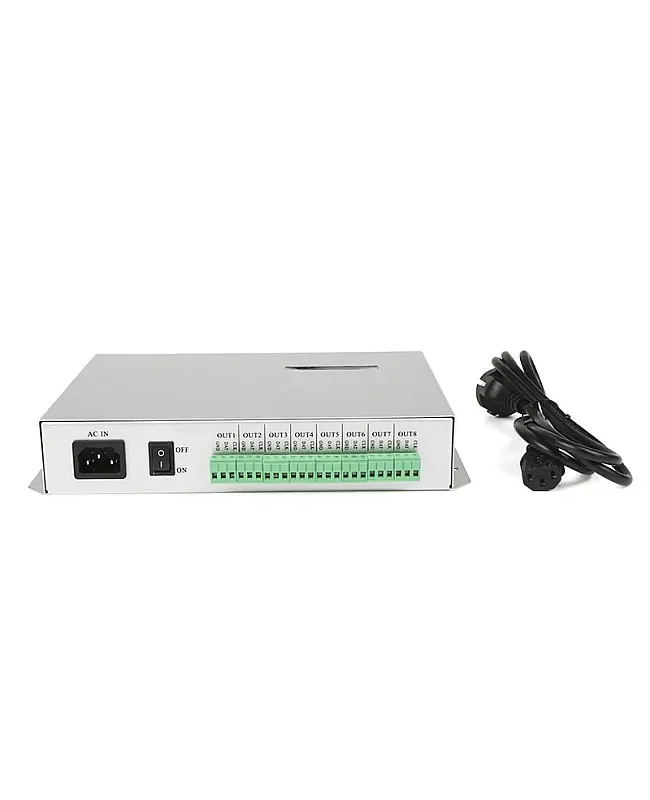

Signal Port: 8PCS 3Pin Connector Port
Max Loading Pixels: 8*512-1024PCS, Max 8192PCS
32-65536 Grade Gray Level, Support Software Gamma Correction
Can Edit The Rules To Control The Alien Shape Point, Line, Panel Lights Via lighting editor Software
Compatible With Single Or Double Line Chips
Online Control And Offline Control With SD Card
Enhanced TTL Or 485 Differential Signal Output(Default TTL)
Compatible With Most Of Digital Programmable LED Strips

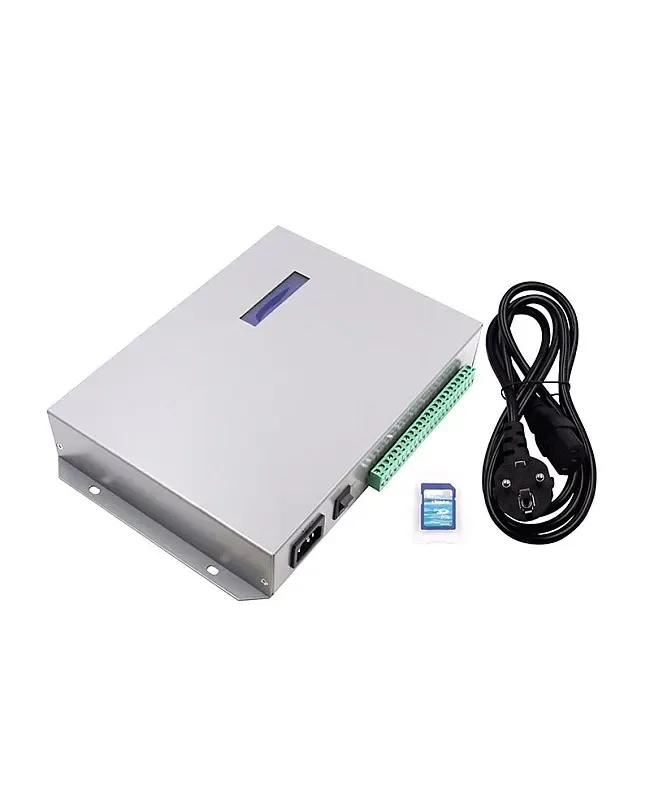

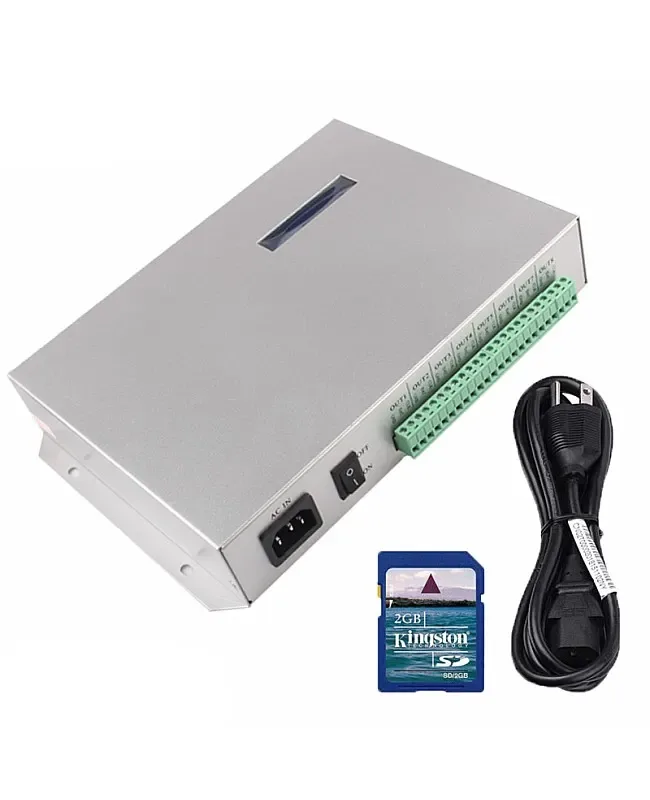

Includes
1 * T300K Pixel LED Controller
1 * AC Power Cable
1 * 2G SD Card Includes 2013 lighting editor Software
1 * User Manual
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
