Product details
432W RGB LED Touch Controller
LumaCircuit offers 432W RGB LED Touch Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-60℃ Size: 127*41*32mm(L*W*H) Supply Voltage: DC12V~24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB LED touch controller adopts the advanced micro control unit, designed for controlling a variety of RGB LED lights, point source lights, LED strip lights, wall washer lamps, etc. The touch controller has a 3-output-channel design, with a max output current of up to 6A, and a max loading power of up to 432W when working in DC24V. The RF remote control with touch buttons included, which has five functions, 1 color ring, and one color sense lamp in the center, the color ring has 128 levels in different colors.
- Working Temperature: -20-60℃
- Size: 127*41*32mm(L*W*H)
- Supply Voltage: DC12V~24V
- Connecting Mode: Common Anode
- Output Current: <6A(Each Channel)
- Output Power: 12V: ＜216W; 24V: ＜432W
- Output Gray: 256 Levels ( RGB each）
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- Working Temperature: -20-60℃
- Size: 127*41*32mm(L*W*H)
- Supply Voltage: DC12V~24V
- Connecting Mode: Common Anode
- Output: 3 Channels
- Output Current: <6A(Each Channel)
- Output Power: 12V: ＜216W; 24V: ＜432W
- Output Gray: 256 Levels ( RGB each）
- Frequency Of RF Remote Control: 433.
- LumaCircuit model: LC-CTL-NMX6P0
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

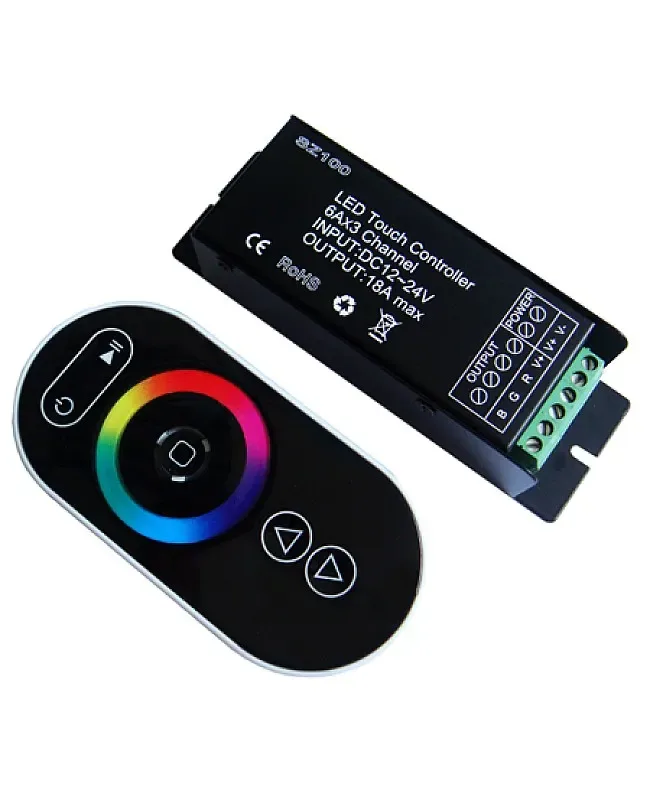

The RGB LED touch controller adopts the advanced micro control unit, designed for controlling a variety of RGB LED lights, point source lights, LED strip lights, wall washer lamps, etc. The touch controller has a 3-output-channel design, with a max output current of up to 6A, and a max loading power of up to 432W when working in DC24V. The RF remote control with touch buttons included, which has five functions, 1 color ring, and one color sense lamp in the center, the color ring has 128 levels in different colors. A small light ring in the remote control's center shows the color when different colors are touched. There are 10 working modes, including the white static colors and 9 dynamic modes. The speed of static colors' brightness and dynamic modes is adjustable. It works with the RGB amplifiers so that the installer can achieve the synchronization of more RGB LED lights.
Specifications
Working Temperature: -20-60℃
Size: 127*41*32mm(L*W*H)
Supply Voltage: DC12V~24V

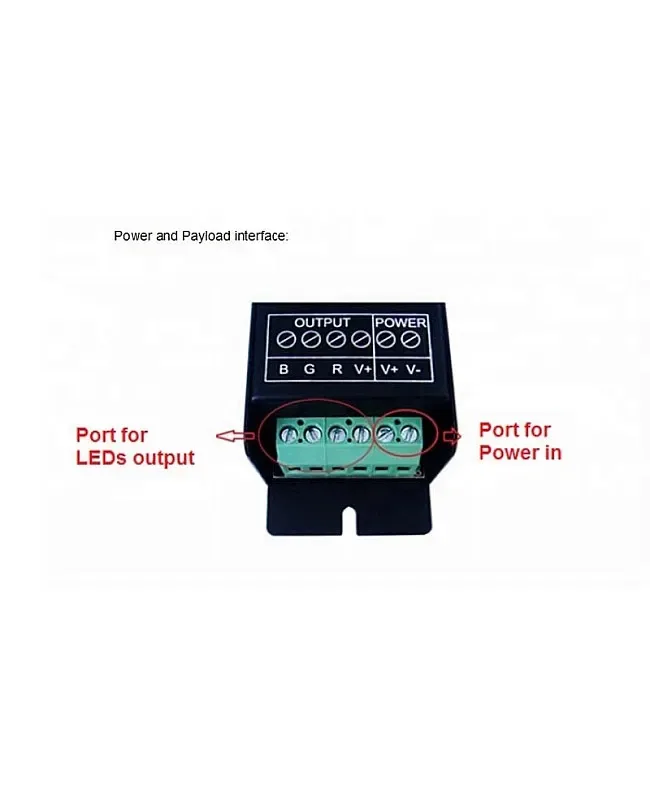

Connecting Mode: Common Anode
Output: 3 Channels
Output Current: <6A(Each Channel)
Output Power: 12V: ＜216W; 24V: ＜432W
Output Gray: 256 Levels ( RGB each）
Frequency Of RF Remote Control: 433.
Weight: 340g

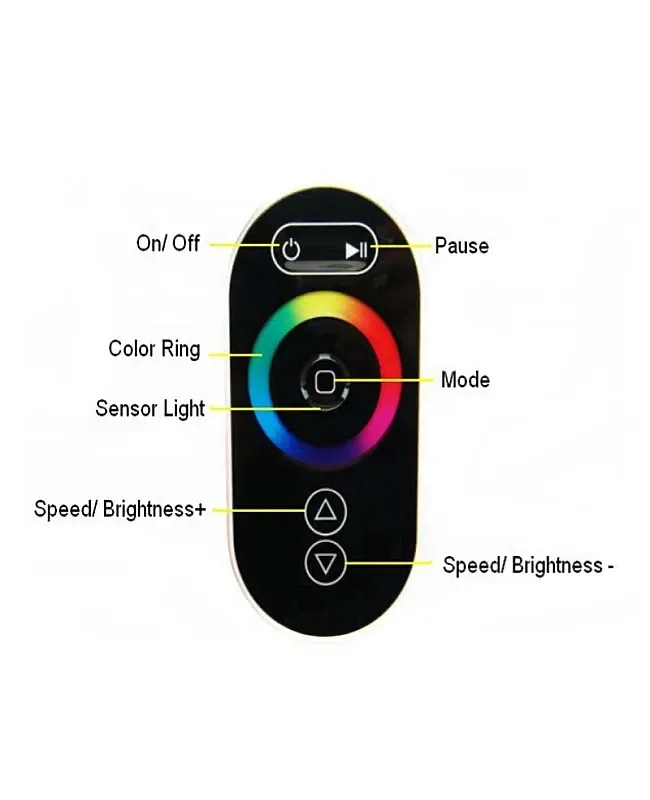

5 Functions, 1 Color Ring, And 1 Color Sense Lamp Touch Remote Control Included
10 Working Modes In Total, White Static Color, And 9 Dynamic Modes
Brightness Of Static Colors And Speed Of Dynamic Modes Are Adjustable

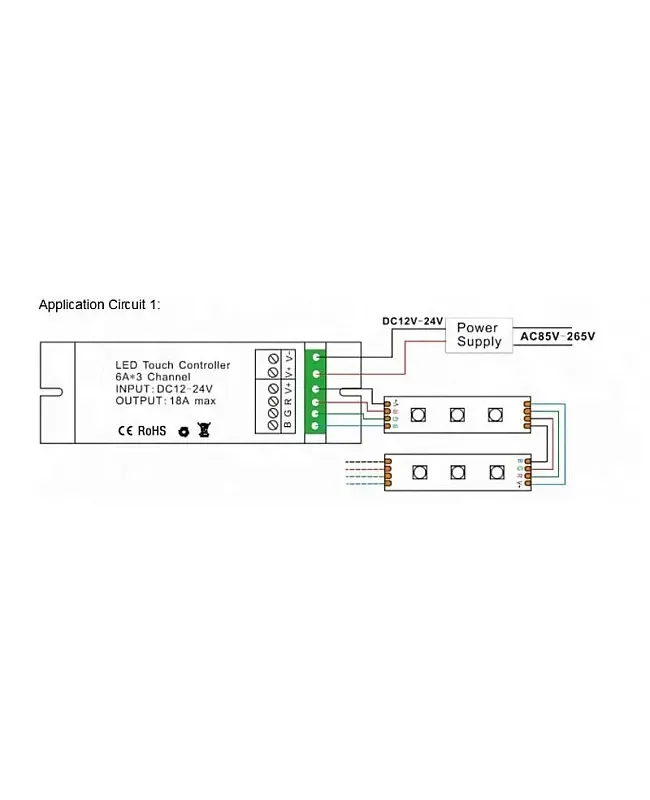

Can Work With RGB Amplifiers To Achieve The Synchronization Of More LED Lights
1 * LED Light Controller
1 * Touch Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
