384W Wireless Sync LED Controller For DIM/CCT/RGB/RGBW
LumaCircuit offers 384W Wireless Sync LED Controller For DIM/CCT/RGB/RGBW as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Output Current: ≤4A/Channel Total Output Max Current: 16A Max load Power: 192W/12V; 384W/24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless sync LED controller adopts the most advanced PWM digital control technology and is designed for DIM/CCT/RGB/RGBW constant voltage LED lights.
- Output Current: ≤4A/Channel
- Total Output Max Current: 16A
- Max load Power: 192W/12V; 384W/24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Short Circuit Protection
- Designed For DIM/CCT/RGB/RGBW Constant Voltage LED Lights
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: RGBW
- Size: 70*40*20mm(L*W*H)
- LumaCircuit model: LC-CTL-FR7OGA
- RF Frequency: 2.
- Input Voltage: -24V
- Output Current: ≤4A/Channel
- Total Output Max Current: 16A
- Max load Power: 192W/12V; 384W/24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Dimensions found: 70x40x20mm / 20mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless sync LED controller adopts the most advanced PWM digital control technology and is designed for DIM/CCT/RGB/RGBW constant voltage LED lights. It works on DC12V or DC24V, with a 4-channel design, and the max current of each channel is 4A, the max loading power is up to 384W when working in The sync LED controller integrated four optional programs for different color type of LED lights, single color/CW+WW/RGB/RGBW, the 2.4G 4 zones RF remote control included, four zones separately control or all-control, the wireless RGB LED controller in both static color and dynamic modes, 1024 static colors(RGB/RGBW) and soft dim function, the brightness of the static color are adjustable, 1024 levels in total, the speed of dynamic changes adjustable, 100 levels in total. The installer can long-press the brightness and speed keys to get the fast adjustment, which is convenient for operation. The RF remote control has four zones, separately controlled or all-control design, and batch operation is available for RF code matching or clearing between the remote control and receivers.
Wireless Sync LED Controller Specifications

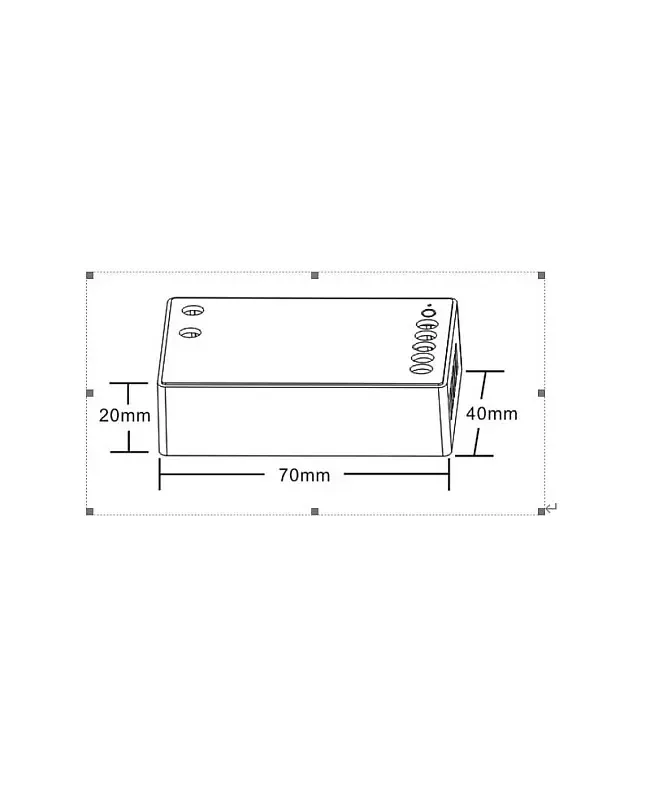

Size: 70*40*20mm(L*W*H)
Model
RF Frequency: 2.
Input Voltage: -24V
Output Current: ≤4A/Channel
Total Output Max Current: 16A
Max load Power: 192W/12V; 384W/24V
PWM Frequency
Static Power Consumption: <1W
Connecting Mode: Common Anode
Short Circuit Protection
Designed For DIM/CCT/RGB/RGBW Constant Voltage LED Lights
Indicate Light: Red(Single Color) Yellow(CW+WW) Blue(RGB) Green(RGBW)
RF Remote Control Included, 4 Zones Separately Controlled or All Controlled
Control In Both Static Color Or Dynamic Modes, Unlimited By Remote Control Distance
Batch-Operation Is Available For RF Code Matching/Clearing Between Remote Control And Receivers
Memory Function
1024 Static Colors(RGB/RGBW) And Soft Dim Function
1024 Levels Brightness Of Static Color Adjustable
100 Levels Speed Of Dynamic Changes Adjustable
Long-press The Brightness And Speed Key Can Get The Fast Adjustment
Remote Control Specifications
Size: 150*40*20mm(L*W*H)
Supply Voltage: DC3V(AAA*2)
Standby Current: <
Working Current: <
Standby Power
Working Power
RF Frequency: 2.
RF Distance: ≤20m
Includes

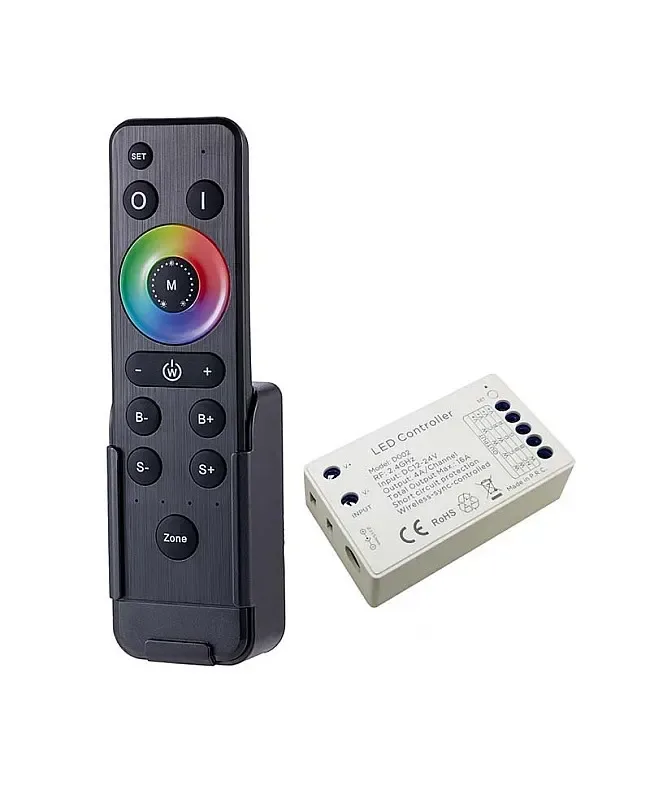

1 * Wireless Sync LED Controller
1 * 2.4G Wireless RF 4 Zones Remote Control
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
