DC12V 108W RGB LED Dimmer
LumaCircuit offers DC12V 108W RGB LED Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Item Type: RGB LED Dimmer Working temperature: -20℃-60 ℃ Size: 130*40*46mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB LED dimmer adopts the advanced PWM digital control technology, which the installer can use to control the brightness of a variety of RGB LED lights, LED modules, LED string lights, etc. Working on DC12V-24V, with 3 3-output channel design, the max output current of each channel is 3A, the max loading power is up to 216W when working in DC24V.
- Item Type: RGB LED Dimmer
- Working temperature: -20℃-60 ℃
- Size: 130*40*46mm(L*W*H)
- Max Output Power: <108W(12V), 216W(24V)
- Static power consumption: <1W

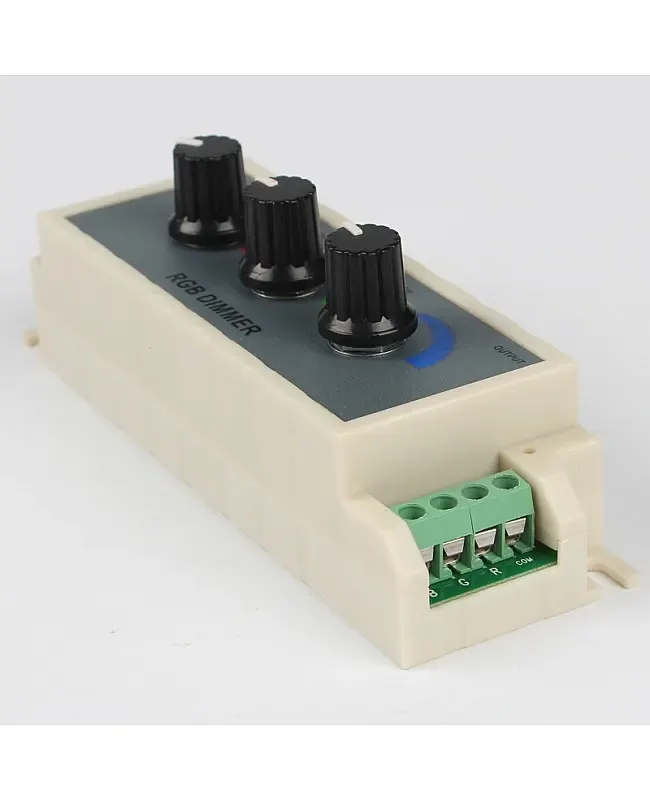

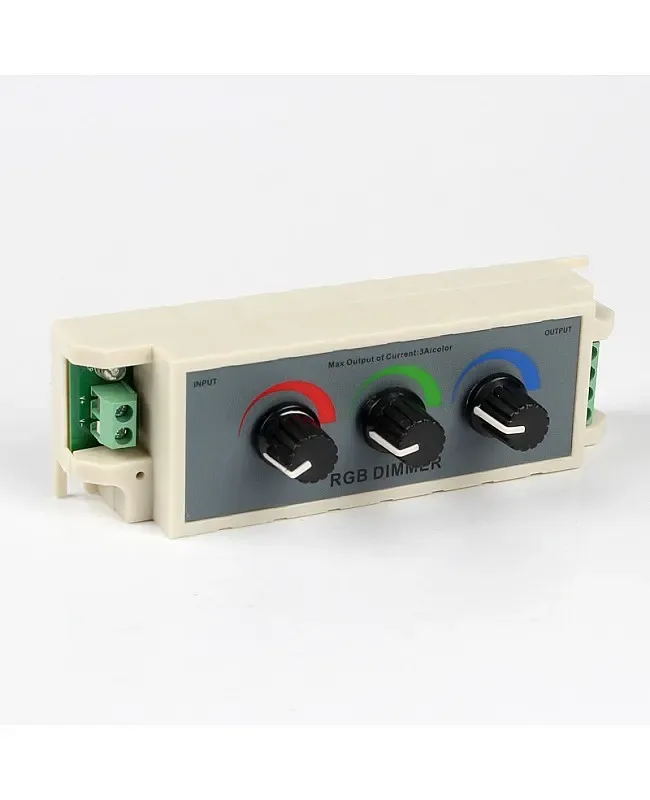

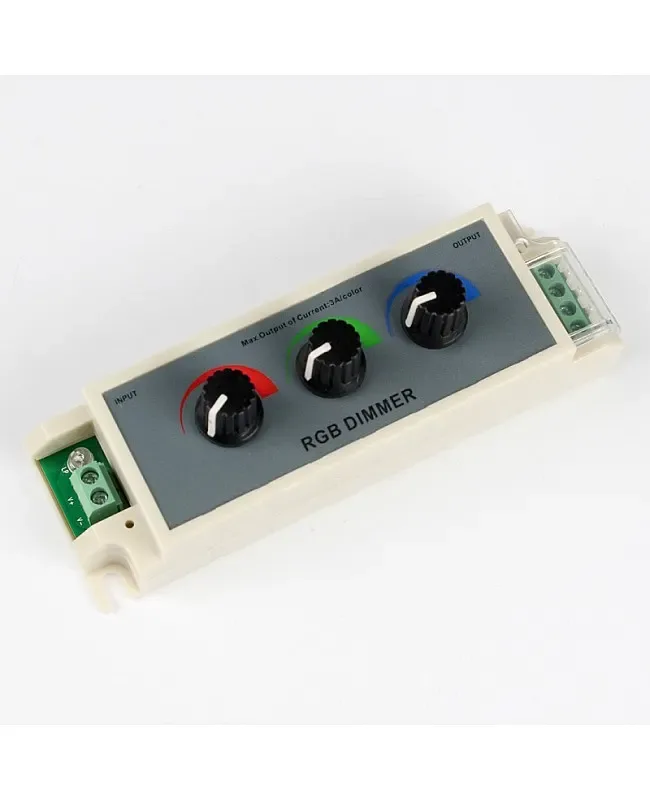

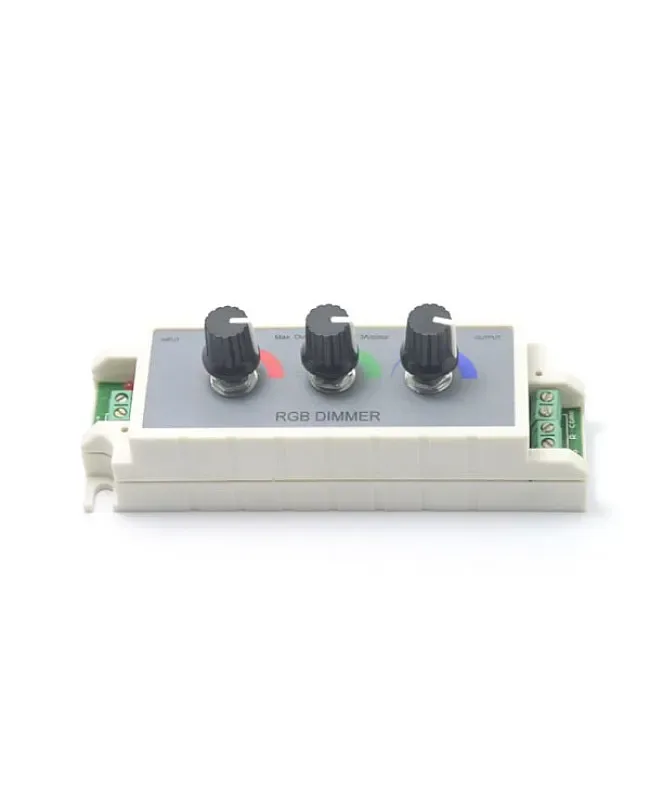

- The RGB LED Dimmer, with 3 knob switch buttons to adjust the Red, Blue And Green Colors of the RGB LED Light separately, dimming range from 0% to 100%, smooth and flicker-free max loading power up to 216W when working in DC24V.
- A production-ready controller family with a replaceable Zigbee control path.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- Working temperature: -20℃-60 ℃
- Size: 130*40*46mm(L*W*H)
- Voltage: DC12V-24V
- Max output Current: 3A*
- Max Output Power: <108W(12V), 216W(24V)
- Static power consumption: <1W
- LumaCircuit model: LC-CTL-D98USR
- Dimensions found: 130x40x46mm / 46mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

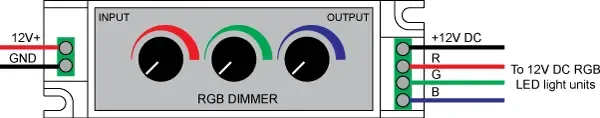

The RGB LED dimmer adopts the advanced PWM digital control technology, which the installer can use to control the brightness of a variety of RGB LED lights, LED modules, LED string lights, etc. Working on DC12V-24V, with 3 3-output channel design, the max output current of each channel is 3A, the max loading power is up to 216W when working in DC24V. With three knob switch buttons on the LED dimmer, which allows adjusting the brightness of red, green and blue of the RGB LED light separately, smooth and flicker-free, dimming range from 0% to 100%.
Specifications
Item Type: RGB LED Dimmer
Working temperature: -20℃-60 ℃
Size: 130*40*46mm(L*W*H)
Voltage: DC12V-24V
Max output Current: 3A*
Max Output Power: <108W(12V), 216W(24V)
Static power consumption: <1W
Weight: 100g
Includes
1 * RGB LED Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
