Product details
5 In 1 RGBWW Controller Zigbee 3.0+2.4G Wireless
LumaCircuit offers 5 In 1 RGBWW Controller Zigbee 3.0+2.4G Wireless as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 124*38*23mm(L*W*H) Output Current: 6A/Channel Total Output Current: 15A Max The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

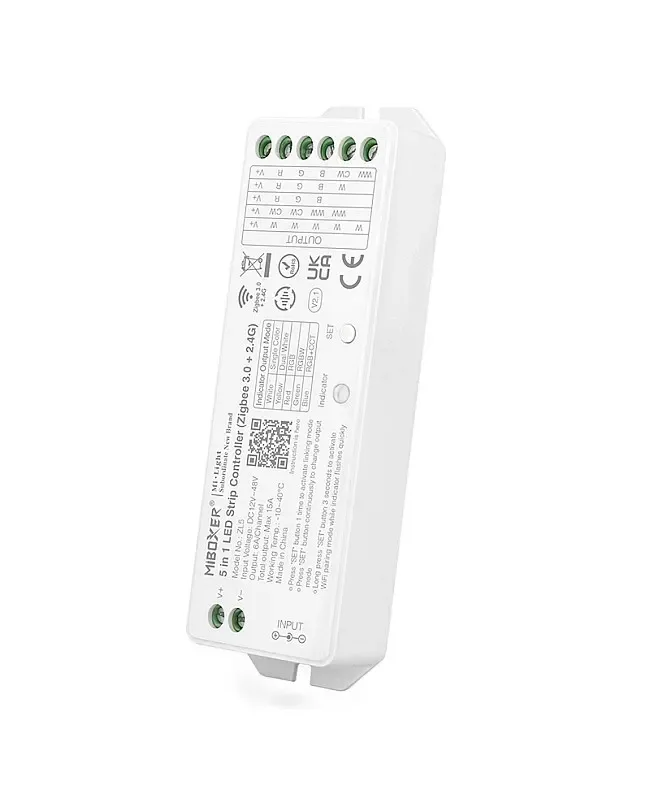

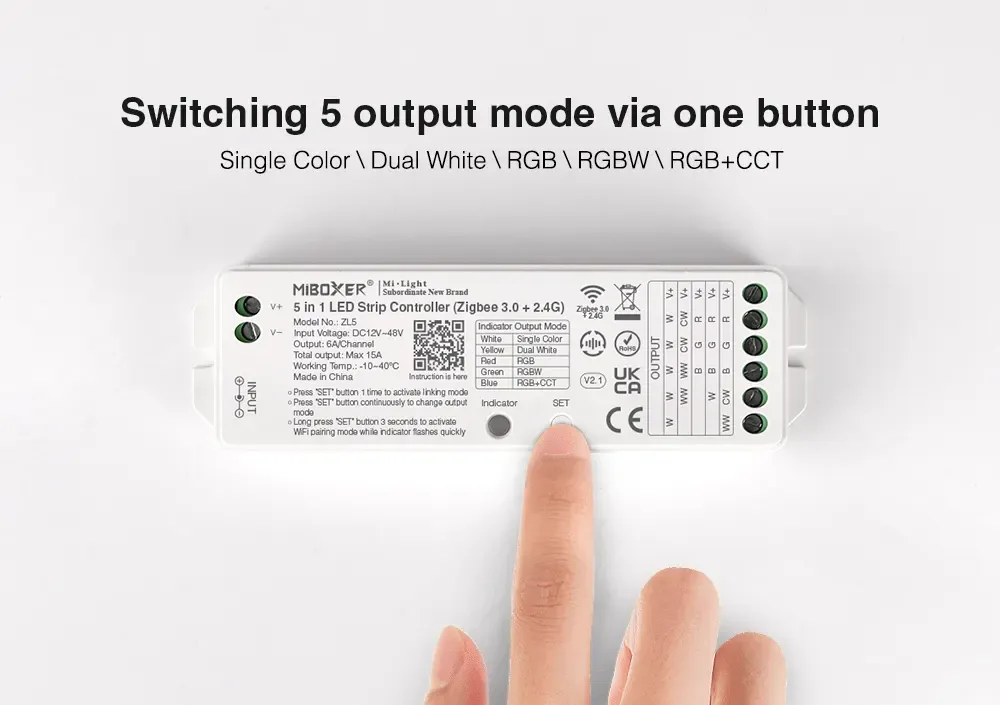

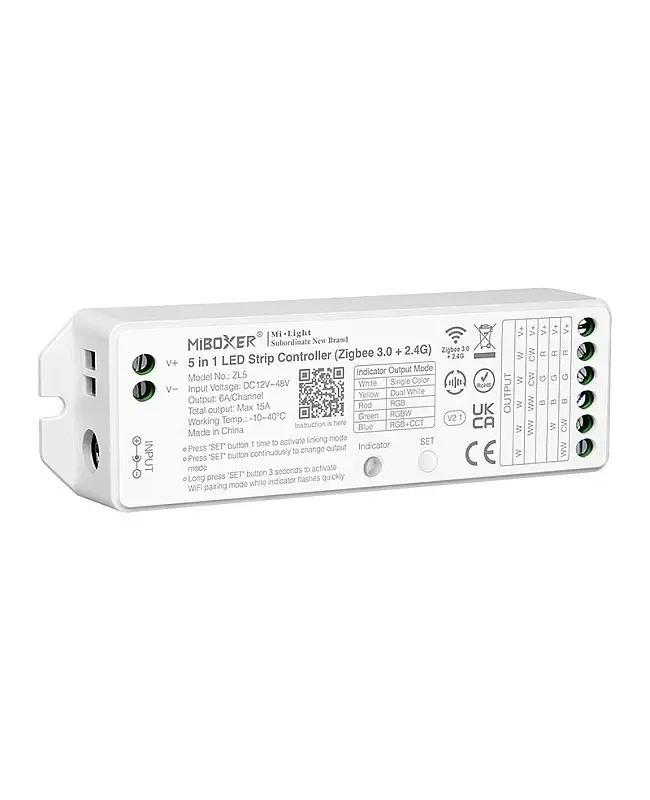

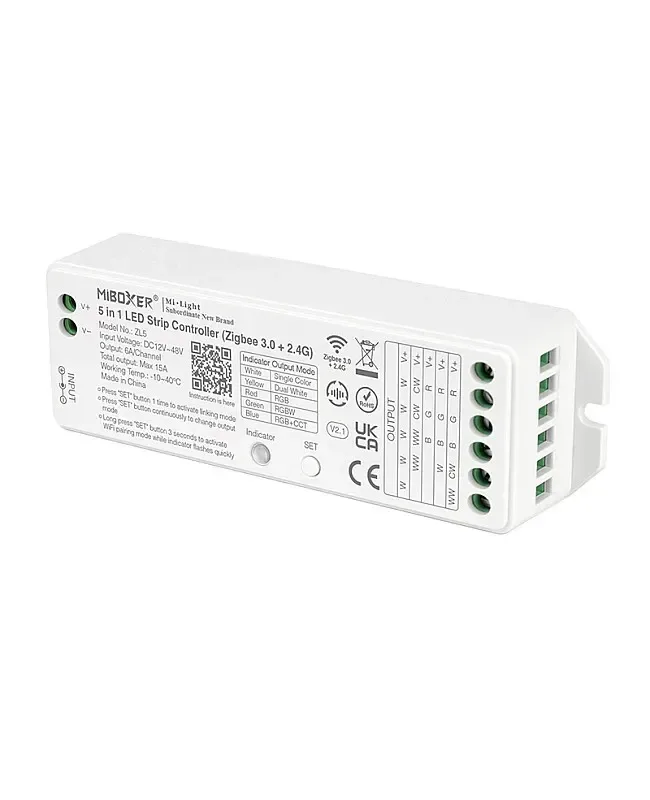

- The wireless controller RGBWW controllers follow the Zigbee 3.0 standard protocol and can be controlled by 2.4G RF remotes. They have five output modes to support single color, dual white, RGB, RGBW, and RGB+CCT LED lights. One Controller for all types of LED Lights. The controller has a physical button, and the installer can press " Set " to switch the output mode.

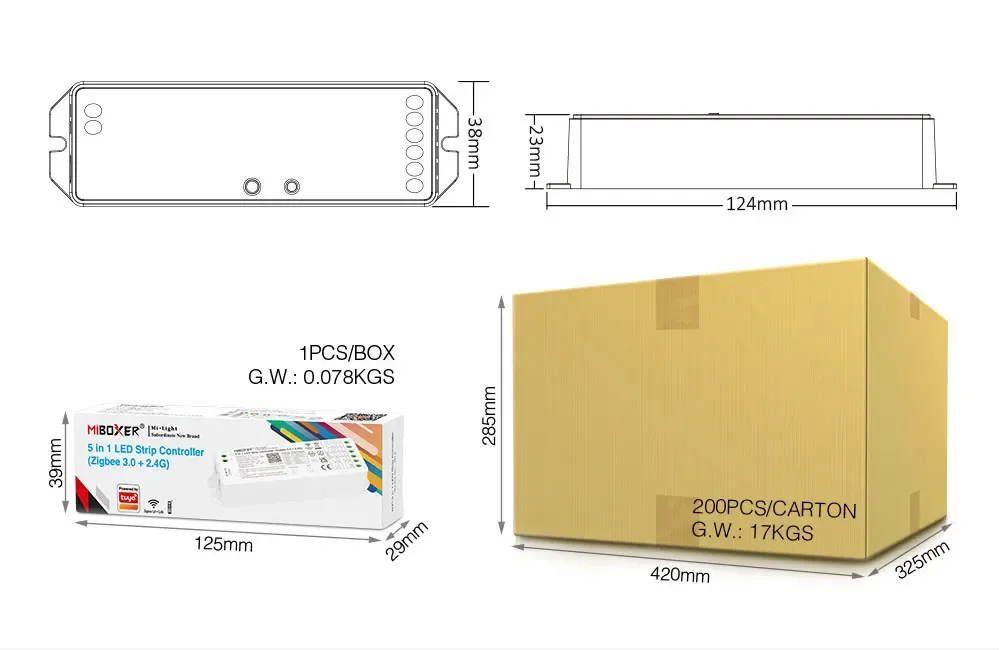

- Size: 124*38*23mm(L*W*H)
- Output Current: 6A/Channel
- Total Output Current: 15A Max
- Support wireless controller/2.4 GHz wireless 2.4G Remote Controls
- 5 Output Modes Switchable: Single Color/Dual White/RGB/RGBW/RGBWW
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- Light engine: RGBW
- LumaCircuit model: LC-CTL-LC4Y7T
- Size: 124*38*23mm(L*W*H)
- Working Voltage: -48V
- Output Current: 6A/Channel
- Total Output Current: 15A Max
- 5 Output Modes Switchable: Single Color/Dual White/RGB/RGBW/RGBWW
- Zigbee Wireless Frequency: 2.400- 2.
- Zigbee Control Distance: ≤100m(Open Area)
- 2.4G RF Remote Control Distance: ≤30m
- Working Temperature: -10-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller RGBWW controllers follow the Zigbee 3.0 standard protocol and can be controlled by 2.4G RF remotes. They have five output modes to support single color, dual white, RGB, RGBW, and RGB+CCT LED lights. One Controller for all types of LED Lights. The controller has a physical button, and the installer can press " Set " to switch the output mode. The RGB CCT controller can be controlled by a Zigbee 3.0 remote and a smartphone APP after matching a Zigbee 3.0 gateway, can set the static color or dynamic mode, and adjust the brightness or color temperature for various scenes can work with Amazon Alexa and Google Assistant, which allows the LED lights to be controlled by voice commands wireless controller Zigbee gateways can be used with Philips Hue, IKEA TRADFRI, and Amazon Echo Series standard Zigbee gateways, and they can also be used with other Zigbee gateways wireless controller or 2.4 GHz wireless RF remotes can also control the 5 in 1 light controllers, and the installer can use them for indoor lighting projects in homes, offices, bars, shops, etc.
Specifications
Model
Size: 124*38*23mm(L*W*H)
Working Voltage: -48V
Output Current: 6A/Channel
Total Output Current: 15A Max
Support wireless controller/2.4 GHz wireless 2.4G Remote Controls
5 Output Modes Switchable: Single Color/Dual White/RGB/RGBW/RGBWW
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Zigbee Control Distance: ≤100m(Open Area)
4G RF Remote Control Distance: ≤30m
Tuya Smart APP Controllable(Zigbee 3.0 Gateway Needed)
Support Third-Party Voice Control
Works With Amazon Alexa/Google Assistant
Working Temperature: -10-40℃
Includes
1 * wireless controller Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
