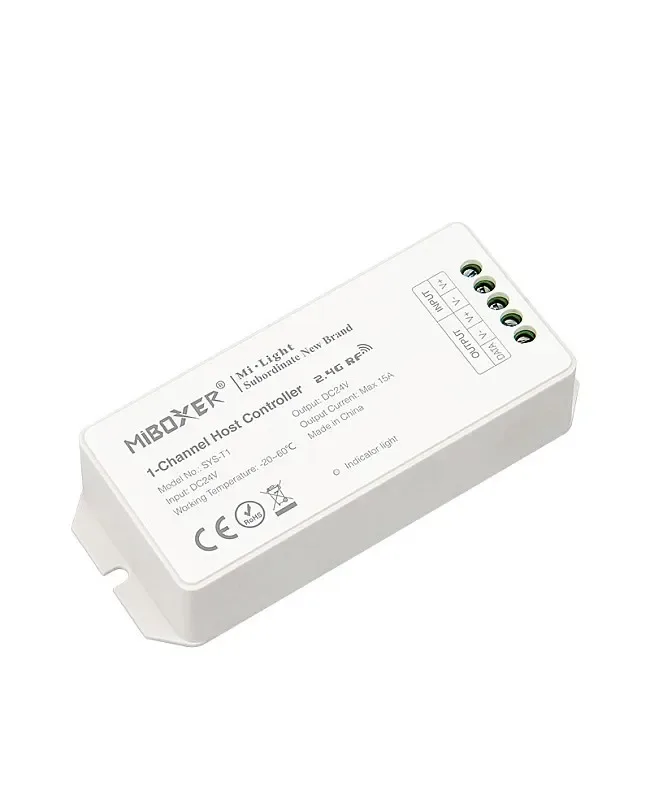

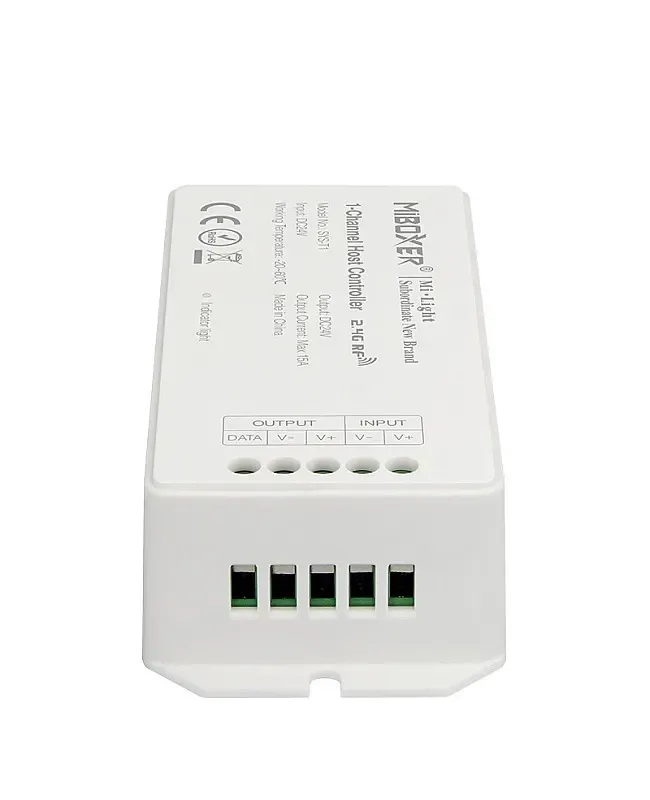

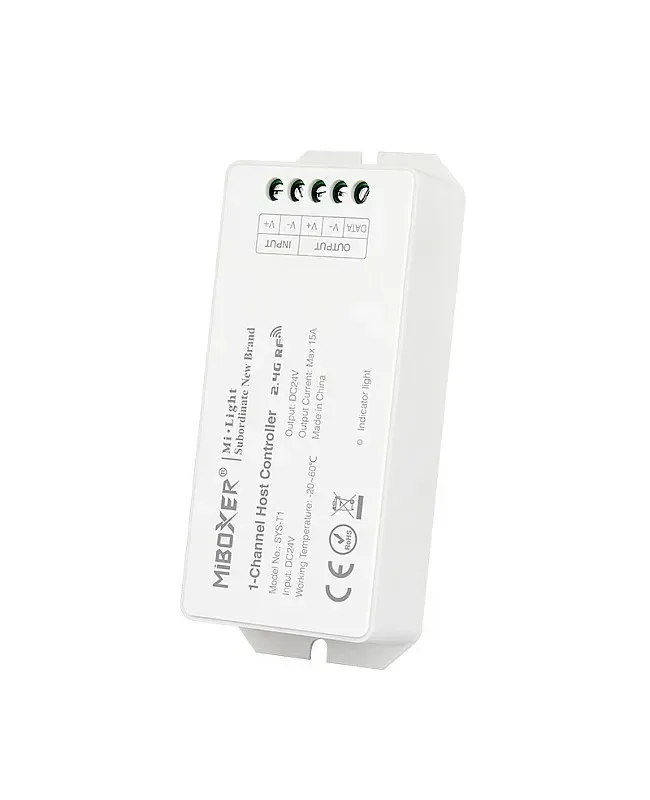

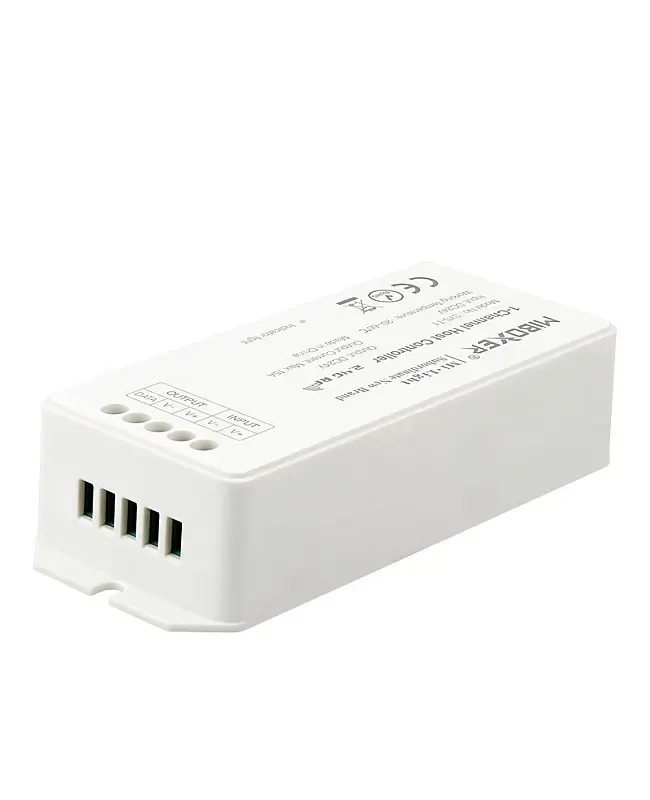

SYS T1 1 Channel Host Controller
LumaCircuit offers SYS T1 1 Channel Host Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. wireless controller SYS T1 User Manual Size: 115*48*27mm(L*W*H) Smartphone APP And Third-Party Voice Controllable(2.4G Gateway Needed) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller host controller with 1 channel design, which is only compatible with wireless controller SYS series LED light products, adopts the widely used 2.4G wireless transmitting technology for low power consumption, longer signal transmitting and strong anti-interference, can be controlled by 2.4G RF Remotes, smartphone APP, DMX512 controller, and third-party voice commands, can set the static color, adjust the saturation, color temperature and brightness, There are 16 million colors available.
- wireless controller SYS T1 User Manual
- Size: 115*48*27mm(L*W*H)
- Smartphone APP And Third-Party Voice Controllable(2.4G Gateway Needed)
- DMX512 Controllable( Transmitter Needed)
- Compatible With wireless controller SYS Series Products: Wall Washer Lights, Underwater Lights, Garden Lights, etc
- Color Saturation, Color Temperature, And Brightness Adjustable
- Auto-transmitting And Auto Synchronization Function
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Size: 115*48*27mm(L*W*H)
- Working Voltage: DC24V
- Output Voltage: DC24V
- Output Current: Max 15A
- Output Power: Max 360W
- Control Distance: ≤30m
- Compatible With wireless controller SYS Series Products: Wall Washer Lights, Underwater Lights, Garden Lights, etc
- Working Temperature: -20-60℃
- LumaCircuit model: LC-CTL-UPWPRA
- Dimensions found: 115x48x27mm / 27mm / 30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

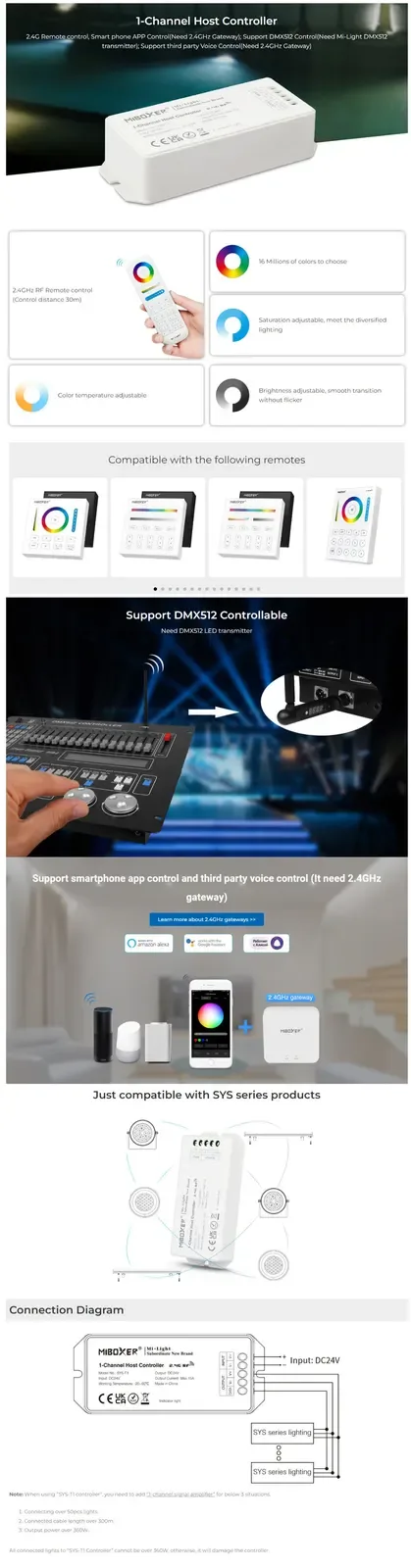

The wireless controller host controller with 1 channel design, which is only compatible with wireless controller SYS series LED light products, adopts the widely used 2.4G wireless transmitting technology for low power consumption, longer signal transmitting and strong anti-interference, can be controlled by 2.4G RF Remotes, smartphone APP, DMX512 controller, and third-party voice commands, can set the static color, adjust the saturation, color temperature and brightness, There are 16 million colors available. The controller will receive the remote signals and transmit them to others within 30 meters. All will work synchronously. After adding the signal power amplifiers, the installer can control over 50 pieces of LED lights and a control distance of over 300 meters.
Quick Links
wireless controller SYS T1 User Manual

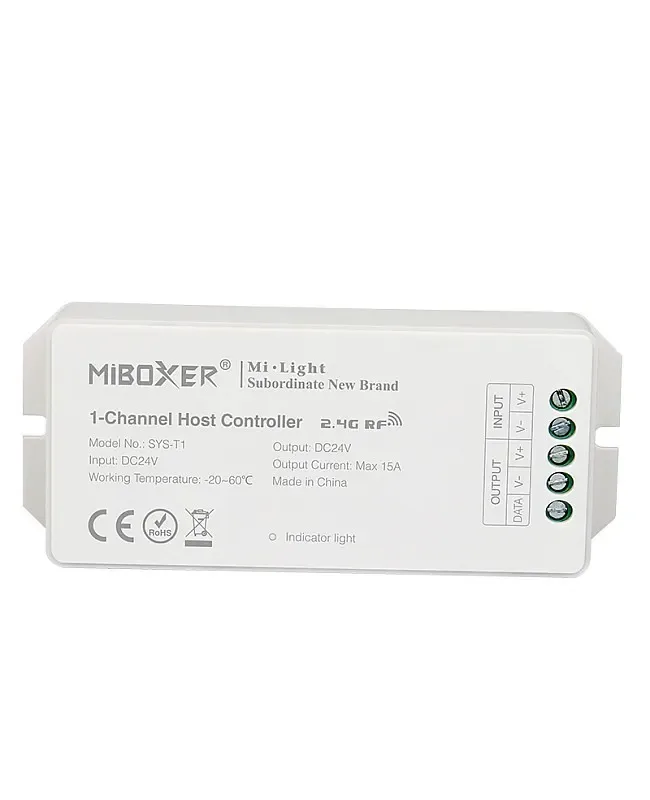

Specifications
Size: 115*48*27mm(L*W*H)
Working Voltage: DC24V
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Control Distance: ≤30m
4G Remote Controllable
Smartphone APP And Third-Party Voice Controllable(2.4G Gateway Needed)
DMX512 Controllable( Transmitter Needed)
Compatible With wireless controller SYS Series Products: Wall Washer Lights, Underwater Lights, Garden Lights, etc
16 Million Colors Available
Color Saturation, Color Temperature, And Brightness Adjustable
Auto-transmitting And Auto Synchronization Function
Working Temperature: -20-60℃
Includes
1 * SYS T1 Host Controller
