Product details

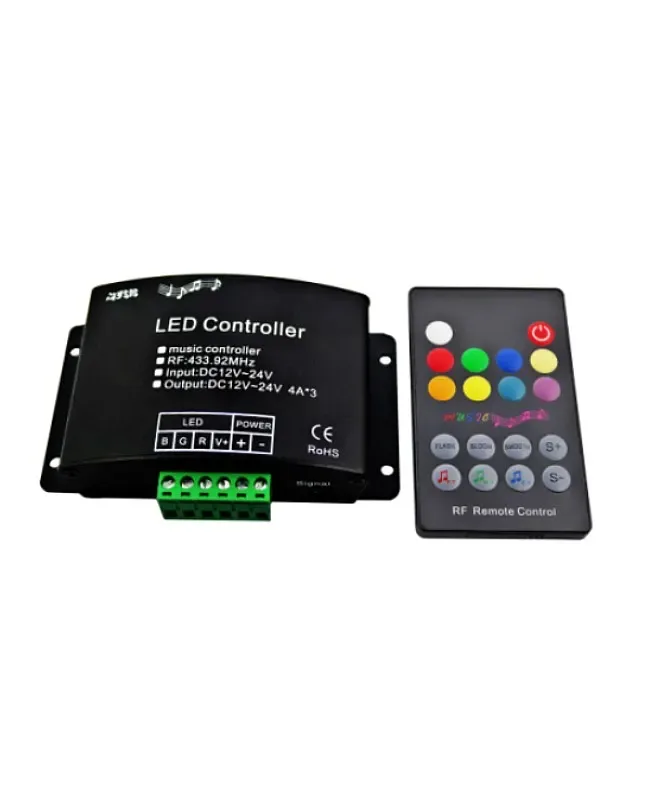

LED Sound Activated Controller 144W
LumaCircuit offers LED Sound Activated Controller 144W as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 108*63*28mm(L*W*H) Working Temperature: -20-60℃ Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LED sound-activated controller comes with an 18-key Wireless RF remote control. Fourteen working modes in total include eight static colors, three dynamic changes, three audio modes, in the audio mode, the sensitivity can be adjustable via the black gear knob, the higher the sensitivity adjustment is to knob clockwise.

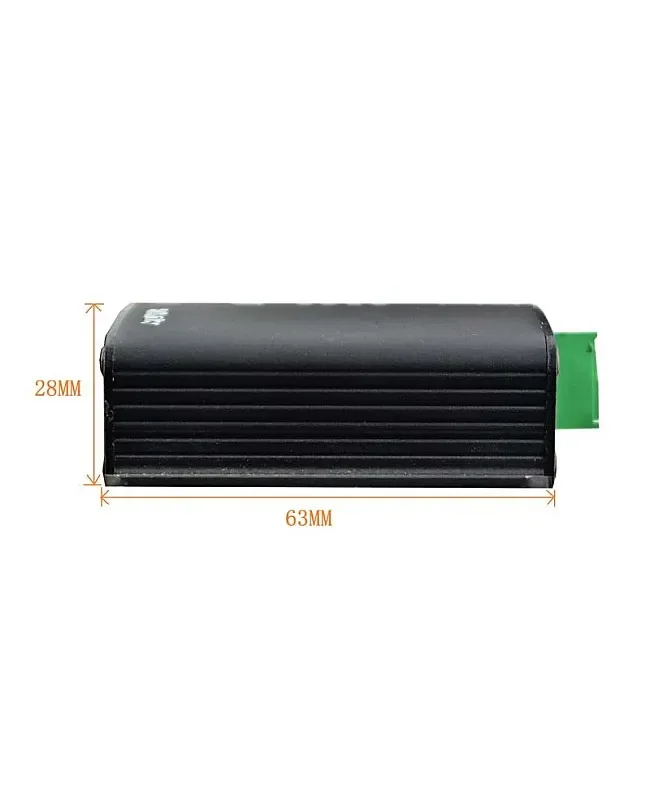

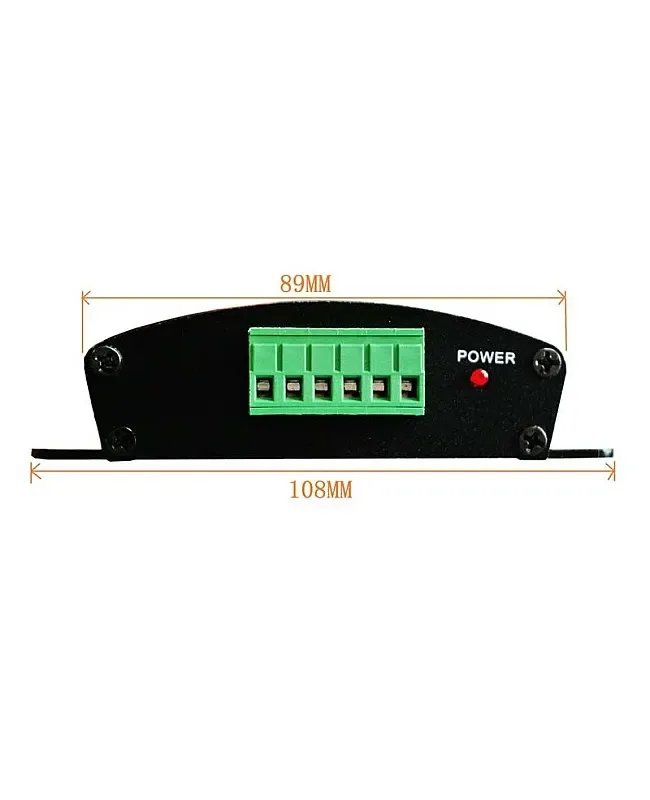

- Size: 108*63*28mm(L*W*H)
- Working Temperature: -20-60℃
- Connecting Mode: Common Anode
- Working Voltage: DC12V-DC24V
- Output Current: 4A Each Channel
- Output Power: 144W ( 12V ) / 288W ( 24V )

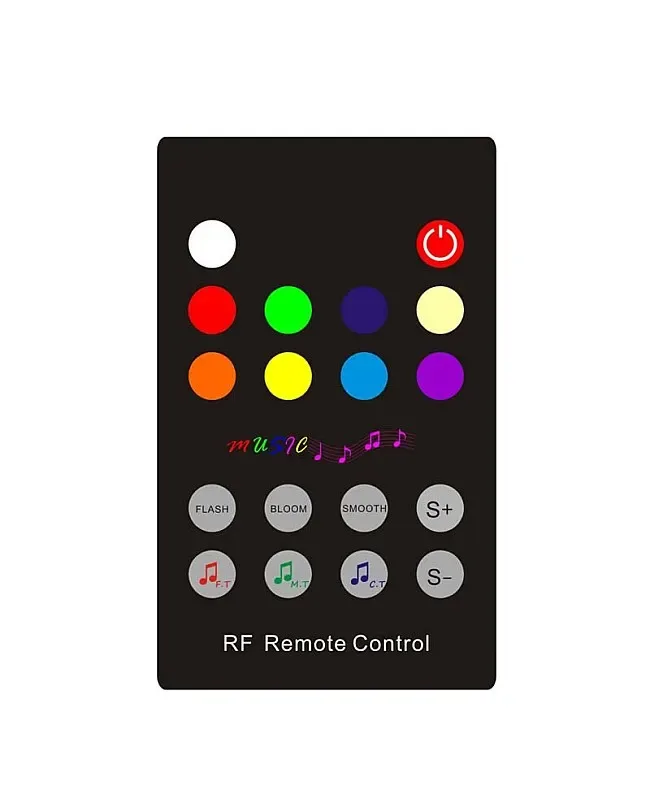

- 18 Keys RF Wireless Remote Control Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- Size: 108*63*28mm(L*W*H)
- Working Temperature: -20-60℃
- Connecting Mode: Common Anode
- Working Voltage: DC12V-DC24V
- Output Channels: 3
- Output Current: 4A Each Channel
- Output Power: 144W ( 12V ) / 288W ( 24V )
- Output Gray: 256 Levels
- RF Frequency: 433.
- 14 Modes In Total: 8 Static Colors / 3 Dynamic Modes / 3 Sound Activated Modes
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

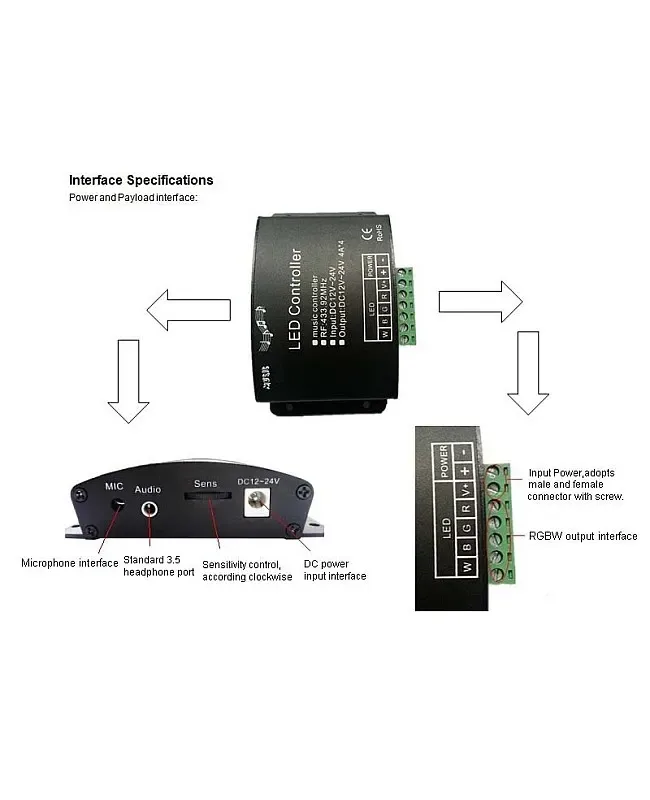

The LED sound-activated controller comes with an 18-key Wireless RF remote control. Fourteen working modes in total include eight static colors, three dynamic changes, three audio modes, in the audio mode, the sensitivity can be adjustable via the black gear knob, the higher the sensitivity adjustment is to knob clockwise. The installer can choose 3 music modes: DJ ( fast track ), Dynamic ( universal rhythm changes ), Tenderness ( slow-paced change ), the brightness of the static colors, and the speed of dynamic modes, which are adjustable. The microphone interface and standard 3.5mm headphone port are included, and the sound-activated controller with 3 3-channel output design works in DC12V or DC24V, with a max loading power of up to 288W when working in DC24V.
Specifications
Size: 108*63*28mm(L*W*H)
Working Temperature: -20-60℃
Connecting Mode: Common Anode
Working Voltage: DC12V-DC24V
Output Channels: 3
Output Current: 4A Each Channel
Output Power: 144W ( 12V ) / 288W ( 24V )
Output Gray: 256 Levels
RF Frequency: 433.
18 Keys RF Wireless Remote Control Included
14 Modes In Total: 8 Static Colors / 3 Dynamic Modes / 3 Sound Activated Modes
Weight: 200g
Includes
1 * Sound Activated Controller
1 * Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
