360W RGB Controller With 24 Keys RF Remote Control
LumaCircuit offers 360W RGB Controller With 24 Keys RF Remote Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20℃-60℃ Working Voltage: DC5V-24V Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 5V RGB controller with the 24 Keys RF remote is designed for the constant voltage LED product, and the working voltage is DC5V, DC12V, or DC24V.
- Working Temperature: -20℃-60℃
- Working Voltage: DC5V-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Grayscale: 1024 Levels(RGB Each)
- Max Output Current: 5A Each Channel(RGB) / 4A Each Channel(RGBW)
- Max Output Power: RGB: 75W(DC5V)/180W(DC12V)/360W(DC24V); RGBW: 80W(DC5V)/192W(DC12V)/384W(DC24V)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 24 V / 12 V
- Light engine: RGBW
- Working Temperature: -20℃-60℃
- Size: 70*40*20mm(L*W*H)
- Working Voltage: DC5V-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Output: (RGB)/(RGBW)
- Max Output Current: 5A Each Channel(RGB) / 4A Each Channel(RGBW)
- Max Output Power: RGB: 75W(DC5V)/180W(DC12V)/360W(DC24V); RGBW: 80W(DC5V)/192W(DC12V)/384W(DC24V)
- RF Frequency: 433.
- Remote Distance: 20M
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

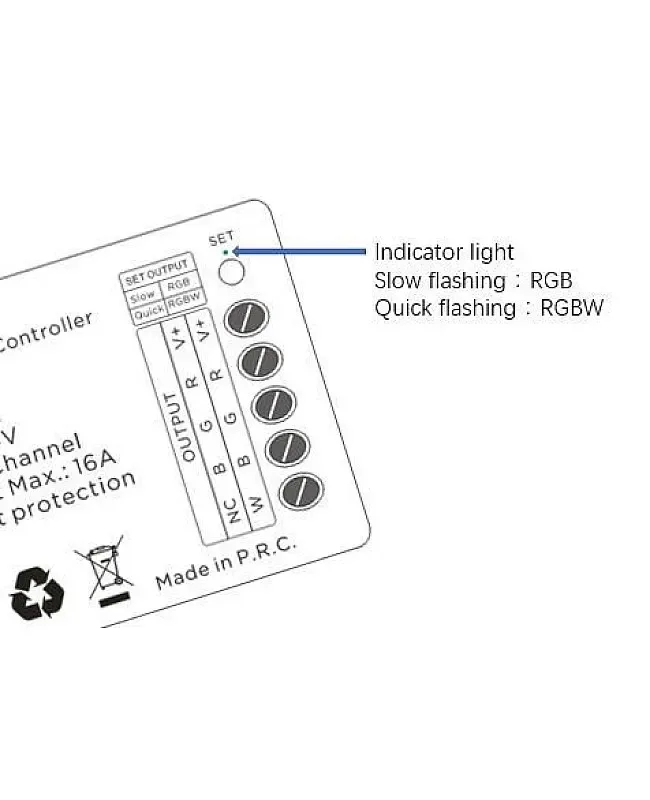

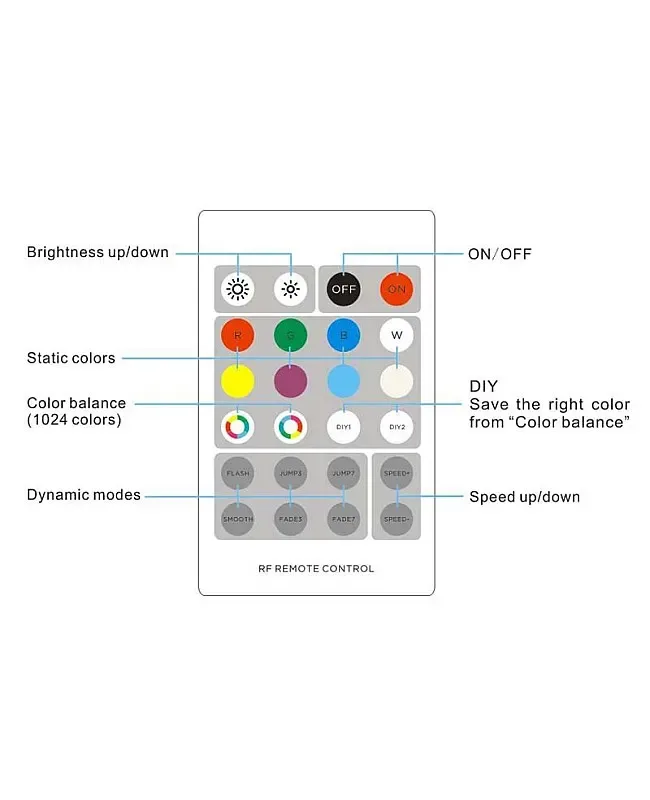

The 5V RGB controller with the 24 Keys RF remote is designed for the constant voltage LED product, and the working voltage is DC5V, DC12V, or DC24V. The LED controller designed for RGB and RGBW LED lights if works with RGB LED lights, both remote control and Receiver are 2 in 1 for RGB and RGBW, with three output channels, the max output current of each channel is 5A, the max output power up to 360W, if works with RGBW LED products, with four output channels, the max output current of each channel is 4A, the max output power up to 384W. The 2 in 1 LED light controller with the advanced micro control units, the installer can use to control the point source light, flexible LED strips or other LED lights, comes with the 24 Keys RF remote to control the light ON or OFF, the max control distance up to adopts color balance key to achieve 1024 colors and can be saved as DIY modes, can adjust the brightness of static color and change the style and speed of dynamic modes. Press a set button on the LED controller to switch the output type from RGB to RGBW. The indicator light will show you the working status. The indicator flashes slowly, which means it works in RGB mode; if it flashes quickly, it works in RGBW mode.
5V RGB Controller Specifications
Working Temperature: -20℃-60℃
Size: 70*40*20mm(L*W*H)
Working Voltage: DC5V-24V
Static Power Consumption: <1W
Connecting Mode: Common Anode
Grayscale: 1024 Levels(RGB Each)
Speed Stage: 100 Grade
Output: (RGB)/(RGBW)
Max Output Current: 5A Each Channel(RGB) / 4A Each Channel(RGBW)
Max Output Power: RGB: 75W(DC5V)/180W(DC12V)/360W(DC24V); RGBW: 80W(DC5V)/192W(DC12V)/384W(DC24V)
RF Frequency: 433.
Remote Distance: 20M
PWM Frequency: 1.95 KHz
Memory Function: YES
Short Circuit Protection: YES
Weight: 70g
RF 24 Keys Remote Control Specifications
Size: 85*51*6mm
Working Voltage: DC3V
Standby Current: 3.
Working Current
Standby Power: 9.
Working Power
RF Distance: <20m
RF Frequency: 433.
Weight: 25g
Includes

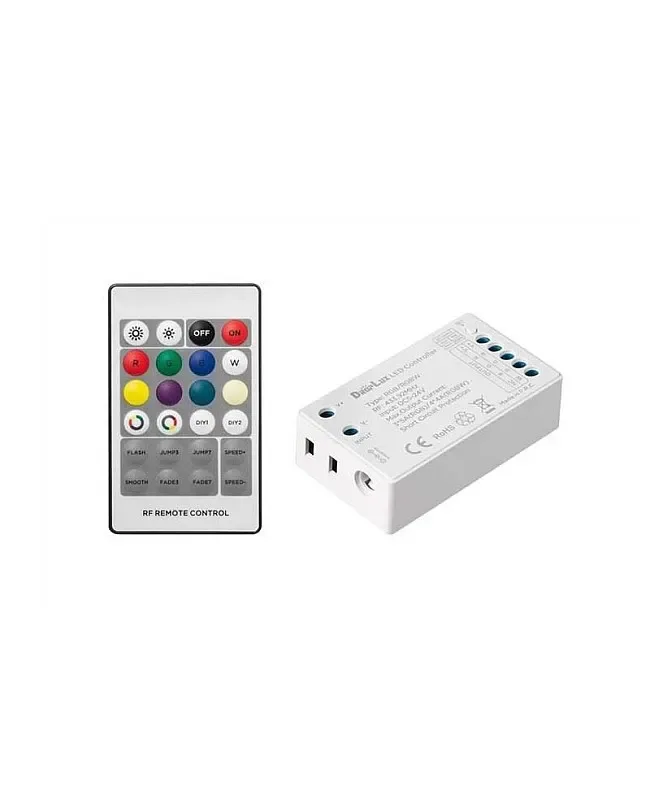

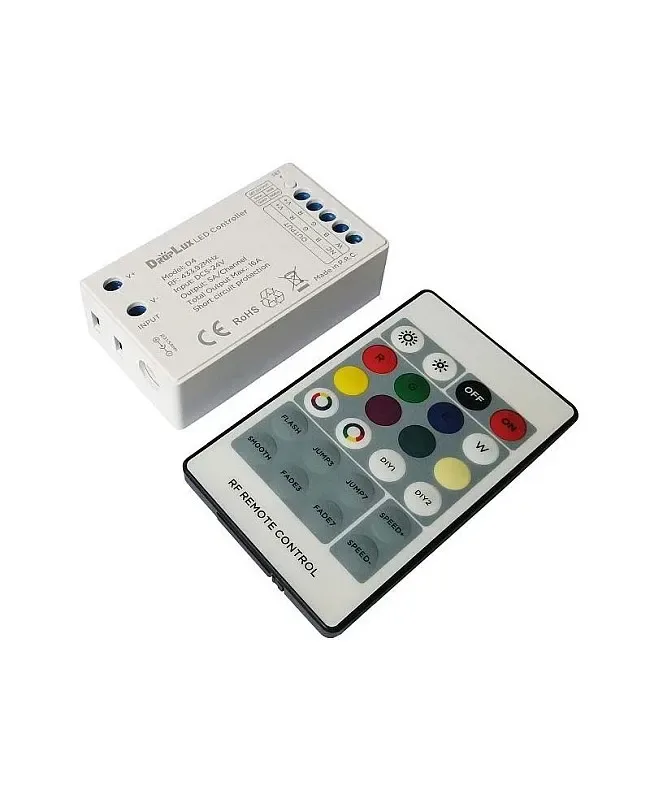

1 * RGB/RGBW DC5V Controller
1 * RF Remote With 24 Keys
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
