ZR Zigbee 3.0 2.4G Wireless DC Dimmer
LumaCircuit offers ZR Zigbee 3.0 2.4G Wireless DC Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 74.5*36*17mm(L*W*H) Color Temperature Adjustable From 2700K To 6500K Stepless Dimming Brightness From 1% To 100% The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller wireless DC dimmer integrates Zigbee 3.0 and 2.4G communication technology modules, and can be controlled by Zigbee 3.0 and 2.4G remote controls to adjust the color temperature and brightness. The color temperature can be adjusted from 2700K to 6500K, and the brightness can be stepped from 1% to 100%. There is a button " SET " on the dimmer, and the installer can press it continuously to switch the output mode from single color to dual white.

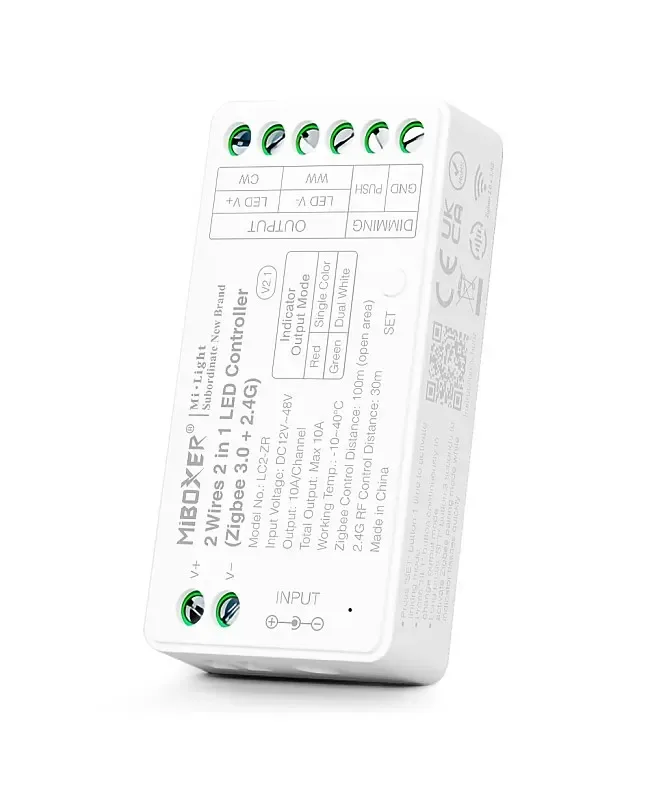

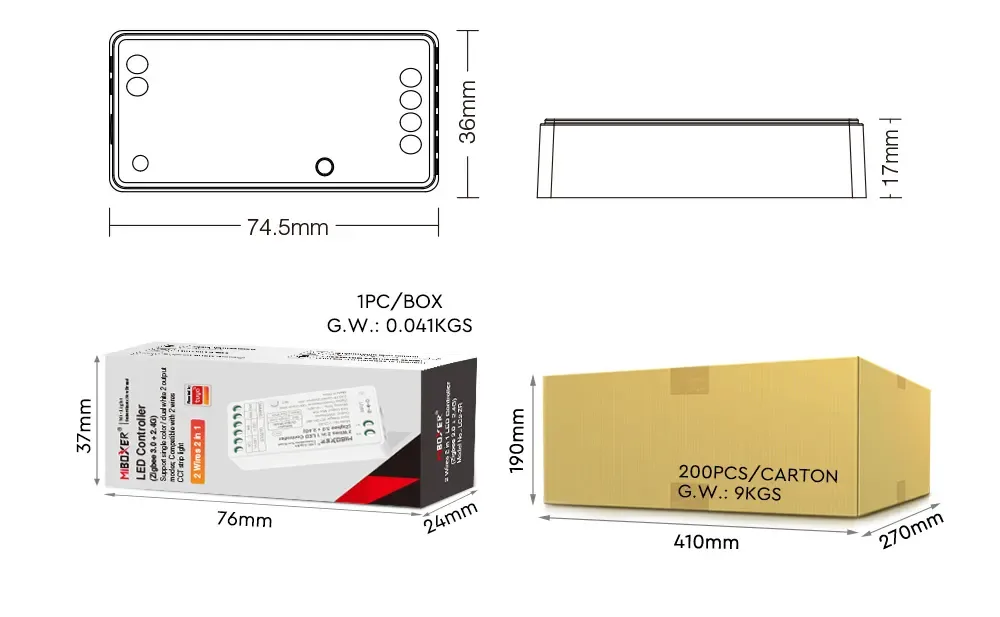

- Size: 74.5*36*17mm(L*W*H)

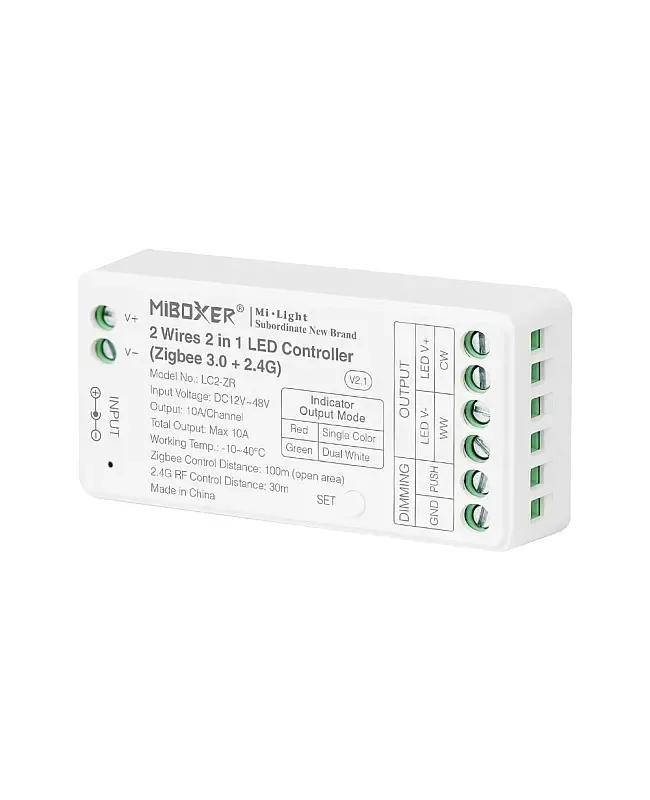

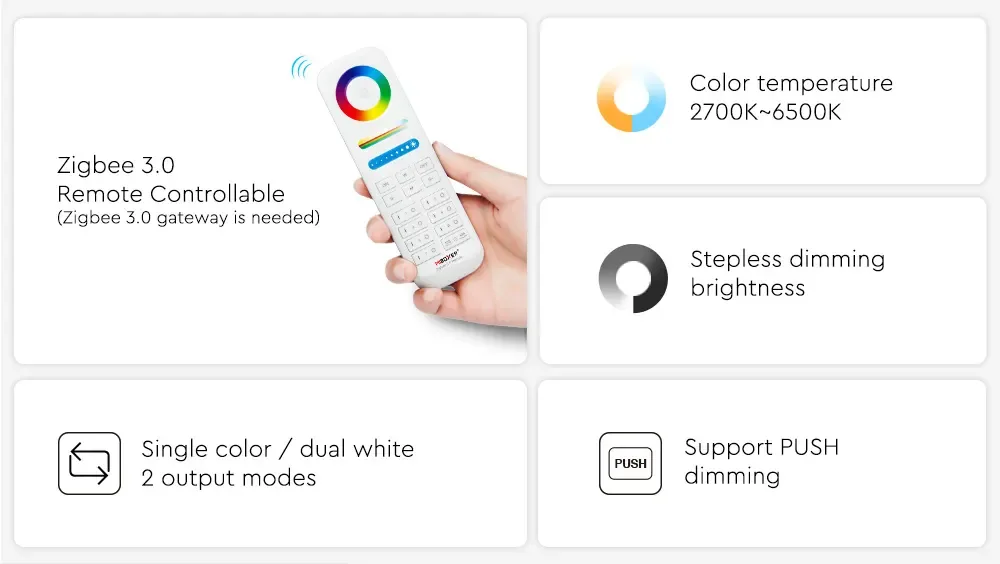

- Color Temperature Adjustable From 2700K To 6500K
- Stepless Dimming Brightness From 1% To 100%
- Single Color Dual White 2 Output Modes
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Frequency: 2.400- 2.
- Zigbee Control Distance: ≤100m(Open Area)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- LumaCircuit model: LC-CTL-4TDNDD
- Material: PC
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -48V
- Output: 10A/Channel
- Total Output: MAX 10A
- Zigbee Wireless Frequency: 2.400- 2.
- Zigbee Control Distance: ≤100m(Open Area)
- 2.4G RF Remote Control Distance: ≤30m
- Working Temperature: -10-40℃
- Dimensions found: 74.5x36x17mm / 17mm / 100m / 30m / 5x2.1mm / 2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

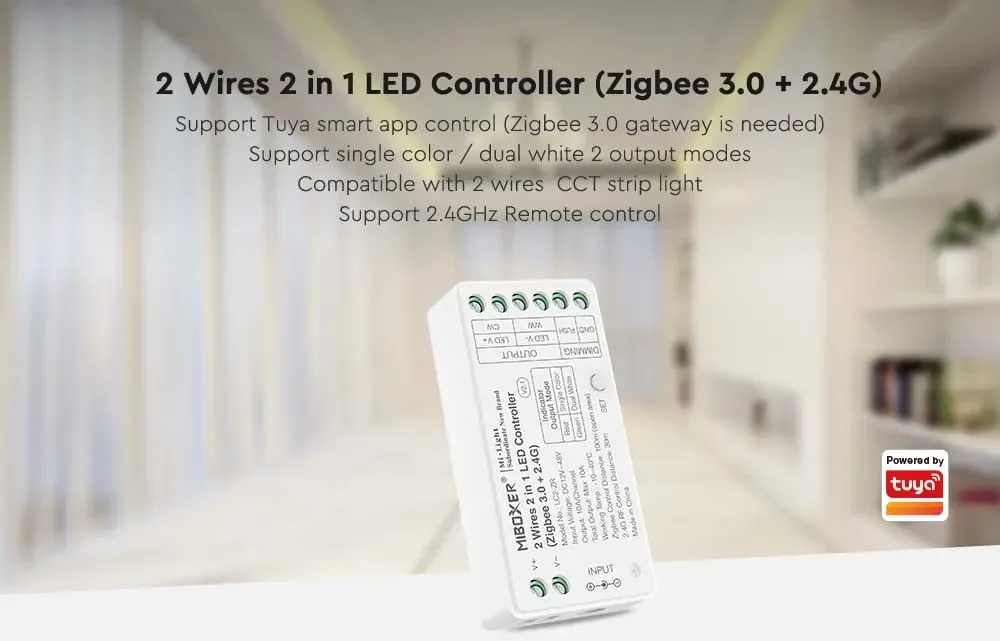

Product overview
The wireless controller wireless DC dimmer integrates Zigbee 3.0 and 2.4G communication technology modules, and can be controlled by Zigbee 3.0 and 2.4G remote controls to adjust the color temperature and brightness. The color temperature can be adjusted from 2700K to 6500K, and the brightness can be stepped from 1% to 100%. There is a button " SET " on the dimmer, and the installer can press it continuously to switch the output mode from single color to dual white. After being connected to a Zigbee 3.0 gateway, the wireless controller DC light dimmer can be controlled by a smartphone APP and third-party voice control. The installer can use the APP or voice commands to change the LED light for various scenes. On the APP, you also can achieve other functions like timing, music rhythm, scene customization, etc the 2.4 GHz wireless dimmer can enter other standard Zigbee 3.0 gateways like Philips Hue, IKEA TRADFRI, Amazon Echo series, etc., can transmit the signals from the 2.4G remote control to another same model within 30 meters, all of them will work synchronously.
Specifications
Model
Material: PC
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -48V
Output: 10A/Channel
Total Output: MAX 10A
Color Temperature Adjustable From 2700K To 6500K
Stepless Dimming Brightness From 1% To 100%
Single Color Dual White 2 Output Modes
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Zigbee Control Distance: ≤100m(Open Area)
Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)

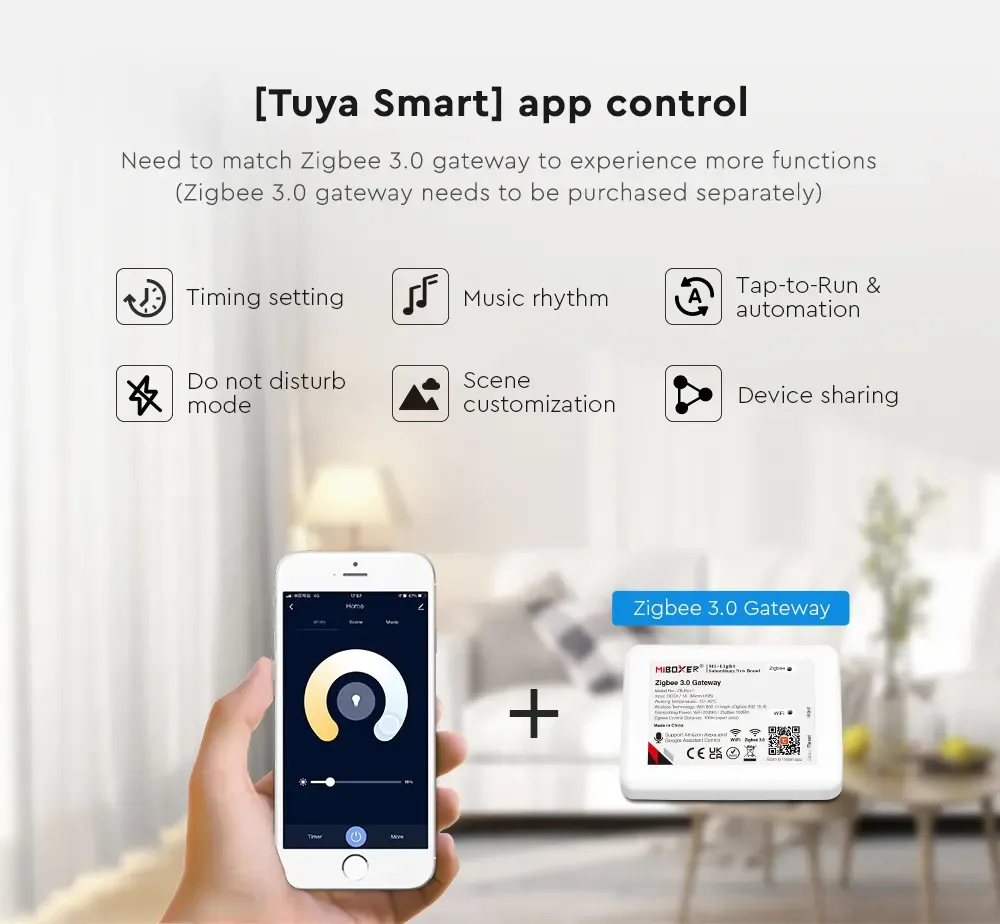

Smartphone APP Controllable
APP Name: Tuya Smart

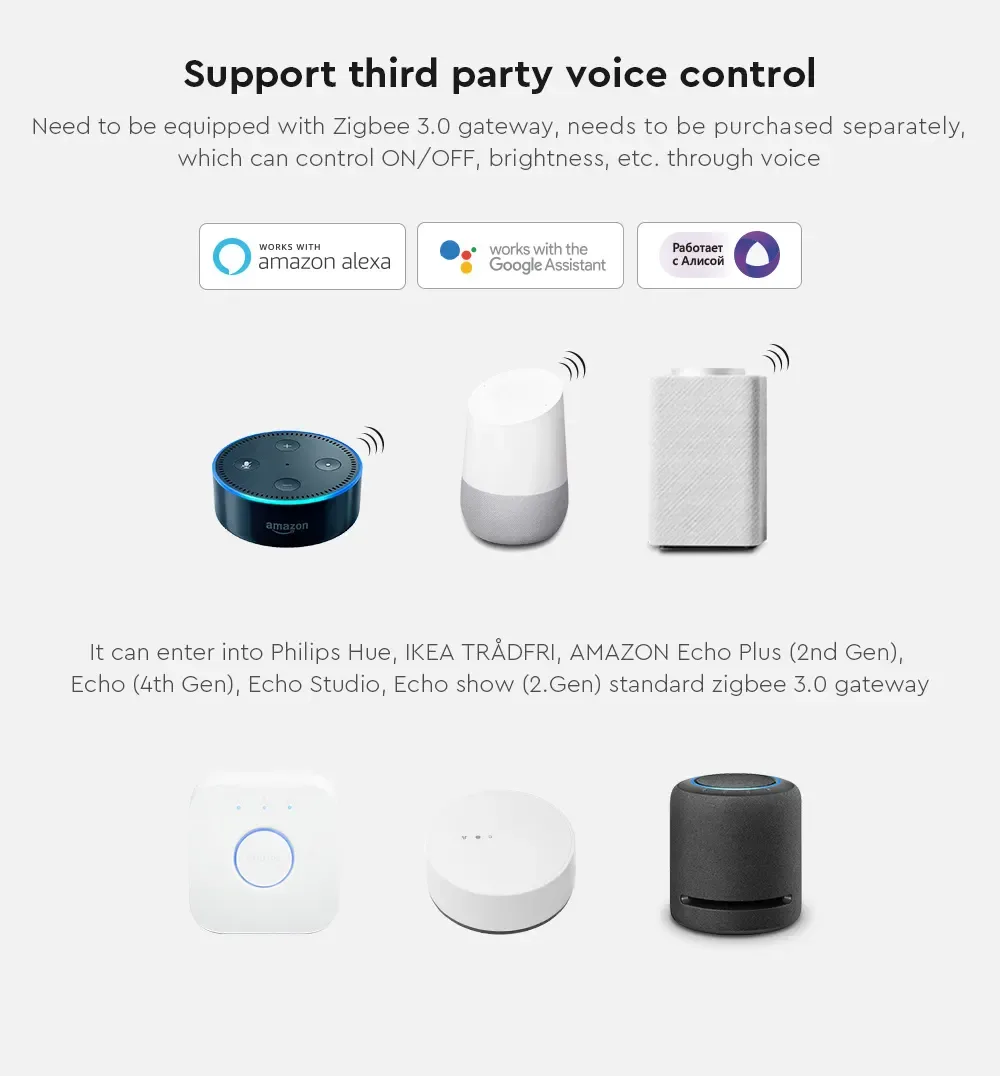

Support Third-Party Voice Control
Can Work With Amazon Alexa And Google Assistant

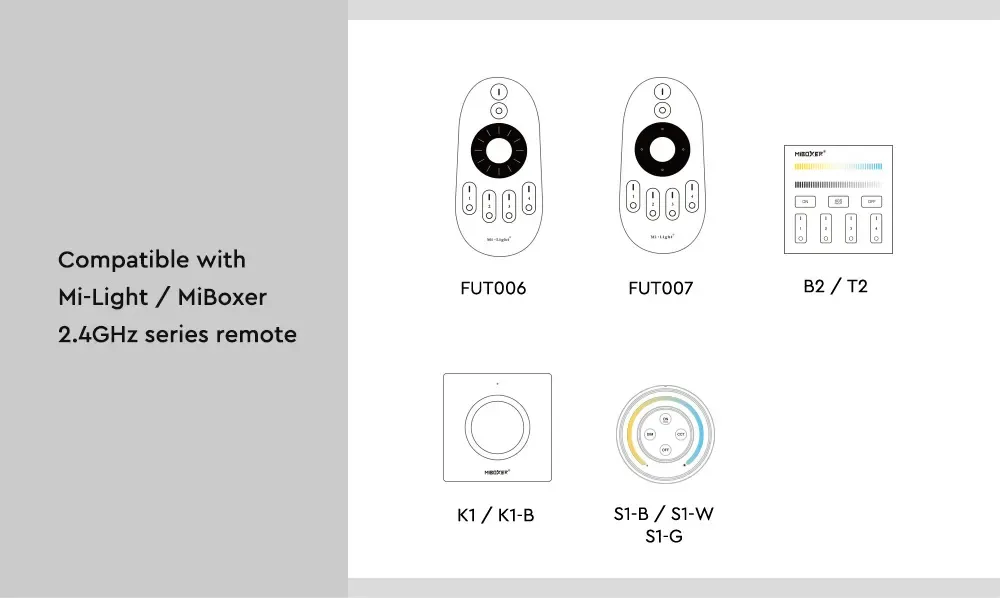

Compatible With 2.4 GHz wireless And wireless controller 2.4G Remote Controls
4G RF Remote Control Distance: ≤30m
Support PUSH Dimming

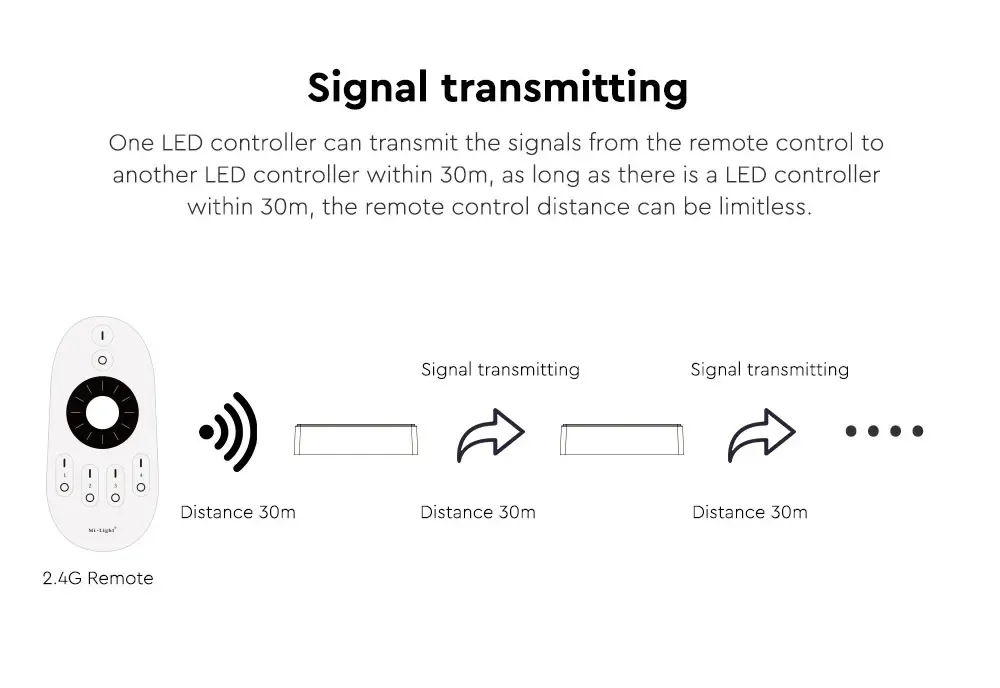

Auto Signal Transmitting

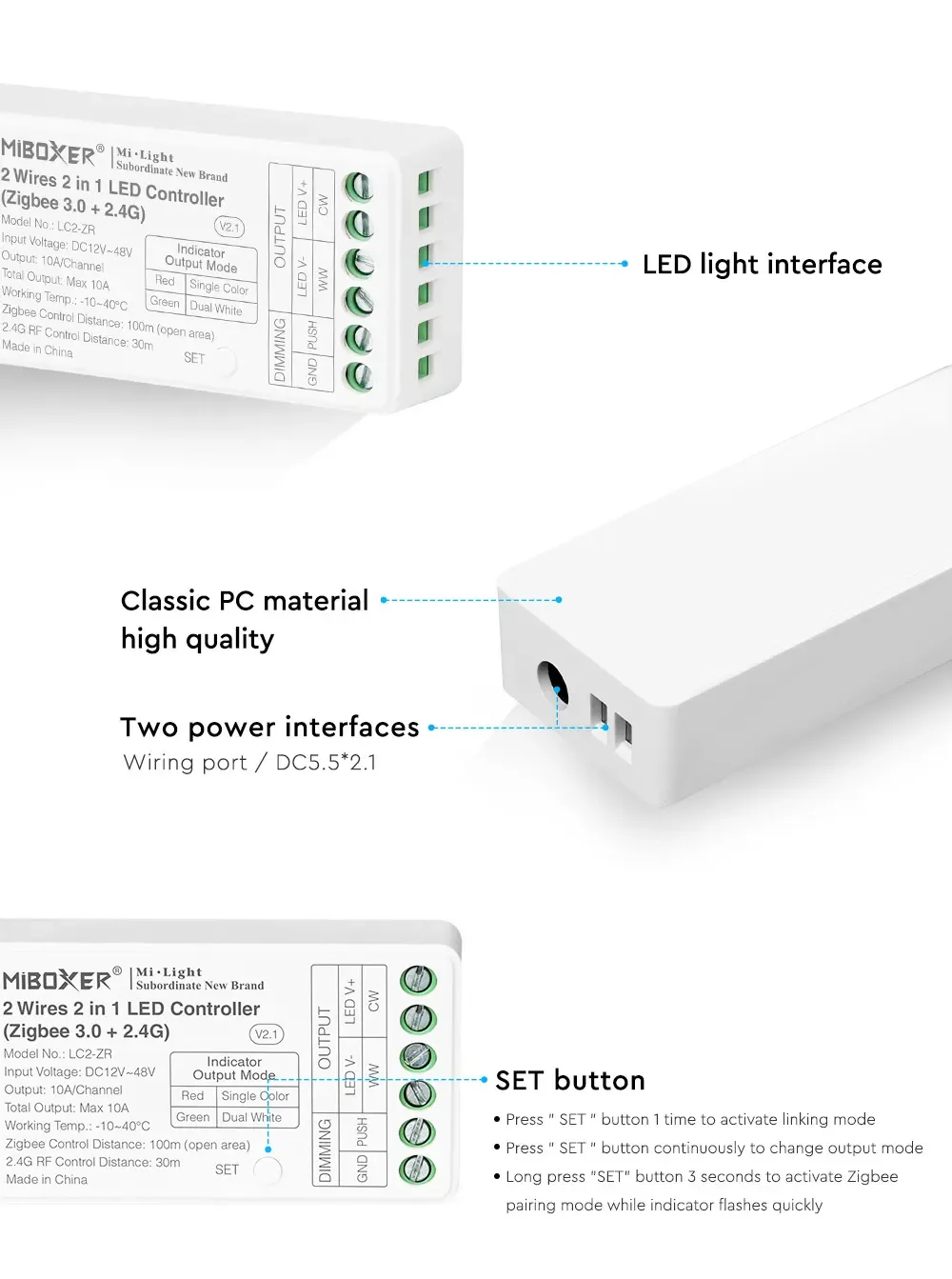

Two Port Interfaces: Wiring Port.5*2.1mm
Working Temperature: -10-40℃
Includes

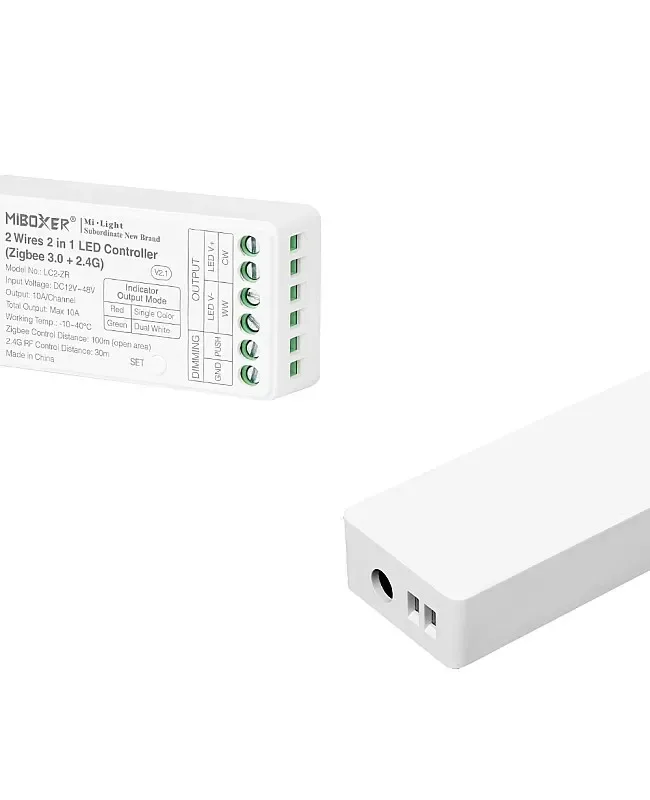

1 * wireless controller DC Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
