216W Mini RGB LED Controller With RF Remote
LumaCircuit offers 216W Mini RGB LED Controller With RF Remote as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Voltage: DC12V-24V Output Current: <3A ( Each Channel ) Output Power: 108W (12V ) / 216W ( 24V ) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The mini RGB LED controller with 20 keys RF remote is small and cheap. It works on DC12V or DC24V, with a 3-output channel design, the max output current of each channel is 3A, the max loading power is up to 216W when working in DC24V. It can control various RGB LED lights, LED strips, and point lights. It comes with the RF remote, which the installer can use to power on or off the RGB light, adjust the brightness, and set the static color or dynamic modes.
- Working Voltage: DC12V-24V
- Output Current: <3A ( Each Channel )
- Output Power: 108W (12V ) / 216W ( 24V )
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
- 14 Modes In Total, 8 Static Colors And 6 Dynamic Modes
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: RGB
- Size: 61*35*22mm
- Working Voltage: DC12V-24V
- Output Current: <3A ( Each Channel )
- Output Power: 108W (12V ) / 216W ( 24V )
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- LumaCircuit model: LC-CTL-A7KWSY
- Dimensions found: 61x35x22mm / 22mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

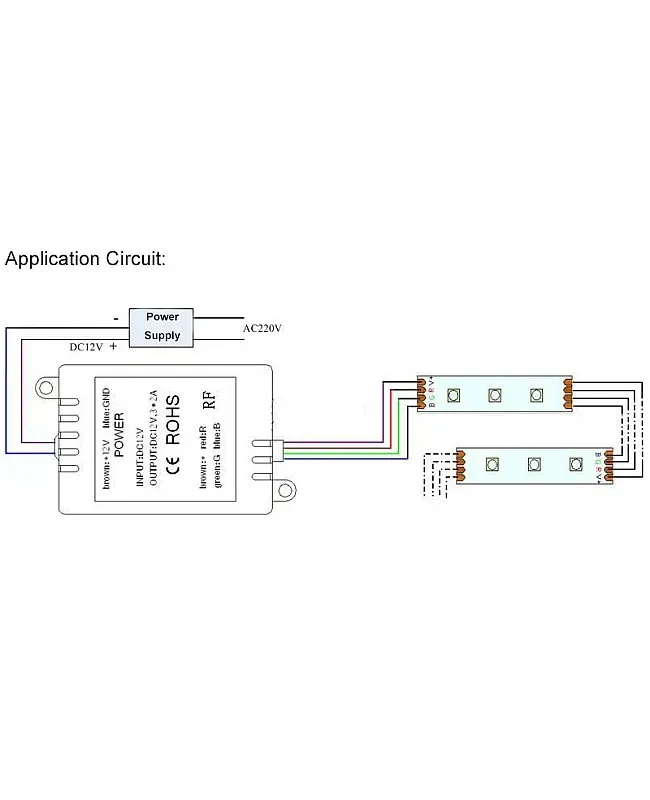

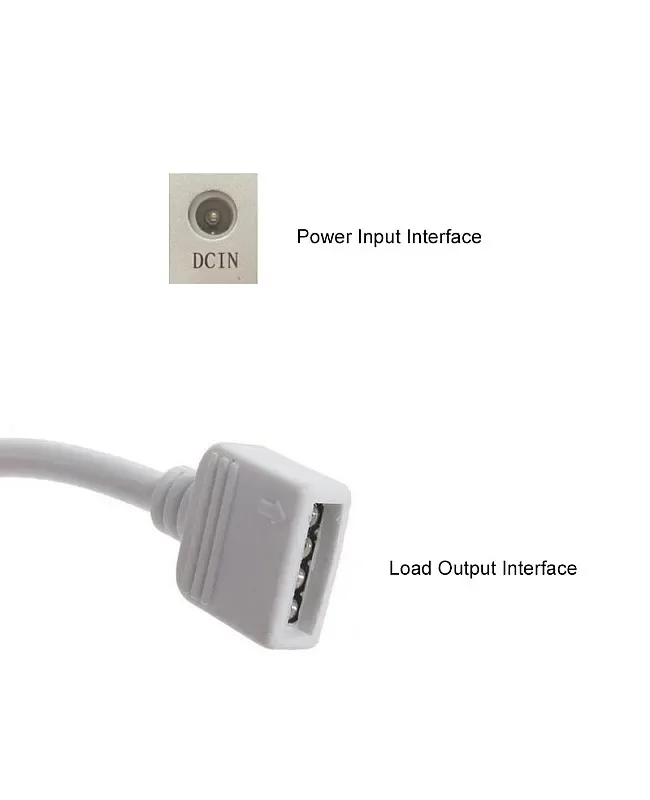

The mini RGB LED controller with 20 keys RF remote is small and cheap. It works on DC12V or DC24V, with a 3-output channel design, the max output current of each channel is 3A, the max loading power is up to 216W when working in DC24V. It can control various RGB LED lights, LED strips, and point lights. It comes with the RF remote, which the installer can use to power on or off the RGB light, adjust the brightness, and set the static color or dynamic modes. Can carry out jumpy changing, gradual changing, strobe flash, and other effects of change. There are 14 modes in total, 8 static colors and 6 dynamic modes. The brightness of static colors and the speed of dynamic modes are adjustable. The mini LED controller has a DC and 4-pin ports to connect the LED power supply and RGB LED light. Easy to use and connect.
Specifications
Size: 61*35*22mm
Working Voltage: DC12V-24V
Output
Output Current: <3A ( Each Channel )
Output Power: 108W (12V ) / 216W ( 24V )
Connecting Mode: Common Anode
Static Power Consumption: <1W
Weight: 85g
RF Remote Included
Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
14 Modes In Total, 8 Static Colors And 6 Dynamic Modes
Includes

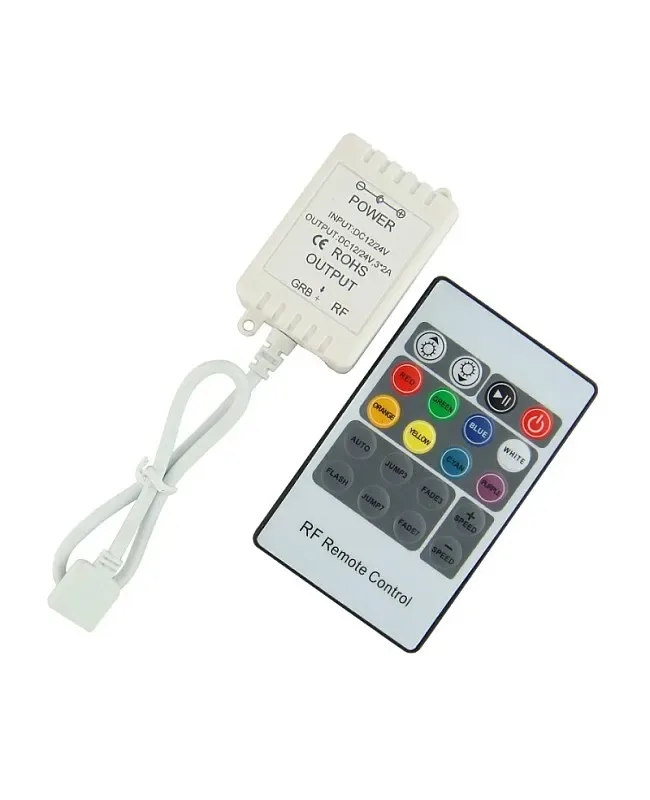

1 * Mini RGB LED Controller
1 * 20 Keys RF Remote
