RGBW Wifi Controller APP Control
LumaCircuit offers RGBW Wifi Controller APP Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Material: Fireproof And High-Temperature Resistance Output Current/Channel: 6A Max Total Output Current: 15A Max The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGBW WiFi controller can be added to your home WiFi network and controlled by the Tuya APP and voice control. No gateway is required, and it is easy to connect and use. The installer can set the static color, adjust the color temperature, and brightness. There are 16 million colors available, and the color temperature can be adjusted from 2000K to 6500 K. The installer can mix RGB and white light to adjust the color temperature.
- Material: Fireproof And High-Temperature Resistance
- Output Current/Channel: 6A Max
- Total Output Current: 15A Max
- Color Temperature Adjustable From 2000K To 6500K
- Brightness Adjustable From 1% To 100%
- Works With Amazon Echo Plus
- Press Type Wiring Terminal Design
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGBW
- LumaCircuit model: LC-CTL-TOA4XB
- Material: Fireproof And High-Temperature Resistance

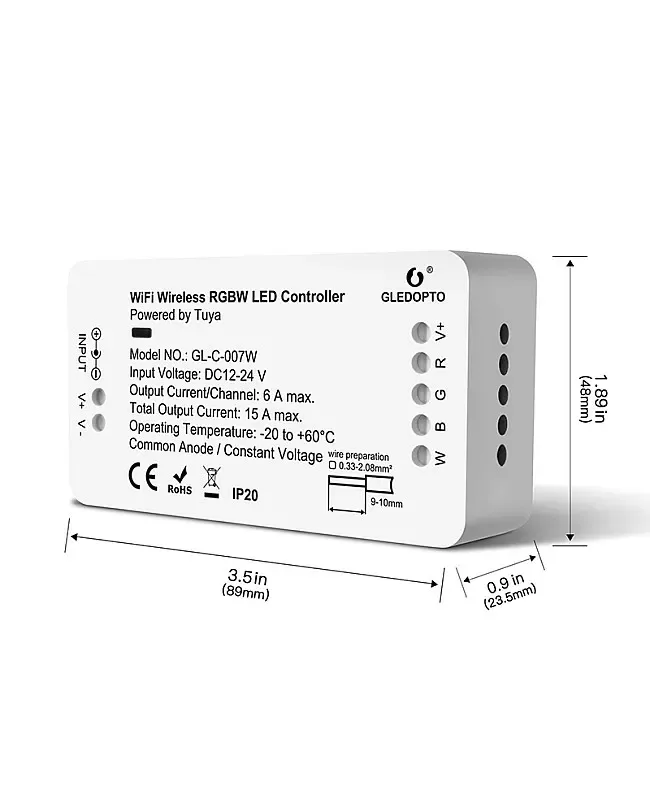

- Size: 89*48*23.5mm
- Color: White
- Input Voltage: -24V
- Output Current/Channel: 6A Max
- Total Output Current: 15A Max
- IP Rate: IP20
- Working Temperature: -20℃-60℃
- Dimensions found: 89x48x23.5mm / 23.5mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The RGBW WiFi controller can be added to your home WiFi network and controlled by the Tuya APP and voice control. No gateway is required, and it is easy to connect and use. The installer can set the static color, adjust the color temperature, and brightness. There are 16 million colors available, and the color temperature can be adjusted from 2000K to 6500 K. The installer can mix RGB and white light to adjust the color temperature. Brightness is adjustable from 1% to 100%, so choose the correct brightness according to your needs. The RGBW controller works with Amazon Echo Plus, where the installer can adjust brightness ON/OFF through voice commands, which can free your hands. The WiFi RGBW controller works on DC12V or DC24V, with 4 output channels and a max output current of 15A, with a press-type wiring terminal design, and is easy to connect to a power supply and RGBW LED strips for indoor lighting applications.
Specifications
Model
Material: Fireproof And High-Temperature Resistance
Size: 89*48*23.5mm
Color: White
Input Voltage: -24V
Output Current/Channel: 6A Max
Total Output Current: 15A Max
16 Million Colors Available
Color Temperature Adjustable From 2000K To 6500K
Brightness Adjustable From 1% To 100%
Smartphone APP Control
APP Name: Tuya
Voice Control
Works With Amazon Echo Plus
Common Anode
Constant Voltage
Press Type Wiring Terminal Design
IP Rate: IP20
Working Temperature: -20℃-60℃

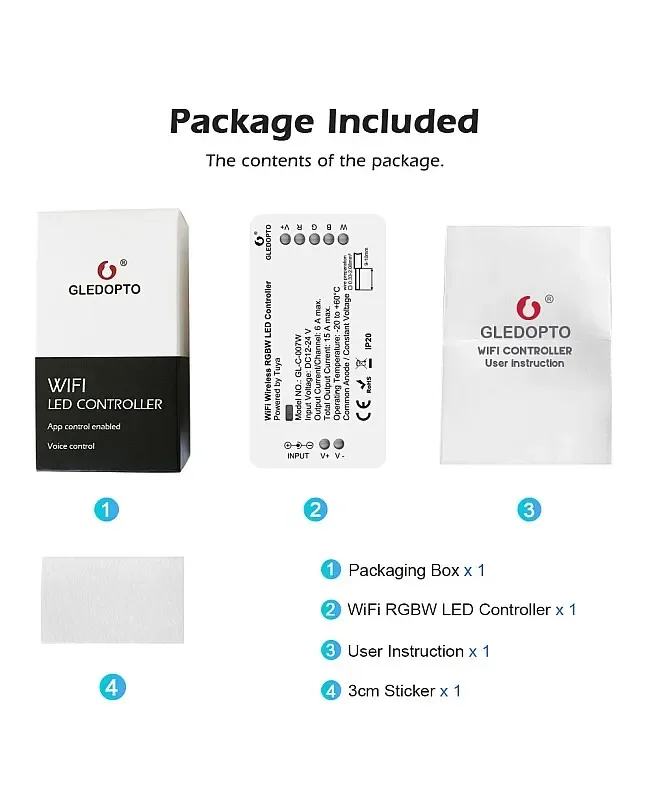

Includes
1 * WiFi RGBW LED Controller
1 * 3cm Sticker
1 * User Manual
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
