12V 24V LED Dimmer With 4 Zone Control
LumaCircuit offers 12V 24V LED Dimmer With 4 Zone Control as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20-60℃ Max Output Power: 192W(DC12V) / 384W(24V) Memory Function: Support The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12V LED dimmer works on DC12V or DC24V, with a two-output-channel design, the max output current of each channel is 8A. LED dimmers adopt PWM dimming technology to achieve a high-quality, delicate, soft dimming and non-flicker. The installer can use it to control a variety of dual-white LED lamps, constant voltage dual-white LED strips, line lights, and panel lights.
- Working Temperature: -20-60℃
- Max Output Power: 192W(DC12V) / 384W(24V)
- Memory Function: Support
- Static Power Consumption: <1W
- Synchronization Function: Support
- Remote Control Distance: <30M
- Connecting Mode: Common Anode
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 12-24 V
- Size: 115*45*31mm
- Working Temperature: -20-60℃
- Working Voltage: -24V
- Max Output Power: 192W(DC12V) / 384W(24V)
- Max Output Current: 8A*
- Static Power Consumption: <1W
- RF Frequency: 2.
- Remote Control Distance: <30M
- Mode: 3
- Connecting Mode: Common Anode
- LumaCircuit model: LC-CTL-NWEY6G
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The 12V LED dimmer works on DC12V or DC24V, with a two-output-channel design, the max output current of each channel is 8A. LED dimmers adopt PWM dimming technology to achieve a high-quality, delicate, soft dimming and non-flicker. The installer can use it to control a variety of dual-white LED lamps, constant voltage dual-white LED strips, line lights, and panel lights. Adopting 2.4G wireless remote control mode and excellent synchronization technology, the installer can achieve all the controller's wireless synchronization functions, making wiring simpler and more convenient.
Specifications
Size:115*45*31mm
Working Temperature: -20-60℃
Working Voltage: -24V
Max Output Power: 192W(DC12V) / 384W(24V)
Max Output Current: 8A*
PWM Frequency
Memory Function: Support
Static Power Consumption: <1W
Gray Scale: 1024 Levels
Synchronization Function: Support
RF Frequency: 2.
Remote Control Distance: <30M
Connecting Mode: Common Anode
Includes

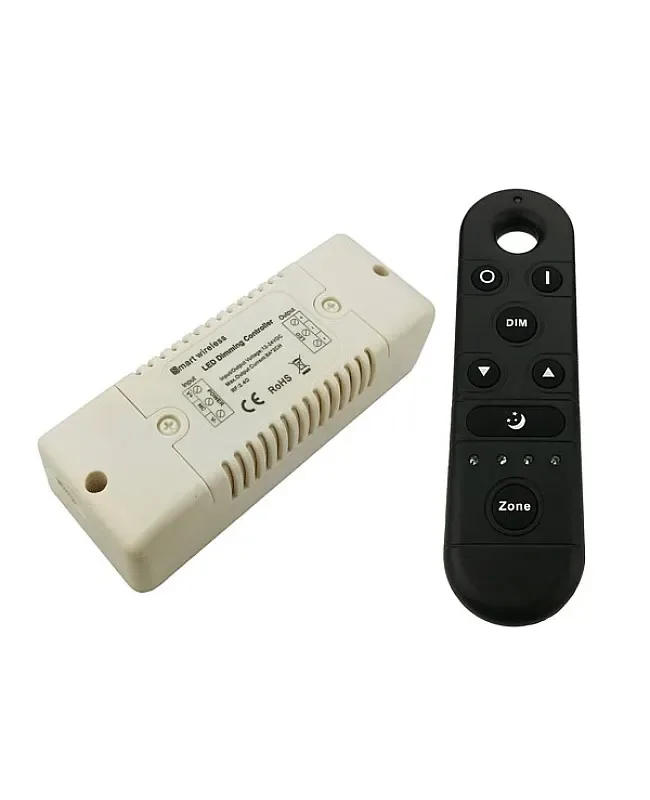

1 * 12-24V LED Dimmer
1 * Remote
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
