144W RF Mini RGB LED Controller
LumaCircuit offers 144W RF Mini RGB LED Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Static Power Consumption: <1W Working voltage: DC12V-DC24V Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Temperature: -20-60℃
- Static Power Consumption: <1W
- Working voltage: DC12V-DC24V
- Connecting Mode: Common Anode

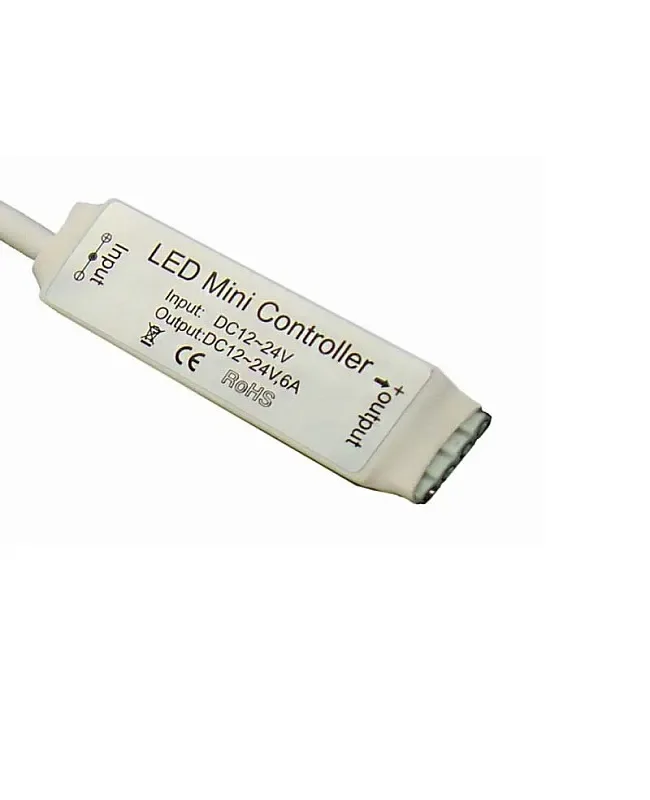

- Output Channel: ≤2A Each Channel
- Power: DC12V: 72W; DC24V: 144W

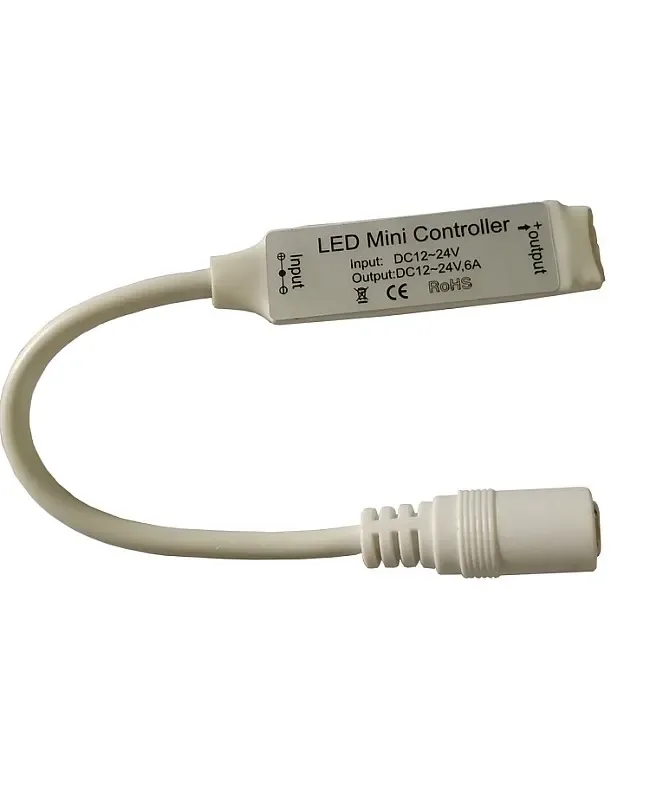

- Female DC Connector And 4 Pins RGB Connector Included

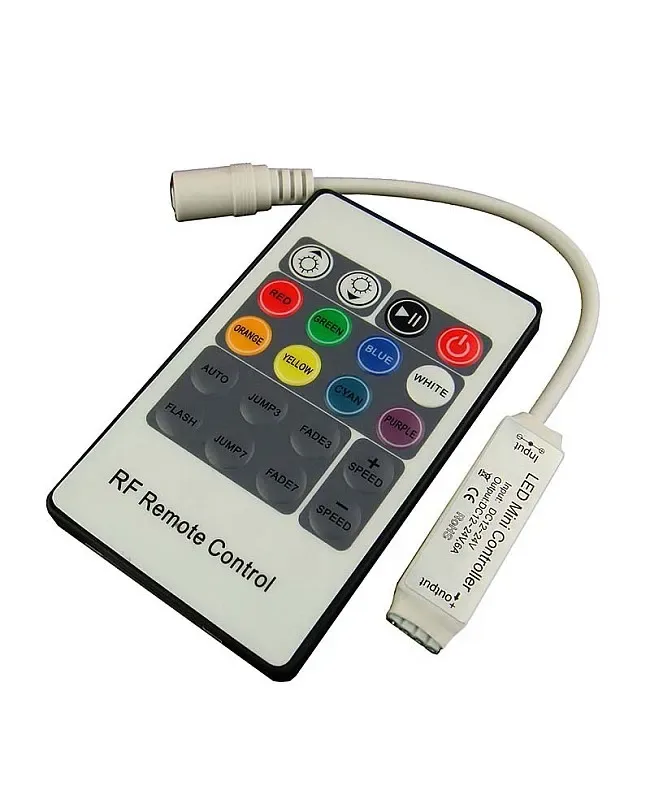

- 20 Keys RF Remote Control Included
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- Light engine: RGB
- Working Temperature: -20-60℃
- Size: 40*12*4mm(L*W*H)
- Static Power Consumption: <1W
- Working voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- Output Channels: 3
- Output Channel: ≤2A Each Channel
- Power: DC12V: 72W; DC24V: 144W
- 3 Color Order Supported: +RGB, +GRB, +BRG
- LumaCircuit model: LC-CTL-53ARUC

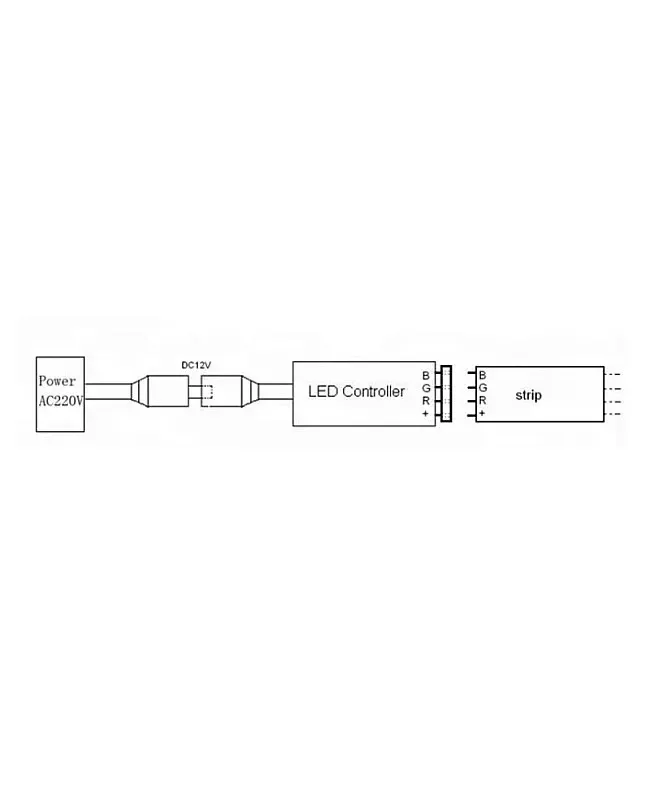

Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Working Temperature: -20-60℃
Size: 40*12*4mm(L*W*H)
Static Power Consumption: <1W
Working voltage: DC12V-DC24V
Connecting Mode: Common Anode
Output Channels: 3
Output Channel: ≤2A Each Channel
Power: DC12V: 72W; DC24V: 144W
Female DC Connector And 4 Pins RGB Connector Included
20 Keys RF Remote Control Included
8 Static Colors And 6 Dynamic Modes
3 Color Order Supported: +RGB, +GRB, +BRG
RF Distance: ≤15M
Weight: 60g
