Mini Wireless Sync LED Controller For Dim/CCT/RGB/RGBW
LumaCircuit offers Mini Wireless Sync LED Controller For Dim/CCT/RGB/RGBW as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20℃~60℃ Working Voltage: DC12V-24V Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The mini wireless sync LED controller adopts the most advanced PWM(Pulse Width Modulation) digital control technology, and can be used for controlling the constant voltage LED light, point source light, LED strips, LED modules, and LED strings. Remote control adopts the RFBK remote to adjust the dynamic mode's brightness and color temperature for your LED Light. No need for line of sight, 4 zones separately controlled, or all controlled.
- Working Temperature: -20℃~60℃
- Working Voltage: DC12V-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Speed Stage: 1024 Levels
- Output Color Order Settable: YES(RGB/RGBW)
- Output: 1 CH(DIM)/(CCT)/(RGB)/RGBW
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGBW
- Size: 48*26*13mm
- Working Temperature: -20℃~60℃
- Working Voltage: DC12V-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- RF Frequency: 2.
- Output Color Order Settable: YES(RGB/RGBW)
- Output: 1 CH(DIM)/(CCT)/(RGB)/RGBW
- Output Current: 1*6A*(DIM)/2*3A(CCT)/3*2A(RGB)/4*1.5A(RGBW)
- PWM Frequency: 1.95 KHz
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The mini wireless sync LED controller adopts the most advanced PWM(Pulse Width Modulation) digital control technology, and can be used for controlling the constant voltage LED light, point source light, LED strips, LED modules, and LED strings. Remote control adopts the RFBK remote to adjust the dynamic mode's brightness and color temperature for your LED Light. No need for line of sight, 4 zones separately controlled, or all controlled. A batch operation for RF code matching/clearing between the remote control and receivers is available. The LED controller with memory function remembers the mode from the last power off every time it powers on. There are 1024 static colors(RGB/RGBW) and a soft dim function; the brightness of static colors is adjustable, with 1024 levels in total, and the speed of dynamic changes is adjustable, with 100 levels total. The installer can long-press the brightness and speed button to get the fast adjustment, making it easy to use.
Wireless Sync LED Controller Specifications

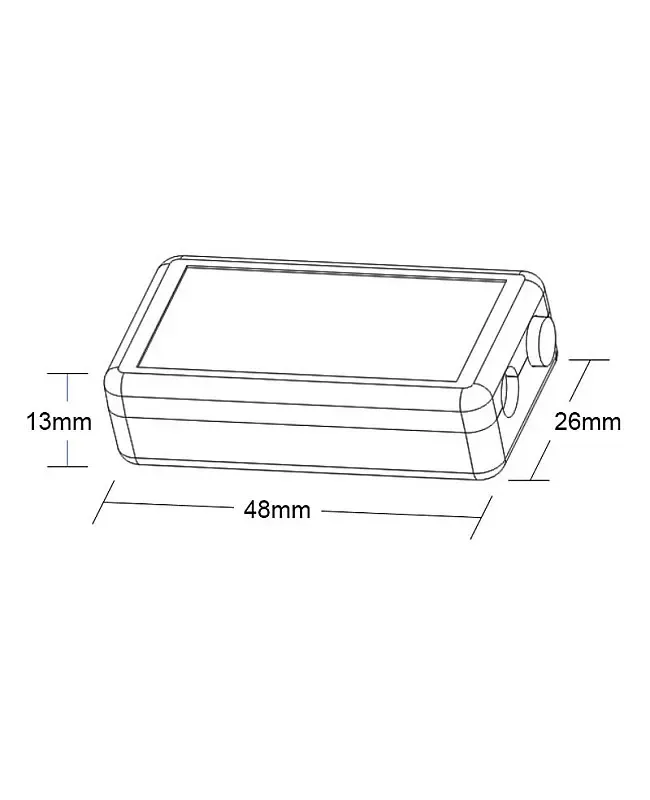

Size: 48*26*13mm
Working Temperature: -20℃~60℃
Working Voltage: DC12V-24V
Static Power Consumption: <1W
Connecting Mode: Common Anode
Gray Scale: 1024 Levels
Speed Stage: 1024 Levels
RF Frequency: 2.
RF Distance: <20m
Output Color Order Settable: YES(RGB/RGBW)
Memory Function: YES
Output: 1 CH(DIM)/(CCT)/(RGB)/RGBW
Output Current: 1*6A*(DIM)/2*3A(CCT)/3*2A(RGB)/4*1.5A(RGBW)
PWM Frequency: 1.95 KHz
LED Remote Specifications
Size: 150*40*20mm
Working Temperature: -20℃~60℃
Supply Voltage: DC3V(Powered By 2PCS AAA Batteries)
Standby Current: <
Working Current: <
Standby Power
Working Power
RF Frequency: 2.
RF Control Distance: <20m
Weight: 95g

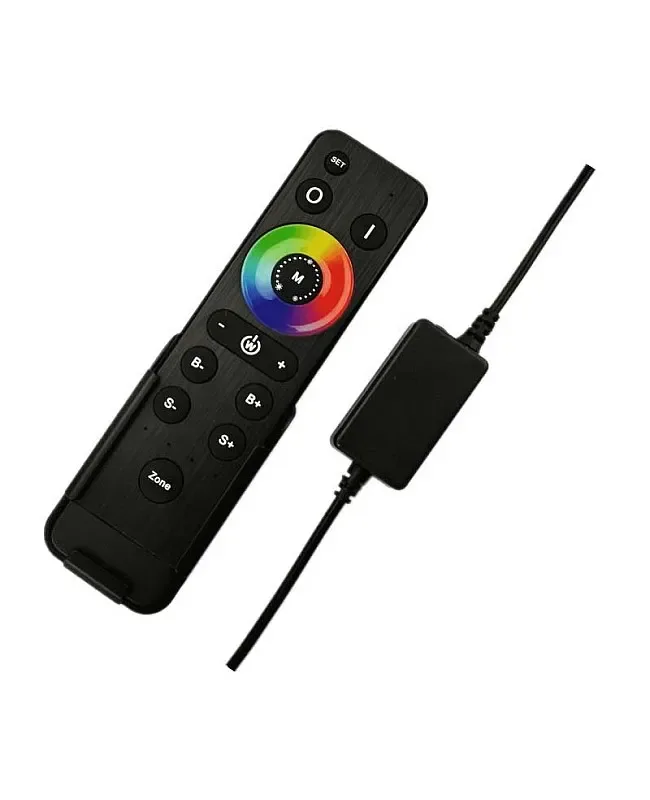

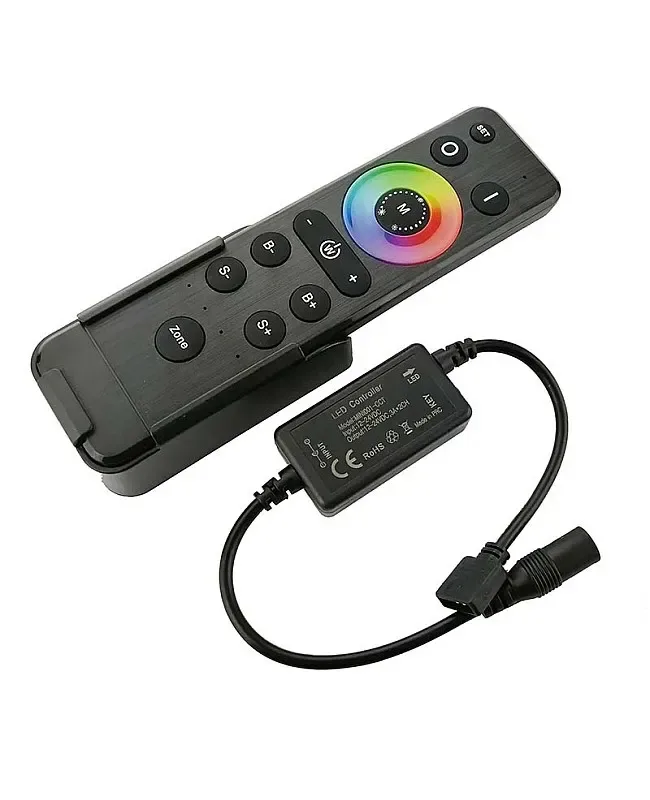

Includes
1 * Mini Wireless LED Controller
1 * Remote
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
