IR Waterproof LED Controller
LumaCircuit offers IR Waterproof LED Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 90mm*70mm*28mm(L*W*H) Working temperature: -20-60℃ Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 6 keys IR waterproof LED controller adopts the advanced micro control unit, the installer can use it for controlling a variety of LED Lights whose light source is LED, point source of light, flexible light strips, wall washer lamp, glass curtain wall light, and so on. The IR LED controller with a 3-output-channel design has a max loading power of up to 288W when working in DC24V. The LED Controller has 6 buttons to select the working modes, adjust the brightness of static colors, or the speed of dynamic modes.
- Size: 90mm*70mm*28mm(L*W*H)
- Working temperature: -20-60℃
- Connecting Mode: Common Anode
- Static power consumption: <1W
- Working Voltage: DC12V-DC24V
- Output Current: <4A(Each Channel)
- Power: DC12V: ≤144W 24V: ≤288W
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- LumaCircuit model: LC-CTL-AW8KKI
- Size: 90mm*70mm*28mm(L*W*H)
- Working temperature: -20-60℃
- Connecting Mode: Common Anode
- Static power consumption: <1W
- Output Channels: 3
- Working Voltage: DC12V-DC24V
- Output Current: <4A(Each Channel)
- Current: ≤3*4A
- Power: DC12V: ≤144W 24V: ≤288W
- Dimensions found: 90mm / 70mm / 28mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

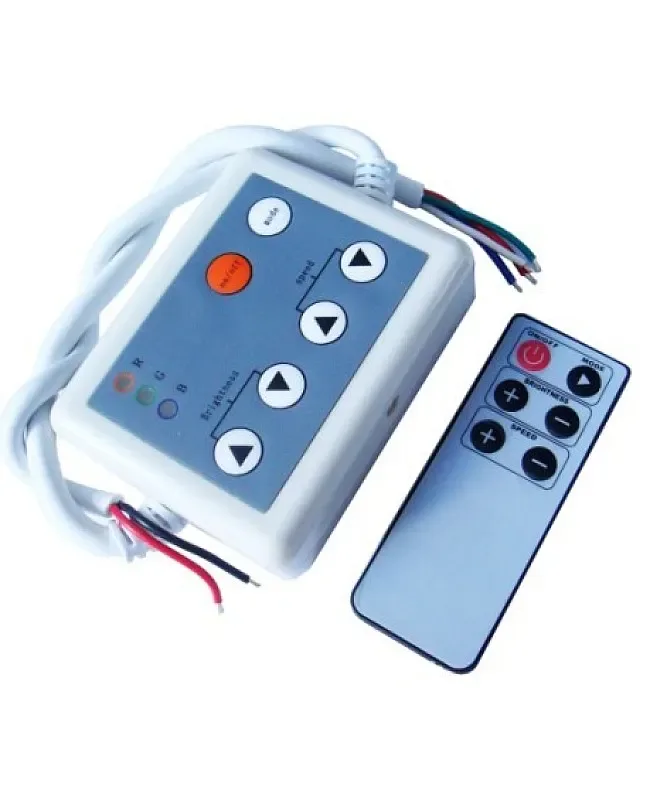

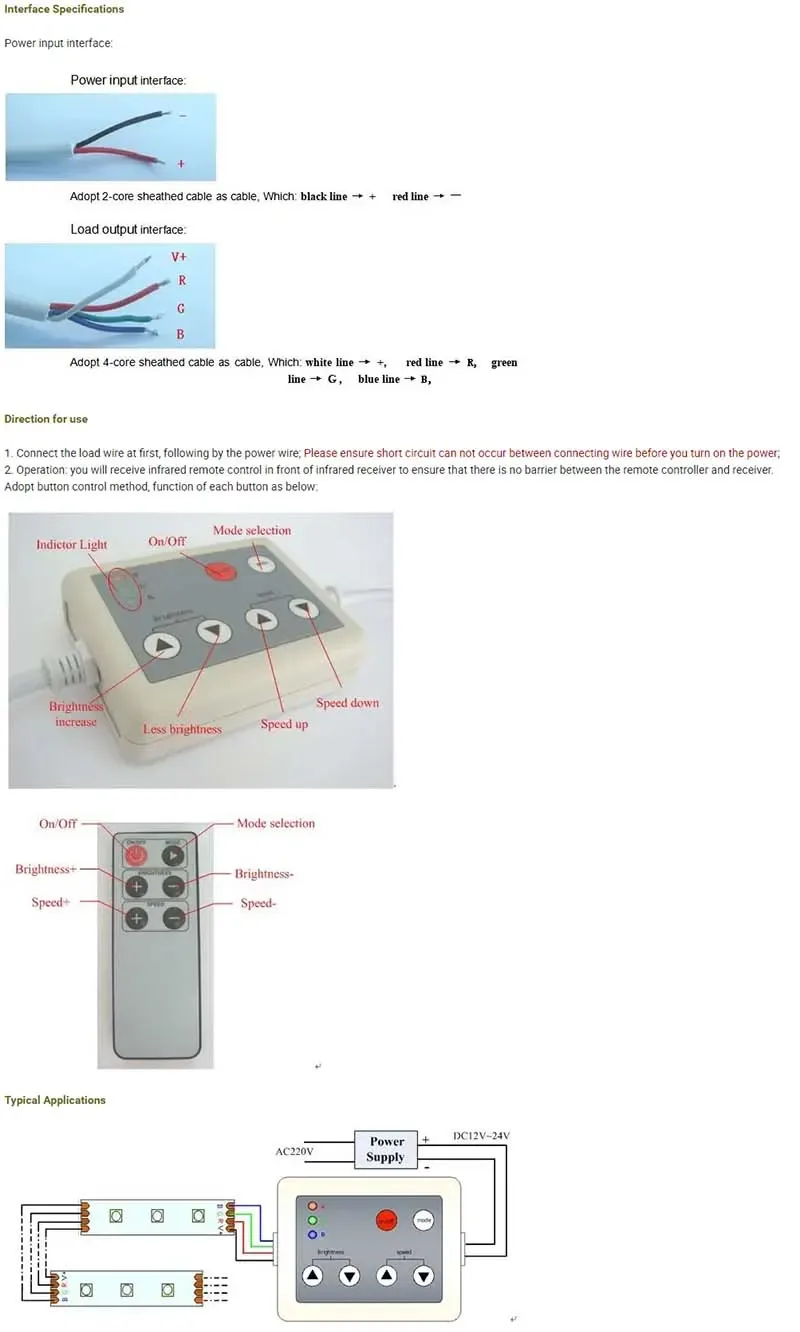

The 6 keys IR waterproof LED controller adopts the advanced micro control unit, the installer can use it for controlling a variety of LED Lights whose light source is LED, point source of light, flexible light strips, wall washer lamp, glass curtain wall light, and so on. The IR LED controller with a 3-output-channel design has a max loading power of up to 288W when working in DC24V. The LED Controller has 6 buttons to select the working modes, adjust the brightness of static colors, or the speed of dynamic modes. The installer can also use the IR LED remote control to choose the working modes and adjust the brightness or speed of dynamic modes remotely.
Specifications
TY-L-C-005
Size: 90mm*70mm*28mm(L*W*H)
Working temperature: -20-60℃
Connecting Mode: Common Anode
Static power consumption: <1W
Output Channels: 3
Working Voltage: DC12V-DC24V
Output Current: <4A(Each Channel)
Current: ≤3*4A
Power: DC12V: ≤144W 24V: ≤288W
6 Keys Infrared Included
The LED Controller With 6 Physical Buttons To Adjust The Brightness And Speed
Weight: 215g
1 * Waterproof LED Controller
1 * LED Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
