IR RGB LED Light Controller
LumaCircuit offers IR RGB LED Light Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 130 mm*64 mm*24 mm Working temperature: -20-60℃ Static power consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.

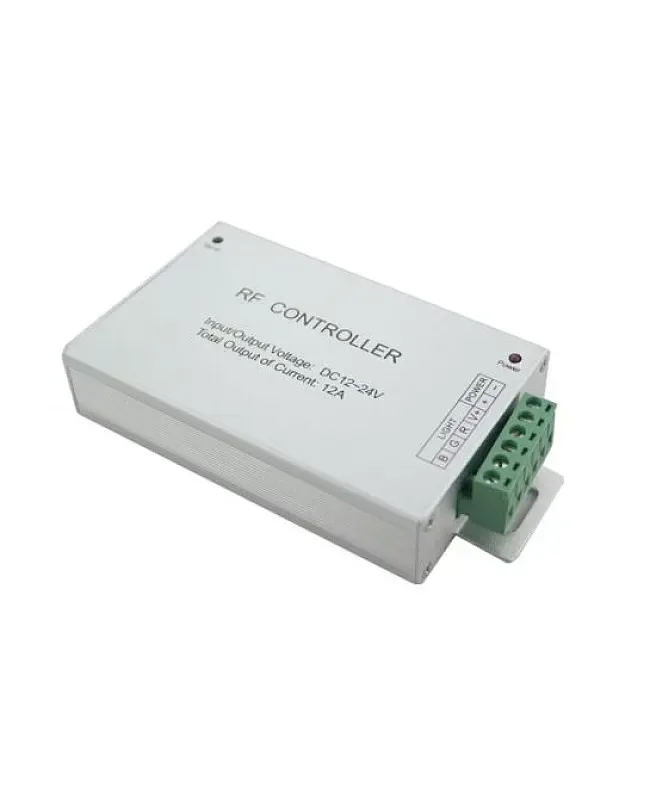

Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

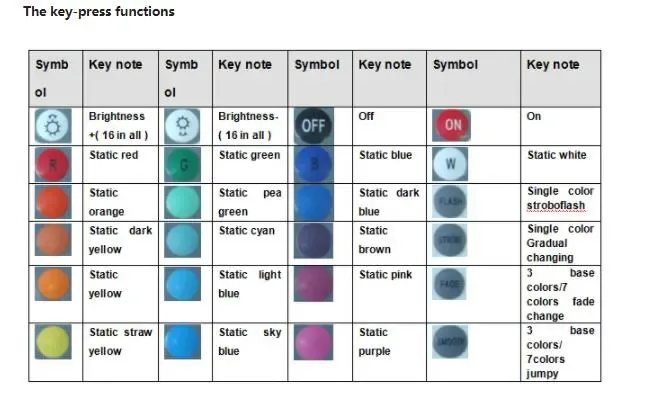

- The IR RGB LED light controller with 24 24-key IR remote and an aluminum shell for better heat dissipation, adopts an advanced micro control unit, with a 3-output-channel design, the max output current of each channel up to 4A, working in DC12V or DC24V. The LED light controller allows 20 modes in total, 16 static colors, and four dynamic changes. The installer can adjust the static color's brightness or change the dynamic mode's speed.
- Size: 130 mm*64 mm*24 mm
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working Voltage: DC12V-DC24V
- Max Current Of Each Channel: ≤4A
- Power: DC12V: ≤144W; 24V: ≤288W
- Connecting Mode: Common Anode
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- LumaCircuit model: LC-CTL-G60B1I
- Size: 130 mm*64 mm*24 mm
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working Voltage: DC12V-DC24V
- Output Channels: 3
- Max Current Of Each Channel: ≤4A
- Power: DC12V: ≤144W; 24V: ≤288W
- Connecting Mode: Common Anode
- Dimensions found: 130 mm / 64 mm / 24 mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

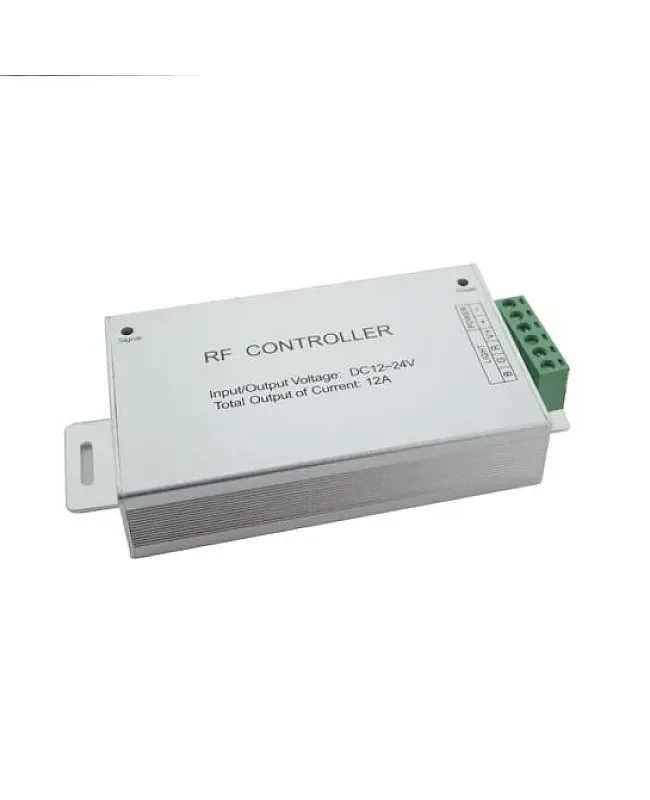

Product overview

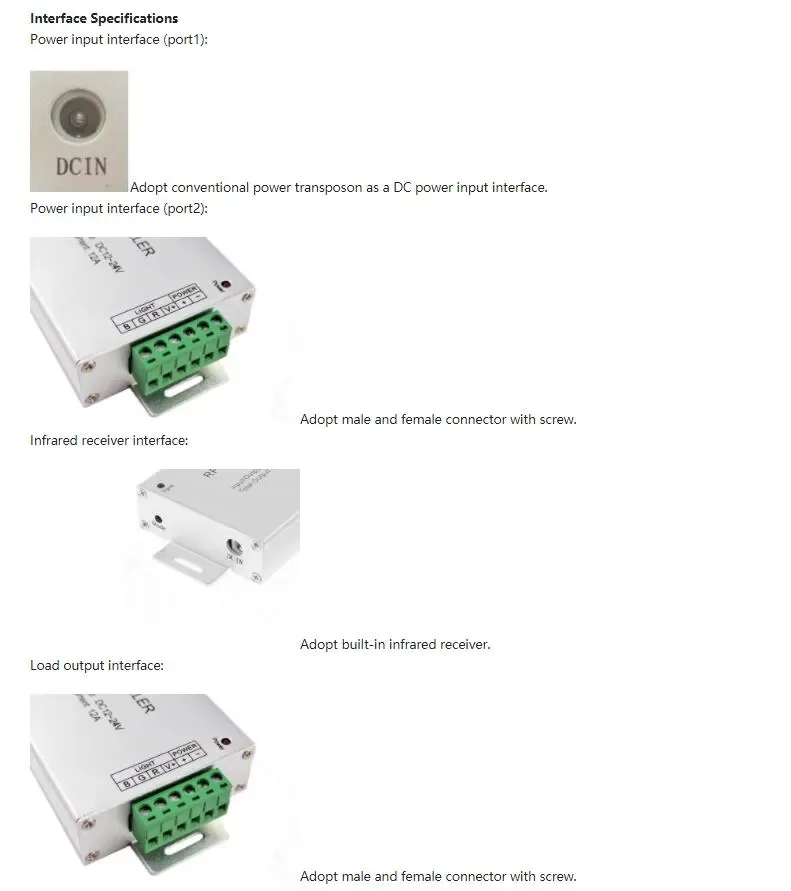

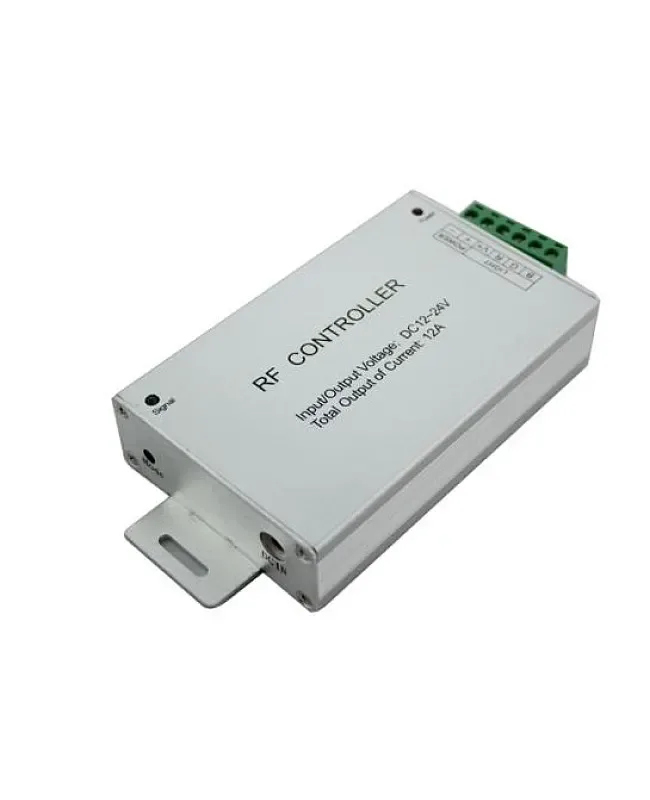

The IR RGB LED light controller with 24 24-key IR remote and an aluminum shell for better heat dissipation, adopts an advanced micro control unit, with a 3-output-channel design, the max output current of each channel up to 4A, working in DC12V or DC24V. The LED light controller allows 20 modes in total, 16 static colors, and four dynamic changes. The installer can adjust the static color's brightness or change the dynamic mode's speed. With female DC connector and male and female connector with screws, easy to connect to the LED power supply and RGB LED light strips.
Specifications
TY-L-C-004
Manufacturer: TYoung
Size: 130 mm*64 mm*24 mm
Working temperature: -20-60℃
Static power consumption: <1W
Working Voltage: DC12V-DC24V
Output Channels: 3
Max Current Of Each Channel: ≤4A
Power: DC12V: ≤144W; 24V: ≤288W
Connecting Mode: Common Anode
Weight: 215g

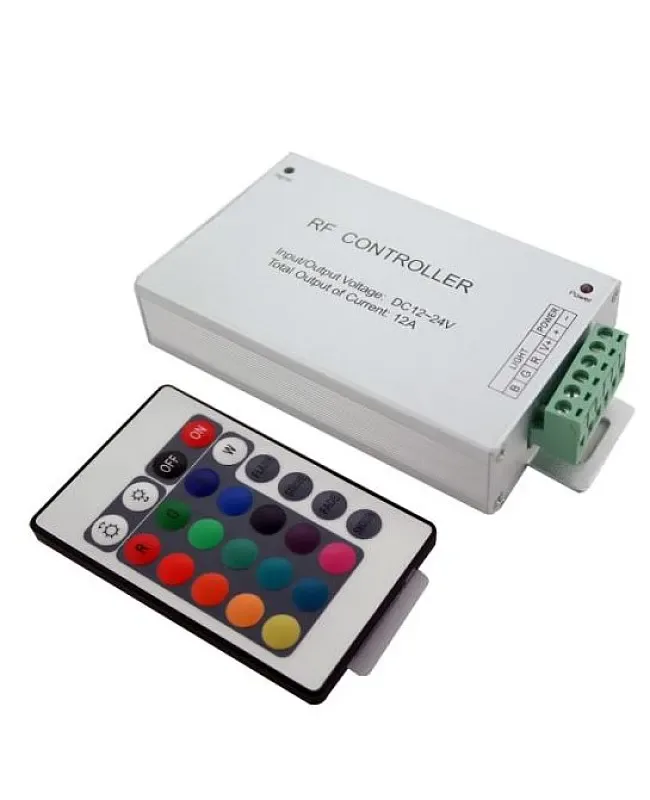

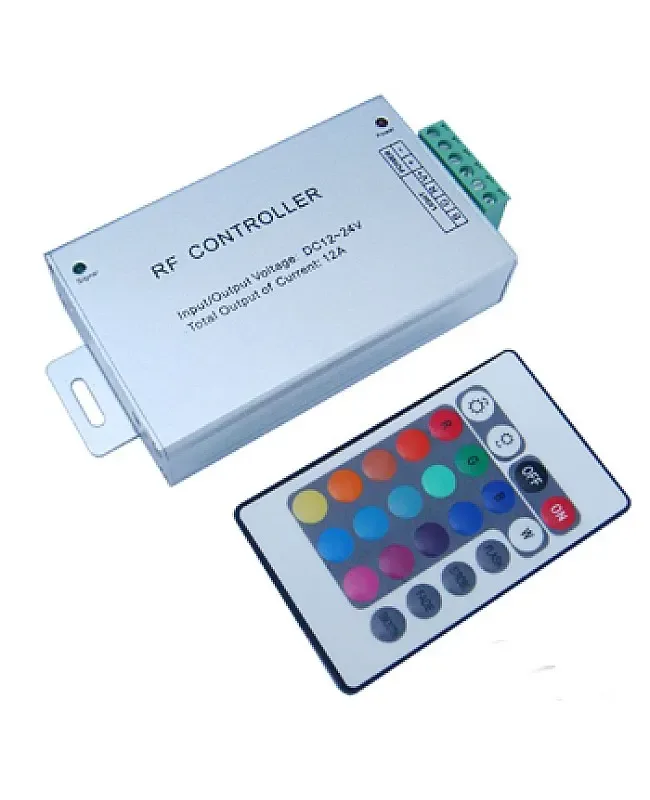

1 * IR RGB LED Light Controller
1 * Remote

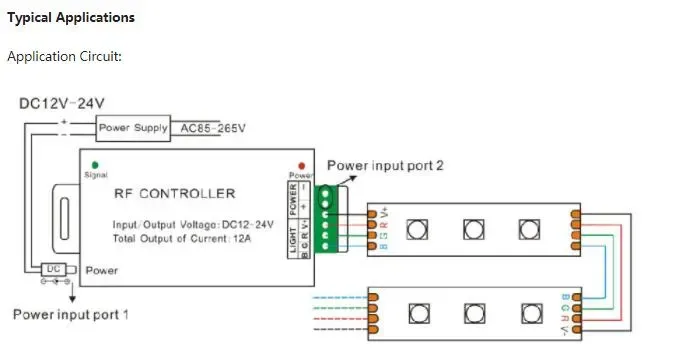

Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
