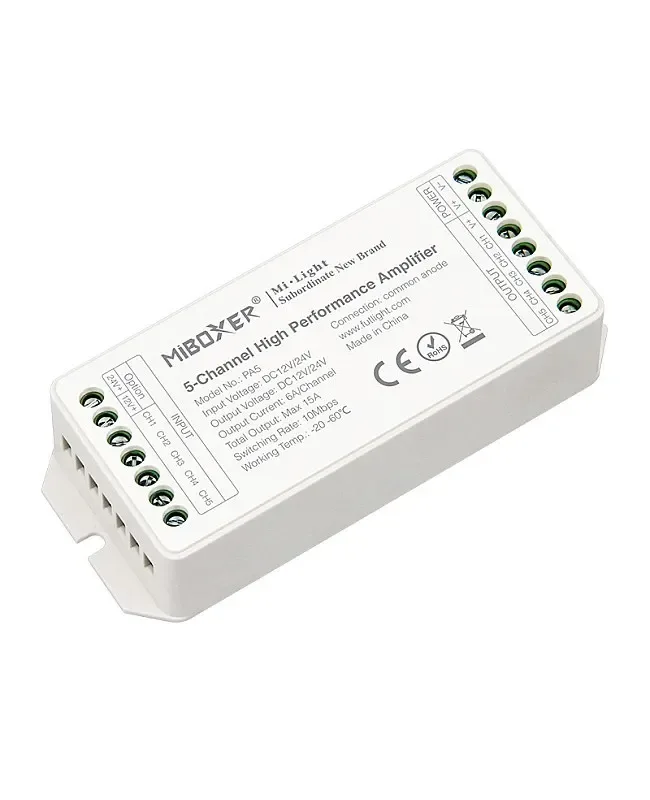

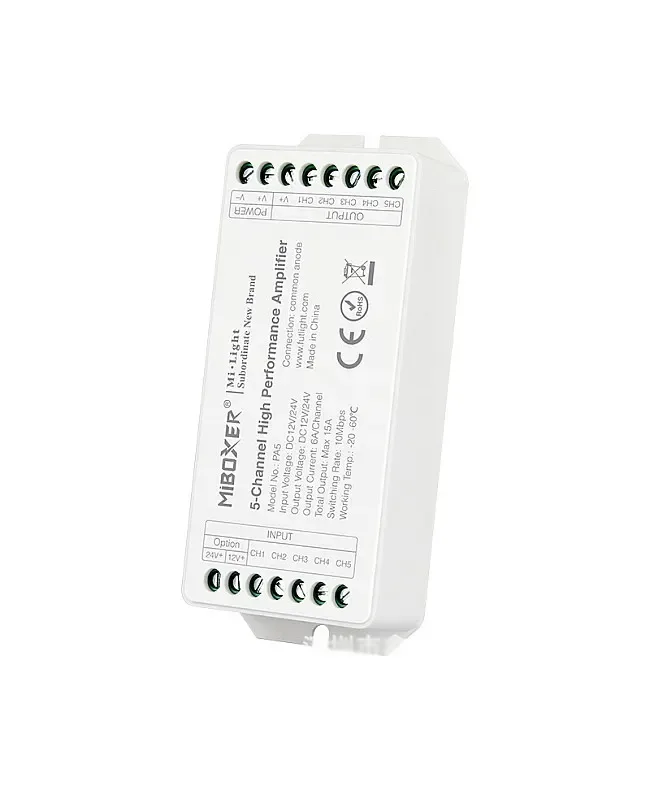

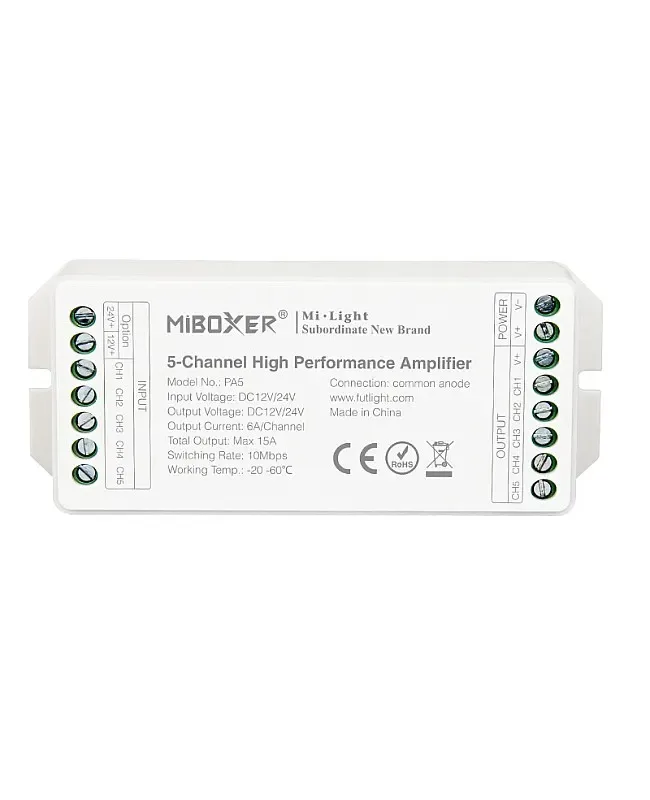

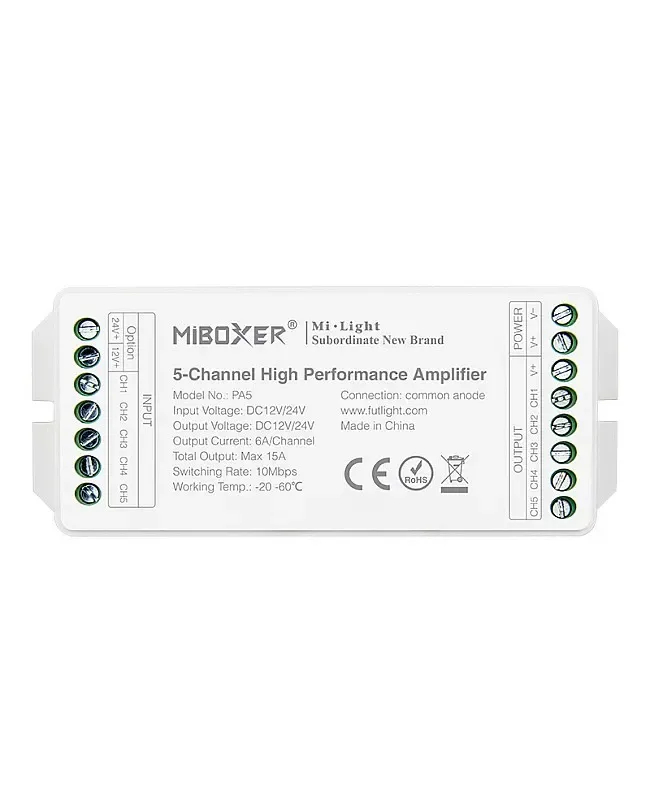

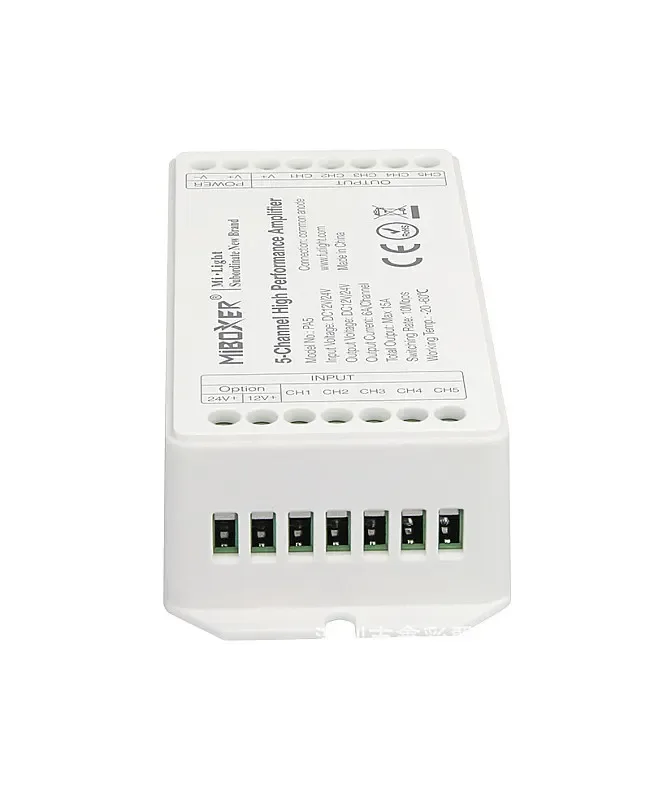

5 Channels High Performance LED RGB Amplifier
LumaCircuit offers 5 Channels High Performance LED RGB Amplifier as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 115*48*27mm(L*W*H) Input Voltage: DC12V/DC24V Output Voltage: DC12V/DC24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller LED RGB amplifier has a five-channel design. The installer can use them for RGB, RGBW, RGBWW, and RGB+CCT LED strips. The adopts a high-speed optical coupler with a 10 Mbps output rate, which can output the signal of the main controller altogether and synchronously. The input and output are with optoelectronic isolation. Theoretically, the installer can add unlimited wireless controller amplifiers to your lighting project and let all LED strips simultaneously change the lighting effect.
- Size: 115*48*27mm(L*W*H)
- Input Voltage: DC12V/DC24V
- Output Voltage: DC12V/DC24V
- Max Output Current: 6A/Channel
- Connection: Common Anode
- Compatible With 2.4 GHz wireless/wireless controller Series Controllers And All Other PWM LED Controllers
- Working Temperature: -20℃-+60℃
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB+CCT
- Size: 115*48*27mm(L*W*H)
- Input Voltage: DC12V/DC24V
- Output Voltage: DC12V/DC24V
- Max Output Current: 6A/Channel
- Total Output Max: 15A
- Working Temperature: -20℃-+60℃
- LumaCircuit model: LC-CTL-EJYPFM
- Dimensions found: 115x48x27mm / 27mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

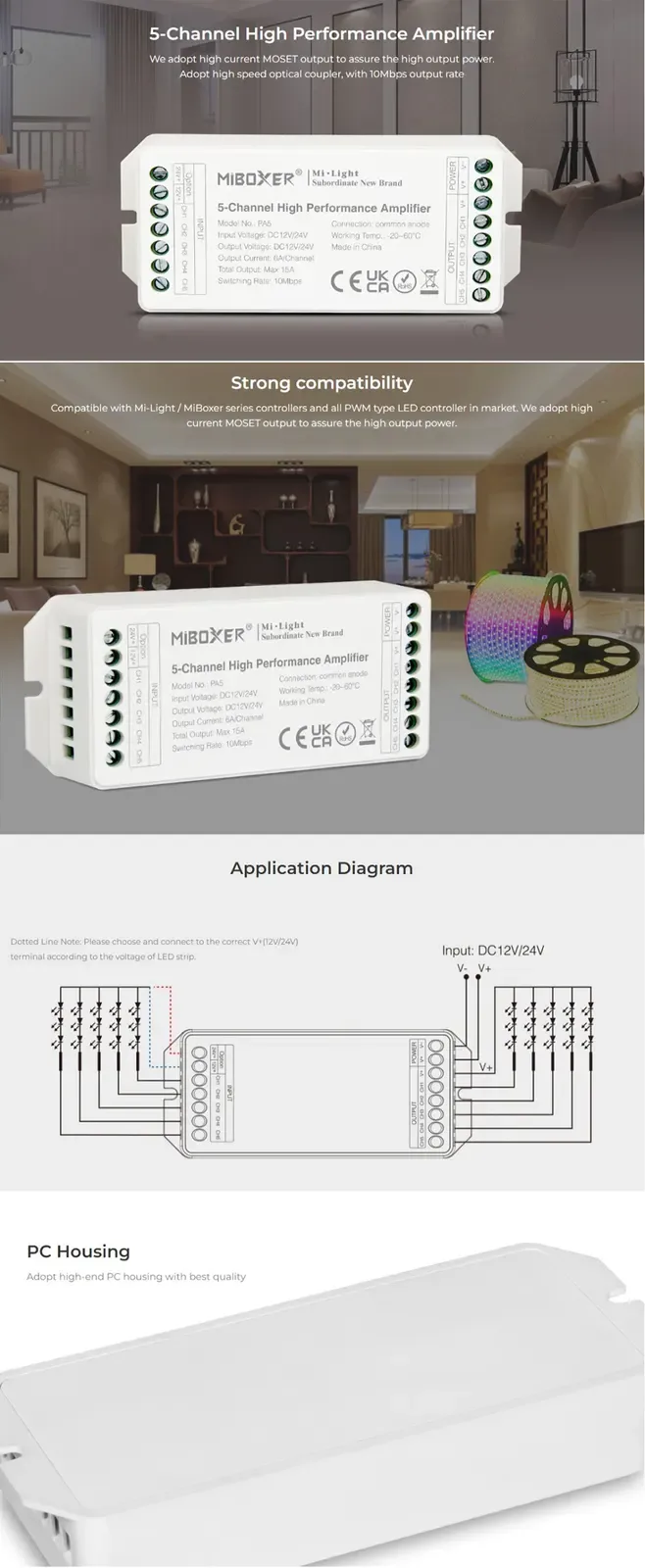

The wireless controller LED RGB amplifier has a five-channel design. The installer can use them for RGB, RGBW, RGBWW, and RGB+CCT LED strips. The adopts a high-speed optical coupler with a 10 Mbps output rate, which can output the signal of the main controller altogether and synchronously. The input and output are with optoelectronic isolation. Theoretically, the installer can add unlimited wireless controller amplifiers to your lighting project and let all LED strips simultaneously change the lighting effect. The wireless controller amplifier works on all PWM series LED controllers, which are made with a big current MOSFET to ensure a high rate of output. The installer can connect twice as many LEDs every time you add one more amplifier.
Quick Links
wireless controller Manual
Specifications
Size: 115*48*27mm(L*W*H)
Input Voltage: DC12V/DC24V
Output Voltage: DC12V/DC24V
Max Output Current: 6A/Channel
Total Output Max: 15A
Switching Rate
Connection: Common Anode
Compatible With 2.4 GHz wireless/wireless controller Series Controllers And All Other PWM LED Controllers
Working Temperature: -20℃-+60℃
For Single Color, Dual White, RGB, RGBW, RGB+CCT LED Strips
Includes
1 * Signal Amplifier
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
