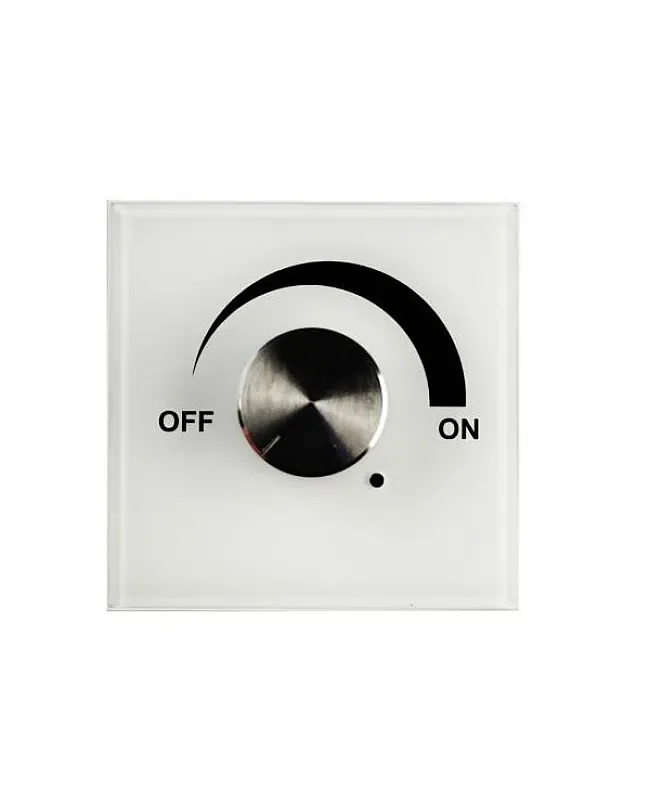

0 10V Knob Wall Panel LED Dimmer
LumaCircuit offers 0 10V Knob Wall Panel LED Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. The input voltage is AC 90-265V and does not require an adapter. The output voltage is 0-10V, the maximum output current is and multiple LED lamps can be connected in parallel. Knob design, simple operation, and fashionable appearance. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

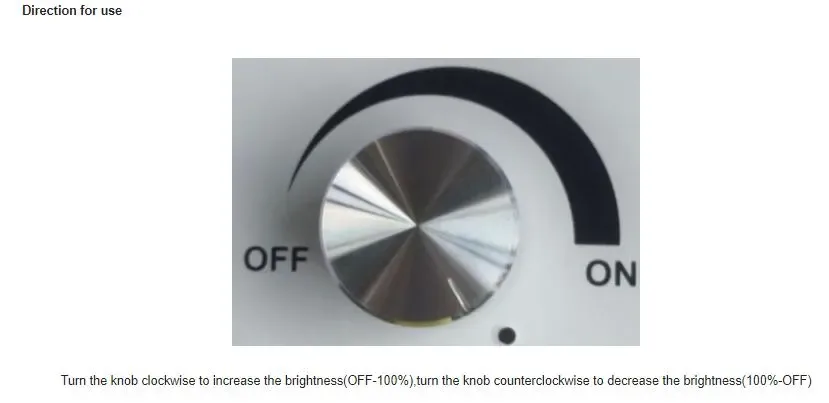

- this is a high-quality 0-10V wall-mounted light dimmer that is designed for precise brightness control of compatible LED drivers and fixtures. The output is a 0-10V analog signal, compatible with various 0-10V LED controllers and LED drivers. It features a knob-style interface that allows for smooth, flicker-free dimming from full brightness down to low-level lighting. Turn the knob clockwise to increase the brightness (OFF-100%), and turn the knob counterclockwise to decrease the brightness (100%-OFF).
- The input voltage is AC 90-265V and does not require an adapter.
- The output voltage is 0-10V, the maximum output current is and multiple LED lamps can be connected in parallel.
- Knob design, simple operation, and fashionable appearance.
- The structure and dimensions are in accordance with the 86-type European standards.
- Short-circuit protection design with automatic recovery after the short-circuit fault is removed.

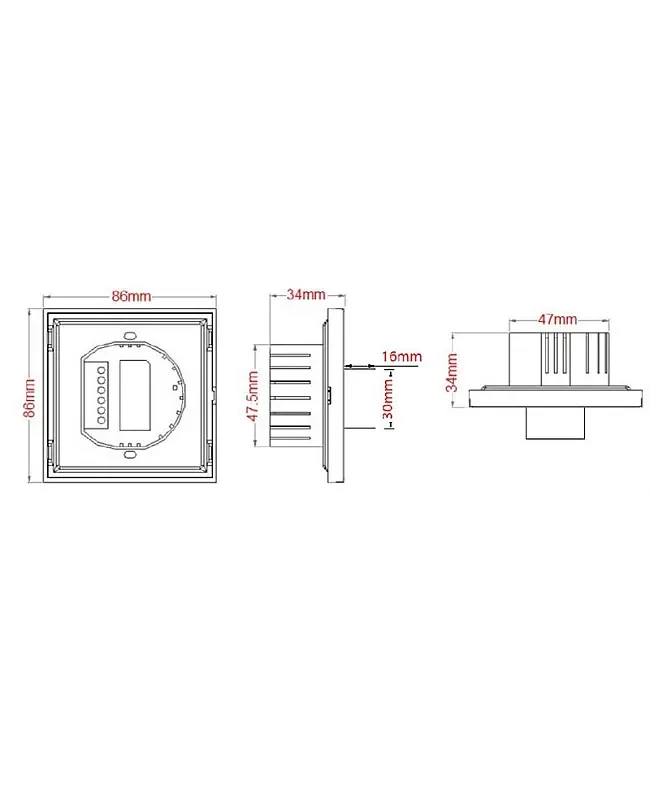

- Size ( L x W x H ): 86 mm x 86 mm x 50 mm ( 3.39" x 3.39" x 1.97" )
- Input voltage: AC 90 V - 265 V
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V
- LumaCircuit model: LC-CTL-TMTFWZ
- Size ( L x W x H ): 86 mm x 86 mm x 50 mm ( 3.39" x 3.39" x 1.97" )
- Input voltage: AC 90 V - 265 V
- Standby power: < 0.3W
- Max input power: < 1.8W
- Output voltage: 0 - 10V
- Max output current: 100 mA
- Max supply current: < 0.04A
- Recommend work with the light dim controller: ( 0-10V )
- Working temperature: -20-60℃
- Dimensions found: 86 mm / 50 mm

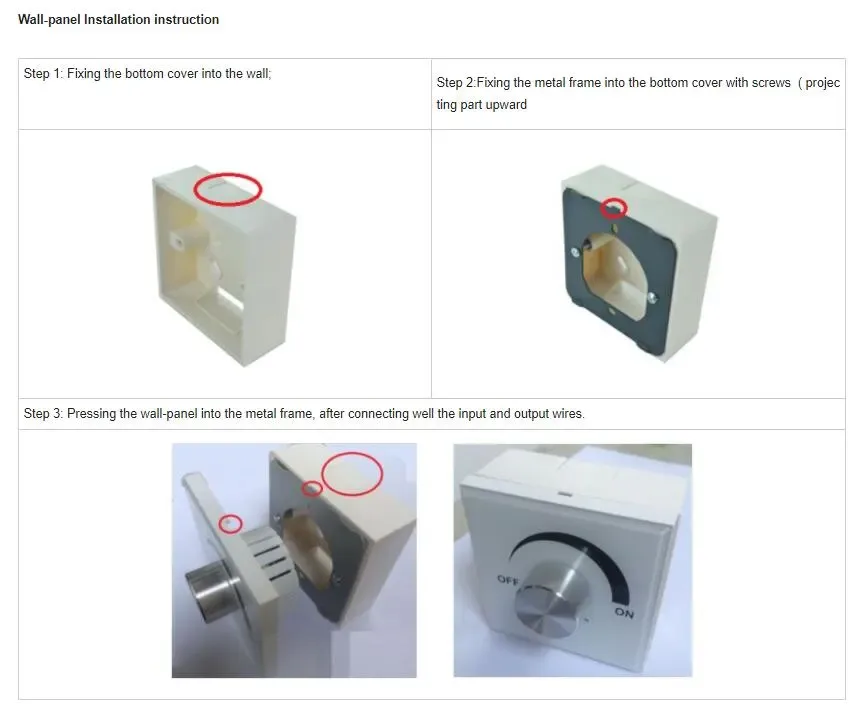

Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

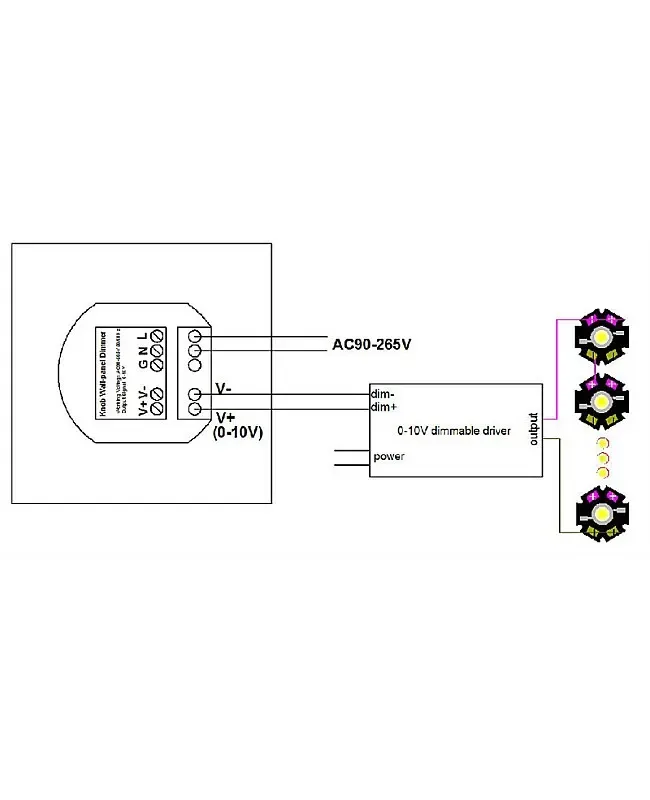

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
this is a high-quality 0-10V wall-mounted light dimmer that is designed for precise brightness control of compatible LED drivers and fixtures. The output is a 0-10V analog signal, compatible with various 0-10V LED controllers and LED drivers. It features a knob-style interface that allows for smooth, flicker-free dimming from full brightness down to low-level lighting. Turn the knob clockwise to increase the brightness (OFF-100%), and turn the knob counterclockwise to decrease the brightness (100%-OFF). Making it suited to both residential and commercial applications. With its standard 86-type wall panel design, they can be easily installed in place of a conventional switch, blending seamlessly into modern interiors.
Features
The input voltage is AC 90-265V and does not require an adapter.
The output voltage is 0-10V, the maximum output current is and multiple LED lamps can be connected in parallel.
Knob design, simple operation, and fashionable appearance.
The structure and dimensions are in accordance with the 86-type European standards.
Short-circuit protection design with automatic recovery after the short-circuit fault is removed.
Specifications
Model

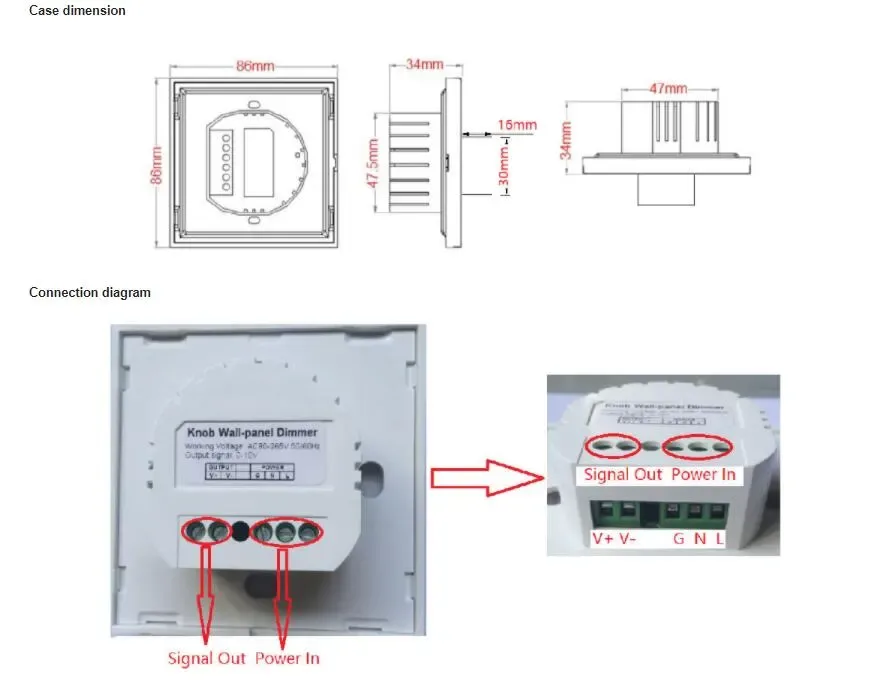

Size ( L x W x H ): 86 mm x 86 mm x 50 mm ( 3.39" x 3.39" x 1.97" )
Input voltage: AC 90 V - 265 V
Standby power: < 0.3W
Max input power: < 1.8W
Output voltage: 0 - 10V
Max output current: 100 mA
Max supply current: < 0.04A
Recommend work with the light dim controller: ( 0-10V )

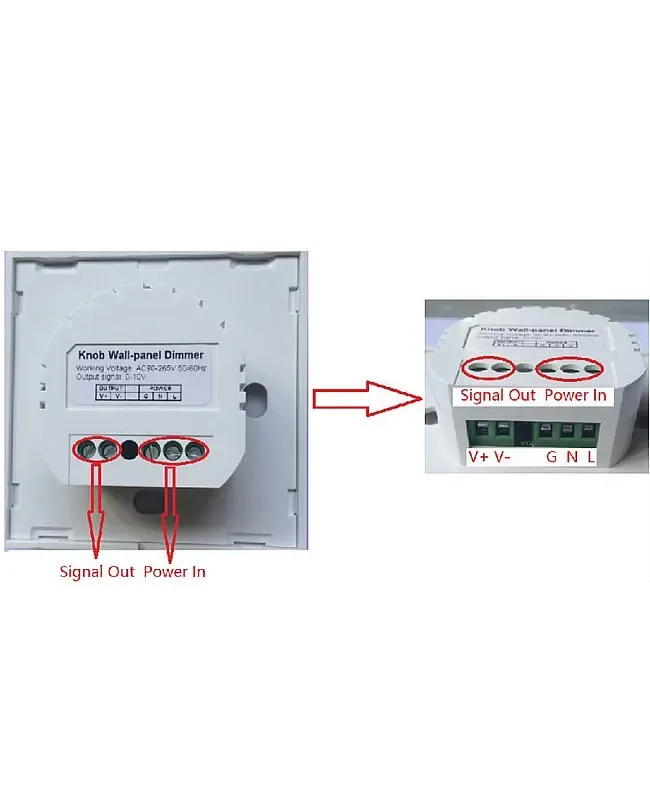

Connection: Wiring terminal
Short circuit protection
Working temperature: -20-60℃
1 * Wall panel 0-10V LED dimmer

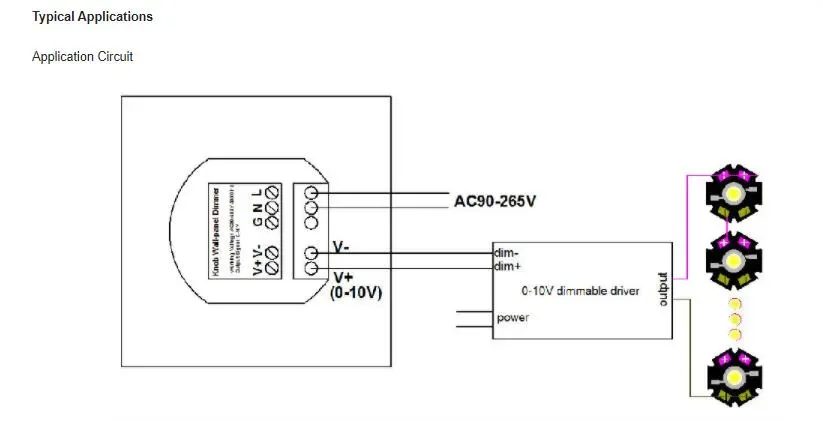

Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
