Product details
5 In 1 30A RF Lighting Controller
LumaCircuit offers 5 In 1 30A RF Lighting Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Type: 2.4G RF 5 IN 1 Controller Model: (2.4G)/(2.4G+WiFi) Size: 134*81*24mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller is a 5 in 1 RF lighting controller for single color, dual white, RGB, RGBW, and RGBWW strip lights. The max output current is 30A, which can support more LED lights. It adopts the widely used 2.4G wireless technology, low power consumption, long signal transmitting distance, and strong anti-interference. Compatible with wireless controller 2.4G remotes to choose the color and adjust the color temperature, brightness, and saturation for various scenes.
- Type: 2.4G RF 5 IN 1 Controller
- Model: (2.4G)/(2.4G+WiFi)
- Size: 134*81*24mm(L*W*H)
- Total Output: Max 30A(Max Output Current Of Each Channel: 15A)
- 16 Million Colors To Choose
- Color Temperature Adjustable
- Dim Brightness/Saturation
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- LumaCircuit model: LC-CTL-T0UMP1
- Size: 134*81*24mm(L*W*H)
- Input Voltage: -48V
- Output: 15A/Channel
- Total Output: Max 30A(Max Output Current Of Each Channel: 15A)
- Control Distance: ≤30m
- Compatible With MiBore RF Remotes: +
- Output Connection: Common Anode
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- Dimensions found: 134x81x24mm / 24mm / 30m
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

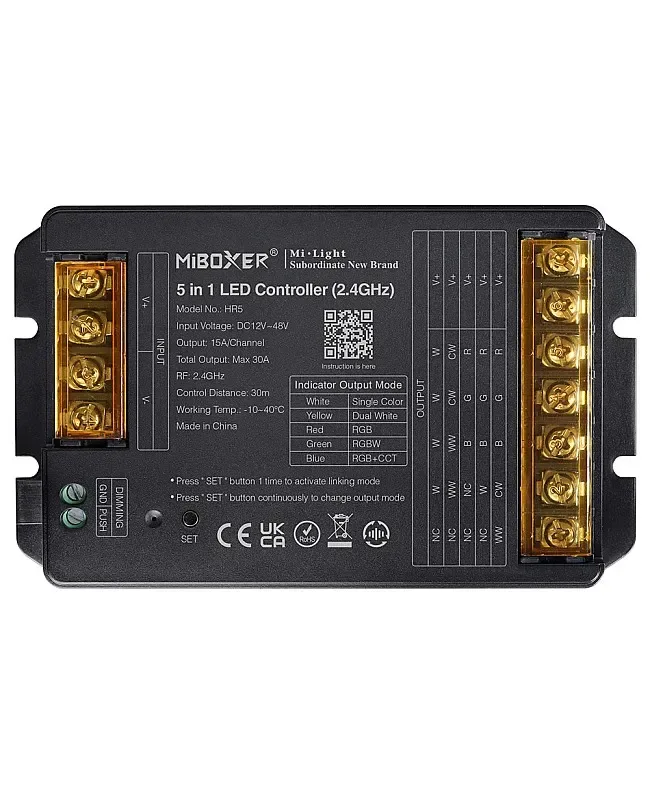

The wireless controller is a 5 in 1 RF lighting controller for single color, dual white, RGB, RGBW, and RGBWW strip lights. The max output current is 30A, which can support more LED lights. It adopts the widely used 2.4G wireless technology, low power consumption, long signal transmitting distance, and strong anti-interference. Compatible with wireless controller 2.4G remotes to choose the color and adjust the color temperature, brightness, and saturation for various scenes. With an auto-transmitting and auto-synchronizing design, one controller will transmit the signal from the remote to another within 30 meters, and all of them will synchronize. After pairing with a 2.4G gateway, the Tuya smartphone APP and third-party voice commands can control the controllers. It supports Amazon Alexa and Google Assistant. There is a small physical button on the controller. Press it to switch the output mode from brightness, CCT, RGB, RGBW, and RGBWW output modes. There are 5 In 1 WiFi Tuya LED controllers available.
Specifications
Type: 2.4G RF 5 IN 1 Controller
Model: (2.4G)/(2.4G+WiFi)

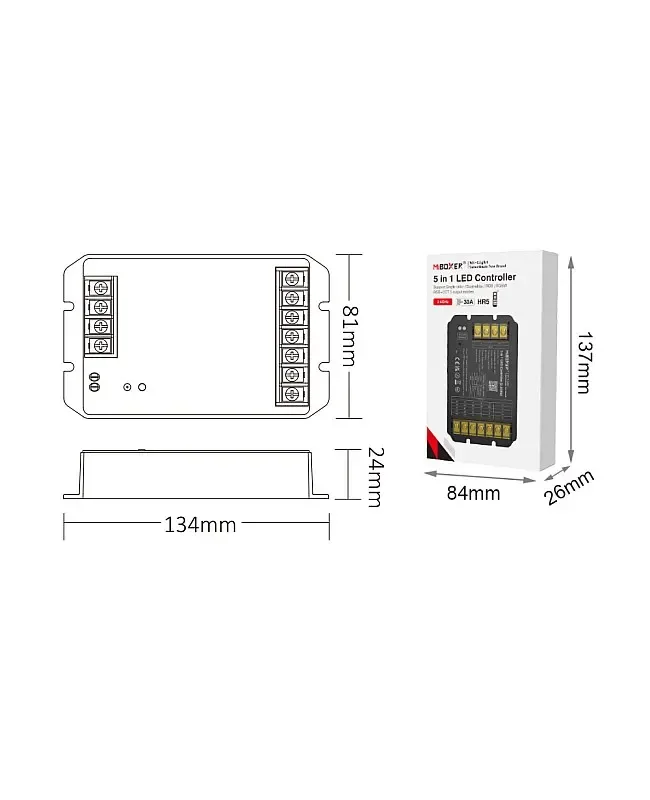

Size: 134*81*24mm(L*W*H)
Input Voltage: -48V
Output: 15A/Channel
Total Output: Max 30A(Max Output Current Of Each Channel: 15A)
16 Million Colors To Choose
Color Temperature Adjustable
Dim Brightness/Saturation
Auto Transmitting & Synchronization
Control Distance: ≤30m
Compatible With MiBore RF Remotes +
Support Tuya Smart APP Control(2.4G Gateway Needed)
Support Third Party Voice Control(Amazon Alexa And Google Assistant)(2.4G Gateway Needed)
Output Connection: Common Anode
Support Push Dimming

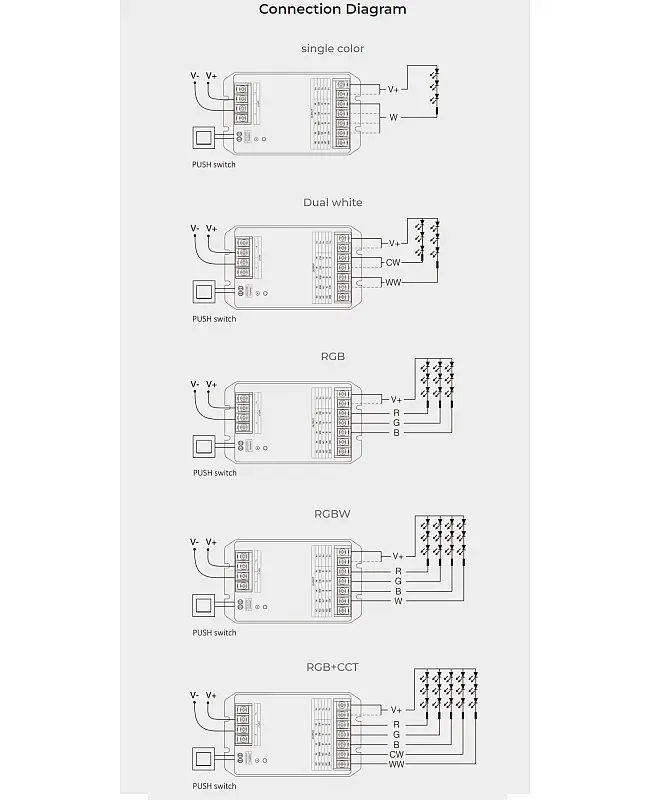

Switch 5 Output Modes Via One Physical Button(Single Color/Dual White/RGB/RGBW/RGB+CCT)
DMX Control(Only 5 Channel Output, And Signal Transmitter Needed)
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes

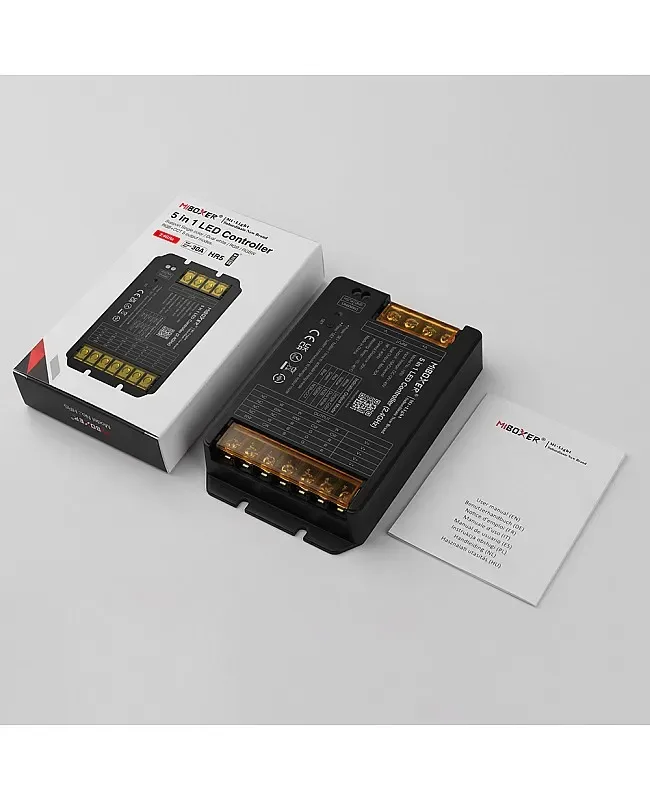

1 * 30A Lighting Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
